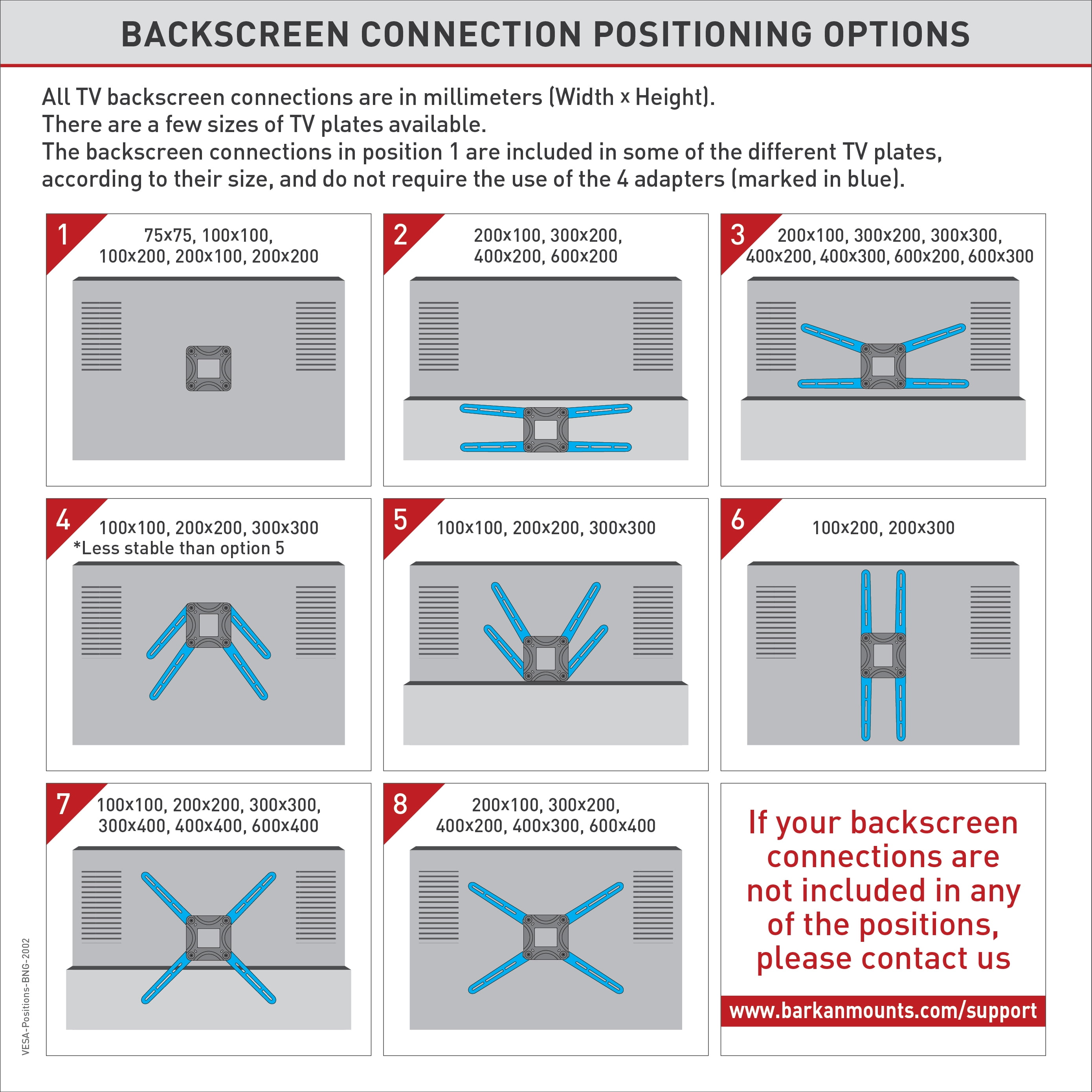

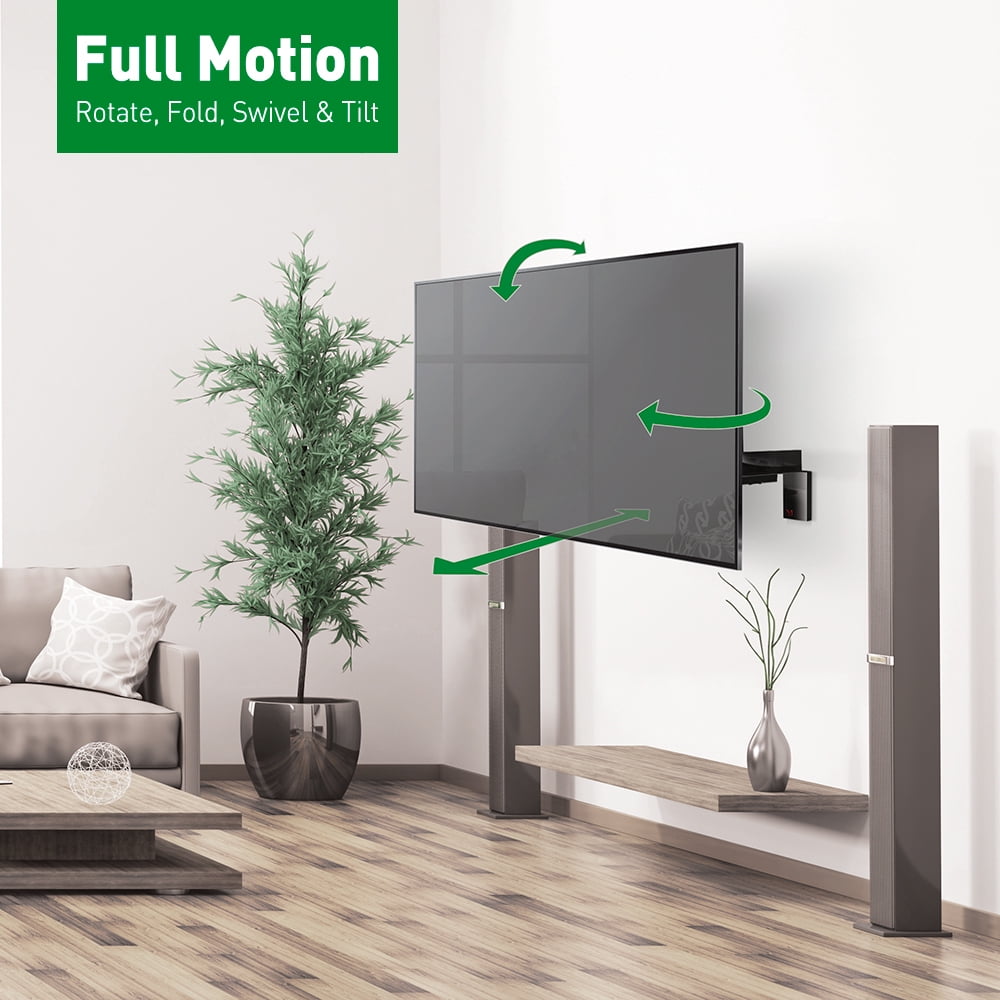

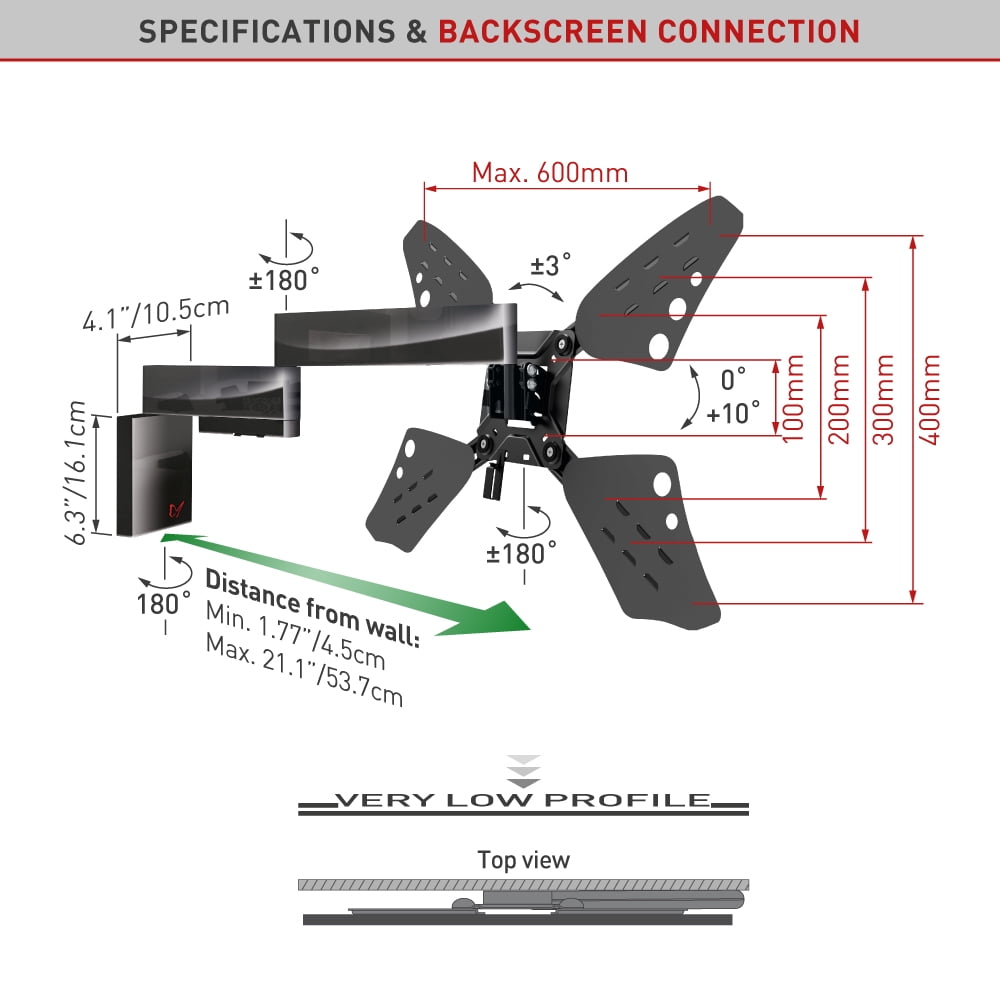

The Barkan 3400F is a Four – Movement TV Mount with rotate, fold, swivel, and tilt options. The mount fits both flat and curved screens 32 to 70 inches and weighs up to 88 lbs. The minimum distance between the mount and the wall is only 1.45 in., therefore, providing low profile mounting. The maximum distance is 21.1 in. It fits TVs with VESA standard (Bracket Mounting Holes Patterns) 100×100, 100×200, 200×100, 200×200, 300×300, 300×400, 400×300, 400×400, 600×400 mm and non VESA up to 600×400 mm. In order to offer a better point of view, the mount has three pivots: near the wall 180∞, foldable 360 &in fin;, swivel near the screen connection plate 180∞ , and also tool-free tilt from 0 till 10∞.
- Brand: Barkan
- Screen size: 70 in
- Weight: 11.5 lb
- Dimensions: 14.02 x 12.48 x 2.17 Inches
- Mount type: Full-Motion
- Max load: 88 lb
- Finish: Black
Detail

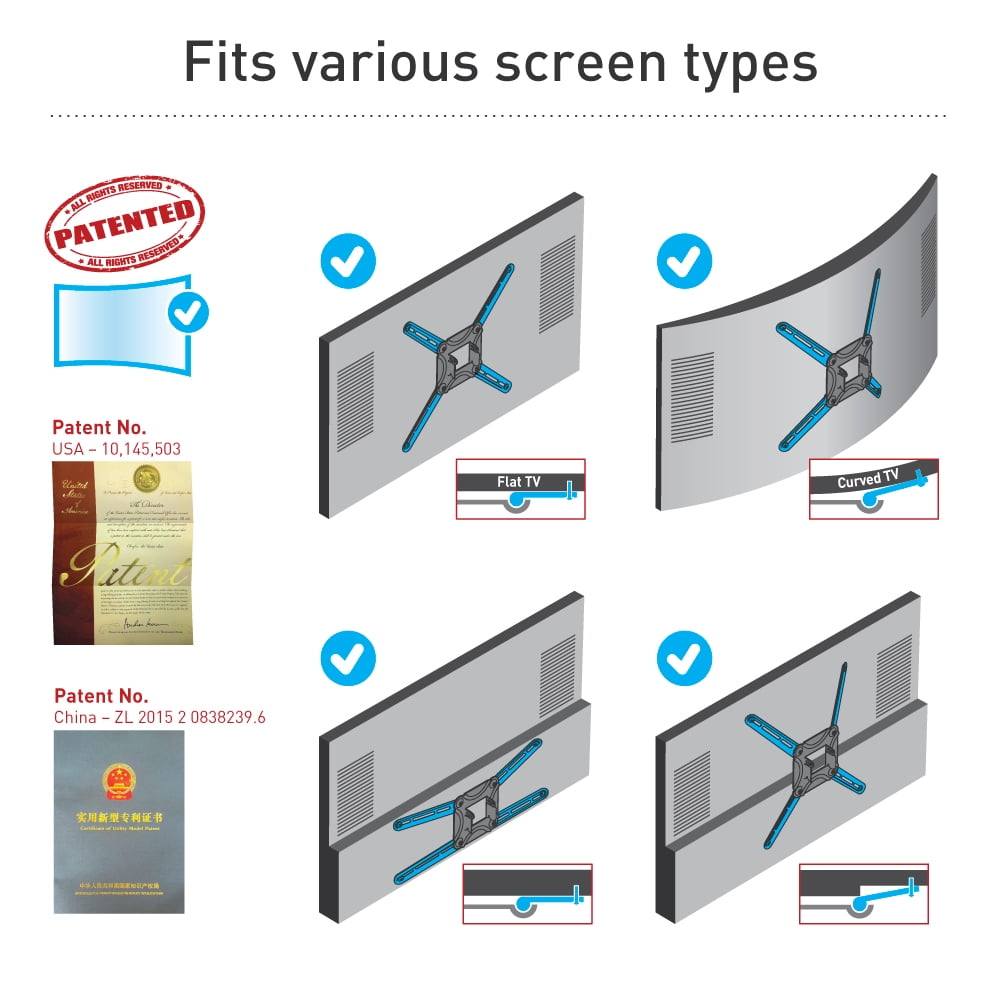

- Patented mechanism to fit both flat and curved screens
- The extremely long distance between the screen and the wall
Self Assembly:
- Install the bracket on the wall.
- Attach the adapter to the rear side of the electronic device.
- Snap the electronic device onto the bracket.

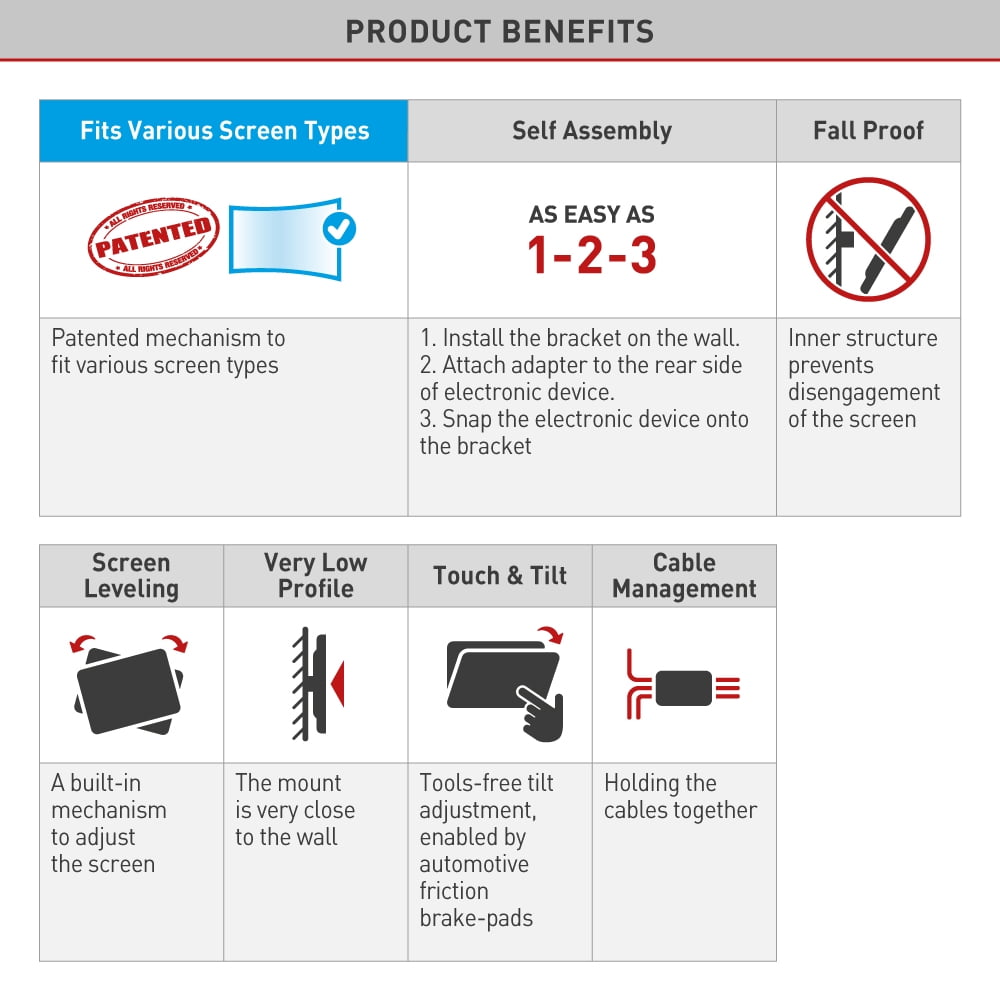

- Fall Proof – Inner structure prevents disengagement of the screen
- Touch & Tilt – Tool-free tilt adjustment
- Low Profile on closed position
- Extra Stability – Extra-wide wall plate for extra stability.

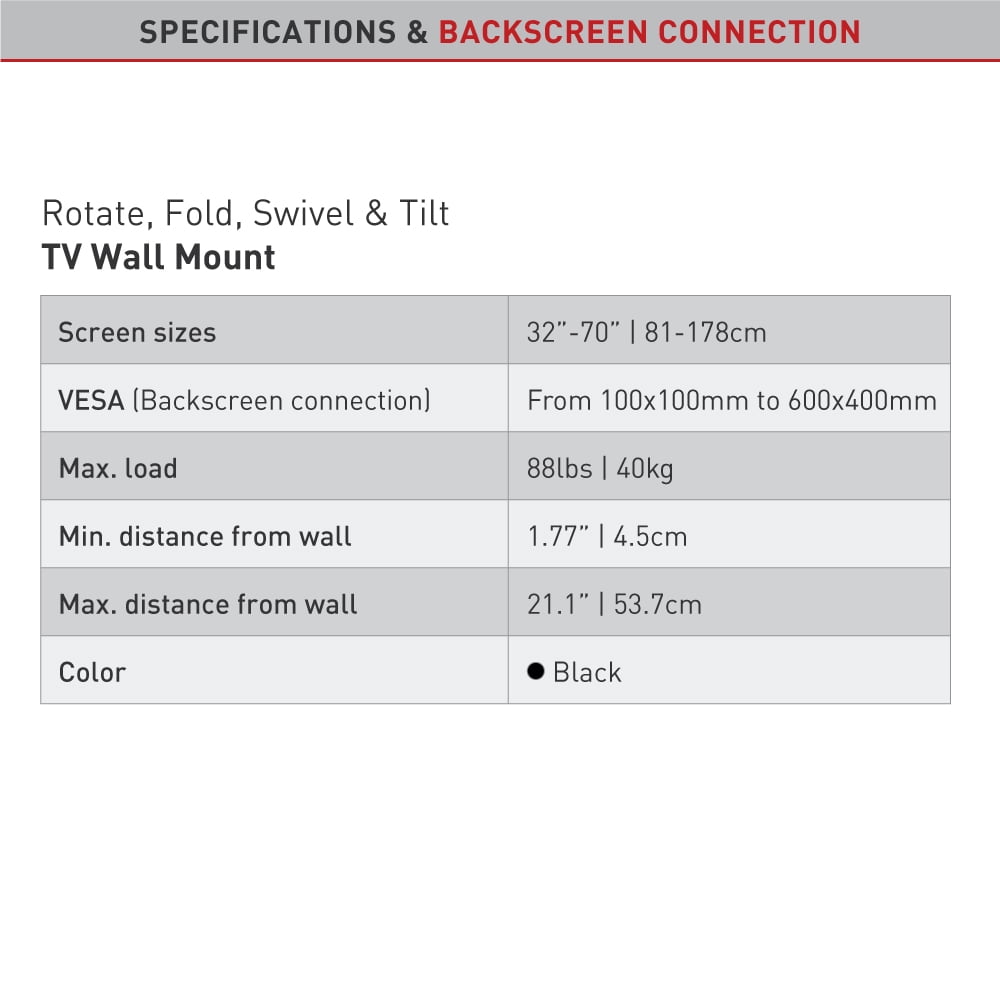

Specifications
- Color: Black
- Manufacturer Part Number: 3400F
- Assembled Product Weight: 11.5 lb
- Model: 3400F
- Brand: Barkan
- Manufacturer: Barkan Mounts
- Features: Space-Saving
- Assembled Product Dimensions (L x W x H): 14.02 x 12.48 x 2.17 Inches
