BENTISM Air Hydraulic Pump Foot Operated Pump 10000 PSI 98inA3 6.6ft Auto Body Shop
- Assembled Product Dimensions (L x W x H): 12.21 x 9.06 x 9.26 Inches
Product Description
10,000 PSI Air Hydraulic Pump
6.6 ft Oil Pipe & Premium Metal & Complete Accessories
NPT 1/4″ Air Inlet
This air hydraulic pump is designed with a standard NPT 1/4″ air inlet. We also provide an air inlet adapter and air nozzle for easy connection.
NPT 3/8″ Oil Outlet
With NPT 3/8″ oil outlet and a hydraulic coupler, you can quickly link the foot actuated hydraulic pump to any hydraulic-powered equipment.
Simple Foot Pedal Control
The hydraulic air pump features foot pedal control to provide hands-free operation for pumping and releasing the load. It saves time and effort due to its strong power and high output pressure.

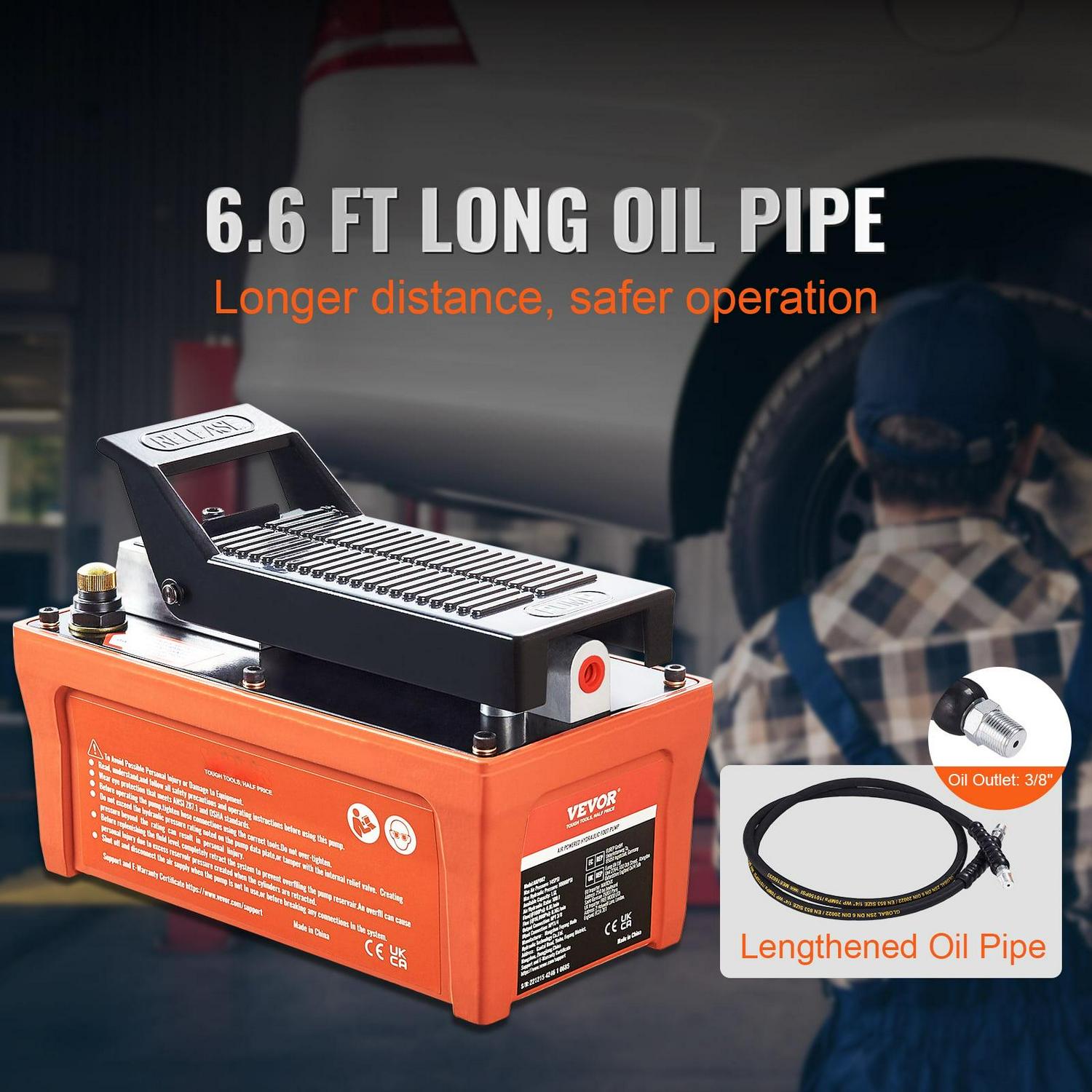

6.6 ft Hydraulic Oil Pipe
Our foot operated air/hydraulic pump comes with a 6.6 ft/2 m oil pipe long enough for large-scale projects. It has a dust-proof cap to prevent oil pipe plugging.

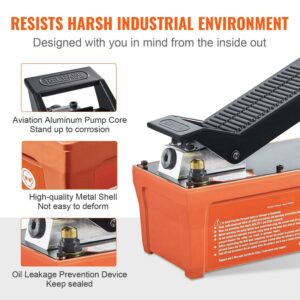

Built to Last
The air hydraulic foot pump core is made of high-quality aviation aluminum to resist compression, vibration, and corrosion. The durable metal shell provides enhanced protection to the internal structure.

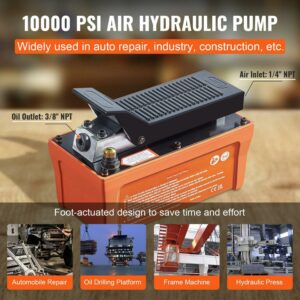

Use It Anywhere
This air over hydraulic pump is ideal for heavy machinery rigging and moving, as well as auto repair, oil rigging, and machine maintenance. It effectively powers your frame machine, hydraulic presses, etc.
Specifications
Model: NAP002
Maximum Output Pressure: 10,000 PSI
Input Air Pressure Range: 110 PSI-145 PSI
Air Inlet: NPT 1/4″
Oil Outlet: NPT 3/8″
Oil Tank Capacity: 98 in³/1.6 L
Hydraulic Pump Flow: 0.8 L/min (No-load); 0.16 L/min (Load)

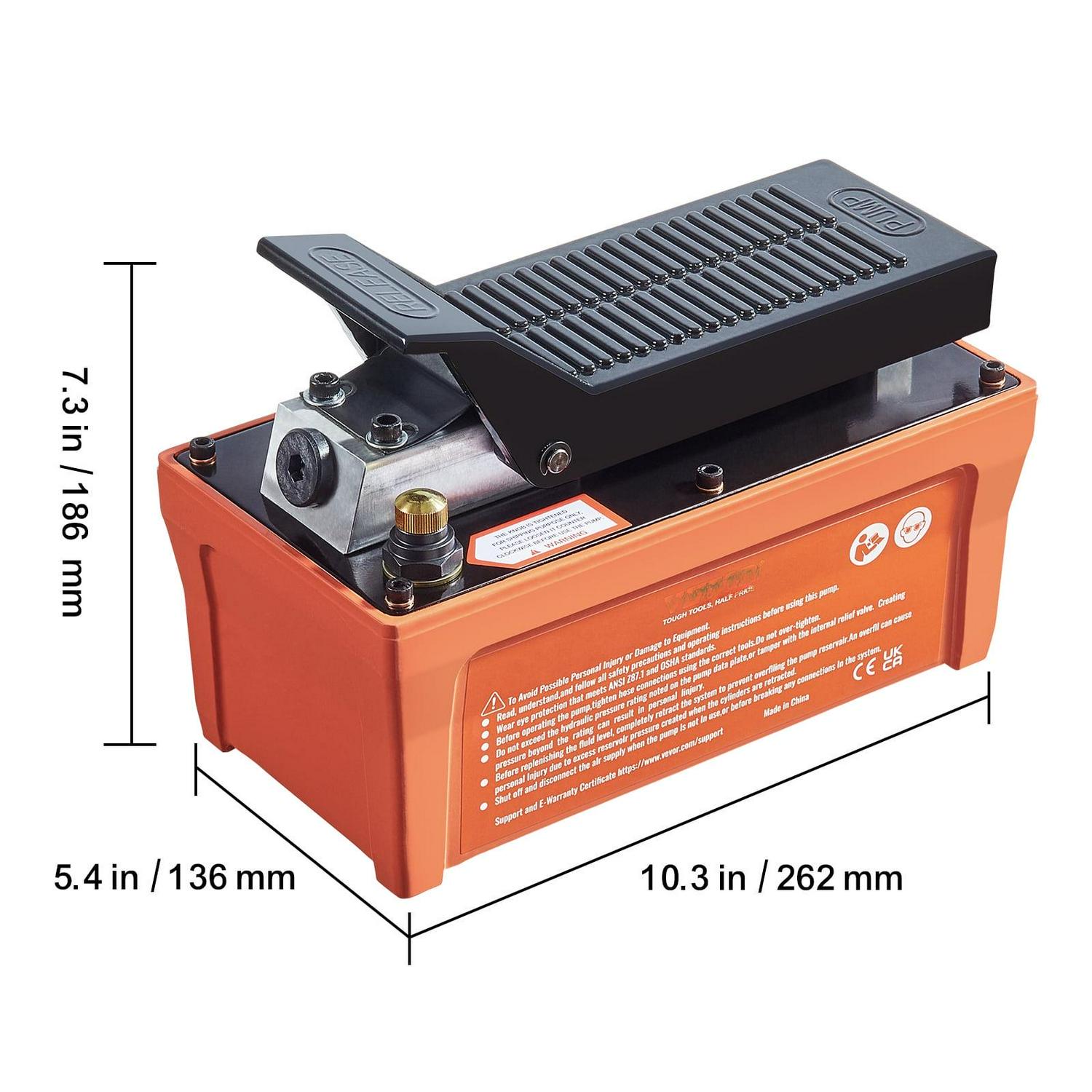

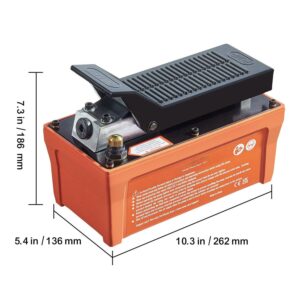

Product Size (L x W x H): 10.3 x 5.4 x 7.3 in/262 x 136 x 186 mm
Product Weight: 19.6 lbs/8.9 kg

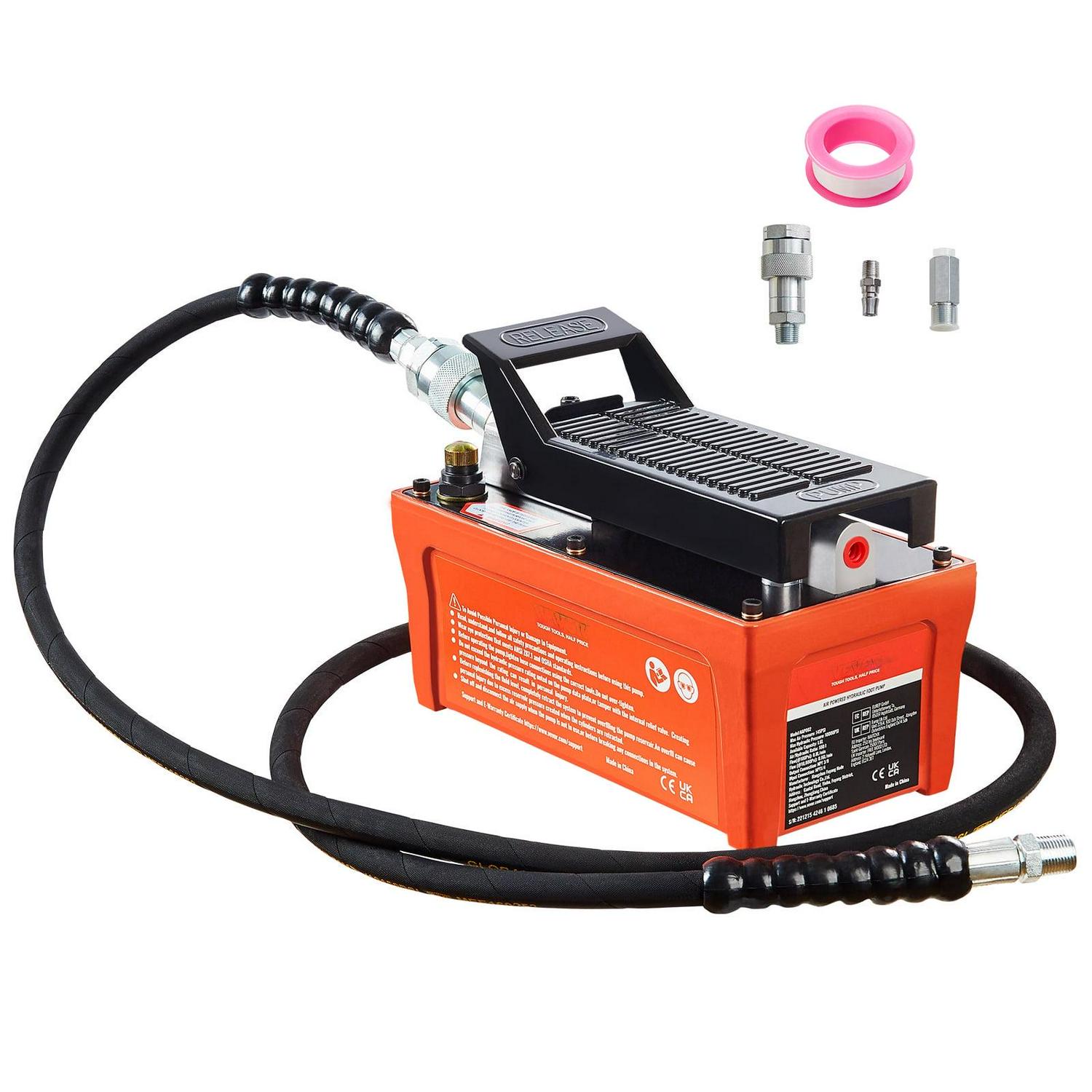

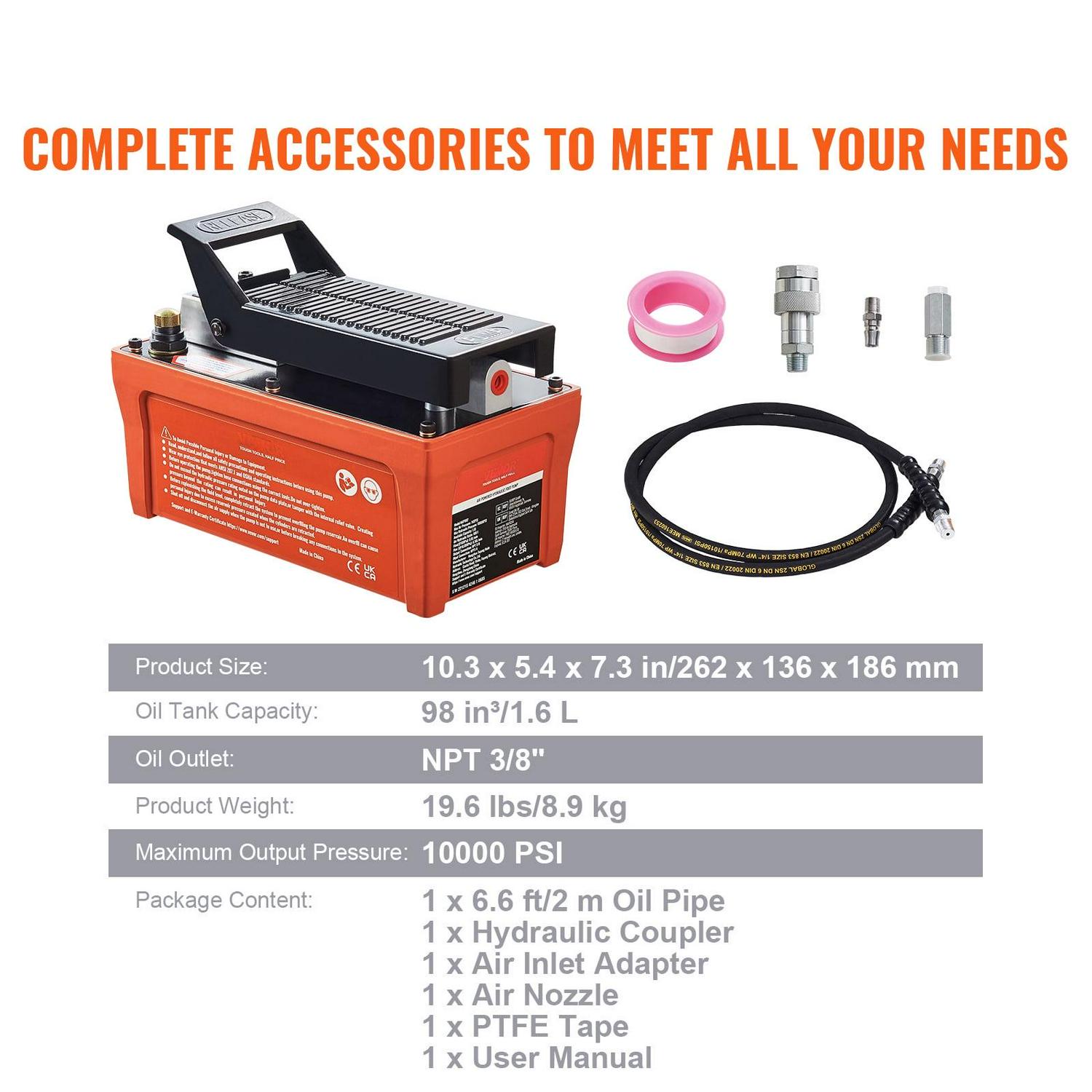

Package Content
1 x Air Hydraulic Pump
1 x 6.6 ft/2 m Oil Pipe
1 x Hydraulic Coupler
1 x Air Inlet Adapter
1 x Air Nozzle
1 x PTFE Tape
1 x User Manual
– Extended Oil Reach: Are you ready to stretch further without breaking a sweat This air hydraulic pump comes with a lengthened oil pipe of 6.6 ft/2 m, allowing for longer-distance operation and enhanced security. In addition, it includes a hydraulic coupler, air inlet adapter, and PTFE tape to meet all of your needs.

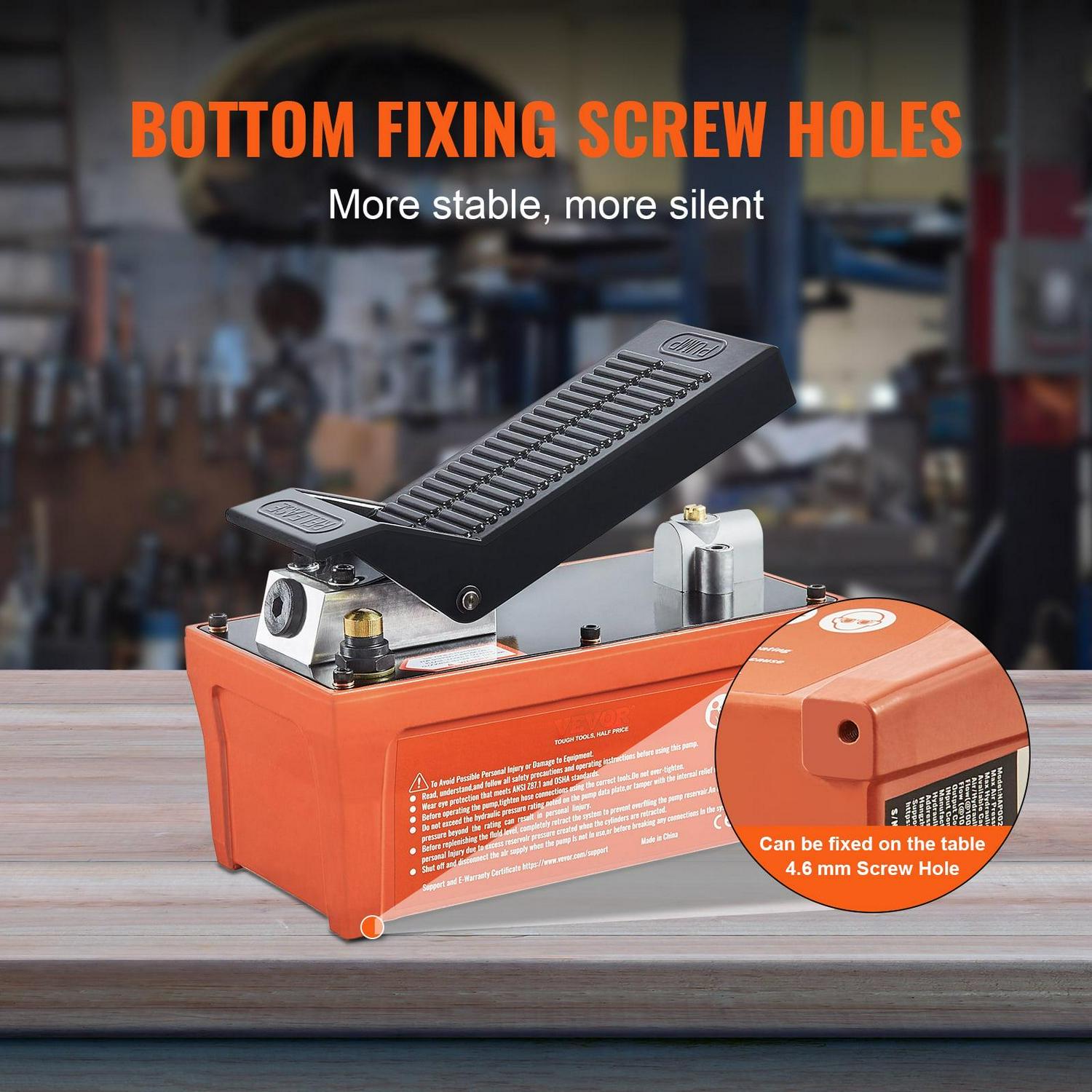

– Non-slip and Shock-proof: With two fixing screw holes located at the bottom, the foot actuated hydraulic pump can be securely positioned, minimizing sliding and vibration during operation. This results in a quieter working environment, providing you with a more comfortable experience.

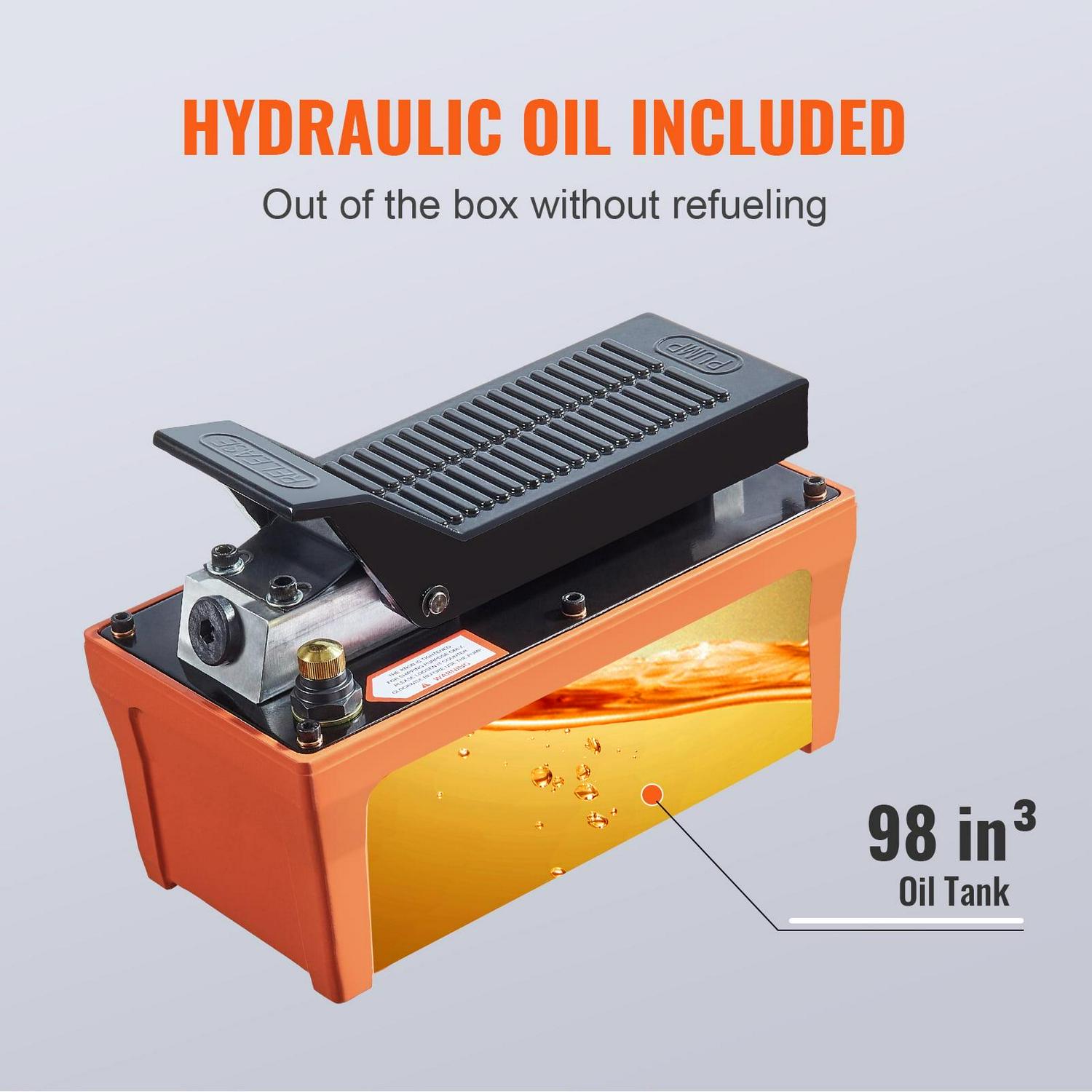

– One Step Is All It Takes: Our foot operated air/hydraulic pump is equipped with hydraulic oil, eliminating the need for any additional purchases. It is ready to use straight out of the box! The user-friendly foot-actuated design makes operation more labor-saving. Simply apply pressure by gently stepping on it, and release pressure by rebounding back.
– Sturdy & Compact Construction: This hydraulic air pump is designed for challenging industrial applications thanks to its featured aviation-grade aluminum pump core and high-quality metal shell. With a 98 in³ oil tank, it has a larger capacity to meet heavy-duty needs. Additionally, the internal relief valve protects hydraulic components, regardless of hydraulic pressure.
– Wide Application: The air actuated hydraulic treadle pump is an excellent choice for single-acting ram applications in industrial and construction settings. It is an ideal all-around power house to use with a variety of rams, presses, and hydraulic pullers that operate at pressures of up to 10,000 PSI.
