BENTISM Electric Hydraulic Pump Double Acting Oil Pump 10000 PSI 8L Solenoid Valve
- Assembled Product Dimensions (L x W x H): 13.98 x 11.62 x 18.51 Inches
Product Description
750W Double Acting Electric Hydraulic Pump
Looking for a durable electric hydraulic pump that supplies pressurized liquid to a hydraulic transmission This pump comes equipped with three 9.8 ft oil pipes and a 488-in³ tank, making it the perfect choice for all your hydraulic needs. Pump up your productivity and take on new challenges today!
Solenoid Valve
High-pressure Flow: 0.7 L/min; Low-pressure Flow: 8 L/min. The electric hydraulic pump is designed with a solenoid valve, providing a maximum output pressure of 10,000 PSI.

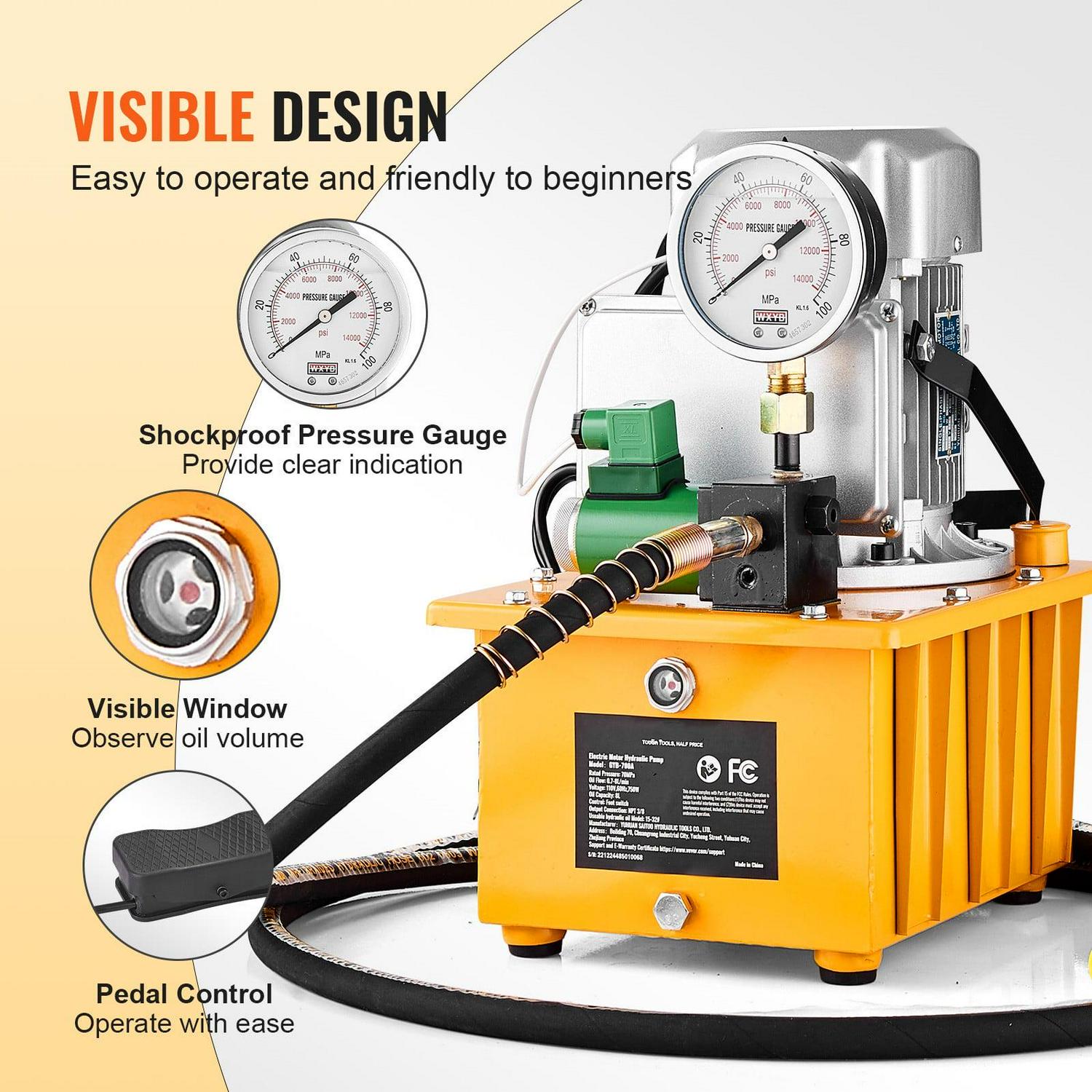

Visible Window
This electric driven hydraulic pump features a visible window design. You can observe the internal oil level at any time and add oil in time.
Oil Drain Port
Open the oil drain port to replace the oil. It is recommended to replace the oil once every three months to ensure the normal operation of the hydraulic driven pump.

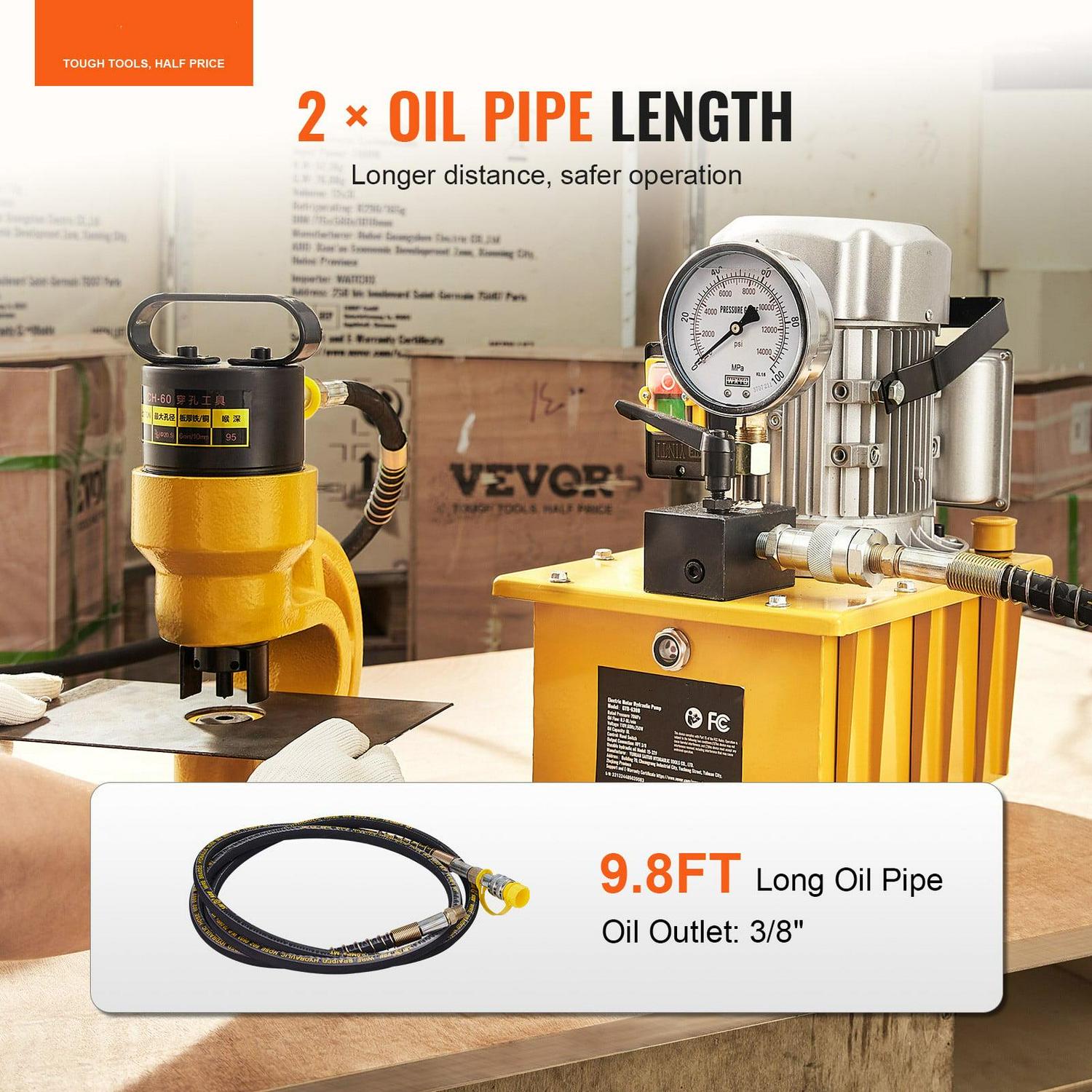

Our hydraulic electric pump comes with three 9.8 ft/3 m oil pipes long enough for large-scale projects. The dust-proof caps prevent oil pipe plugging.
This electric hydraulic power unit has a powerful 750W copper motor with 1720 RPM high speed, saving you power and effort. Its aluminum shell ensures high stability and long service life.
The 10000 psi hydraulic pump is ideal for various hydraulic equipment, such as bending machines, punching machines, lifting jacks, crimping pliers, pipe benders, and much more.

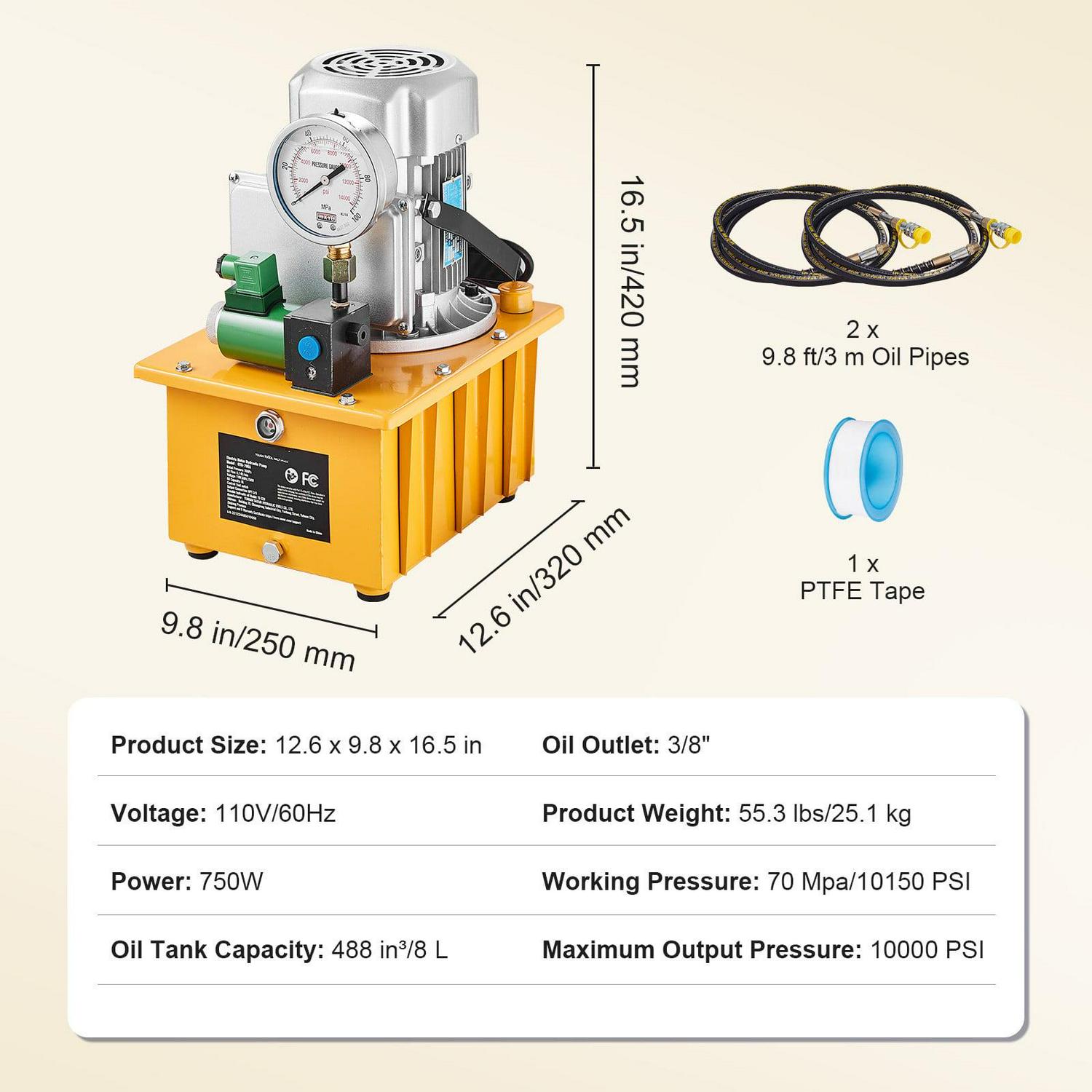

Specifications
Model: GYB-700A
Power: 750W
Voltage: 110V/60Hz
Maximum Output Pressure: 10,000 PSI
Working Pressure: 70 Mpa/10150 PSI
Oil Outlet: NPT 3/8″
Oil Tank Capacity: 488 in³/8L
High-pressure Flow: 0.7 L/min
Low-pressure Flow: 8 L/min

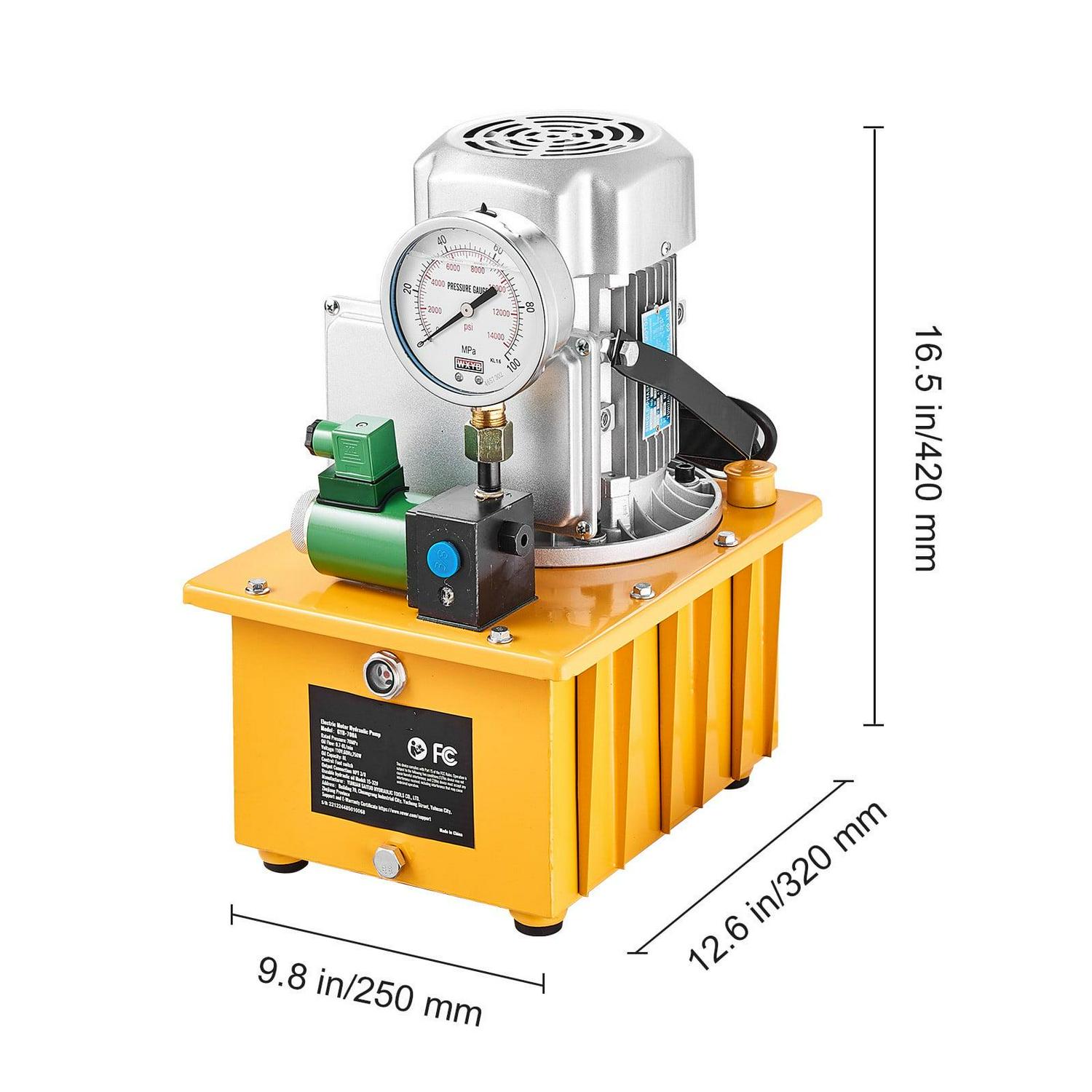

Product Size (L x W x H): 12.6 x 9.8 x 16.5 in/320 x 250 x 420 mm
Product Weight: 64 lbs/29 kg

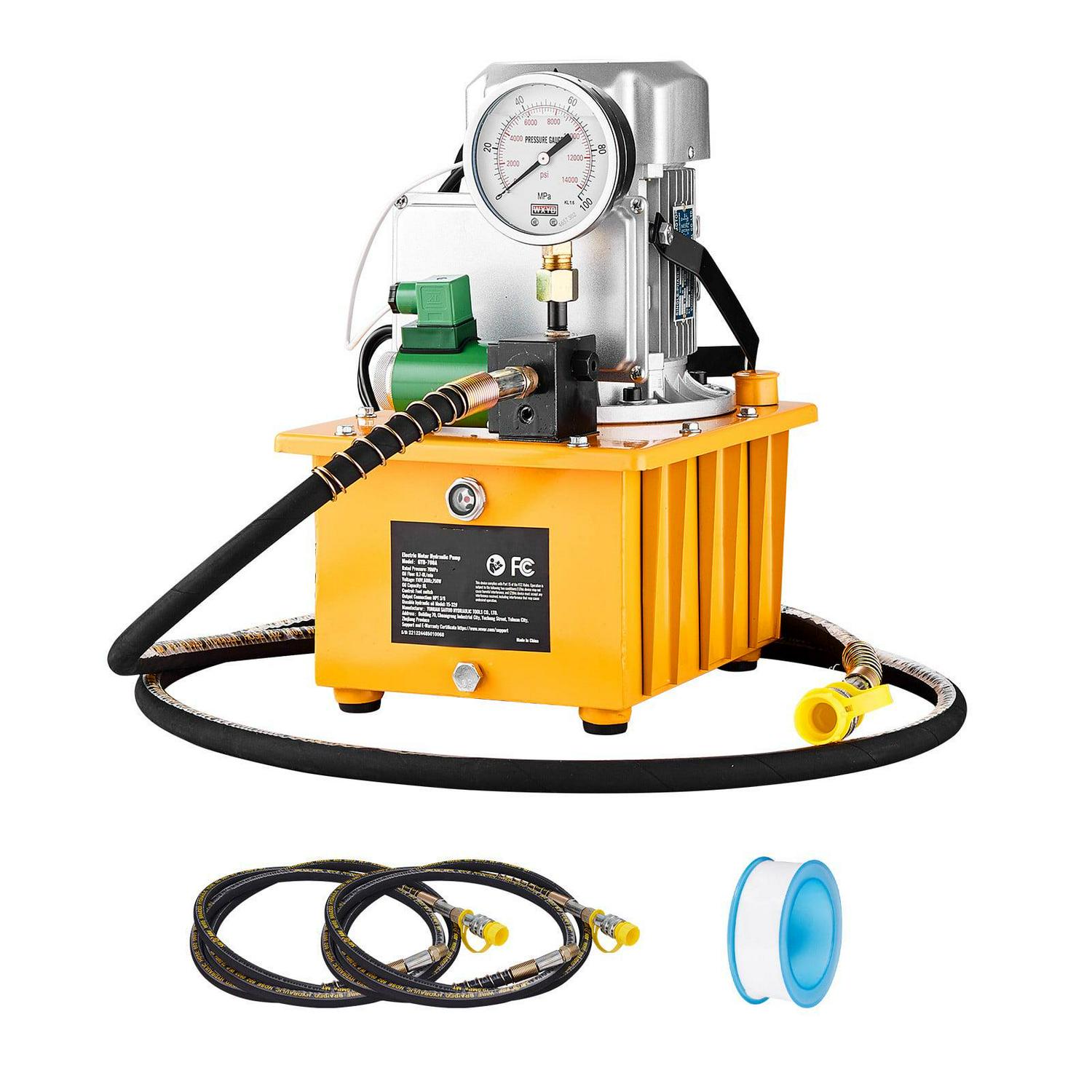

Package Content
1 x Electric Hydraulic Pump
3 x 9.8 ft/3 m Oil Pipes
1 x PTFE Tape
1 x User Manual
– Extended Oil Reach: Are you ready to stretch further without breaking a sweat This electric hydraulic pump comes with three lengthened oil pipes of 9.8 ft/3 m, allowing for longer-distance operation and enhanced security. In addition, three oil pipes are more convenient to replace.
– Efficient Motor: Our electric driven hydraulic pump features a 750W high-power motor with an aluminum shell, making it more robust and durable. With 10,000 PSI max hydraulic pressure, the pump does well in various assignments, such as lifting, pressing, bending, straightening, cutting, assembly, and disassembly.
– Non-slip and Silent Pads: With non-slip rubber foot pads at the bottom, the hydraulic driven pump can be securely placed, minimizing sliding and vibration during operation. This results in a quieter working environment, providing you with a more comfortable experience.

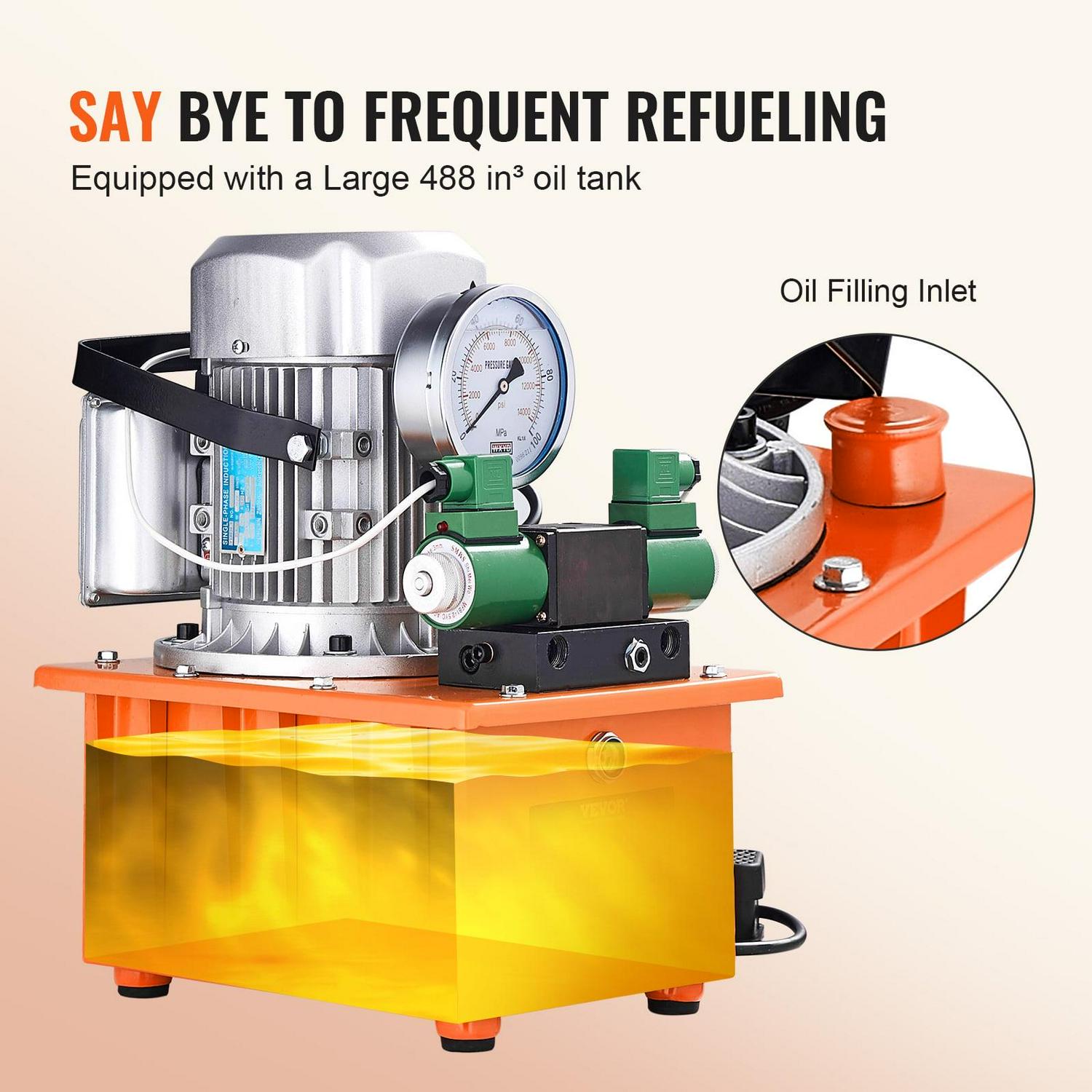

– Large-capacity Oil Tank: The hydraulic electric pump is more efficient thanks to the large 488 in³/8L oil tank. You can observe the oil volume at any time with a visible window for monitoring the inside. 15-32# hydraulic oil is highly recommended.
– Designed with You in Mind: This electric hydraulic power unit has a shockproof, precise pressure gauge, helpful in observing real-time pressure during work. From 0.7 L/min to 8 L/min, you can try slowly and choose the proper working pressure you need. Its foot-actuated design also makes operation simple and efficient.
