BENTISM HVAC Vacuum Pump 120V 1/5 HP 3.5 CFM Gauge Set Manifold Gauge Kit with Hose for automotive refrigeration and central air-conditioning maintenance

Product Description

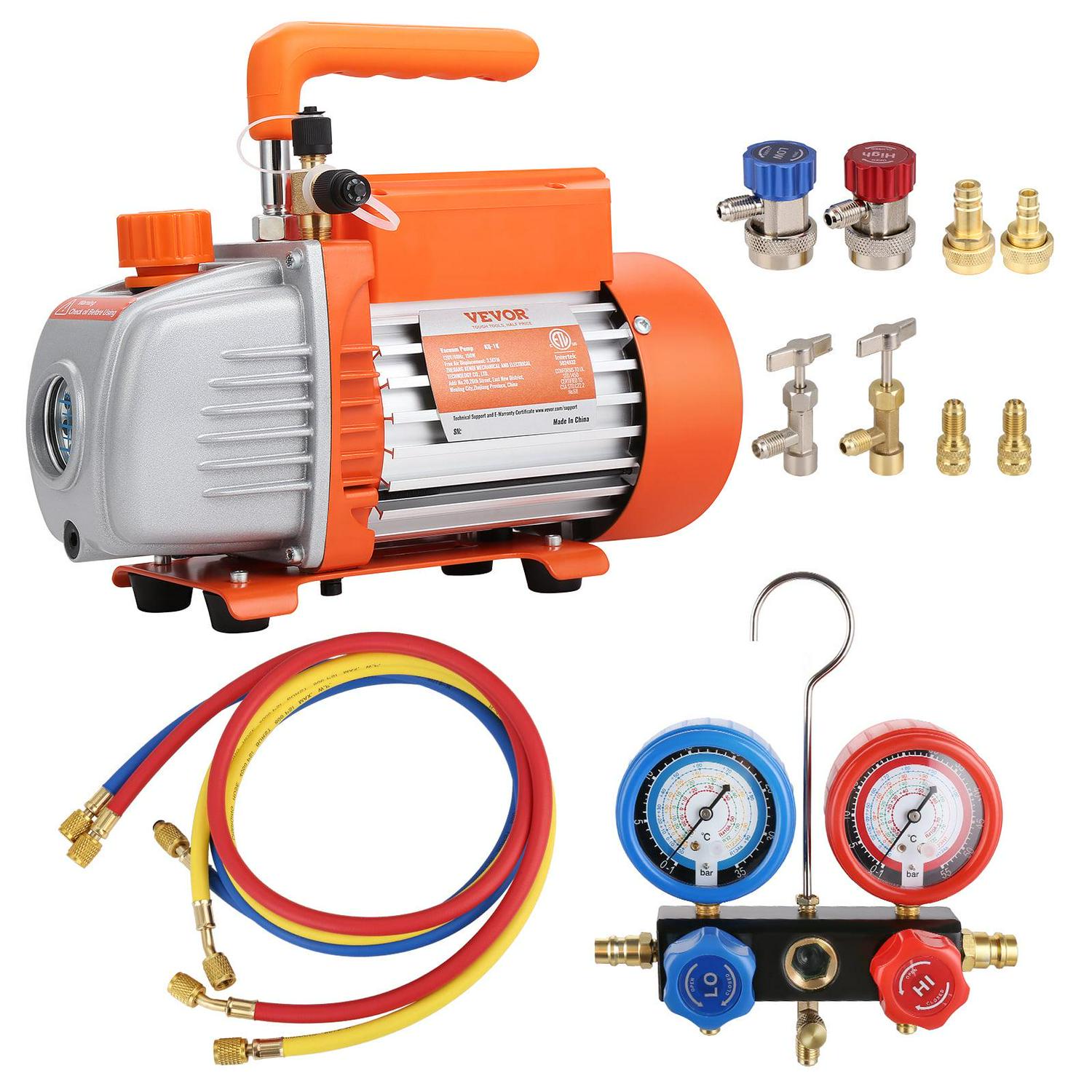

BENTISM AC Vacuum Pump and Manifold Gauge Set

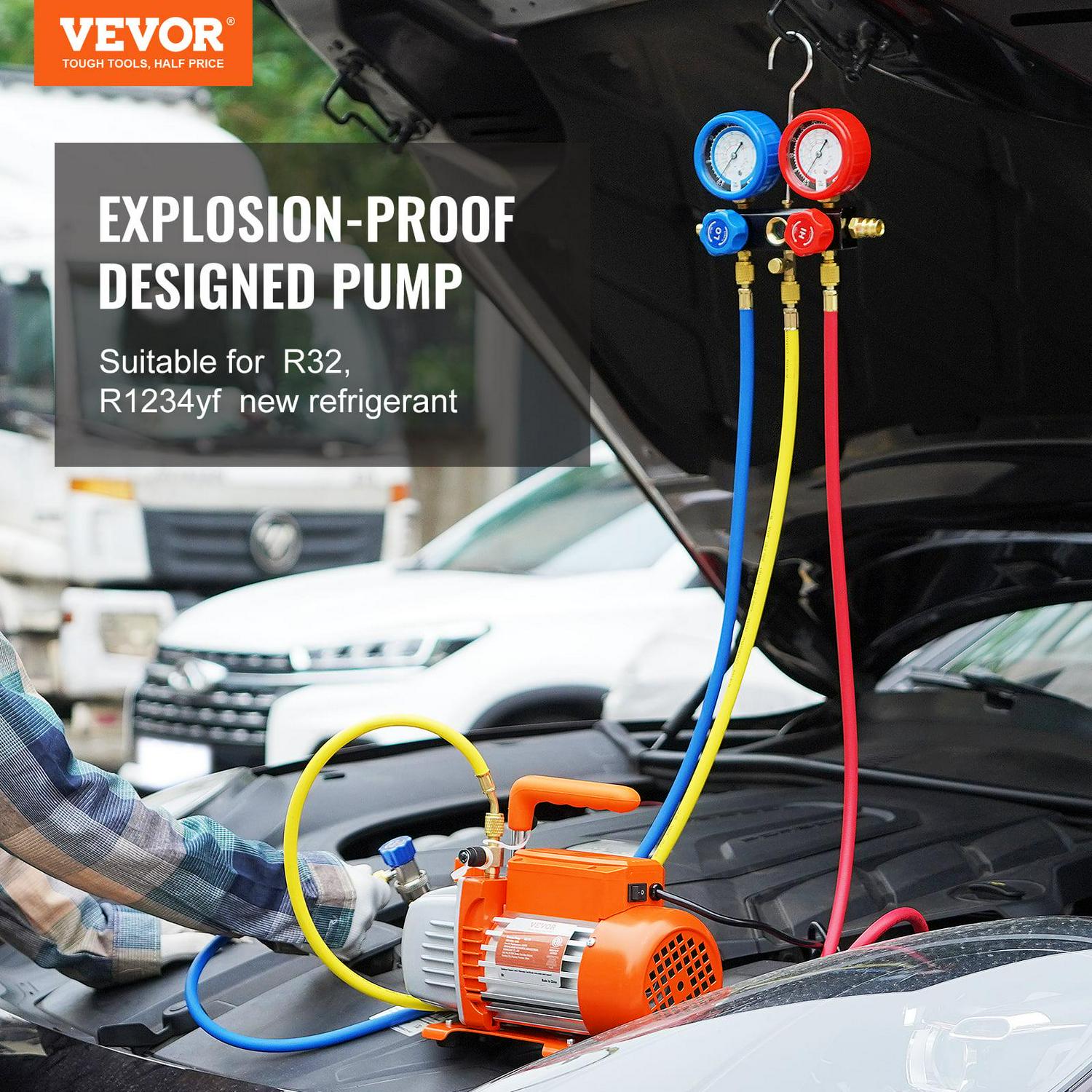

The BENTISM auto ac vacuum pump kit has A2L explosion-proof to help you efficiently complete your car air conditioning repair work. It includes R1234yf adapter and R1234yf bottle opener, which is compatible with cars using R134a and R1234yf refrigerant.

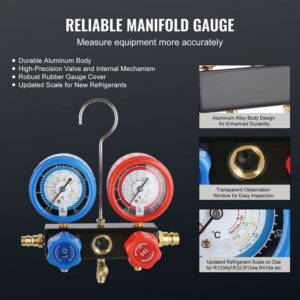

Manifold Gauge

The manifold gauge contains the commonly used refrigerant scale, which is convenient for measuring various equipment.

Vacuum Pump Body

The ac vacuum pump automotive obtains vacuum by pumping out gas, and the pump chamber is better sealed.

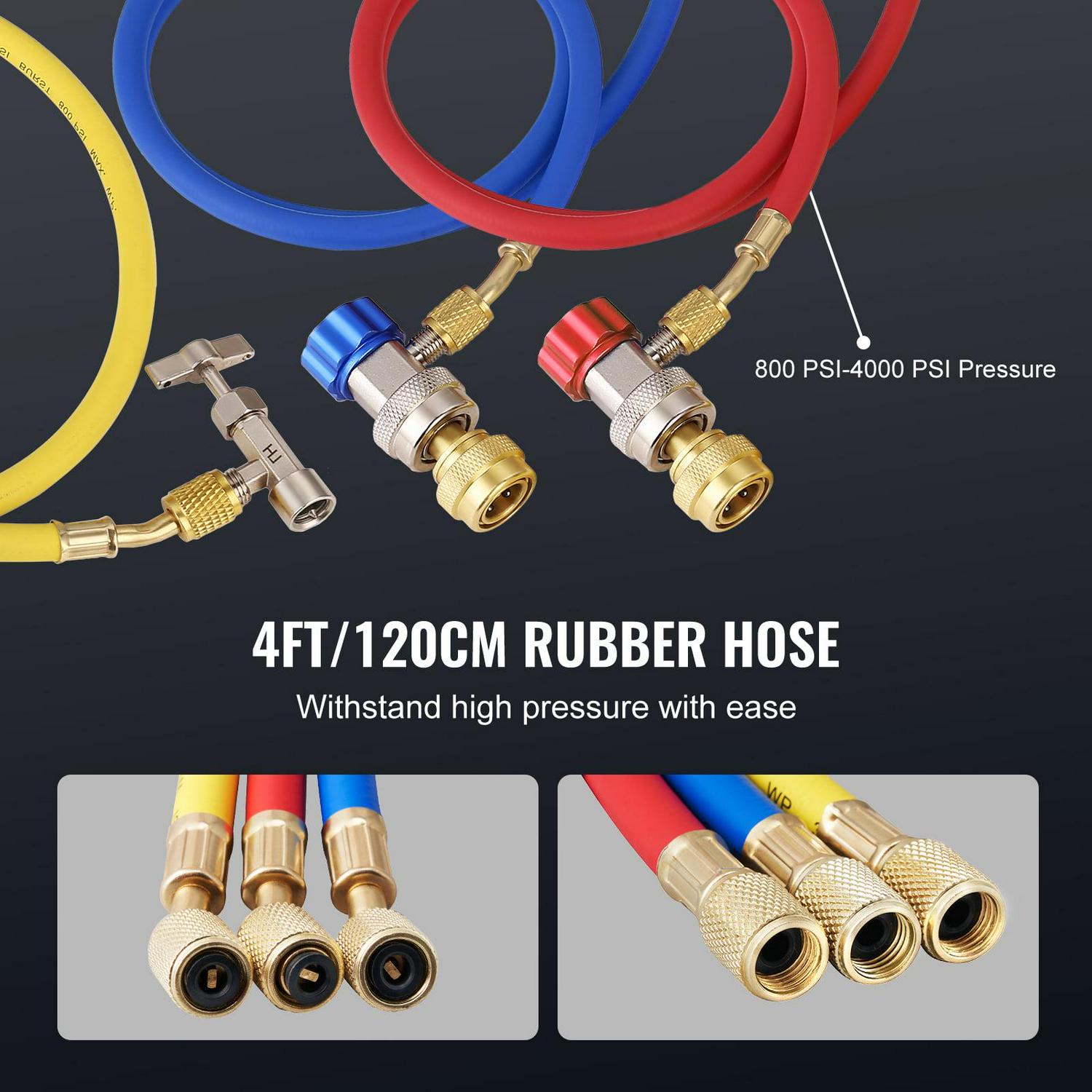

Three-Color Hose

The hose features a leak-proof seal design with a working pressure of 800-4000 PSI for outstanding durability.

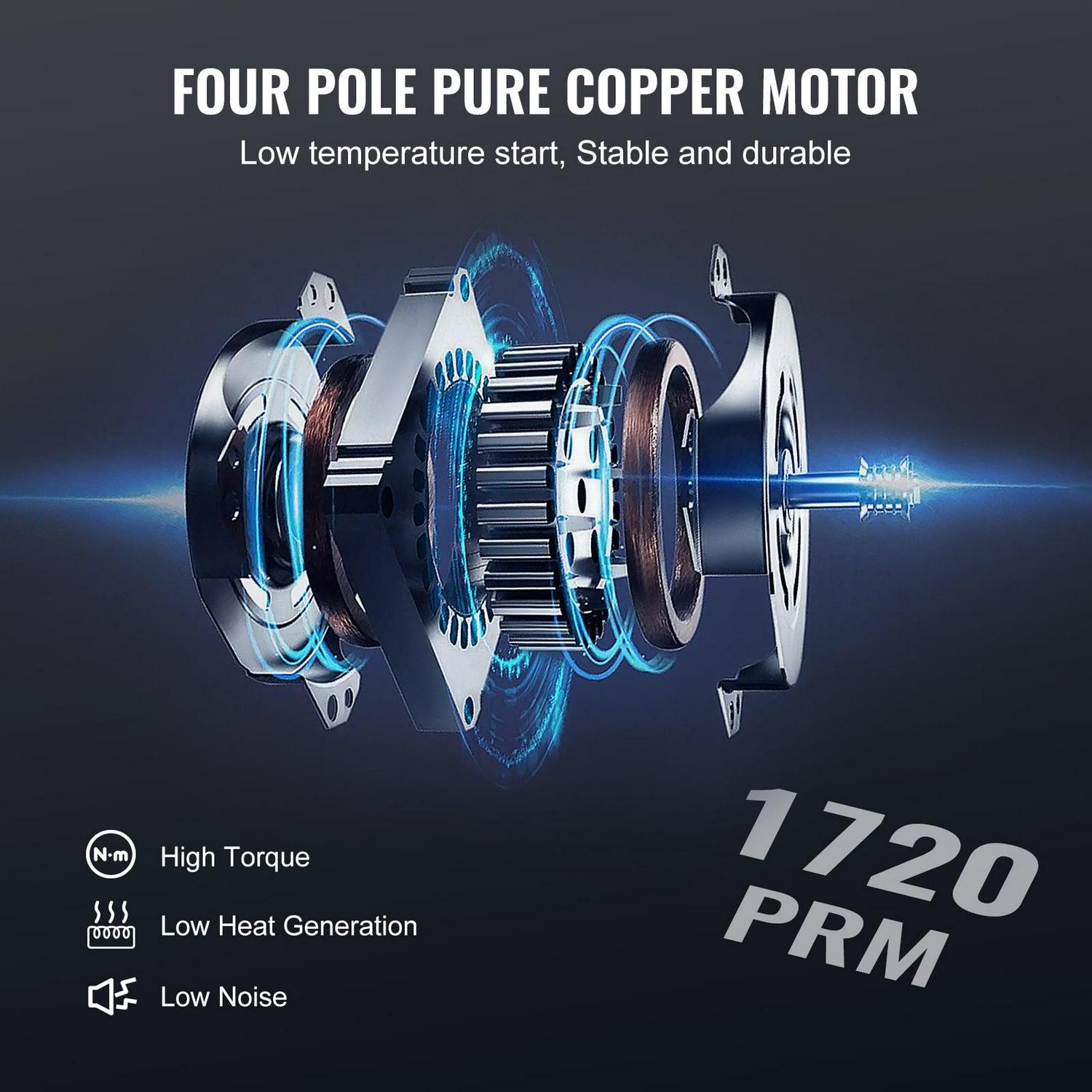

Pure Copper Motor

The HVAC vacuum pump adopts high speed with a large torque design at low heat and low noise.

Fast Heat Dissipation

T-type heat sink help dissipate heat well, and the motor is designed with overheat protection to run securely.

Wide Application

This vacuum pump and manifold gauge set is ideal for automotive refrigeration maintenance and central air-conditioning refrigeration maintenance.

Specifications

Item Model Number: TW-1K(R32)
Free Air Displacement: 3.5 CFM
Ultimate Vacuum: 40 microns
Intake Fitting: 1/4″SAE male; 1/2″ACME male
Speed: 1720PRM
Voltage/Frequency: 120V/60 Hz
Power: 150W, 1/5HP
Oil Capacity: 250 ml
Net Weight: 15.8 lbs/7.17 kg

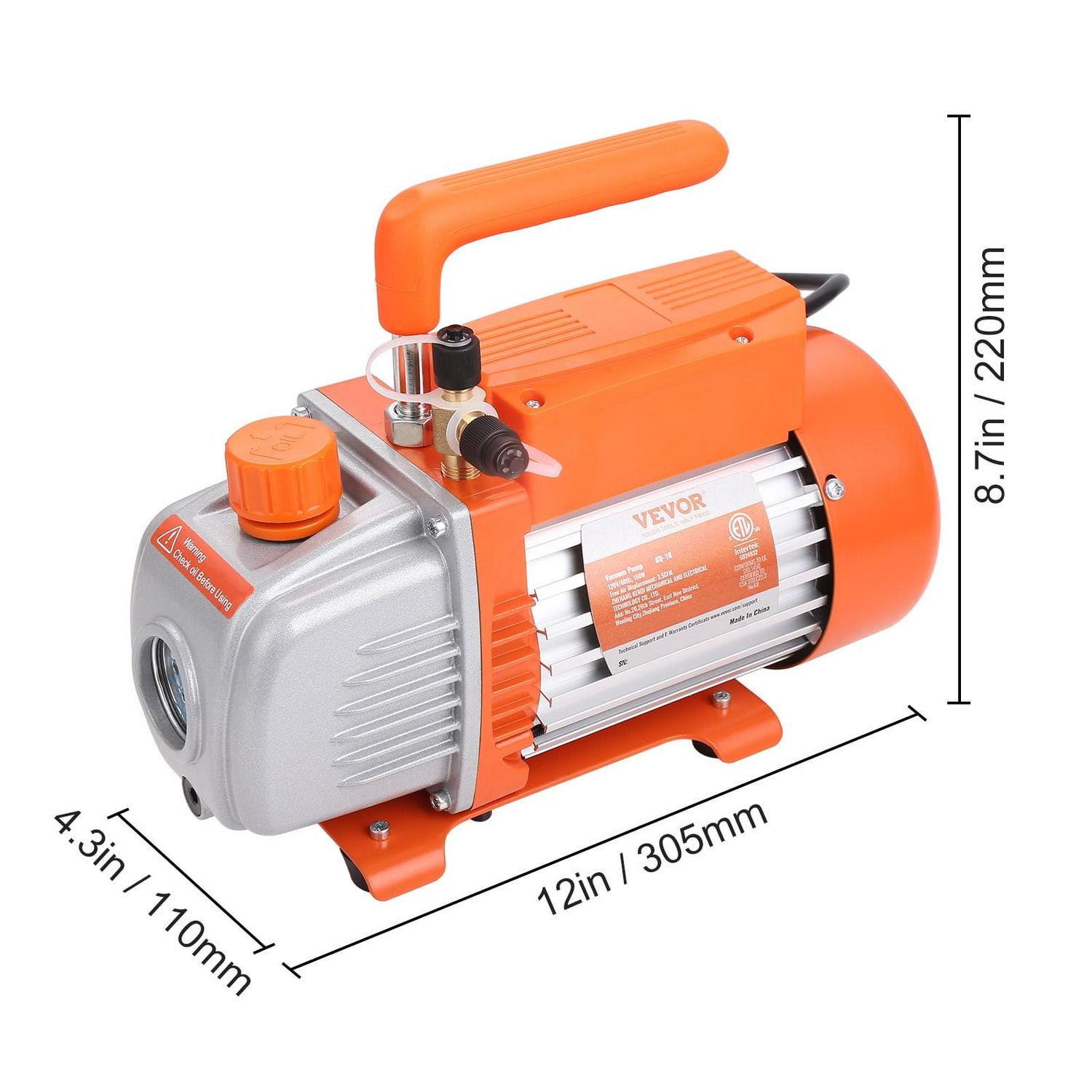

Item Dimensions: 12 x 4.3 x 8.7 in/305 x 110 x 220 mm

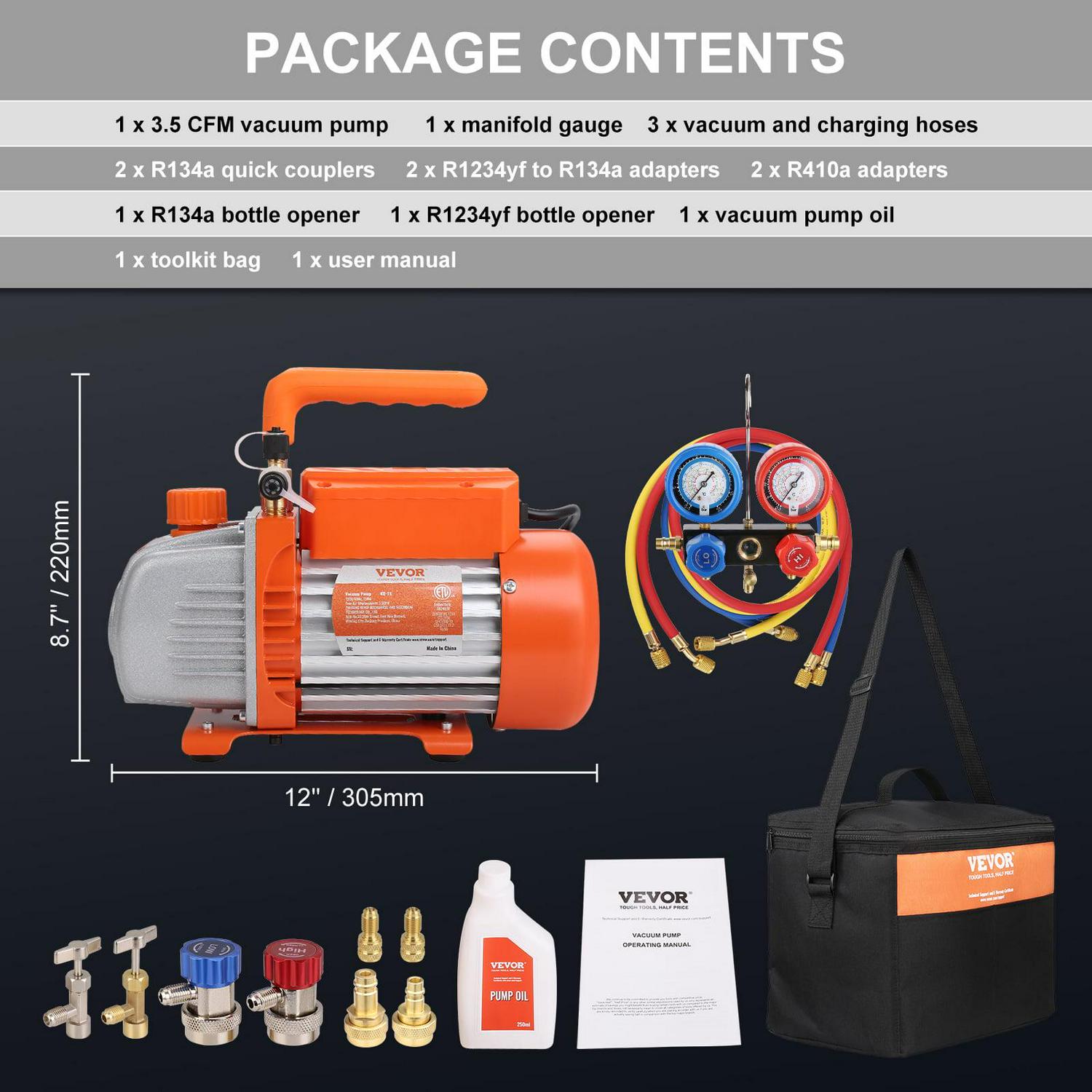

Package Content

1 x Vacuum Pump
1 x Manifold Gauge Set
1 x Three Colors Hose
2 x R410A Adapter
1 x R134a Quick Coupler
2 x R1234yf Adapter
1 x Bottle Opener
1 x Carry Bag
1 x 250 ml Oil Bottle
1 x User Manual
– High-Performance Vacuum Pump: Single-stage pump is designed for a higher and more stable ultimate vacuum. It passes A2L explosion-proof test for reliable performance and efficient operation and maintains the air conditioning system. Free Air Displacement: 3.5 CFM, Ultimate Vacuum: 40 microns, Intake Fitting: 1/4″SAE male and 1/2″ACME male, Speed: 1720PRM, Voltage/Frequency: 120V/60 Hz, Power: 150W, Oil Capacity: 250 ml.
– High Strength 3-Color Hose: The hose is made of rubber and has a leak-proof seal design that is flexible, durable, and not easily damaged. 800-4000 PSI working pressure, ideal for high-pressure refrigerant refrigeration systems such as R32.

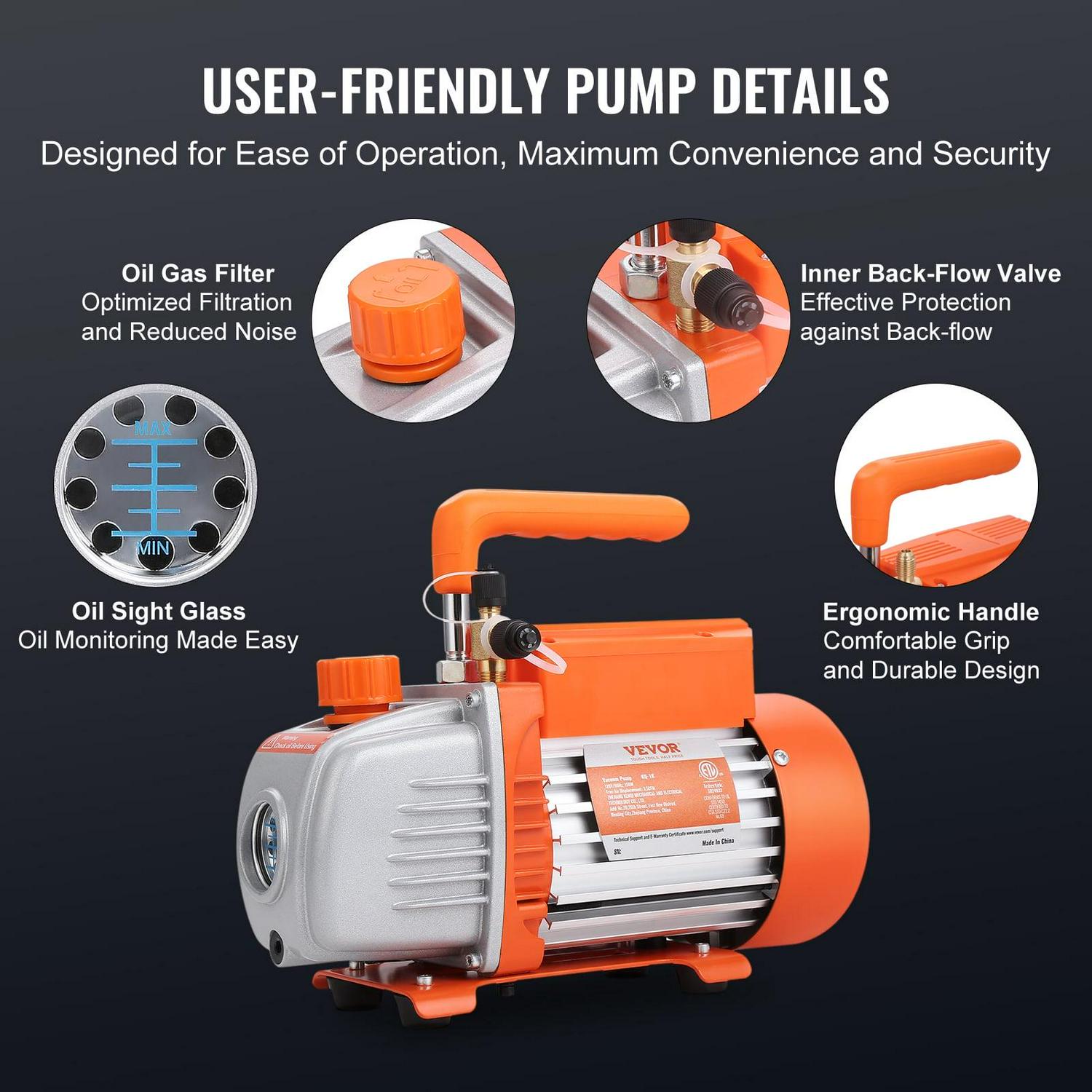

– Comfortable & Portable Design: Get ready to experience complete comfort! The T-shaped heat sink helps dissipate heat effectively. With the bonus of a sight glass and oil level scale, you can easily monitor the status of your oil level and lubricating oil, ensuring timely maintenance. The ergonomic handle is shaped to fit your hand for easy lifting and holding.
– Meet Refrigeration Repair Needs: The BENTISM ac vacuum pump and gauge set are widely used for automotive refrigeration maintenance and HVAC repair, suitable for R1234yf, and other refrigerants. Package Content: 1 x Manifold Gauge Set, 1 x Three Colors Hose, 2 x R1234yf Adapter, 1 x Bottle Opener, 1 x Carry Bag, 1 x 250ml Bottle of Vacuum Pump Oil.
– Premium Manifold Gauge Set: The manifold gauge is designed to measure pressure in refrigeration equipment and ensure accurate readings. The rubber-wrapped design is drop-proof and more durable. It contains common refrigerant scales for easy use in a variety of refrigeration equipment.
