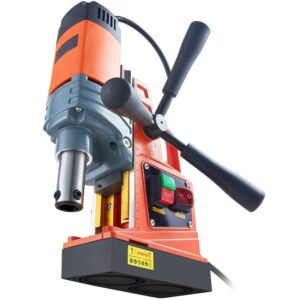

BENTISM Magnetic Drill 1300W 2922lbf/13000N Portable Mag Drill Press 810RPM Mag Drill Machine

Product Description

1300W Electromagnetic Drill Press

Our electric drill press can generate a power force and perform more efficiently thanks to its powerful motor. Thanks to its 13000N holding force, our mag drill can anchor itself on any steel and iron surface tightly to accurately position and drill holes without burr. The machine body comes with a laser scale, which is more friendly for beginners. Definitely an essential tool for residential construction, heavy-duty industries, and steel manufacturing.

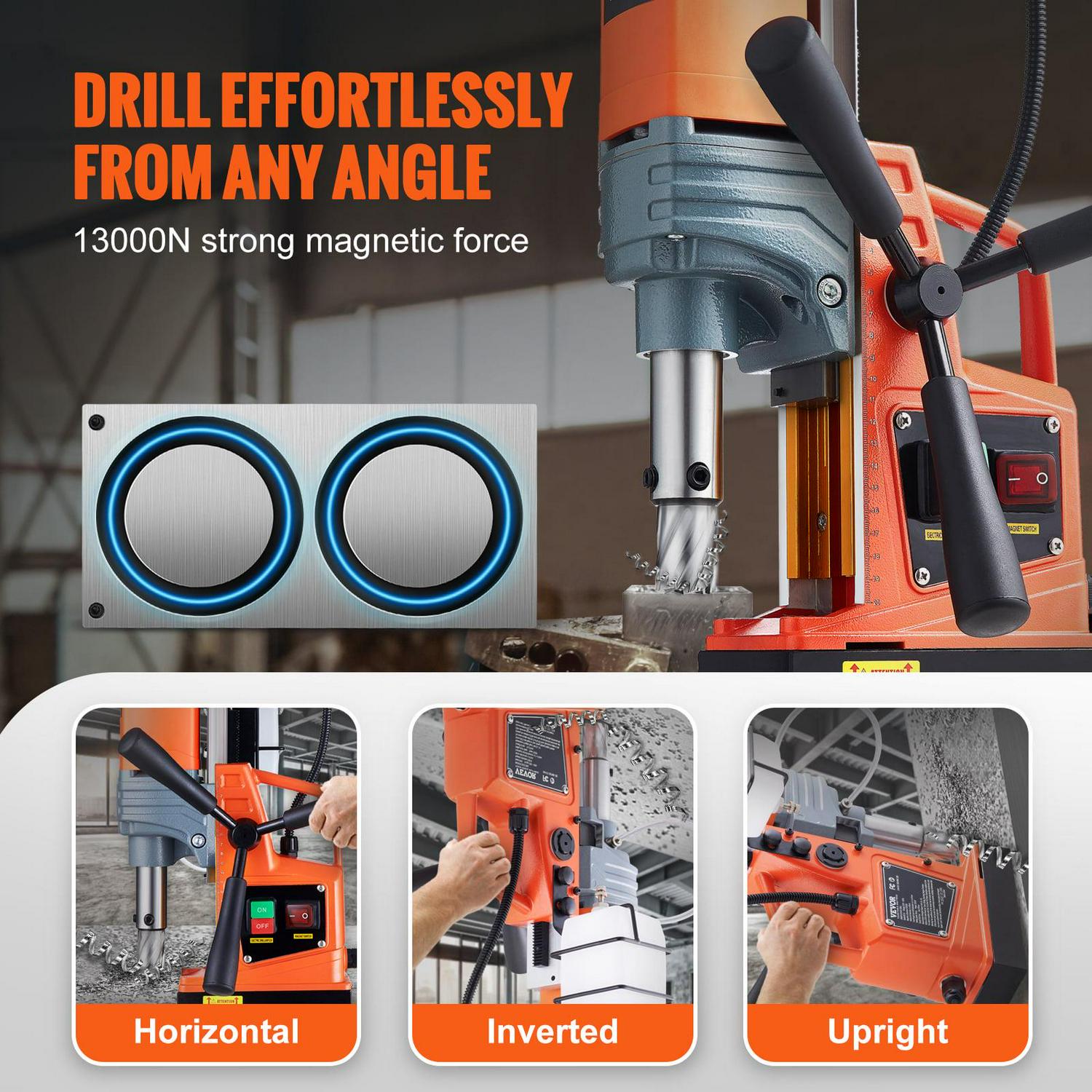

13000N Magnetic Force

The powerful two-stage magnet can generate 13000 N of holding force, ensuring the drill press machine will not move in the work. Thanks to its Electromagnet base, our magnetic drill press anchor itself securely during use through its solid iron bottom.

Excellent Performance

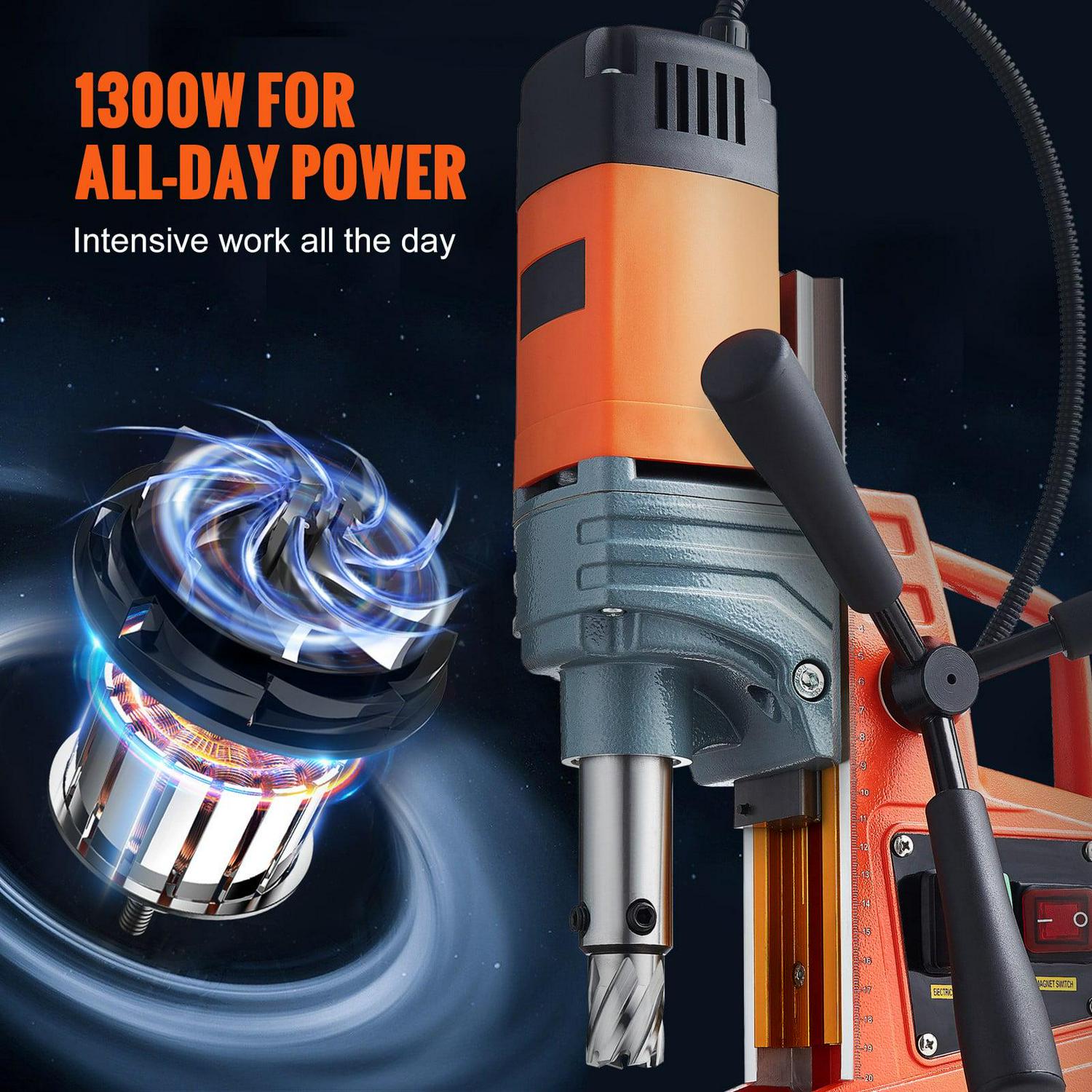

Designed for precise and demanding coring, this mag base drill features 1300 watts of motor power. Max. Coring Diameter: 1.57 in / 40 mm; Max. Travel Distance: 8.3 in / 210 mm.

Efficient Cooling System

The portable drill press features a detachable, integrated coolant system that will help significantly increase the life expectancy of your drill bits as well as your cutters. What’s more, dustproof air inlets and exhaust air holes for temperature reduction.

Durable Body & Robust Motor

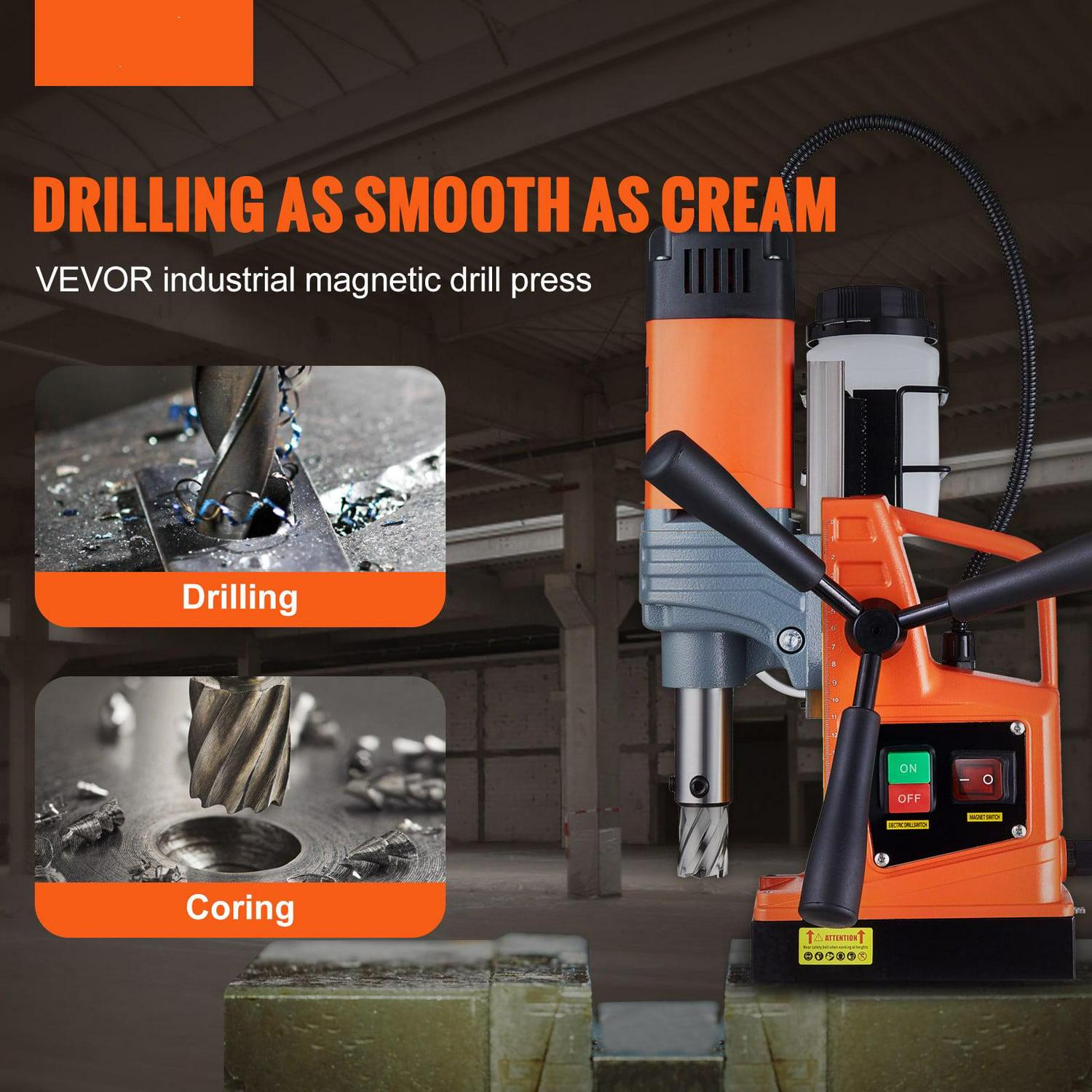

Fast drilling of our drilling machine can reach clean cutting. With a drilling depth of 50 mm, magnetic drilling machines make drilling extremely easy when you need to drill through thick metal.

Considerate Details

Ergonomically designed lifting handle, three extended crank handles coated with nonslip rubber and external carbon brush allow you to operate the mag drills with minimum effort.

Versatile Usage

Our magnetic base drill is used in steel structures, shipbuilding, bridge construction, wind power generation, drilling, electric power construction, and many other fields.

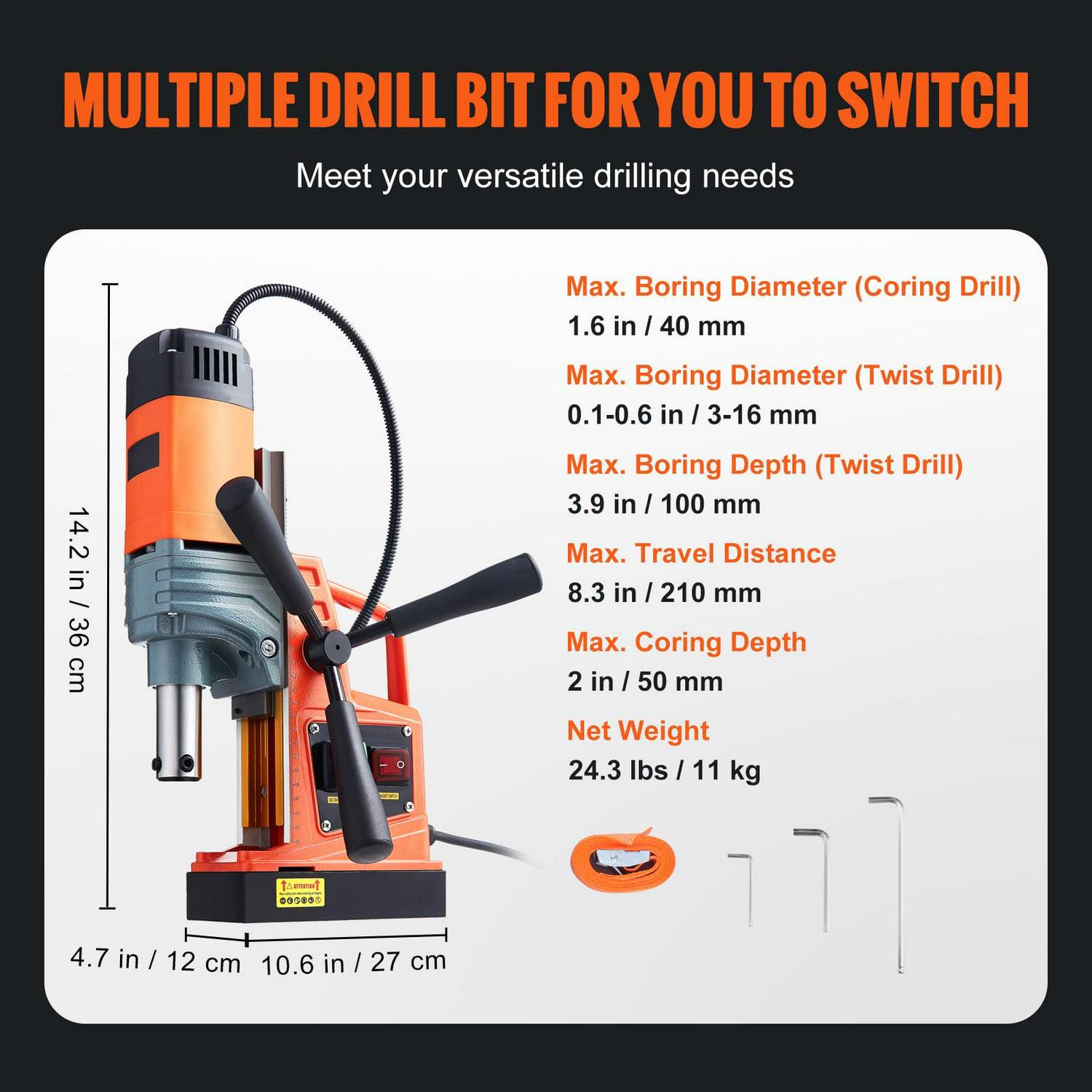

Specifications

Power: 1300W 110V 60Hz

Max. Boring Diameter(Coring Drill): 1.57 in / 40 mm

Max. Boring Depth: 2 in / 50 mm

Max. Boring Diameter(Twist Drill): 0.63 in /16 mm

Max. Boring Depth (Twist Drill): 3.9 in / 100 mm

Max. Travel Distance: 8.3 in / 210 mm

Magnetic Force: 2922 lbf / 13000 N

Stepless Speed: 0 – 810 rpm

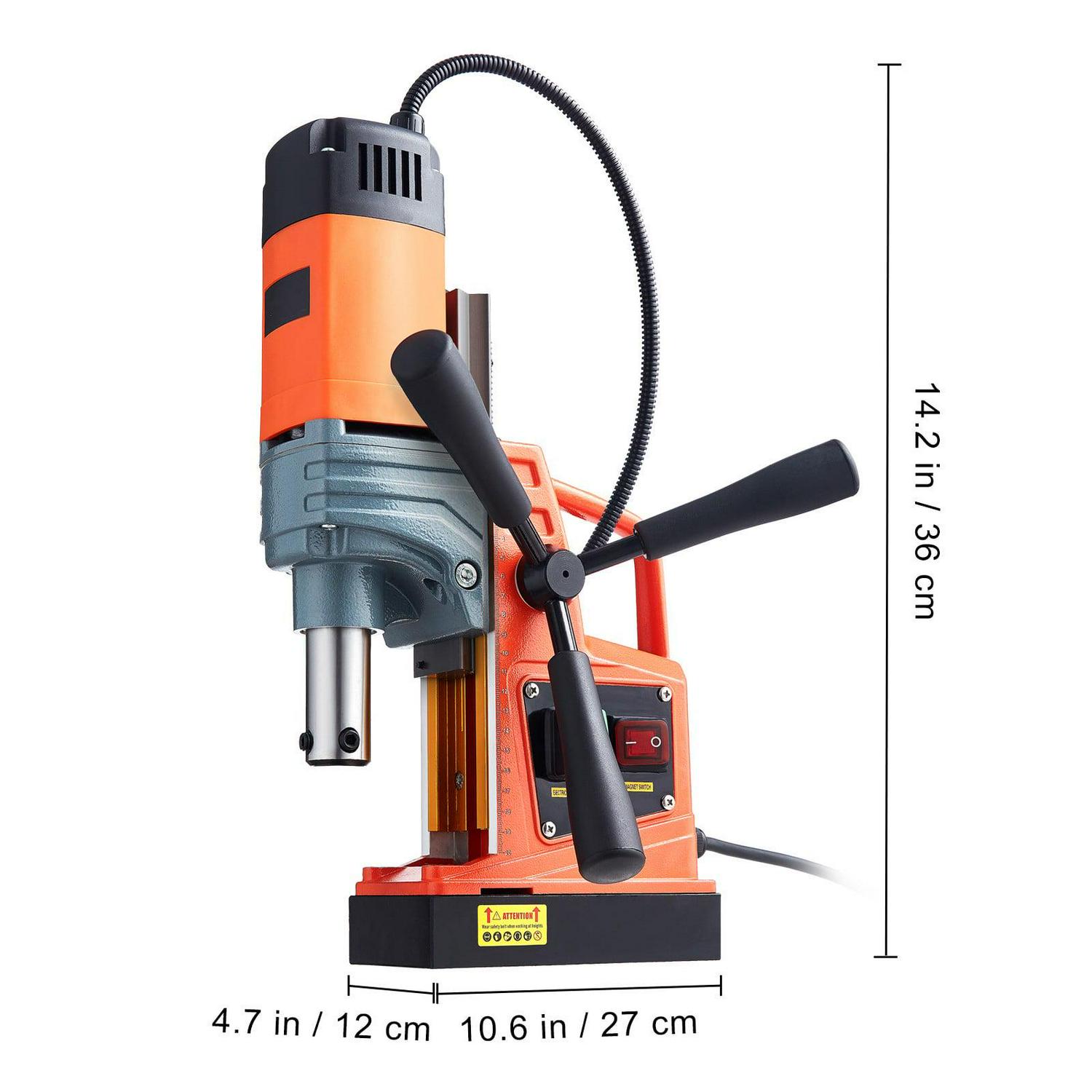

Product Size: 10.6 × 4.7 × 14.2 in / 270 × 120 × 360 mm

Product Weight: 24.3 lbs / 11 kg

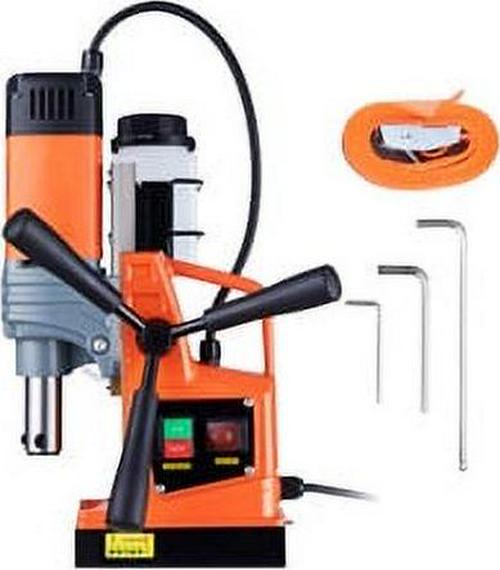

Package Content

1 x Coolant Tank & Stand

1 x Coolant Tube

1 x Rope

3 x Hex Wrenches

3 x Hand Cranks

1 x User Manual

– Top-level Performance: Get ready for unstoppable power! Our electric magnetic drill generates exceptionally powerful driving force with its 1300W copper motor. It is capable of drilling into the toughest material at 810 RPM. Max. Boring Diameter (Coring Drill): 40mm; Max. Coring Depth: 50mm.
– Security and Durability: Your security comes first! That is why the combined overload guard features are in place. The cooling system features fast heat dissipation to avoid operators being hurt by instantaneous overpowering and high temperatures during drilling. Besides, the titanium magnesium alloy guide rail has corrosion & wear resistance characteristics, significantly improving the device’s service life.
– Robust Magentic Force: 2922lbf / 13000N of robust force is created by the electromagnetic thickened base, featuring pure iron anchors the mag drill press solidly works at any angle stably during the drilling process.

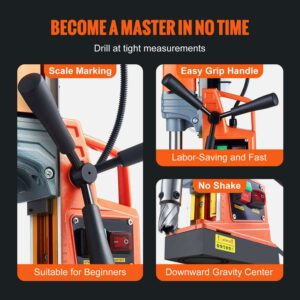

– User-friendly Design: A scale has been added to the machine’s frame to help users pinpoint the distance between the drill bit and the drilled material in millimeters. Even a novice can bore accurate and neat holes. In addition, the ergonomically designed handle and 3 extended cranks provide a comfortable grip during handling and moving, saving great effort.
– Wide Applications: This versatile magnetic drill plays a vitally important role in home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and many other fields.
