BENTISM Thickness Planer Wood Planer 12 Woodworking Planer w/ Stand Dust Exhaust
- Brand: BENTISM
- Manufacturer Part Number: YBJYCMC12-N15UEM
- Assembled Product Weight: 74.3 lb
- Assembled Product Dimensions (L x W x H): 22.83 x 14.57 x 18.31 Inches
Product Description

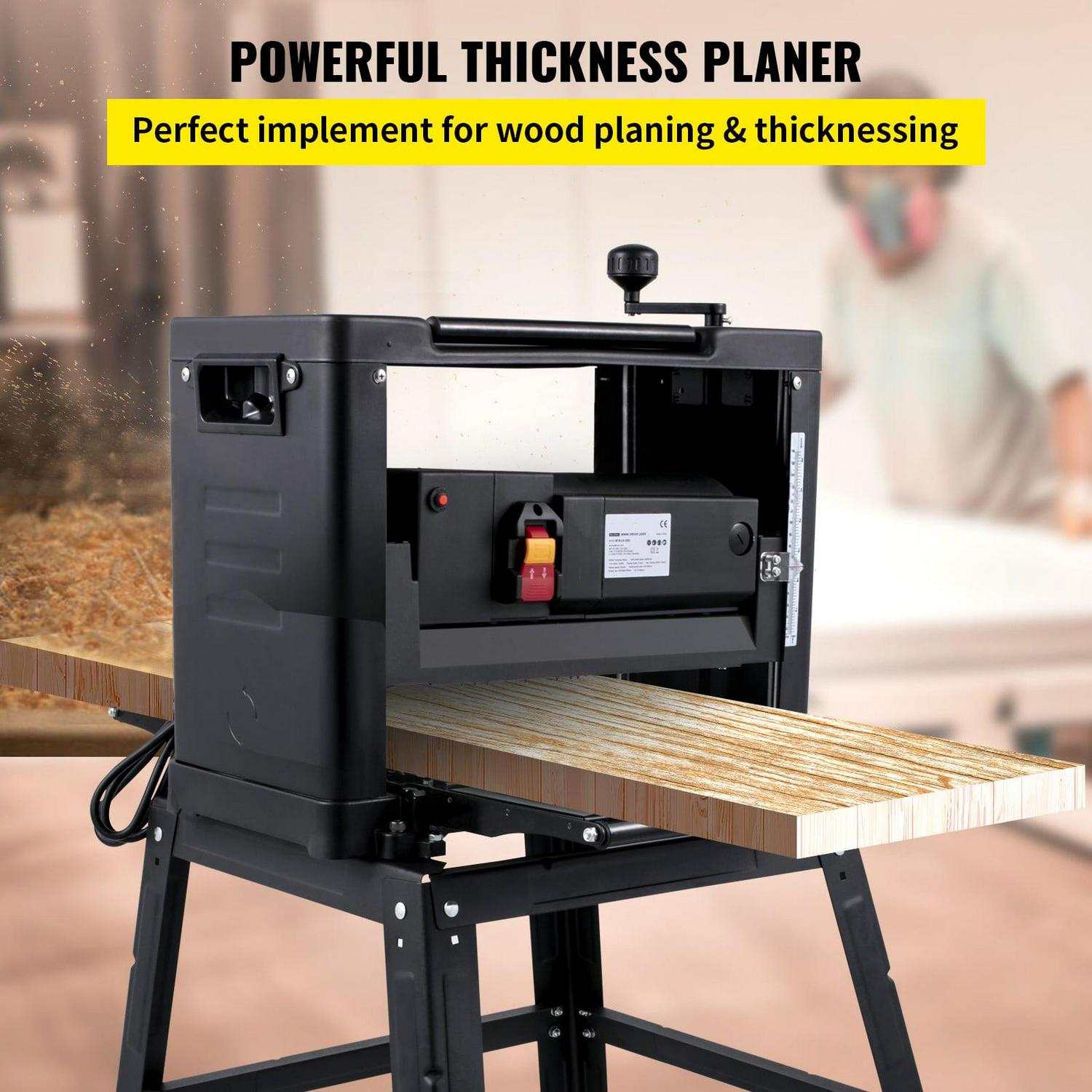

12-Inch Thickness Planer
The powerful 1800W motor can efficiently plan at a 236″/min (6 m/ min) feed rate. They are combined with a heavy-duty stand to prevent the planer from walking or wobbling during operation. It also features a dust exhaust interface for connecting to the dust collector, creating a clean working environment.
Specifications
Model: M1B-LS-3051 12″
Power: 1800W
Material: Iron + Stainless Steel + Aluminum + ABS
Max. Cutting Width: 12″/ 304 mm
Cutting Thickness: 0.2″-6.3″/ 6-160 mm
Feeding Speed: 236″/min (6 m/ min)
Max. Cutting Depth: 0-0.1″ (0-3 mm)
Blade Speed: 8000 rpm
AMP: 15 AMP

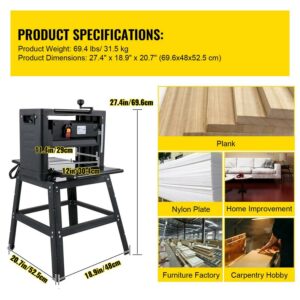

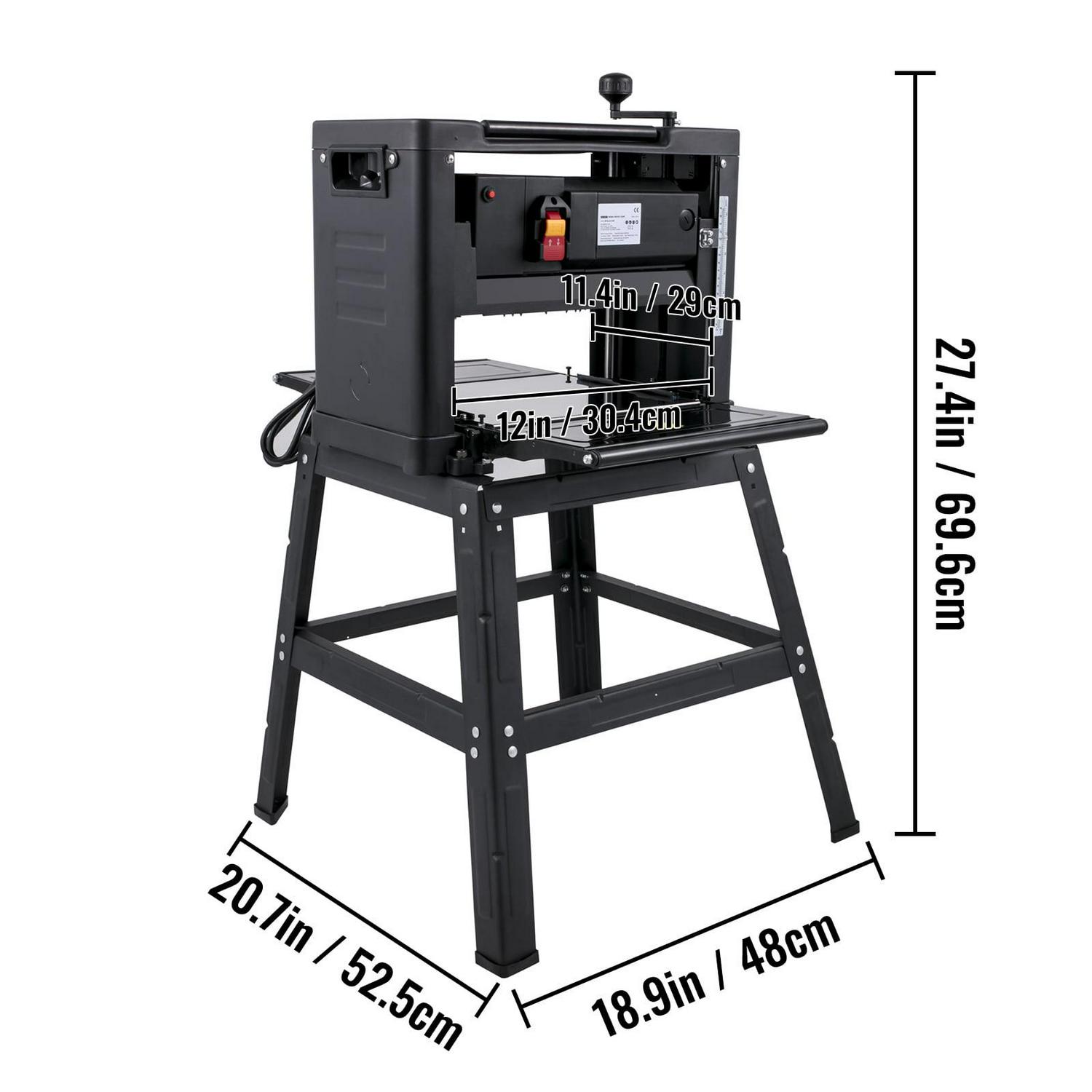

Product Size: 20.7 x 18.9 x 27.4 inch/ 52.5 x 48 x 69.6 cm
Work Table Size: 12.5 x 11.4 inch/ 31.8 x 29 cm
Weight: 69.4 lbs/ 31.5 kg
Voltage: 110V
Package Content
1 x Thickness Planer (with 2pcs double cutter blades pre-positioned)
1 x Stand
1 x Set of Accessories (Foot Pads, Iron Dust Cover, Nuts)

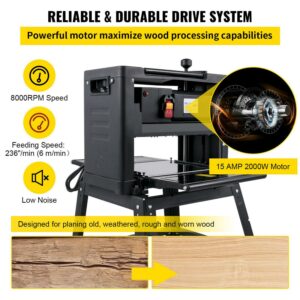

– Powerful Thickness Planer: 15 AMP 1800W Motor; Blade speed: 8000rpm; Feeding speed: 236″/min (6 m/min). With 2pcs double cutter blades, this high-efficiency wood planer adopts the complicated honing process to ensure the cutting edge is sharp and straight.

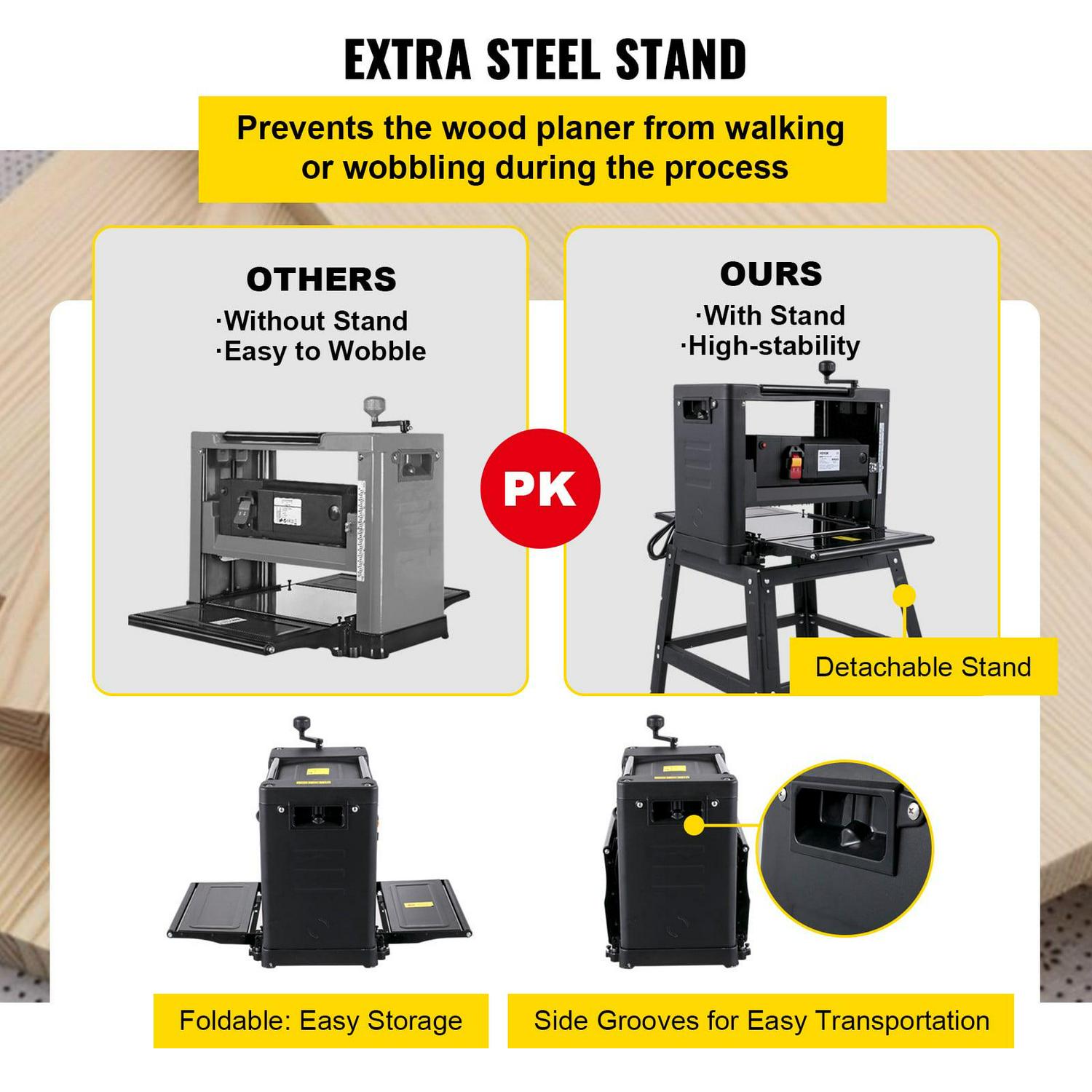

– Heavy-Duty Stand: There is a heavy-duty stand for a more strong fixation of the wood planer. This portable table planer is compact and space-saving with a detachable stand and foldable extension plates. ABS grooves on both sides are designed for easy mobility.

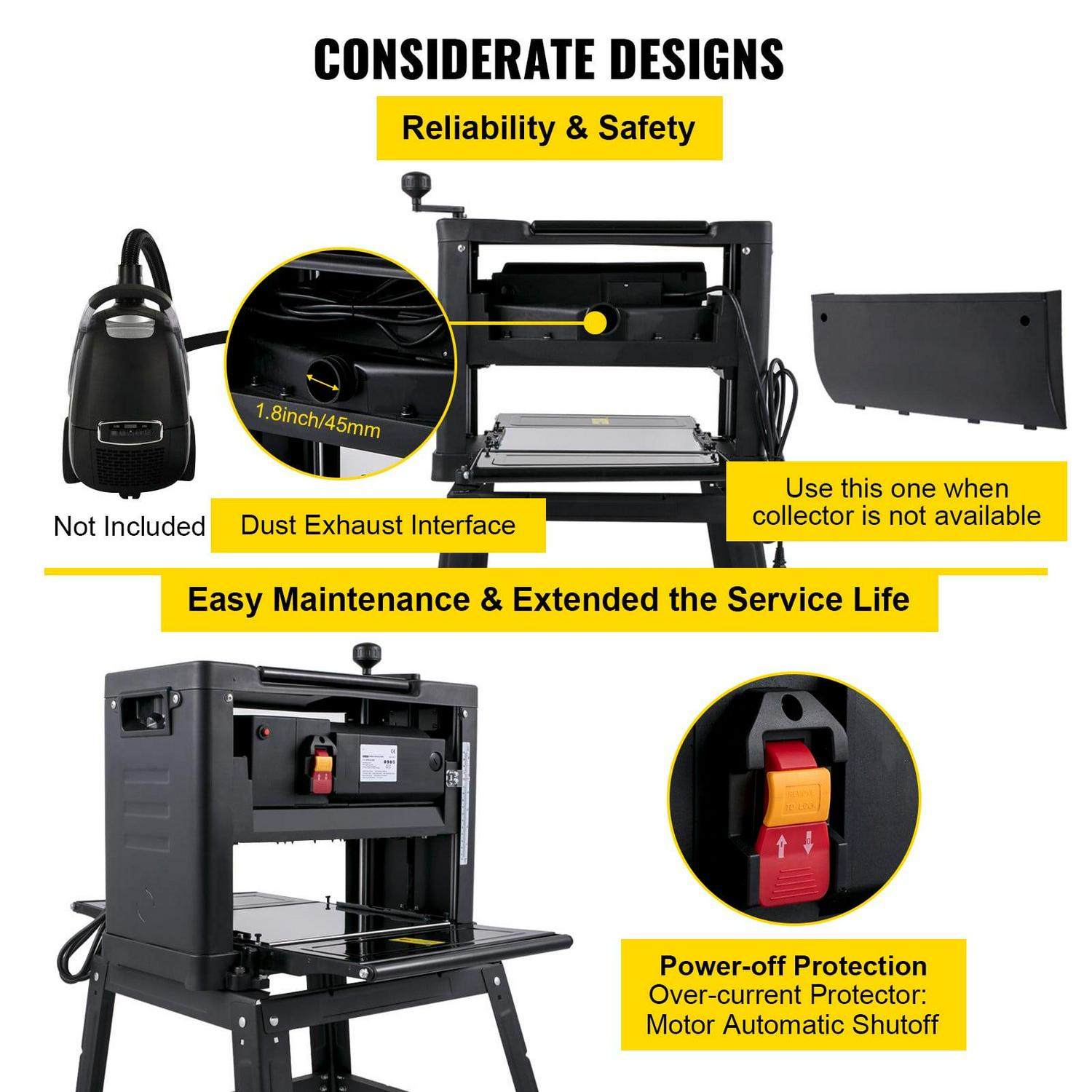

– Dust Exhaust Interface: Dust collection pot, inner diameter 1.8 inch/ 45 mm, outer diameter 2 inch/ 50 mm. The dust exhaust interface can connect to dust collectors for easy cleanup of the flying wood chips. Meanwhile, an iron dust coat is available to replace the collector. Both ways can keep your working place tidy and cultivate pleasant working surroundings.

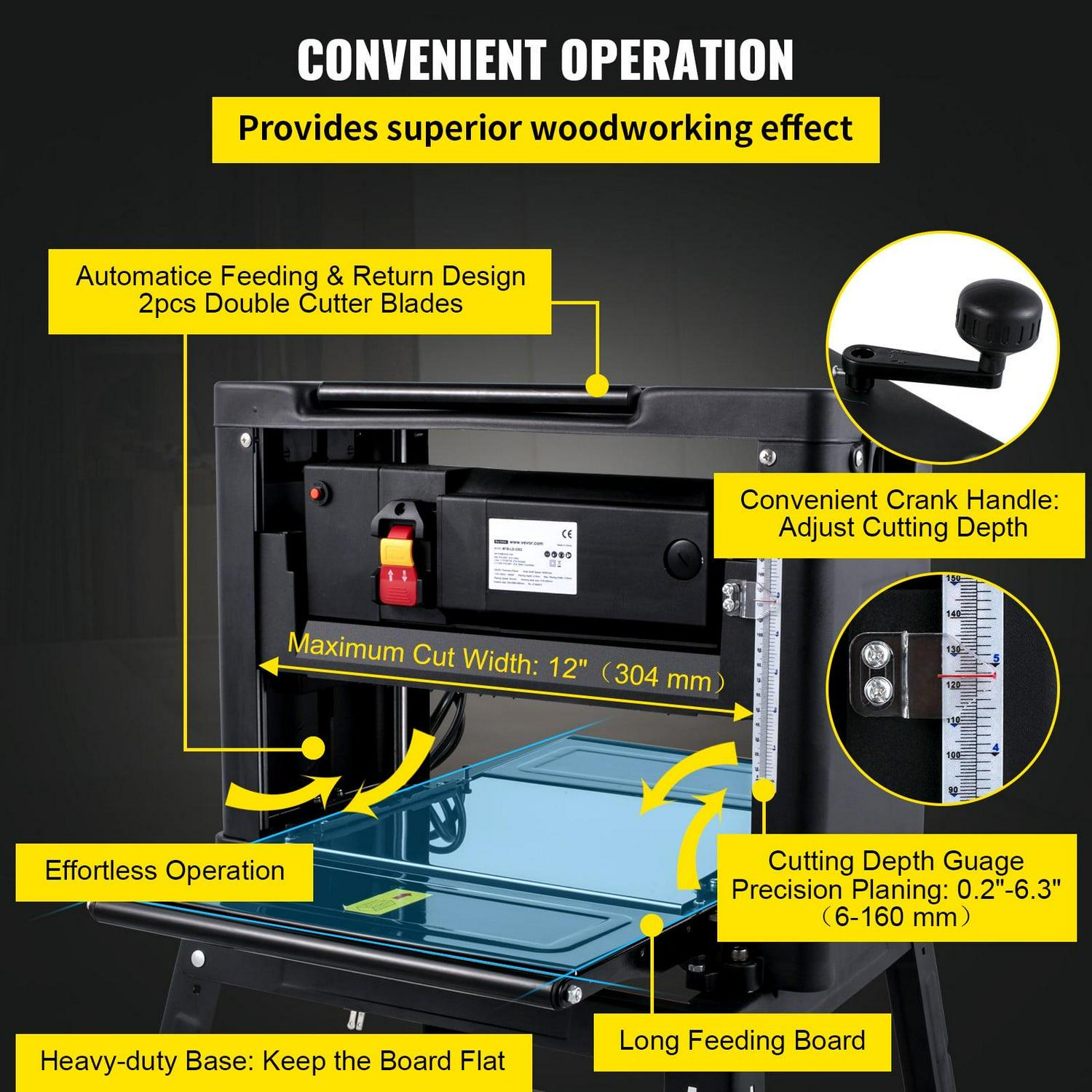

– Infeed & Outfeed Tables: Max cutting width: 12″ (304 mm); Cutting thickness: 0.2″-6.3″ (6-160 mm). All-stainless steel & metal material workbench can ensure a smooth and stable wood processing procedure. A crank handle for easy adjustment of the cutter head height; A scale ruler for precise machining; An Automatic feeding design is available to auto-feed the materials.
– Security Precautions: It s equipped with power-off protection electromagnetic switch, the over-current protector can be tripped when the motor is overloaded. This design ensures a stable & reliable operation, extending the service life.
