BENTISM Water Heater fit 3KW 220V Electric Water Heater fit for Swimming Pool
- Brand: BENTISM
- Manufacturer Part Number: 50MMJKSWKZQ000001V2
- Assembled Product Dimensions (L x W x H): 10.40 x 4.90 x 4.90 Inches
Product Description

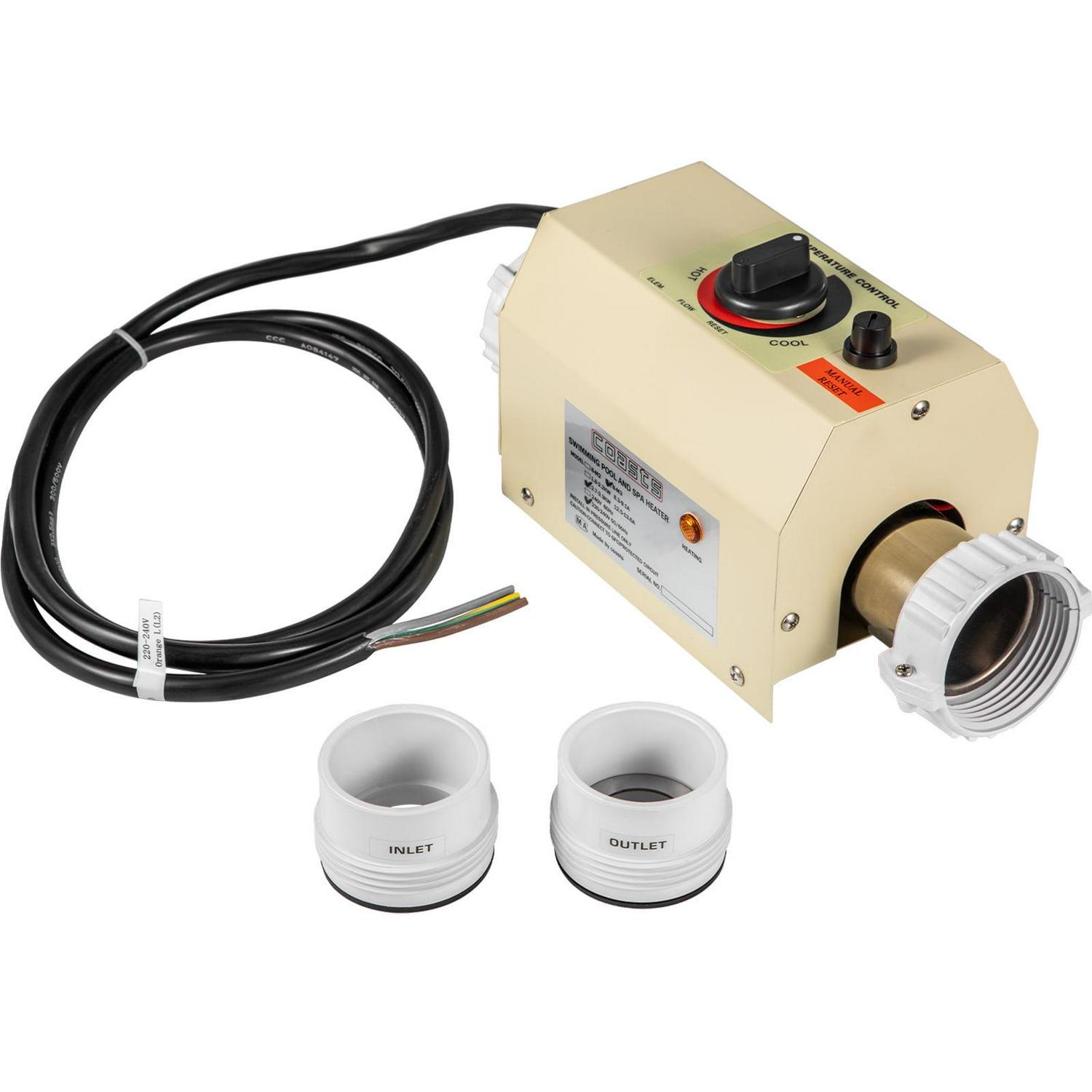

1.97″(50 mm) Interface Swimming Pool Heater
The Electrical pool heater is designed specifically for the needs of the Jacuzzi. The thermostat can keep the water temperature between 20 -40 (68 -104 ) adjustable, set a most comfortable bath temperature. Thermostat equipped with ultra-high temperature protection thermostat switch, thermostat to limit overheating, and protect users against danger. Please strictly follow the instructions before use.

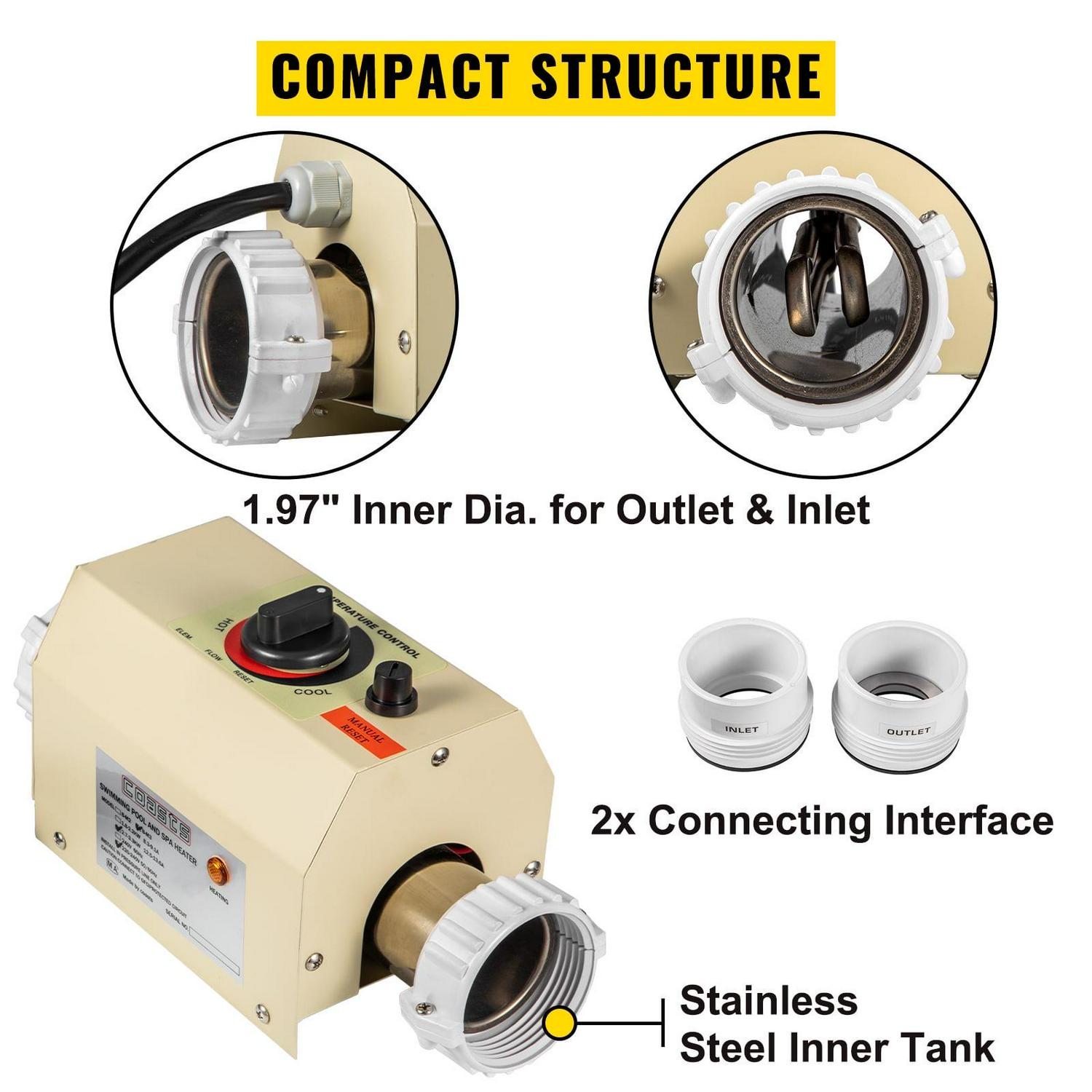

Compact Structure
The inner tank of the thermostat is stainless steel, which does not rust and the water quality is cleaner. The heating is fast, and steam can be quickly released in a short time.

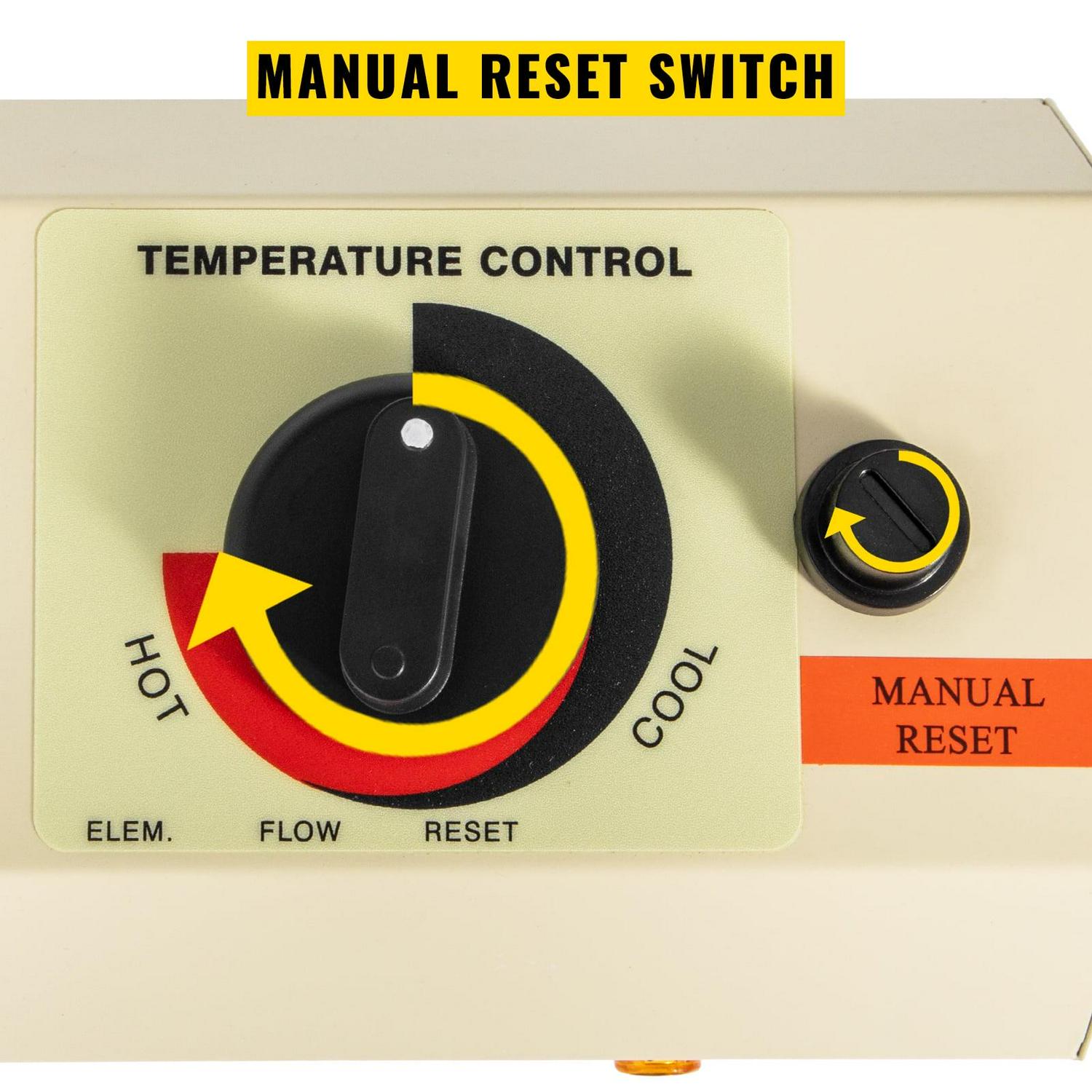

Manual Reset Switch
Once the temperature is over 60 (140 ), the temperature protection device will trip automatically. After the temperature returns to normal, press the “Reset” button to restart the thermostat.

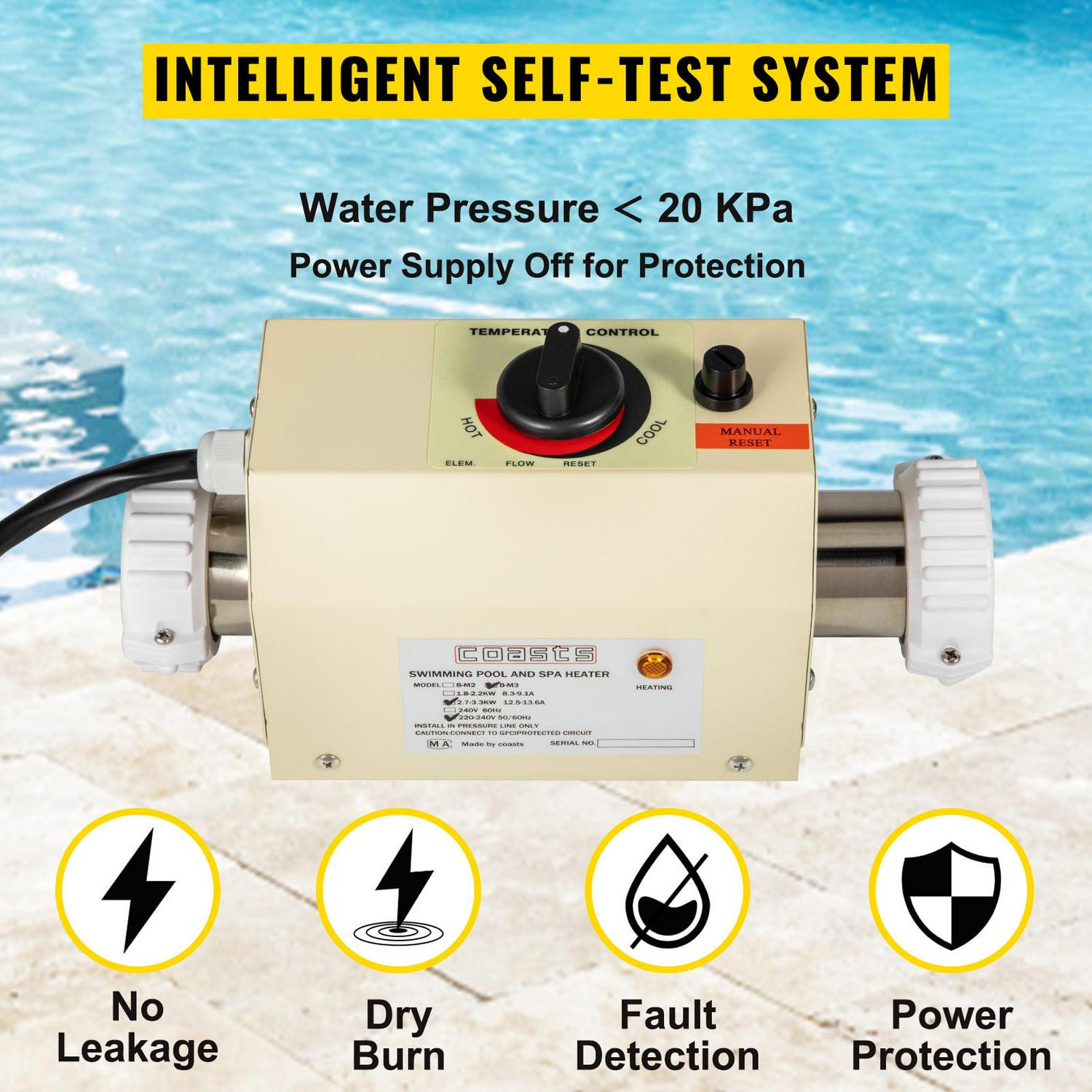

Intelligent Self-test System
Thermostat with a pressure-sensitive switch can be protected from a dangerous operating system in the absence of water. Once the water level is low (water pressure is below 20KPa), the pressure sensor switch will interrupt the power supply.

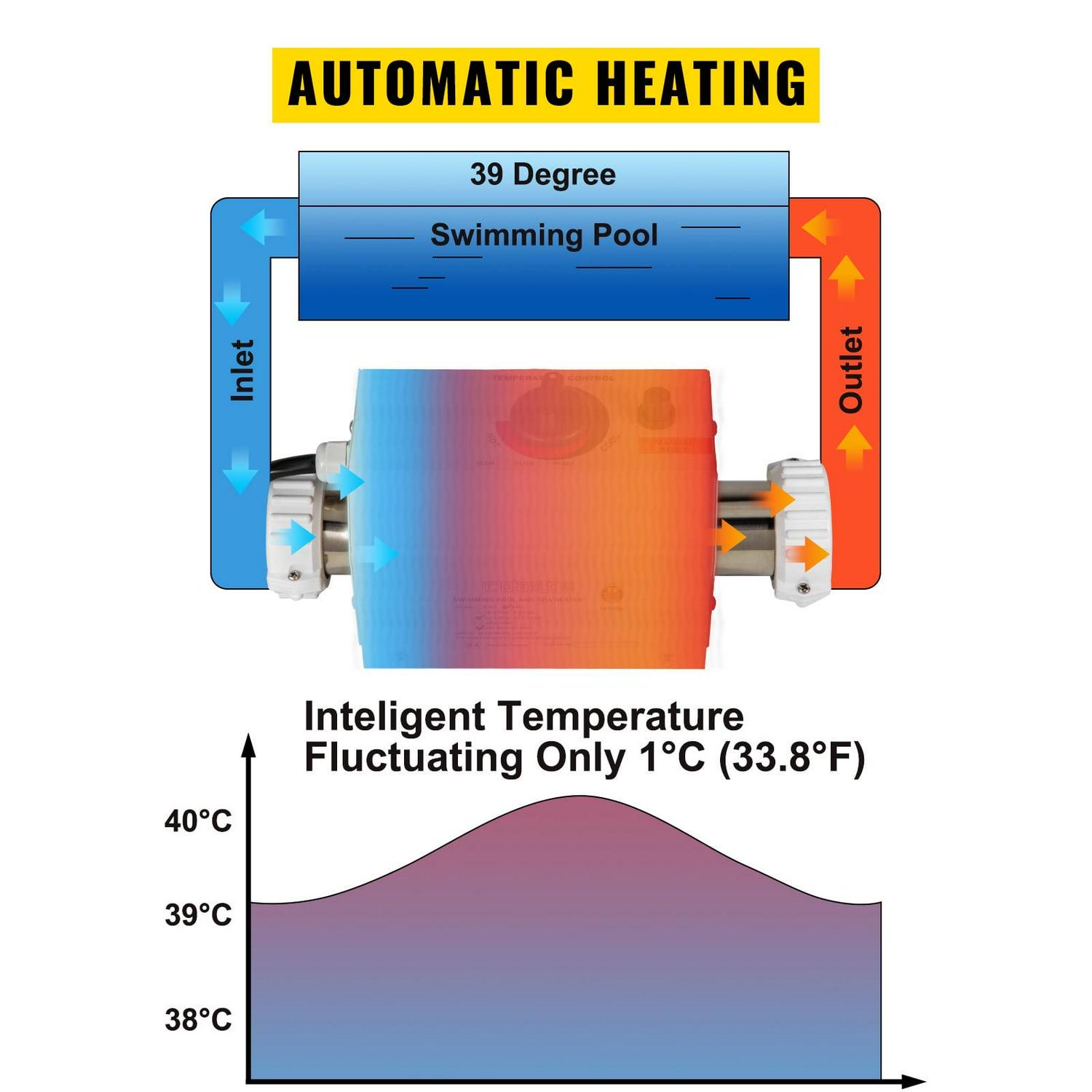

Automatic Heating
Thermostat temperature preset by the user based on, until the self-heating temperature. When the water temperature drops a few degrees, the thermostat will automatically turn on the heating.

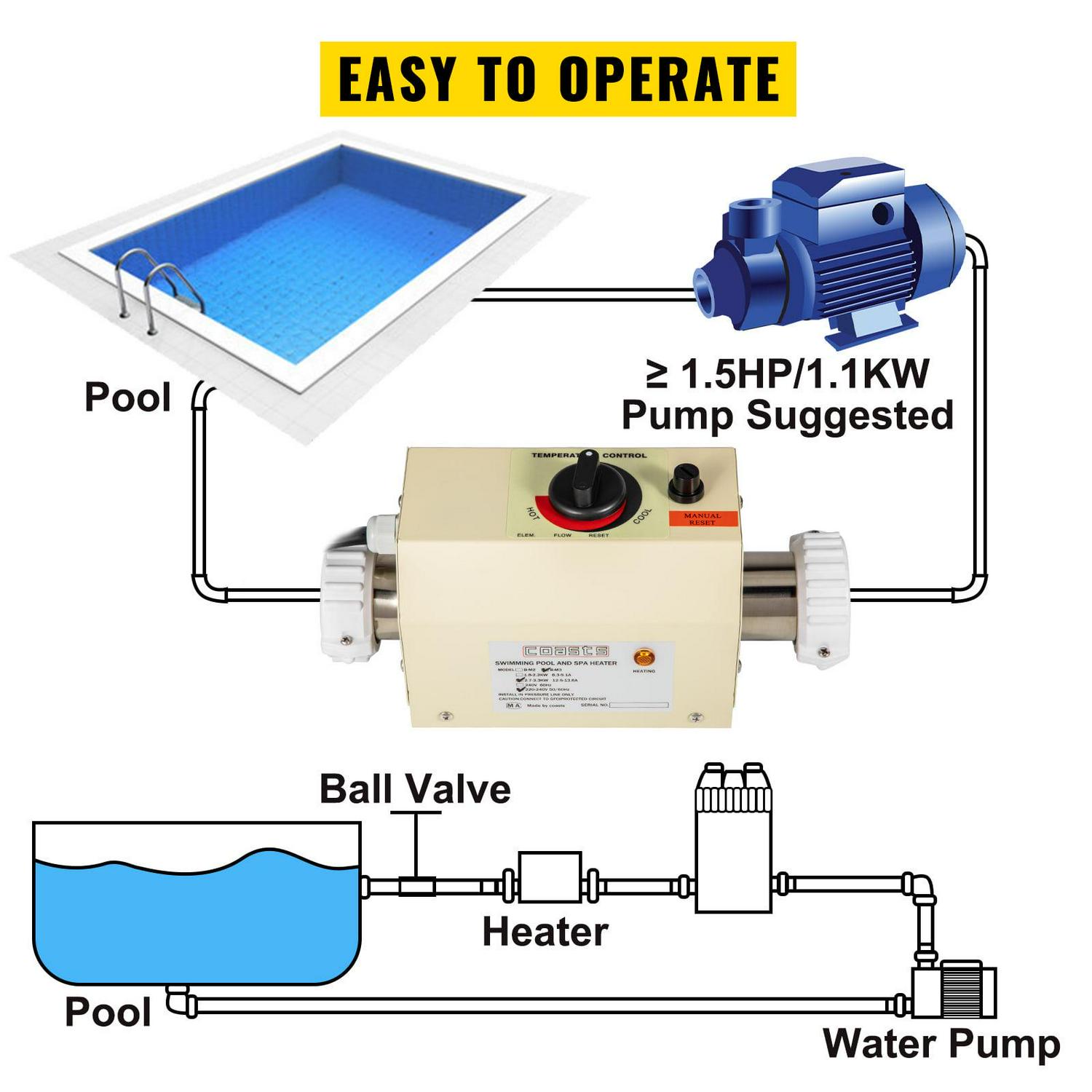

Easy to Operate
The product is small in size, easy to carry and install. It can be installed in the circulation massage tube at the bottom of the bathtub.
Multipurpose Use
The thermostat for home sauna is also widely used commercially. It can be applied to multiple scenes such as indoor and outdoor small swimming pools and bathtubs.
Specifications
Material: Metal
Voltage: AC 220-240 V / 50-60 Hz
Power: 3 KW
Current: 14 A
Wire:0.12″ x 0.16″ ( 3 x 4 mm² )
Pipe Dimeter: 1″ (2.54 cm )
Size: 10.4″ x 4.9″ x 4.9″(264 x 125 x 125 mm)
Net Weight: 4.4 lbs (2 kg)
Phase Parameters: Single Phase
Suitable For: Max 2 cbm Hot Tub & Swimming Pool Equipment
Package Content
1 x Water Heating Thermostat

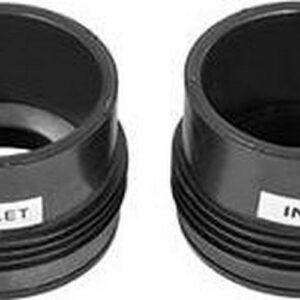

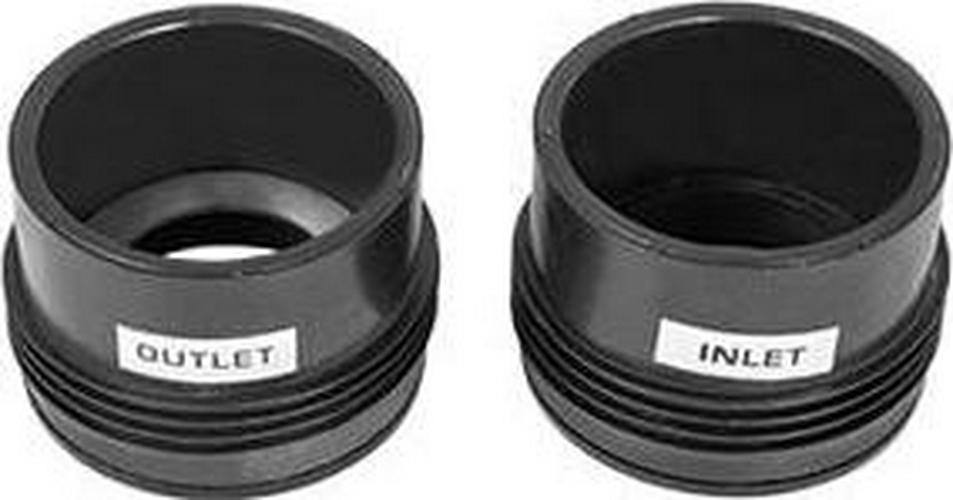

2 x Interface
– SMART THERMOSTAT – The thermostat comes with a temperature probe, which can sensitively sense the temperature of the pool water. The heating can automatically adjust to the set value of the thermostat. Adjustable temperature range of 20 -40 (68 -104 ), time can be freely set.
– SAFE & RELIABLE – Once the flow is small or not enough water pressure, the water inside the thermostatic switch will automatically disconnect the power to keep damage to the machine. Enhance the safety and service life of the swimming pool thermostat heater.
– DURABLE MATERIAL – The inner tank of the thermostat is stainless steel, and it has a long service life without rust. Internal use of international cables, in line with international standards, without having to worry about product quality problems during use.
– SIMPLE OPERATION – The internal circulation of the water heater is smooth, with no scum. It is easy to disassemble. After the correct installation, the user rotates the control switch to set the temperature and the heating indicator lights. The water will automatically heat up to the level set by the user and maintain the temperature.
– MULTIPLE USAGES – The water heater operation is fully automatic and easy to use. It is suitable for heating constant temperature systems such as small hot springs, mini swimming pools.
