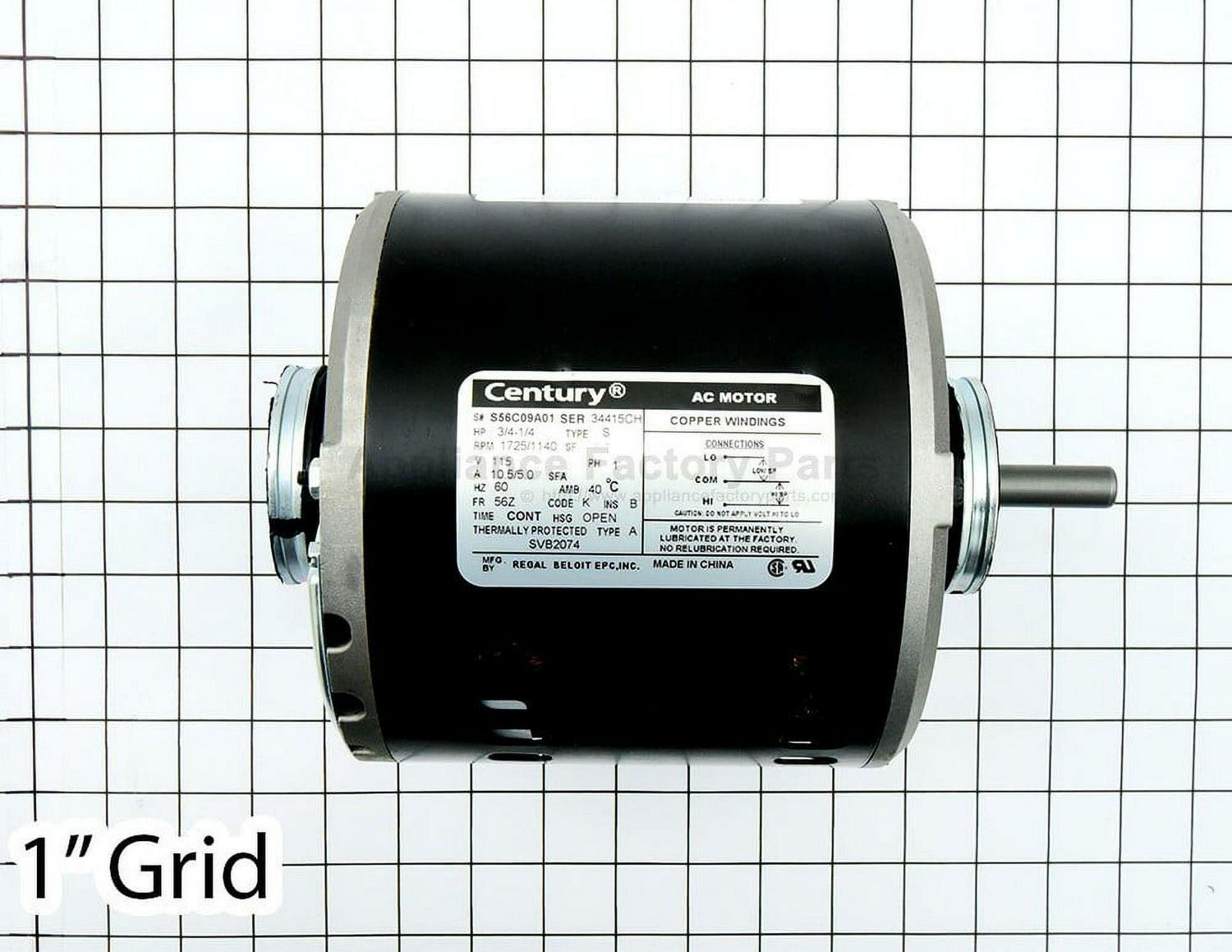

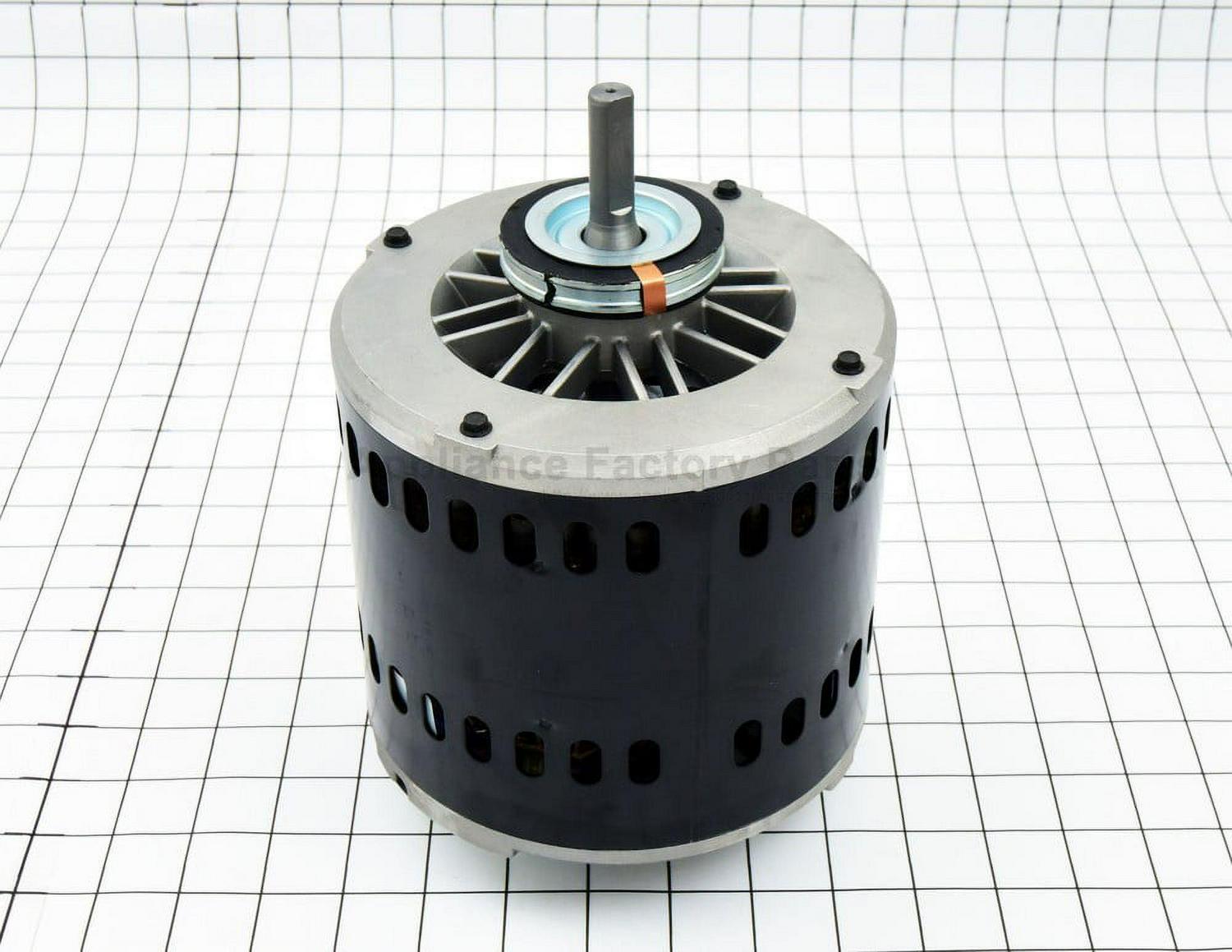

Dial Manufacturing 2206 3/4HP 115V 2 Speed Evaporative Cooler Motor

Dial 2206 3/4 HP 2 Speed Evaporative Cooler Motor will bring cool air where you need it. Built for 115-volt evaporative coolers, it can be used in a new cooler or as a replacement motor for an existing unit. It’s made with durable steel and has a thermal overload feature that protects it from overheating. The two-speed design lets you choose the best level of cooling for maximum comfort. Always follow the cooler manufacturer s recommendation when selecting the HP for an evaporative cooler motor.

3/4 HP Evaporative Cooler Motor

– Motor only, not base
– Single-phase, high-efficiency, premium moisture-resistant insulation system
– Suitable for high-moisture applications
– Heavy-duty bronze bearing

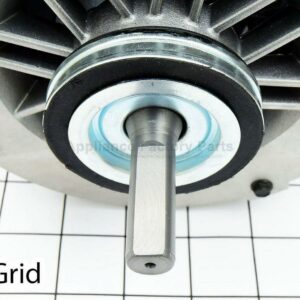

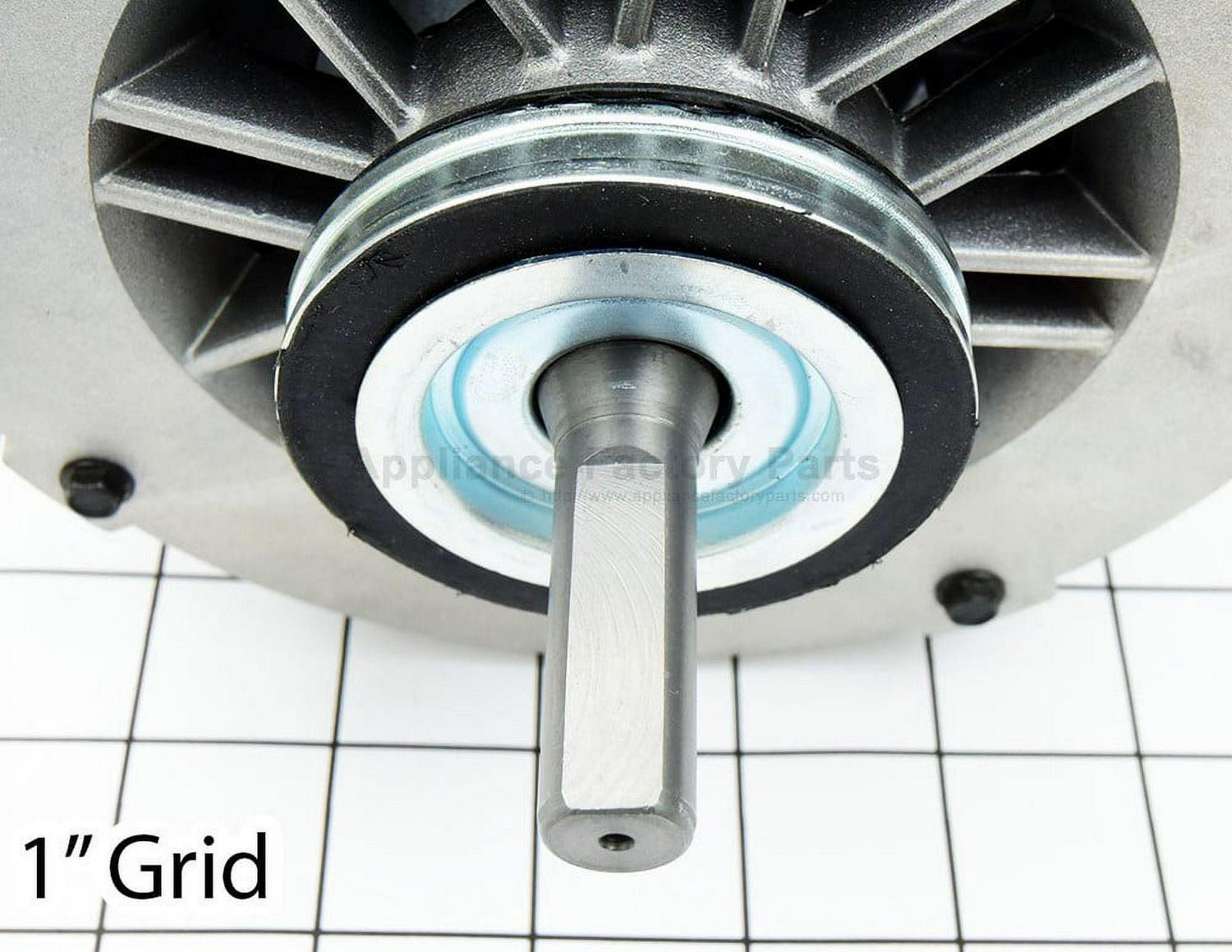

– 1/2″ shaft diameter
– Permanently lubricated sleeve bearings
– Thermal overload protected
– Motor is permanently lubricated during production, no re-lubrication is required
– Superior starting switch features rust-inhibiting materials and coatings
– Motor rotates clockwise when looking at the shaft
– Please double check that your unit uses the same rotation motor
– 100% copper windings
– UL (Underwriters Laboratories) approved construction
– 3/4HP evaporative cooler motor fits Master Cool, Aerocool and UltraCool models
– Insulated against high temperatures
– Replacement motor with for new or existing evaporative cooler
Two-speed design lets you optimize cooling comfort
Durable steel construction ensures lasting use
– 2 speeds (1140 and 1725 RPM) allow you to control the comfort level
115-Volt 3/4 HP motor provides reliable power for cost-efficient cooling
Resilient end rings ensure a secure fit into the cooler’s mounting bracket
Can be automatically controlled with a cooler thermostat or with manual wall switch (both sold separately)
Permanently lubricated ball bearings ensure against over-oiling
Motor terminals are easily accessible for connecting the motor cord
Corrosion-resistant steel construction for durability and long life
Automatic thermal overload feature protects against overheating
UL-recognized components for safety
Includes one-year warranty
Fits 56Z Frame Motor Only.
