DVR Hard Drive CCTV NVR Video Recorder Surveillance System for 110-240V EU Plug
Specification:
Condition:
Item Type: NVR
Color: Black
Material: Metal
Main Processor: Industrial Embedded Chip hi3520d V300
Codec Standard: H.264
Monitoring Quality: VGA, HD
Preview Capacity: 4 x 1080P 5 in 1
Coding Capacity: 4 x 1080P 5 in 1
Decoding Capacity: 4 x 1080P @ 15fps 5 in 1
ModeI Input
Coaxial: 4 x1080P
Mixing: 2 x 1080P coaxial + 2 x 1080P network; 4 x 1080N coaxial + 4 x 960P network;
Network: 16 x 1080P; 9 x 1080P; 16 x 960P; 4 x 5M
Motion Detection: 192 16×12 detection areas can be set per screen; multi-level sensitivity can be set local channel only
Audio Compression: G.711A
Intercom: Support
Recording Mode: Manual > Alarm > Dynamic Detection > Timing
Local Playback: 1 Way 4M
Video Query: Time Point Search, Calendar Search, Event Search, Channel Search
Video Saving: Local Hard Disk, Network
Backup Method: Network Backup, USB Mobile Hard Disk, Usb Burning, Burning
Video Intput: 4-Way BNCVideo Output: 1 Way VGA, 1 Way
Audio: I/O: 1/1
Alarm: I/O::0/0
Network Interface: 1 RJ45 10m/100m Adaptive Ethernet Port
Expanded Interface: 2 USB 2.0 Interfaces
Hard Disk Interface: 1 Interface maximum 8T Each
Power: 12V/2A
Working Environment Temperature: 0°C-+55°C
Humidity: 10%-90%
Atmospheric Pressure: 86kpa-106kpa
Specification:
Condition:
Item Type: NVR
Color: Black
Material: Metal
Main Processor: Industrial Embedded Chip hi3520d V300
Codec Standard: H.264
Monitoring Quality: VGA, HD
Preview Capacity: 4 x 1080P 5 in 1
Coding Capacity: 4 x 1080P 5 in 1
Decoding Capacity: 4 x 1080P @ 15fps 5 in 1
ModeI Input
Coaxial: 4 x1080P
Mixing: 2 x 1080P coaxial + 2 x 1080P network; 4 x 1080N coaxial + 4 x 960P network;
Network: 16 x 1080P; 9 x 1080P; 16 x 960P; 4 x 5M
Motion Detection: 192 16×12 detection areas can be set per screen; multi-level sensitivity can be set local channel only
Audio Compression: G.711A
Intercom: Support
Recording Mode: Manual > Alarm > Dynamic Detection > Timing
Local Playback: 1 Way 4M
Video Query: Time Point Search, Calendar Search, Event Search, Channel Search
Video Saving: Local Hard Disk, Network
Backup Method: Network Backup, USB Mobile Hard Disk, Usb Burning, Burning
Video Intput: 4-Way BNCVideo Output: 1 Way VGA, 1 Way
Audio: I/O: 1/1
Alarm: I/O::0/0
Network Interface: 1 RJ45 10m/100m Adaptive Ethernet Port
Expanded Interface: 2 USB 2.0 Interfaces
Hard Disk Interface: 1 Interface maximum 8T Each
Power: 12V/2A
Working Environment Temperature: 0°C-+55°C
Humidity: 10%-90%
Atmospheric Pressure: 86kpa-106kpa
Package List:
1 x NVR
1 x Mouse
1 Supply
1 x Instruction Manual
3 x Screw
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

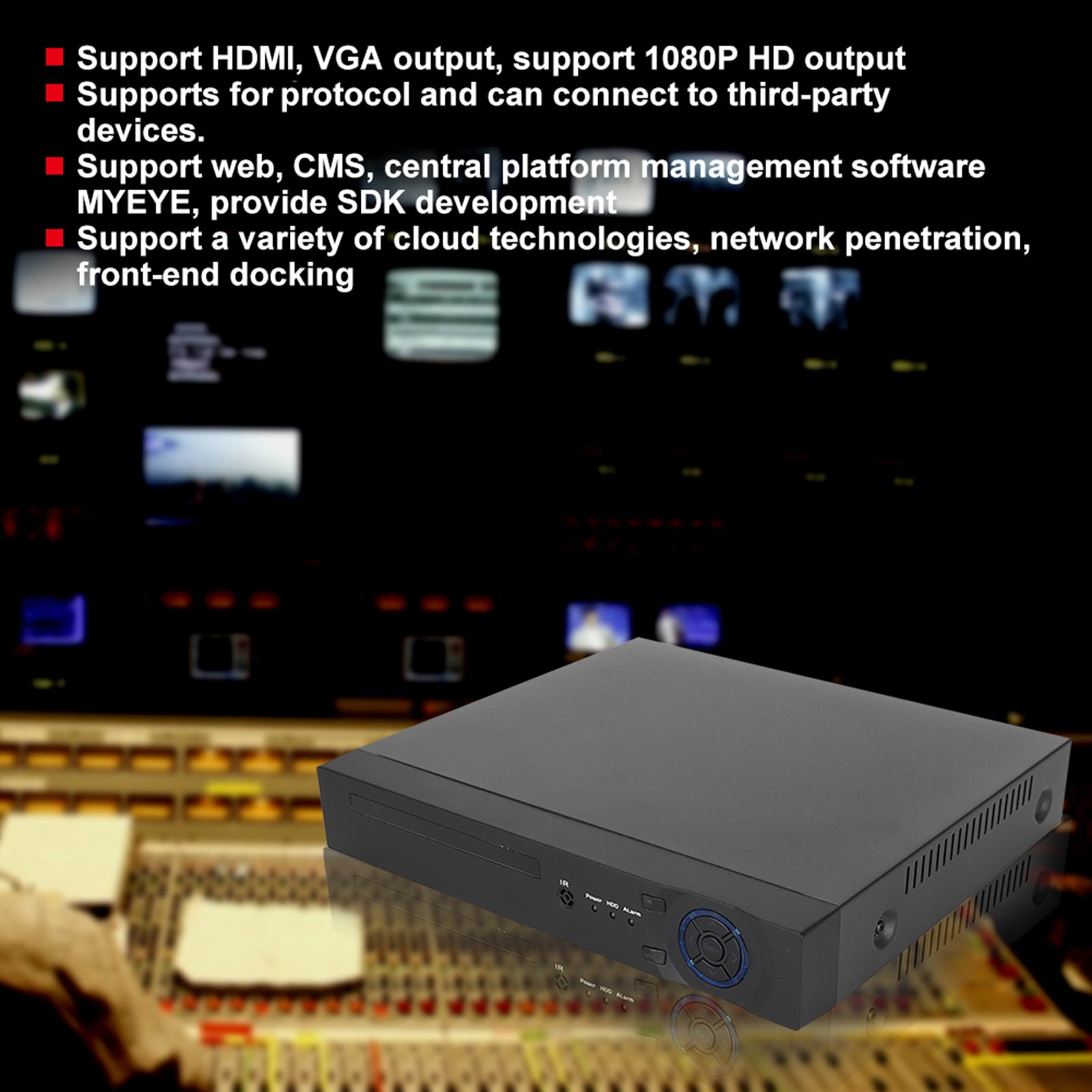

Support VGA, high-definition output display; support. AHD/TVI/CVI/CVBS/IP signal 5-in-1 access. Support a variety of technologies, network penetration, front-end docking, alarm information pushed to mobile phones, etc. Supporting Web, CMS, central platform management software MYEYE, providing SDK development. Support all kinds of mobile phones, pad remote monitoring for IOS, for . Remote access, with domain name service function ARSP, one-click enable remote monitoring.
