Humminbird 710279-1 XPTH 9 HW T – HELIX Dual Spectrum CHIRP w/ Temp Plastic Thru Hull Transducer

Humminbird XPTH 9 HW T (710279-1)
Brand New Includes Manufacturer Warranty

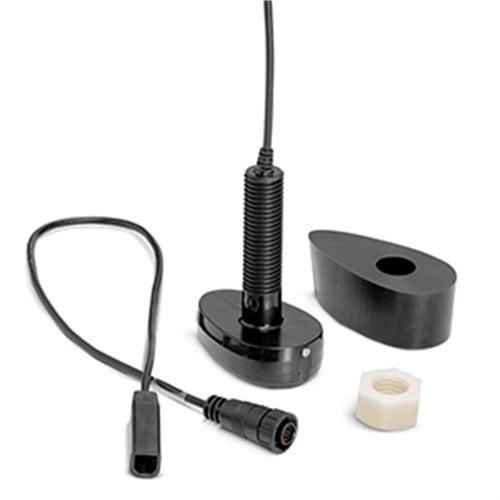

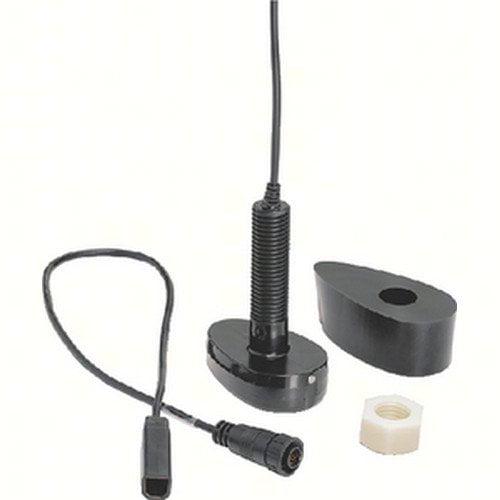

The Humminbird XPTH-9-HW-T Plastic Thru-Hull Transducer has a built-in temperature sensor and Dual Spectrum CHIRP 2D Sonar technology producing a high-frequency beam in a wide cone angle. The transducer employs a dual spectrum such that the user gets a clear, well-defined coverage of the fish-holding structures.
Operating on the frequency range of 150-220 kHz, Dual Spectrum CHIRP 2D offers imaging in two different modes, wide mode (140-200 kHz) that delivers maximum coverage and narrow mode (180-240 kHz) that provides maximum detail. The transducer can scan up to a depth of 1,200 feets below water.
XPTH-9-HW-T Features:

– Thru Hull Transducer
– Dual Spectrum CHIRP 2D Sonar
– 150-220 kHz Full Spectrum
– Built-In Temperature Sensor
– Narrow Band: 180-240 kHz (Max. Details)
– Wide Band: 140-200 kHz (Max. Coverage)
– Max. Depth : 1200ft

– Compatible with: HELIX 5 CHIRP G2/G3 GPS-equipped models only, HELIX 7 CHIRP G2/G3/G4 GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N/G4N All models, HELIX 8 CHIRP G3N/ G4N All models, HELIX 9 CHIRP G2N/G3N/G4N All models, HELIX 10 CHIRP G2N/G3N/G4N All models, HELIX 12 CHIRP G2N/G3N/G4N All models, ICE HELIX CHIRP G2/G3 and newer All models (in Open Water Mode) Side Imaging and Down Imaging units can support this transducer as a 2D sonar only transducer.
– Cable Length: 30 Feet
– Side Imaging and Down Imaging units can support the XPTH 9 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.; Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz; Dual Spectrum CHRIP Max Depth: 1200ft (365m); Dimensions: L 4.0″ x W 2.5″ x D 1.2″ – Stem Length 4″, Stem Diameter 1″; 1-Year Limited Warranty
