Humminbird 710283-1 XXX Trolling Motor Transducer for MEGA Imaging+/800kHz/455kHz & Dual Spectrum CHIRP 2D Sonar 150-220kHz

Humminbird XTM 9 HW MSI T (710283-1)
Brand New Includes Manufacturer Warranty

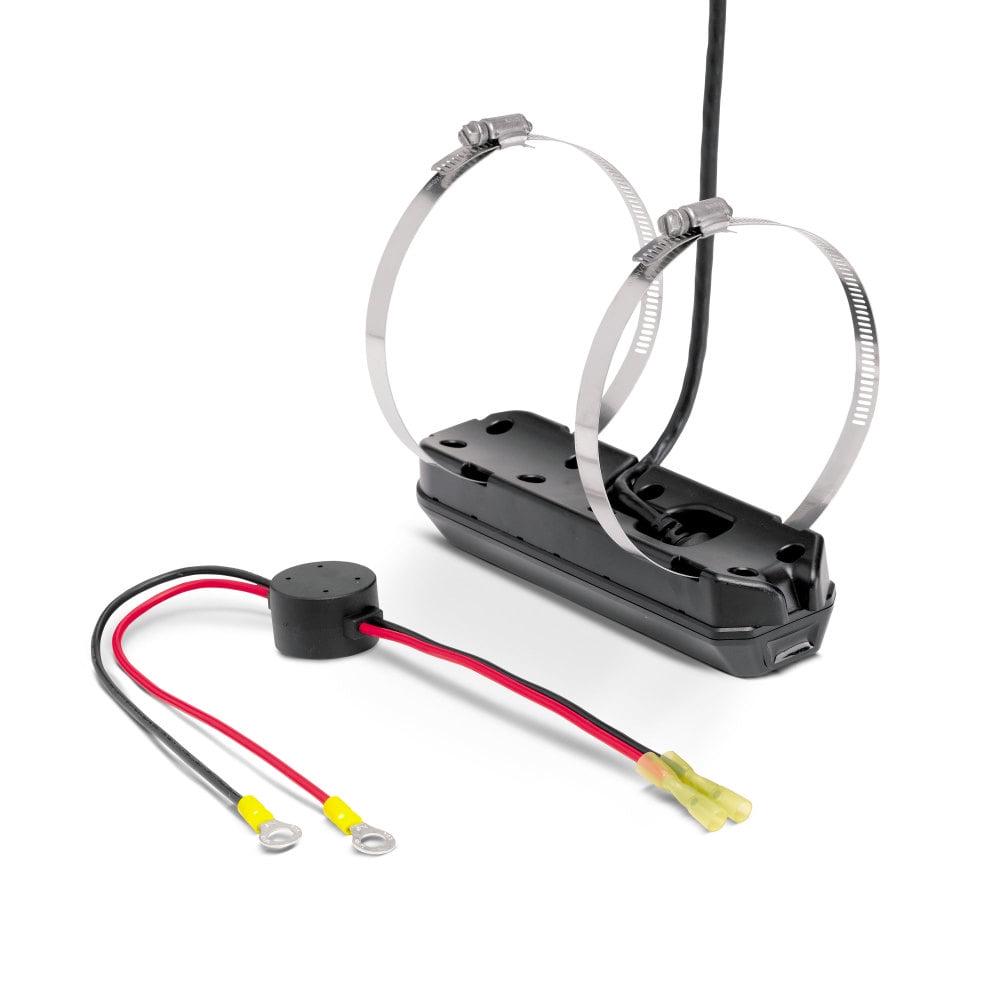

The Humminbird XTM-9-HW-MSI-T is a trolling motor transducer having a built-in temperature sensor. It supports MEGA Imaging+ and Dual Spectrum CHIRP 2D Sonar technology. The rugged, composite-design transducer employs a dual spectrum such that the user gets a clear, well-defined coverage of the fish-holding structures. Operating on the frequency range of 150-220 kHz, Dual Spectrum CHIRP 2D offers imaging in two different modes, wide mode (140-200 kHz) that delivers maximum coverage and narrow mode (180-240 kHz) that provides maximum detail. The transducer can scan up to a depth of 1,200 feets below water using this technology.
MEGA Imaging+ is an advancement in side and down imaging sonar, capable of covering fishes and structures besides and below the boat with unprecedented underwater clarity. Down imaging has a maximum depth of 400ft below water at 440-500 kHz or 455kHz imaging, up to 125ft at 790-850 kHz or 800kHz imaging, and up to 200ft at MEGA DI+ 1075-1150 kHz frequency range. Similarly, for Side Imaging, the transducer can scan upto 800ft side to side at 455kHz or 440-500 kHz range, up to 250ft at 790-850 kHz or 800kHz imaging, and 400ft at MEGA SI+ 1075-1150 kHz range.
XTM-9-HW-MSI-T Features:

– Trolling Motor Transducer
– Dual Spectrum CHIRP 2D Sonar
– Full Spectrum: 150-220 kHz
– Narrow Band: 180-240 kHz
– Wide Band: 140-200 kHz
– MEGA Side Imaging+
– 455kHz: 440-500 kHz – 800ft (244m)
– 800kHz: 790-850 kHz – 250ft (76m)
– MEGA SI+: 1075-1150 kHz – 400ft (122m)
– MEGA Down Imaging+
– 455kHz: 440-500 kHz – 400ft (122m)
– 800kHz: 790-850 kHz – 125ft (38m)
– MEGA DI+: 1075-1150 kHz – 200ft (61m)
– Built-In Temperature Sensor
– Max. Depth: 1200ft (Standard)
– Rugged Composite Design

– Compatible with: HELIX 12/10/9/8 CHIRP MEGA SI+ G3N, HELIX 15/12/10/9/8 CHIRP MEGA SI+ G4N.
– Cable Length: 15 Feet
– Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz; Dual Spectrum CHIRP Max Depth: 1200ft (365m); MEGA Side Imaging+ Frequencies – Max Range (side-to-side): 455kHz: 440-500 kHz – 800ft (244m), 800kHz: 790-850 kHz – 250ft (76m), MEGA SI+: 1075-1150 kHz – 400ft (m); MEGA Down Imaging+ Frequencies – Max Depth: 455kHz: 440-500 kHz – 400ft (122m), 800kHz: 790-850 kHz – 125ft (38m), MEGA DI+: 1075-1150 kHz – 200ft (61m); Note: This transducer will not fit Minn Kota trolling motors with less than 80 pounds of thrust as it measures 8.4″ long by 2.3″ wide and will not fit between the prop and the skeg.; 1-Year Limited Warranty
