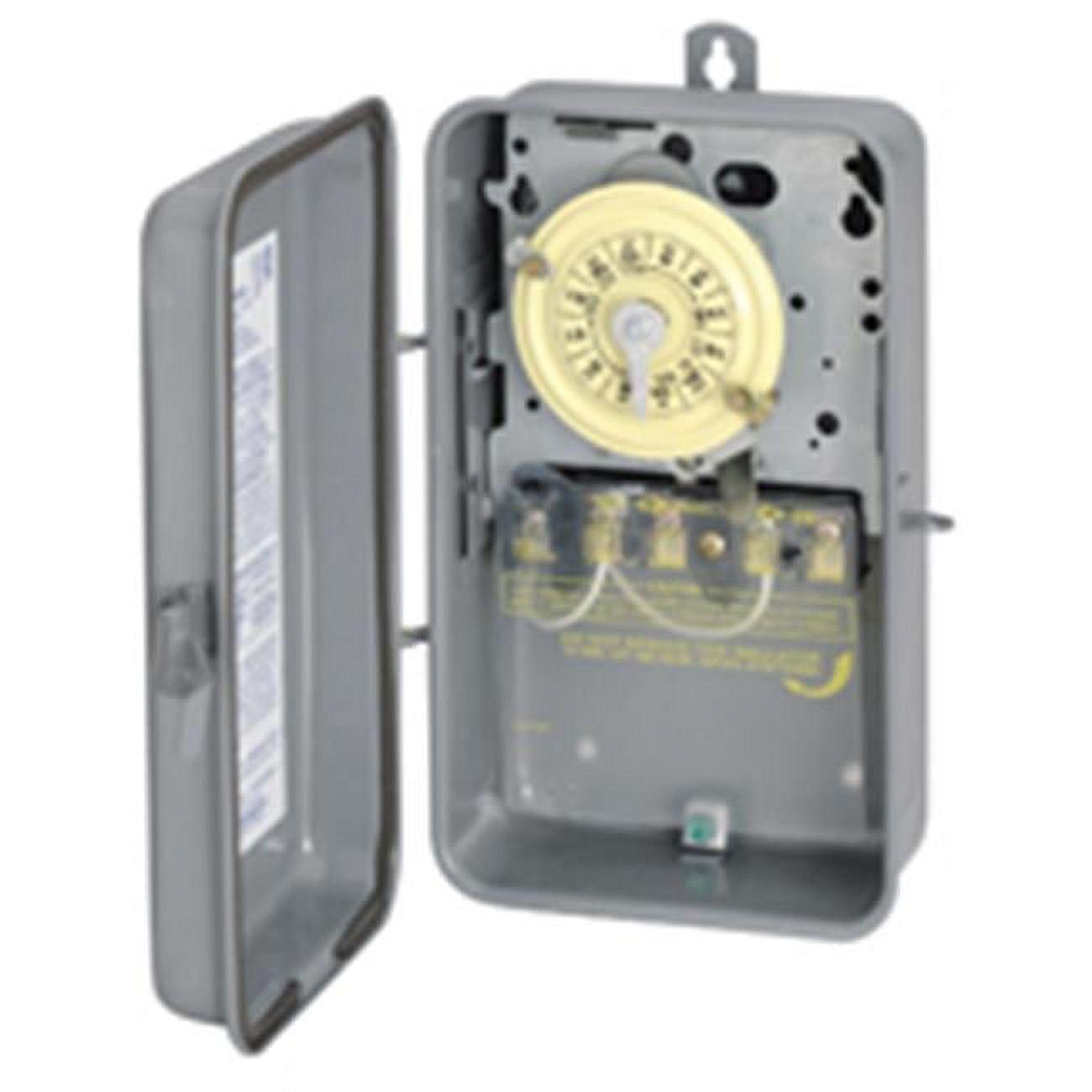

Intermatic Indoor and Outdoor Mechanical Timer Switch 277 V Gray
- TIME SWITCHES
- OUTDOOR – MECHANICAL
- WITH NEMA 3R CASE
- DOUBLE-POLE / SINGLE THROW
- HP Volts=5/208-277
Provides direct 24 hour control of most loads electrical loads up to 40 amps. 1 to 12 on/off operations each day with minimum on/off times of 1 hour. Manual override without changing settings. Comes with one on and one off tripper. Switch rating: each pole; 40 amp resistive 120-480 VAC; 40 amp tungsten inductive or 1000 VA pilot duty 120-277 VAC; 2 HP (24 FLA) 120 VAC; 5 HP (28 FLA) 240 VAC.
– TIME SWITCHES
– OUTDOOR – MECHANICAL
– WITH NEMA 3R CASE
– DOUBLE-POLE / SINGLE THROW
– HP Volts=5/208-277
MECH TIMR SWTCH208/277V
- Features: Programmable
- Manufacturer Part Number: T104RD89
- Brand: Intermatic
- Assembled Product Weight: 3.3 lb
- Manufacturer: INTERMATIC INC
- Color: Gray
- Model: T104RD89
- Assembled Product Dimensions (L x W x H): 6.70 x 4.00 x 10.30 Inches
