New Transducers humminbird 710201-1 HD Side Imaging Dual Beam PLUS 20/60/180 deg 200/83/455/800kHz Model XHS9 HDSI 180T
- Cable Length: 20 Feet
- Features: fish-finders
- Brand: Humminbird
- Manufacturer Part Number: HUM 7102011
- Assembled Product Weight: 1.95 lb
- Manufacturer: Humminbird
- Assembled Product Dimensions (L x W x H): 5.00 x 5.00 x 5.00 Inches
Product # 710201-1

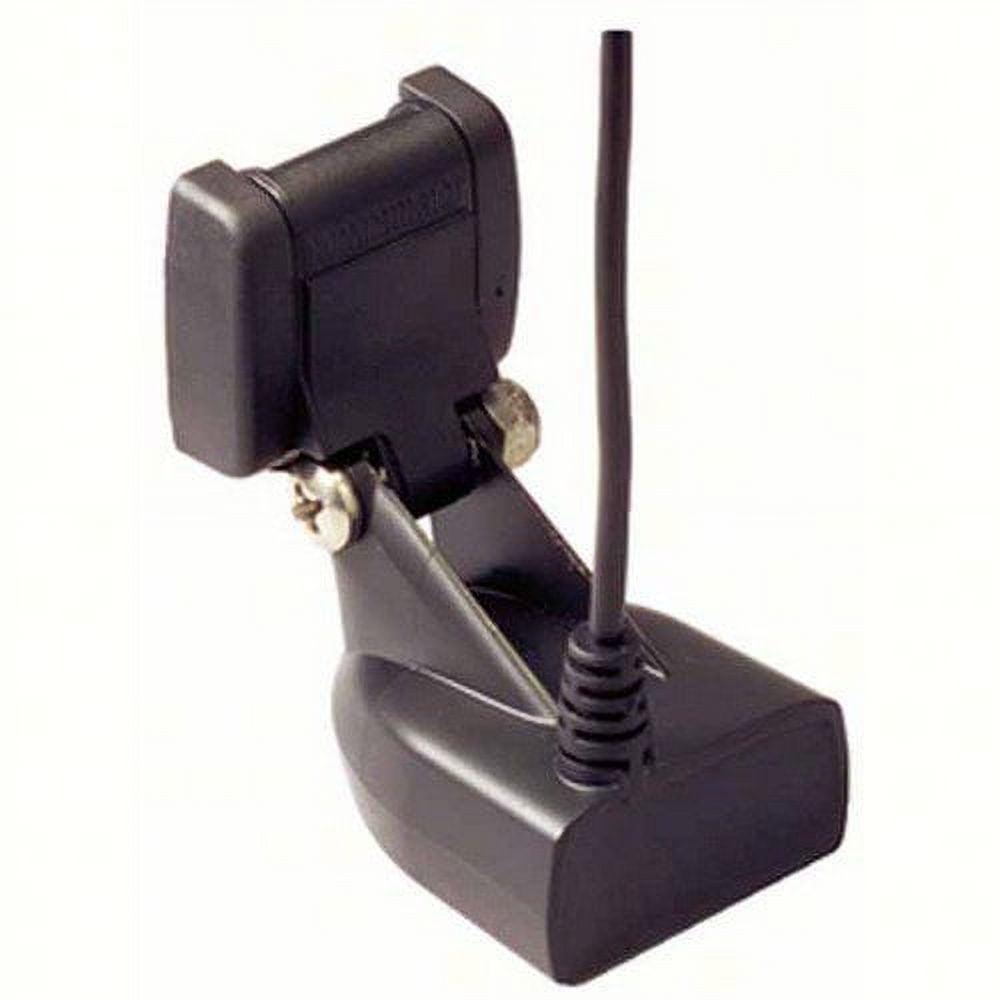

Humminbird XHS 9 HDSI 180 T
The Humminbird XHS 9 HDSI 180 T is a high-speed transducer designed to mount on the transom, or back of the boat which is in contact with the surface of the water. It operates in conjunction with a compatible HD side imaging sonar or fish finder system and includes a built-in temperature sensor.
The combinational DualBeam plus transducer operates on both 200 kHz and 83 kHz frequencies respectively. It utilizes a new design that is more secure and less prone to kick up at the high force of waves. The transducer is specifically designed for use with Humminbird’s 997c SI Combo fish finder and other side-imaging sonar systems.
– XHS 9 HDSI 180 T Features:
– Transom Mount Transducer
– Dual / HD Side Imaging Sonar
– 20 / 74 / 84 Degrees
– 83 / 200 / 455 / 800 kHz
– Built-In Temperature Sensor
– HD Side Imaging Sonar
– DualBeam PLUS
– Depth Capability:
– Side Imaging 150ft Down 240ft Each Side
– DualBeam PLUS 1500ft
– For Humminbird Models:
– 800 Series: 898c SI, 898c HD SI, 899ci HD SI
– 900 Series: 997c SI, 998c SI, 998c HD SI, 999ci HD SI
– 1100 Series: 1197c SI, 1198c SI, 1199ci SI
– HELIX Series: HELIX 9 SI GPS, HELIX 10 SI GPS, HELIX 12 CHIRP SI GPS
– Compatible with: all HELIX Side Imaging units except HELIX 7 CHIRP MSI GPS G3/G3N/G4/G4N, HELIX 7 SI GPS G4 to the maximum capability of the transducer. Also compatbility with 1199ci HD SI, 999ci HD SI, 899ci HD SI, 1198c HD SI, 998c HD SI, 998c SI, 898c HD SI, 898c SI to the maximum capability of the transducer
– Cable Length: 20 Feet
– 1-Year Limited Warranty
