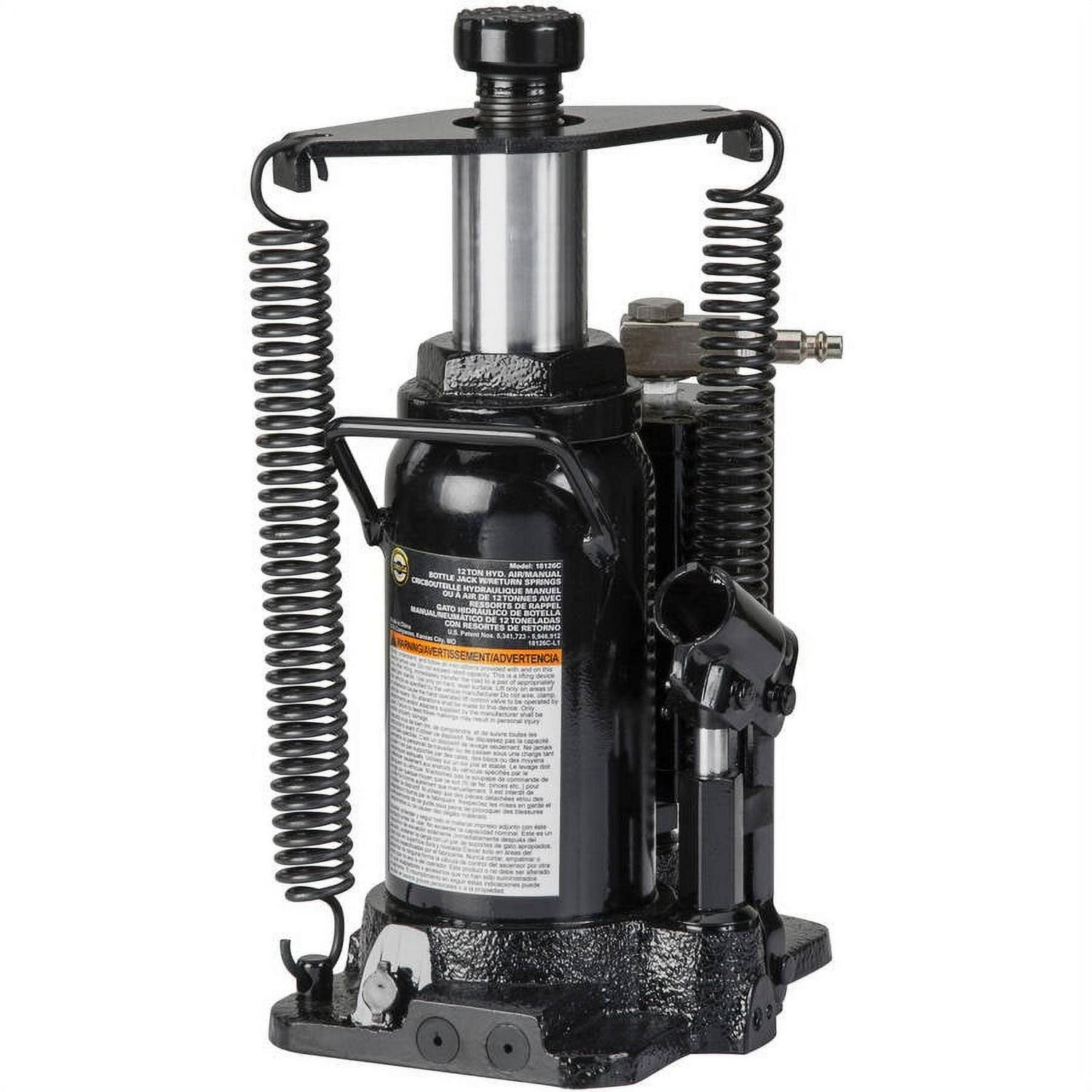

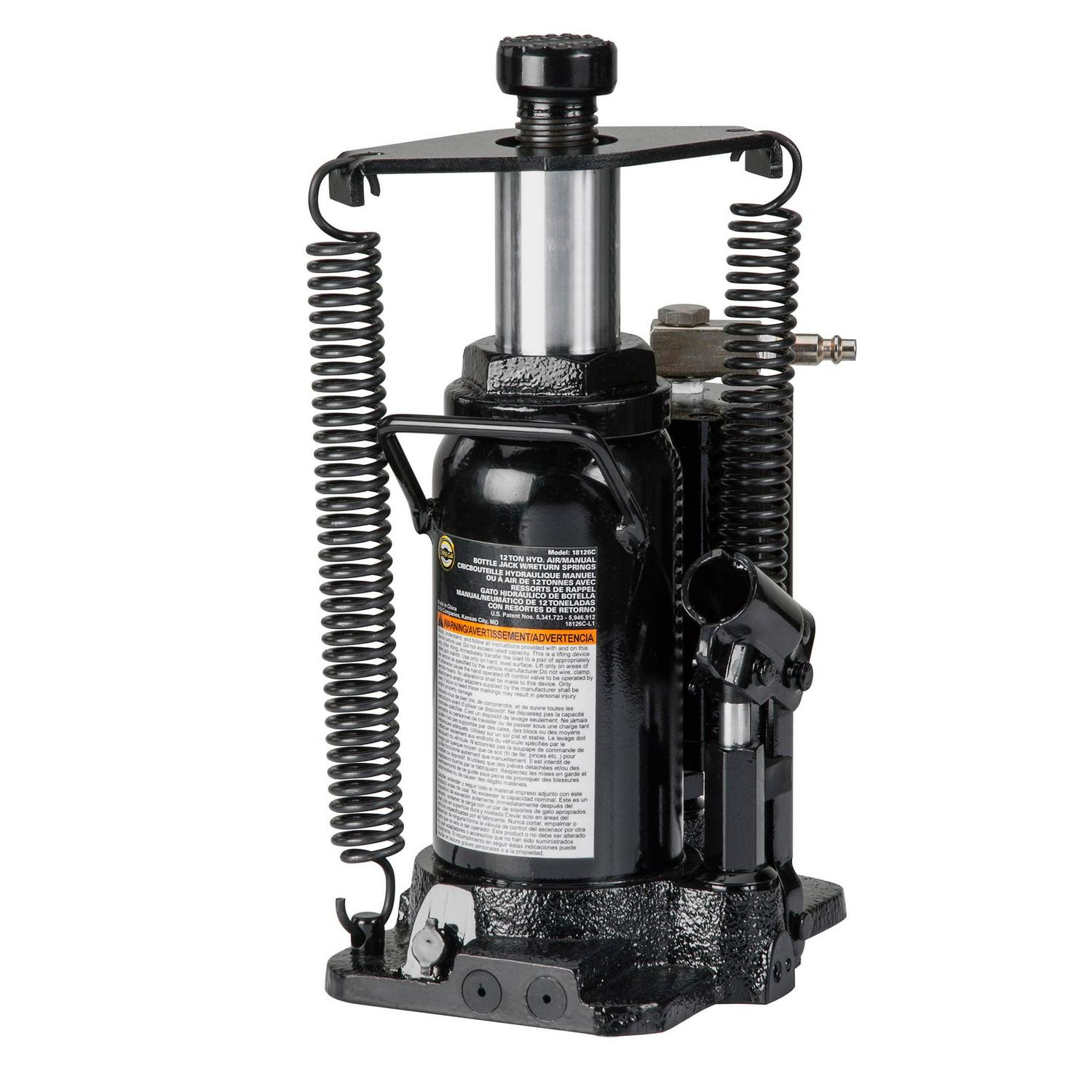

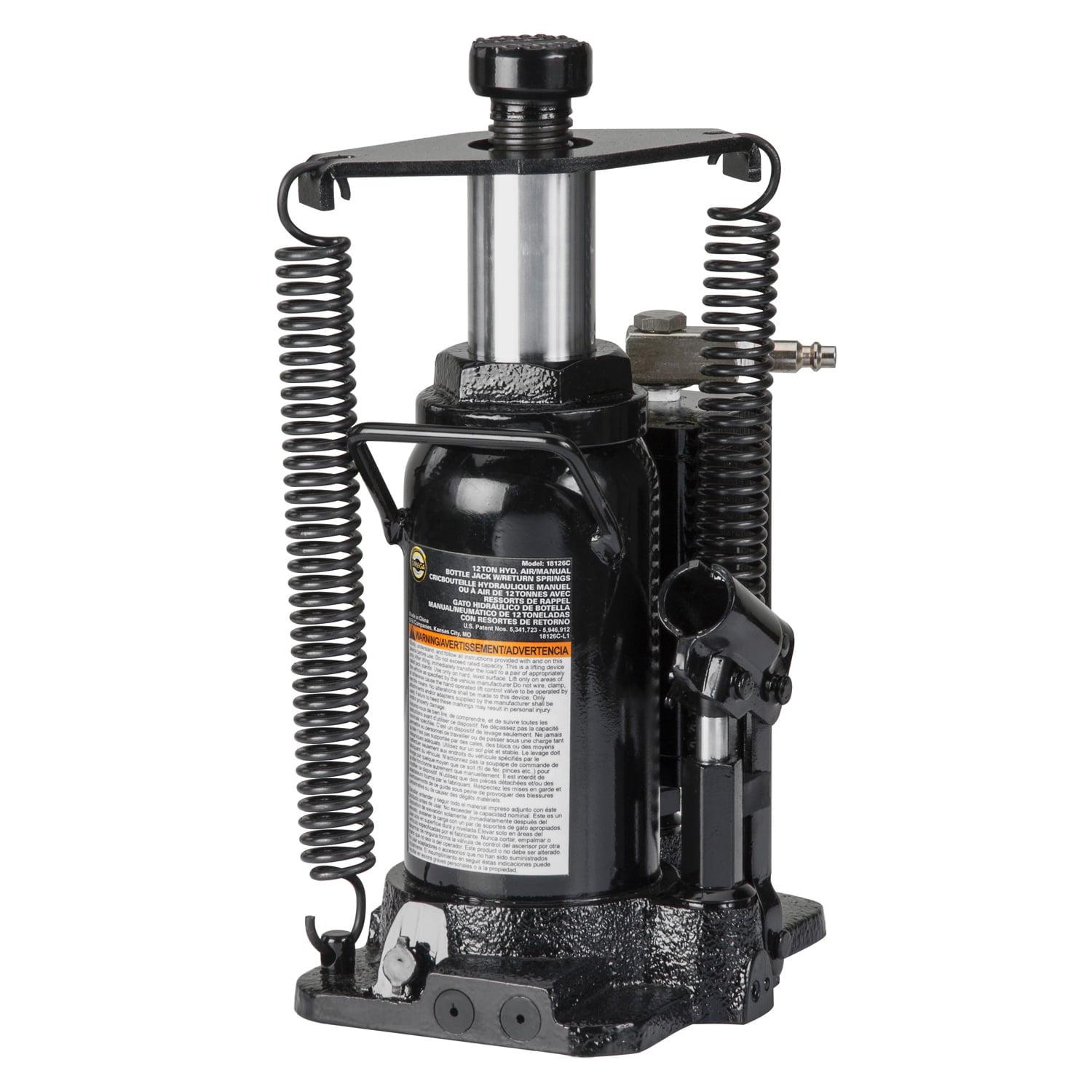

Omega 18126C Black Hydraulic Bottle Jack with Return Springs, 12 Ton Capacity

12 Ton Air Actuated Bottle Jack – handles extra-heavy-duty applications

The Omega 18126C 12 Ton Black Hydraulic Bottle Jack is a low profile air actuated bottle jack designed to work smoothly in tight spots. The versatile quick connector design provides for easy removal of air hose from air motor allowing compact storage or remote operation.

This jack will get the job done! The air operation greatly reduces operator fatigue and speed up the efficiency of garage work. Equipped with the compact and powerful turbo motor, this jack can raise the load to the desired height efficiently, effortless, and safely.

Built to last! The chrome plated piston ram gives this jack a longer seal life and optimum performance. Its bypass device protects the hydraulic system from over pumping damage while the welded construction eliminates contaminates from entering hydraulic system and provides leak free operation.

Low Profile

Large Base for Stability

Versatile Quick Connector design

External Return Springs

Air & Manual Hydraulic System

– Effortless air operation will greatly reduce operator fatigue and speed up the efficiency of garage work
– Versatile Quick Connector design provides for easy removal of air hose from air motor allowing compact storage or remote operation
– U.S. Patent No. 5,341,723 is equipped to raise the load to the desired height efficiently, effortlessly, and safely
– U.S. Patent No. 5,946,912, a built-in by-pass device protects hydraulic system from over pumping damage
– Equipped with external return springs

SPECIFICATIONS

Hydraulic Type Air & Manual
Capacity 12 Tons
Base Size 8 1/8″ x 5 7/8″
Saddle Diameter 1 5/8″
Min. Height 9 5/8 ”
Max. Height 18 7/8″
Hydraulic Lift 6″
Manufacturer Warranty One Year
Omega 18126C Black Hydraulic Bottle Jack with Return Springs, 12 Ton Capacity:
– Effortless air operation
– Compact, powerful air turbo motor
– Versatile quick connector for easily remove air hose
– Chrome plated ram and built-in bypass device
– External return springs (only on 18126C and 18206C)
