Shadow-Caster Single Zone Lighting Control

Single Zone Lighting Control

Simply toggle power to set color and brightness and to select multiple fade modes.

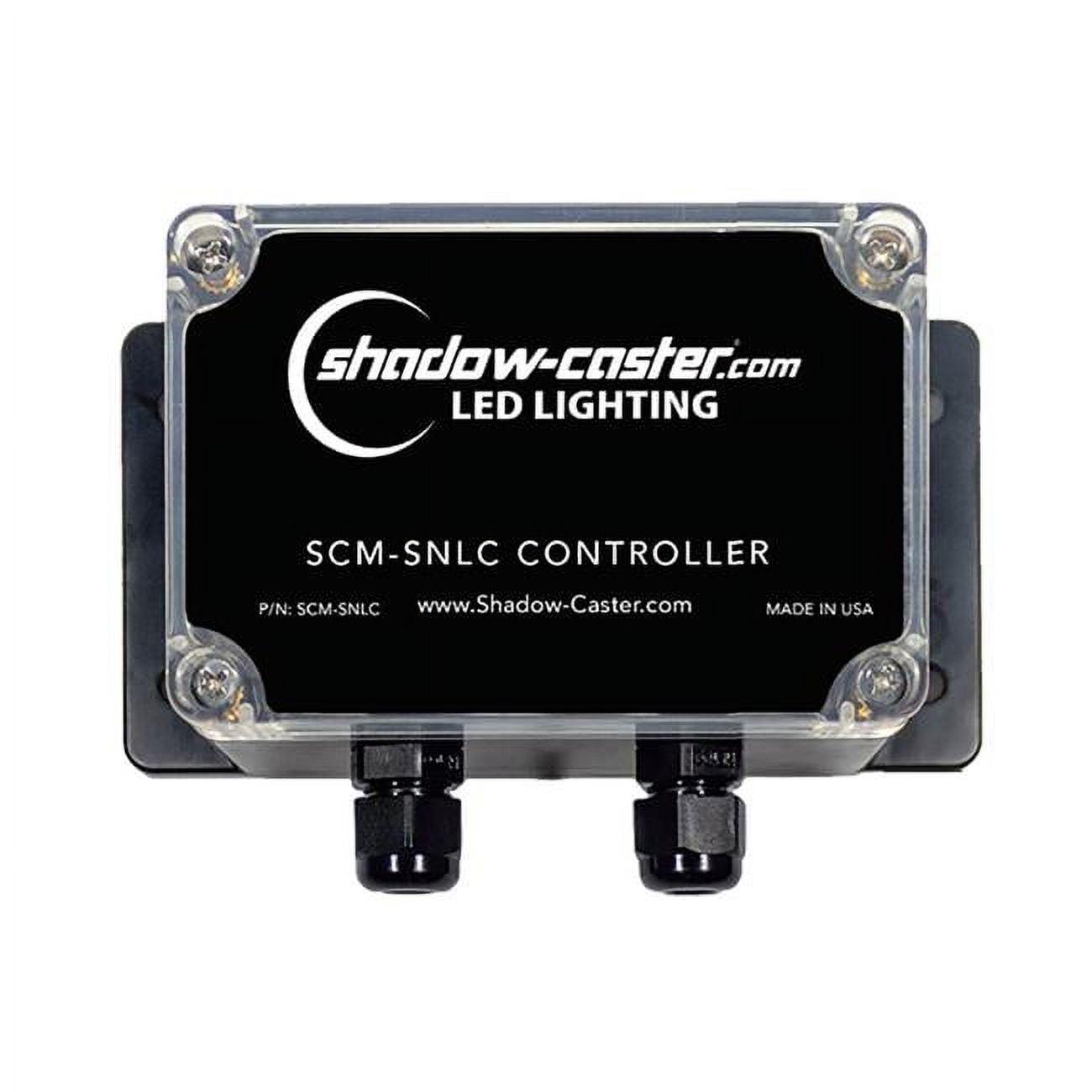

The Shadow-Caster single-zone lighting controller is a low-cost, marine-grade RGBW LED controller that can be operated from a standard switch. Simply toggle power to set color and brightness. The SCM-SNLC also has a built-in Shadow-NET interface that allows the controller to synchronize color and lighting control with other Shadow-NET devices. This enables a convenient way to make Shadow-Caster underwater lights match the color of interior RGBW lighting.

The SCM-SNLC control also has a built-in ShadowNET interface that allows the controller to synchronize color and lighting with other ShadowNET devices. This provides a convenient way to make Shadow-Caster underwater lights match the color of interior RGBW lighting.

Shadow-NET is a multi-channel communications platform created by Shadow-Caster to allow seamless integration and control of all of your boat s lighting.

For use with fishing boats, pontoon boats, sports boats, and yachts.

Features:

– Selectable RGB or RGBW output to support an optional white channel
– Color-coded connections make for easy installation
– Integrated Shadow-NET interface broadcasts lighting commands to synchronize other Shadow-NET enabled lighting products such as underwater lights and downlights
– This device can be added to an existing Shadow-NET network as an additional RGBW zone
– Control brightness, color, and select multiple fade modes Compatible with RGBW strips from other manufacturers
– Internal RGBW backlight to indicate current color and mode
– Exclusive power control technology to mitigate effects of electrical noise
– Custom software versions available for boat builder applications

Specifications:

– 5.2 (132mm) x 2 (51mm) x 2.75 (70mm)
– IP65 washdown rated enclosure
– 10-30 volts input range
– Power: Support for 250W of RGBW lighting, 20 amps
– ATC fuse for protecting the output

Includes:

– Lighting controller
– Mounting hardware
– Quick start guide
– Standard 2-year warranty

Specifications:

– Box Dimensions: 3″H x 7″W x 7″L WT: 0.6 lbs
– UPC: 855726005835

Quick Guide (pdf)

Shadow-Caster Single Zone Lighting Control. This product may be returned within 30 days for a replacement or refund. Any physical damage must be reported within 14 days of delivery.
