Swing-N-Slide Scout Swing Set DIY Hardware Kit (Wood Not Included)

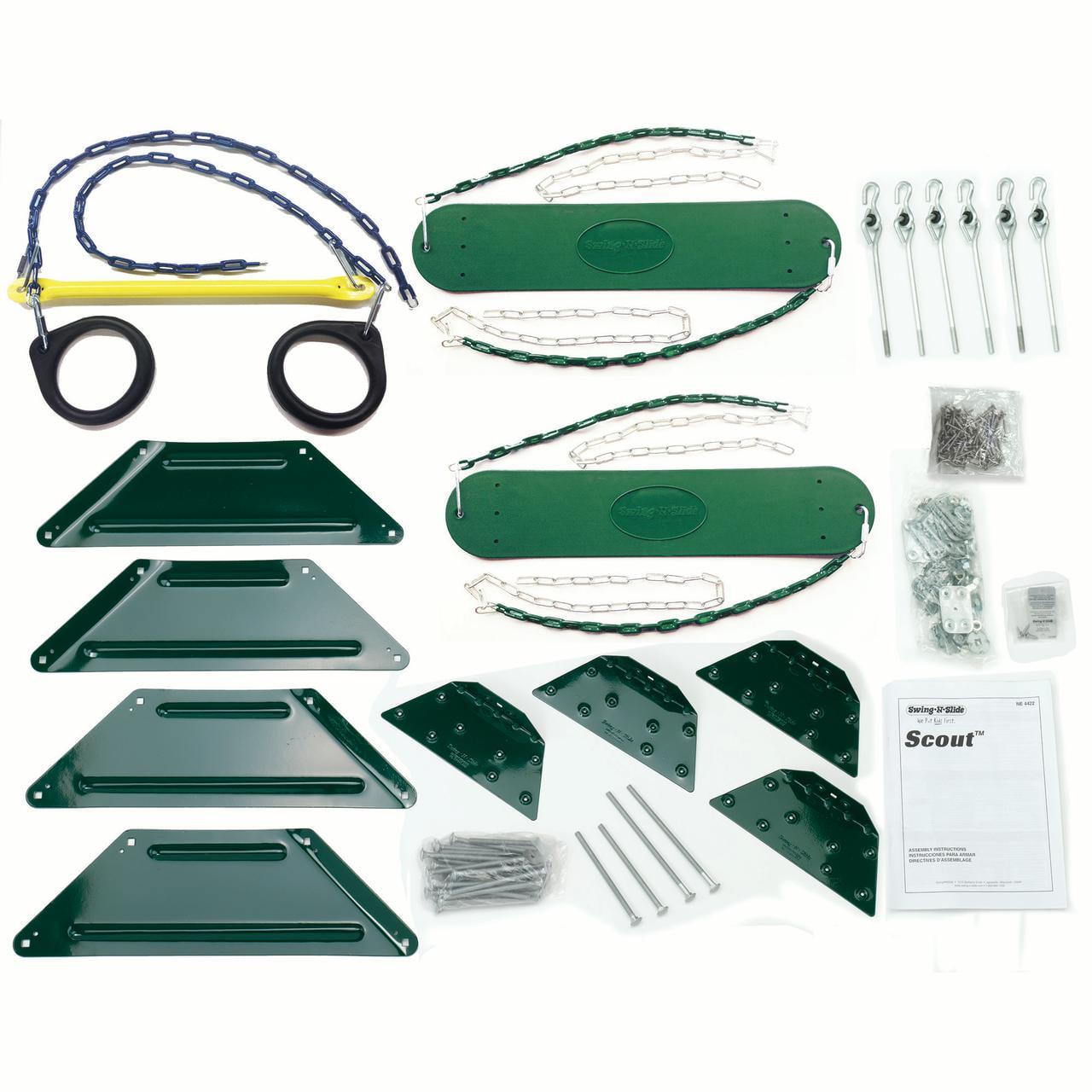

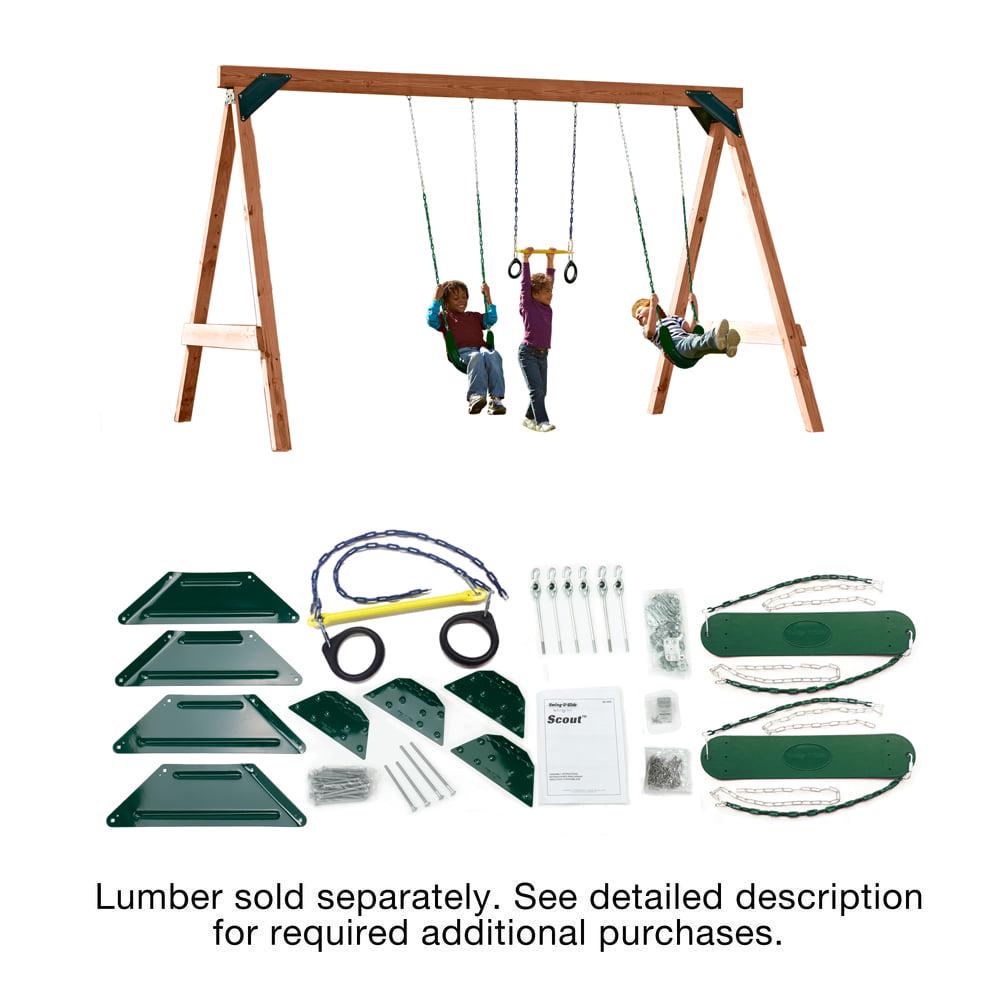

Just add lumber and wood screws for the perfect swing set on a budget. The ScoutSwing Set Hardware Kit by Swing-N-Slide is designed for the Do-It-Yourself family. Customize this traditional A-frame design with three different design options. This kit includes 2 swing seats, ring/trapeze bar, swing hangers, and hardware. Each swing can support up to 115 pounds. All projects feature ample room for 4 different swing elements, so you can keep your kids active throughout the year. Further customize your swing set by adding a toddler swing, stand-up swing, or glider (all sold separately).

– For backyard residential use only; unable to ship to a commercial address
– Lumber and wood screws not included (sold separately)
– 12′ D x 8′ W x 8′ H with cantilever design when assembled
– Buying your own lumber allows you to choose the grade of wood and the ability to customize
– DIY kit provides a cost-friendly alternative to complete wooden swing sets
– 2 swing seats with coated chains and a trapeze bar included
– Compatible with Swing-N-Slide swings such as glider swing, toddler swings, and other accessories
– Each swing can support up 115 lbs
– Recommended for children ages 3 to 11 years
– Hardware, EZ Frame Brackets, and fully-illustrated instructions included
– Estimated assembly time of 6 hours
– Meets and/or exceeds ASTM standards for backyard residential use only
– Swing Chain Material: Plastisol coated chain prevents pinched fingers and will not rust
– Materials: HDPE, EVA, Steel, UV Coated HDPE Laminate

Needed for easy assembly:
Lumber required (not included):

– (1) 2″x4″x8′, (2) 2″x6″x8′, (4) 4″x4″x8′, (1) 4″x6″x12′ or (2) 2″x6″x12′. Replace last size with (1) 4″x6″x16′ or (2) 2″x6″x16′ for 3 position swing beam
Tools needed for assembly (not included):

– Circular Saw, Electric Drill, 1/2″ Socket & Wrench, Hammer, Tape Measure, Wrench, Screwdriver, Carpenter’s Square, Safety Glasses and Dust Mask, 1/8″ and 5/16″ drill bit (long), 1-1/8″ Spade Bit, Phillips Bit
