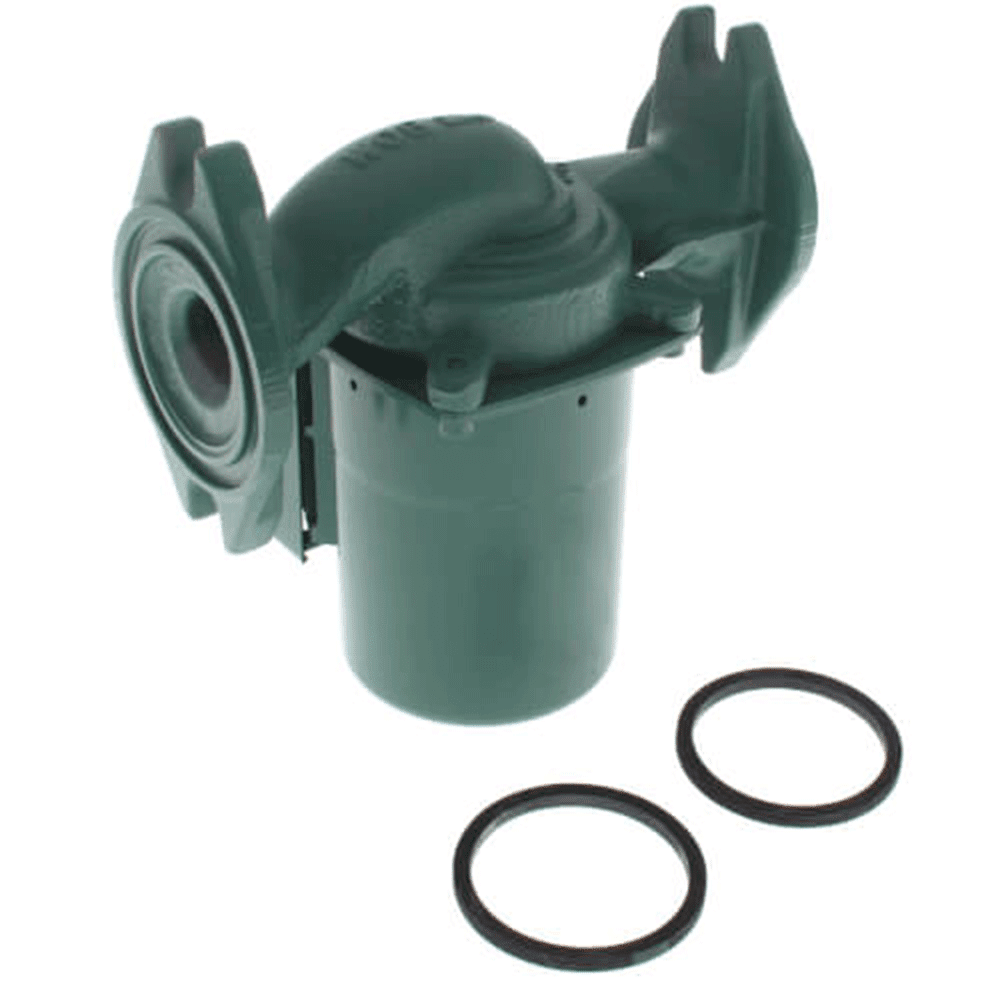

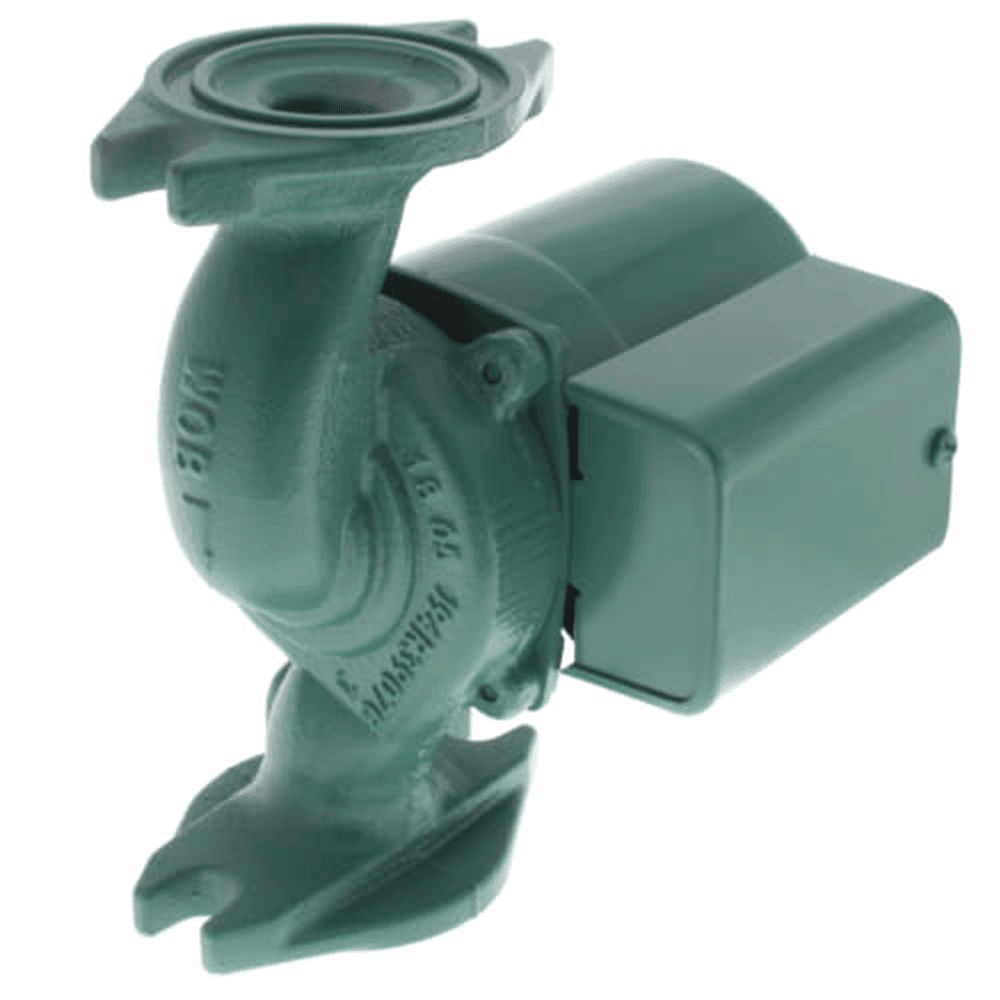

Taco 007-F5 Cast Iron Cartridge Circulator – 007 Series, 115 V

The Taco 007 is a cartridge style, maintenance free, wet-rotor, in-line, single stage circulator pump. It is designed for quiet operation in Hydronic heating, Radiant heating, Hydro-Air fan coils, Indirect water heaters, Chilled fresh water, and Domestic Water Recirculation systems. Available in Cast Iron or Stainless Steel construction with universal flanged connections. The unique replaceable cartridge contains all of the moving parts and allows the circulator to be easily serviced instead of replacing the entire unit. Ideal for a wide range of applications. Features: standard high capacity out-put compact design, quiet and efficient operation, direct drive – low power consumption, unique replaceable cartridge design – field serviceable, self lubricating, no mechanical seal, unmatched reliability, maintenance free, universal flange to flange dimensions, and cast iron construction. Standard flange type. Motor Type: Permanent Split Capacitor Impedance Protected. Maximum Flow: 23 GPM. Maximum Range: 10′. Minimum Fluid Temperature: 40°F (4°C). Maximum Fluid Temperature: 230°F (110°C). Maximum Working Pressure: 125 PSI. Connection Sizes: 3/4″, 1″, 1-1/4″, and 1-1/2″ Flanged. Dimensions: 6-3/8″ x 4-1/2″ x 3-3/16″ x 3-15/16″ x 4-3/4″ x 6-3/8″.
