VEVOR 1.5HP Compressor Electric Motor, 3450rpm Reversible Single Phase 56C Frame Air Compressor Motor 5/8″ Shaft Diameter Electric Motor for Air Compressor General Equipment, 115/230VAC

Brand Introduction
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service

Product Description
1.5 Hp Electric Motor
The electric motor 121556 is an electrical machine that converts electrical energy into mechanical energy. The SHDC electric motor is commonly used to match water pumps, agricultural machinery, and general equipment. A 115/230 volt electric motor that turns at 3450 RPM. A single-phase motor that has a rigid base and 5/8 inch keyed shaft.

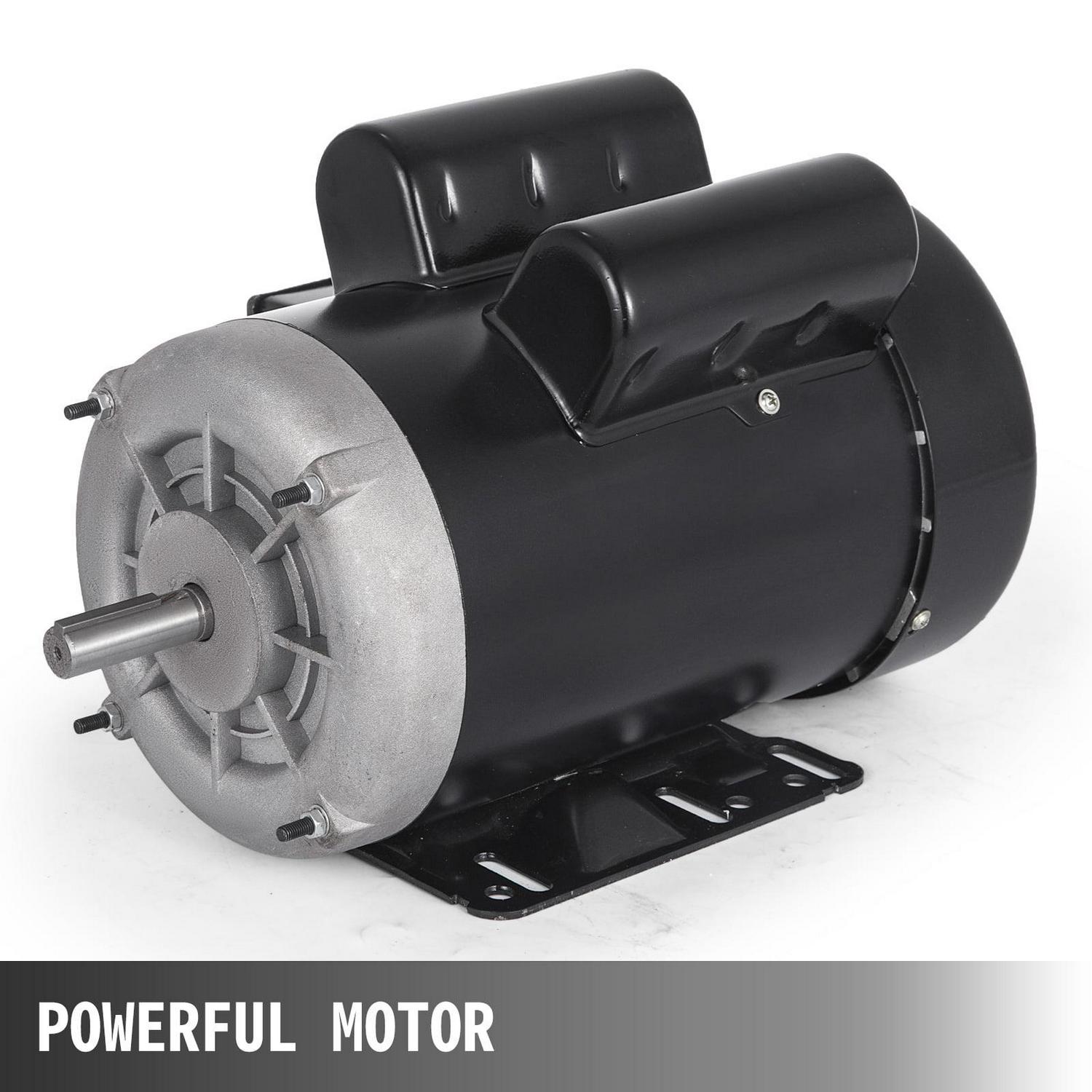

Powerful Motor
The high-power motor has a single-phase motor and 115/230V voltage, which can save energy in a long time. Reduce energy costs or overhead. Move effortlessly.
High Performance
The electric motor 56C runs at 1.5 hp, and the maximum speed is 3450 rpm. Voltage: 115 / 230V 60HZ, high hardness shaft is more durable.

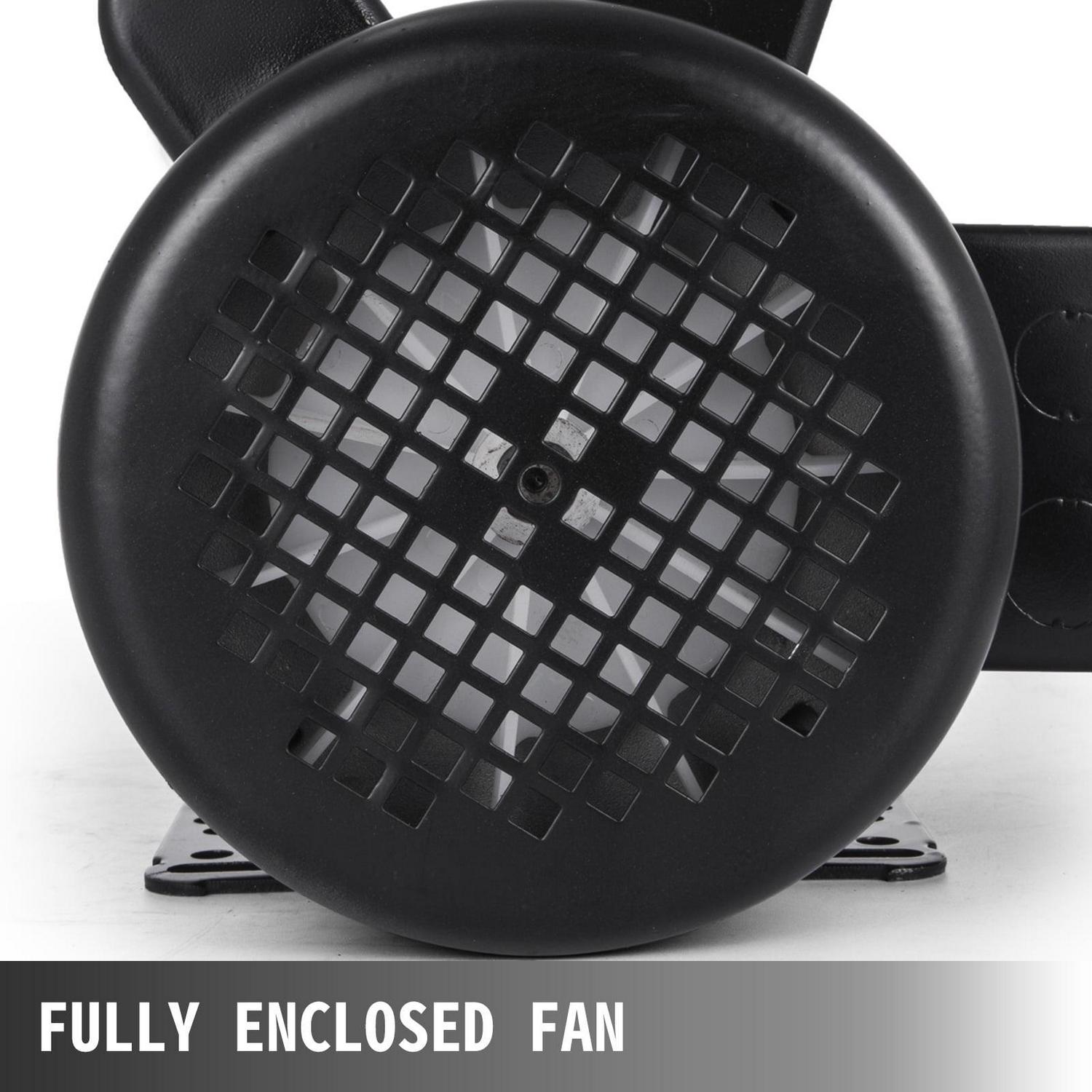

Fully Enclosed Fan
The fan cools the motor during operation, has excellent heat dissipation performance, and prolongs the machine life.

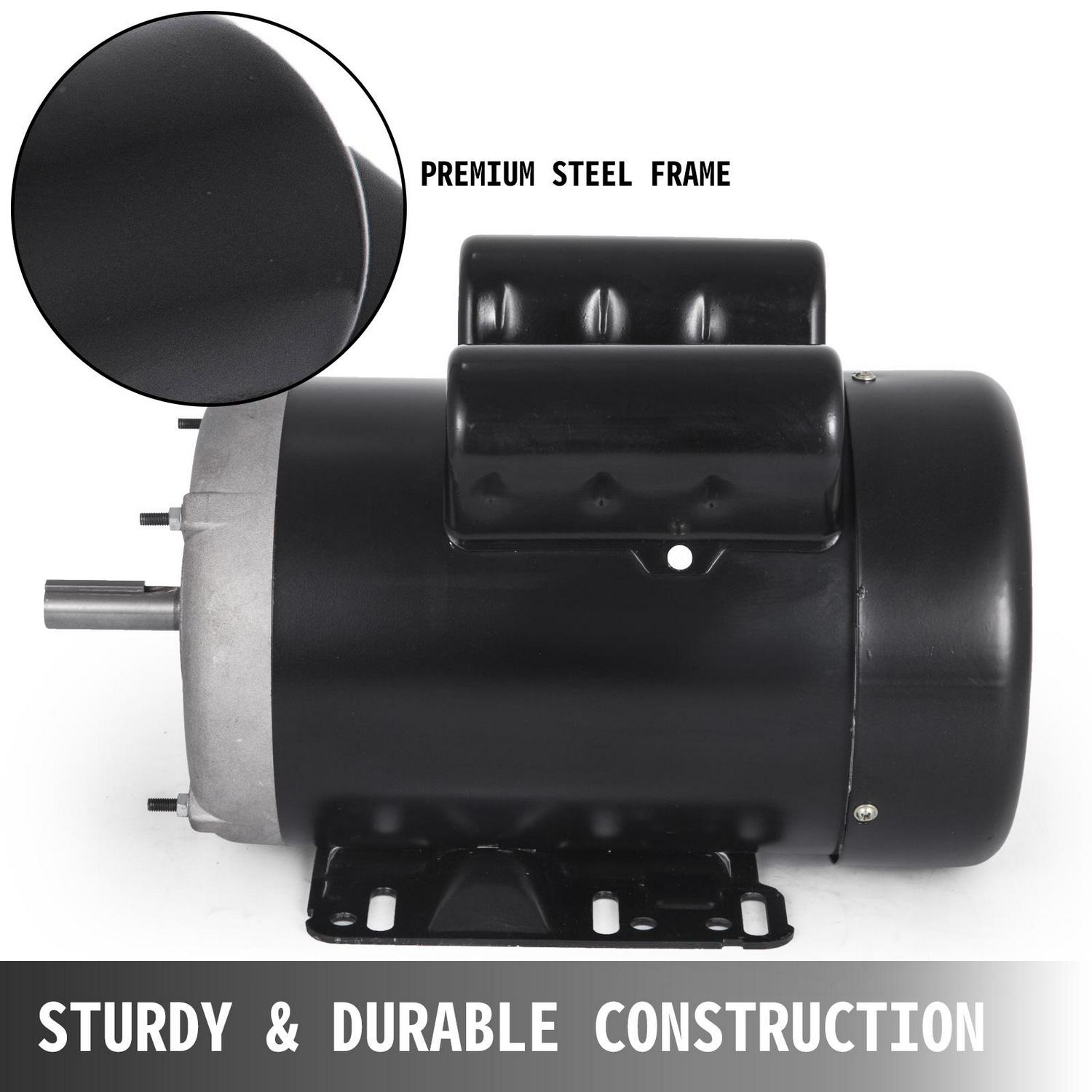

Sturdy & Durable Construction
The motor housing is made of durable metal material, robust and reliable, with strength and durability.

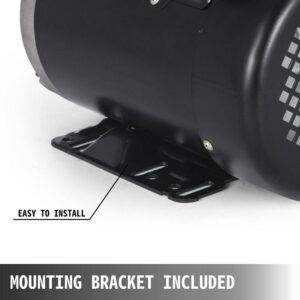

Mounting Bracket Included
A robust mounting bracket is included in the package to improve the motor’s stability and reduce friction. Ball-bearing systems are also suitable for many applications.
Wide Application
1.5 hp electric motor is suitable for air compressors, medical equipment refiners, metal cutting machine tools, pumps, fans, transport machinery mixers, food machinery, etc.

Specifications
Model: 121556
Type: SHDC
Phase: Single phase, 2 poles
Horsepower: 1.5 HP
Voltage: 115/230 V
Full load amps: 14.2/7.1 A
Frequency: 60 Hz
Rated speed: 3450 RPM
Synchronous speed: 3600 RPM
Frame: 56 Frame
Shaft diameter: 5/8 inch Keyed shaft
Shaft length: 1.875 inch
Rotation: CW-CCW
IP Rating: IP 55
Service factor: 1.15
Efficiency: 80%
ENC: TEFC
Insulation class: F

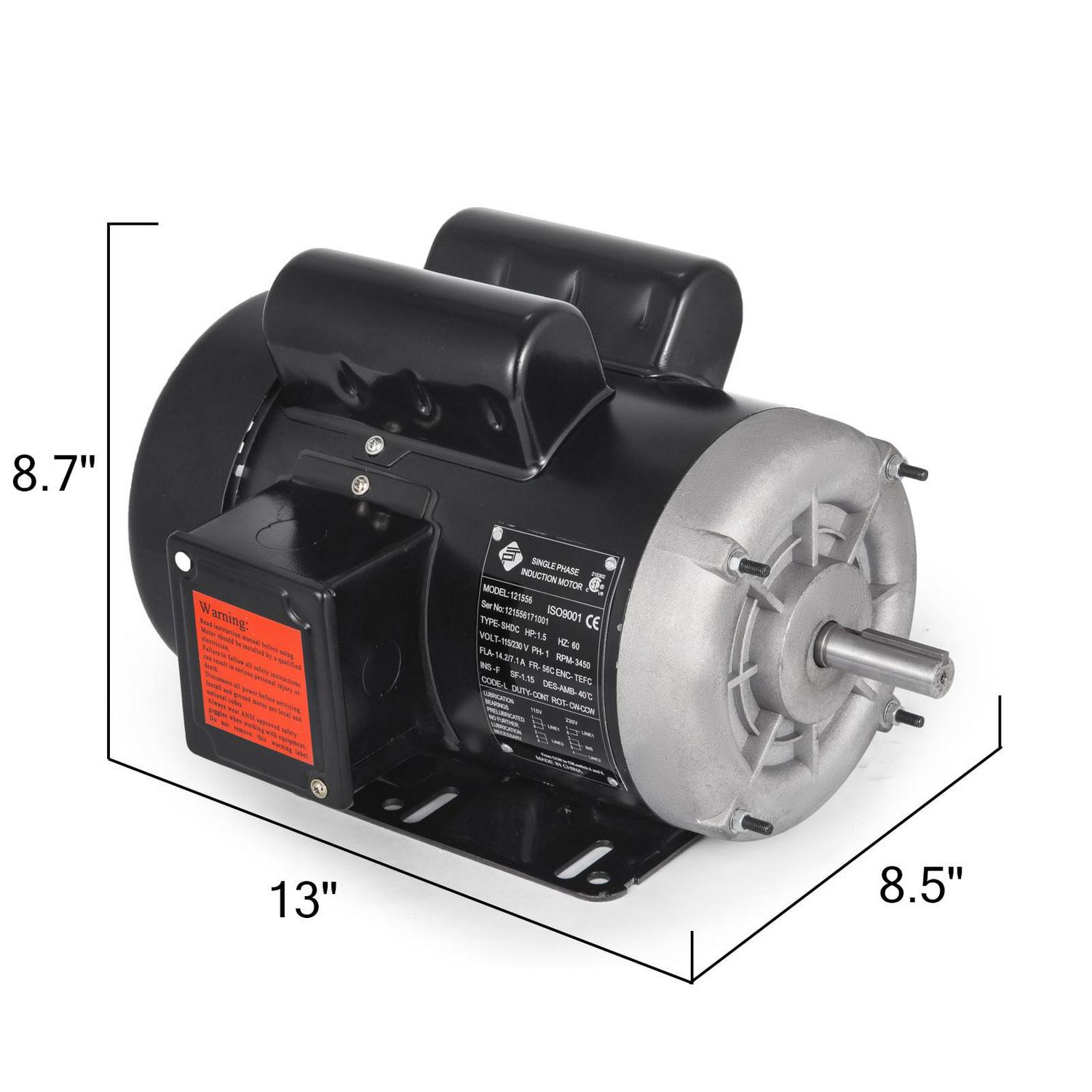

Package size(L x W x H): 40 x 27 x 27 cm (15.75 x 10.63 x 10.63 inch)
Gross weight: 17.05 kg (37.59 lbs)
Mounting Type: Rigid
Reversible/Non-Reversible: Reversible
AC Motor Type: Induction Moto
Package Content
1 x Electric Motor

– 1.5HP ELECTRIC MOTOR – Compact and small-sized AC motor feature output 1.5 HP, 56C frame, and single phase. Gasketed capacitor housing and conduit boxes protect all environments.
– WORKING EFFICIENCY – The heavy-duty electric motor with a rated speed of 3450RPM has high working efficiency. Run at 1HP. Shaft diameter: 5/8 inch Keyed shaft, shaft length: 1.875 inches.
– HIGH SPEED COOLING FAN – Big fan at one end cools the motor in hours’ running, even in dusty or damp environments. Reducing energy costs or overheads, reducing the running temperature, increasing winding lifetimes.
– STEEL HOUSING – The electric motor is made of high-quality steel. Robust and reliable materials can protect the motor well. Smooth appearance and stable frame.
– MULTIPLE APPLICATION – 1.5 hp electric motors are universal and commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields. For instance, the matching of water pumps, agricultural machinery, etc.
