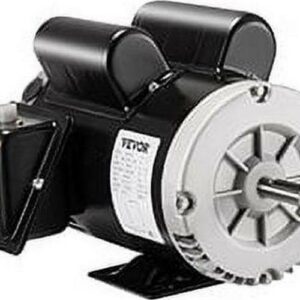

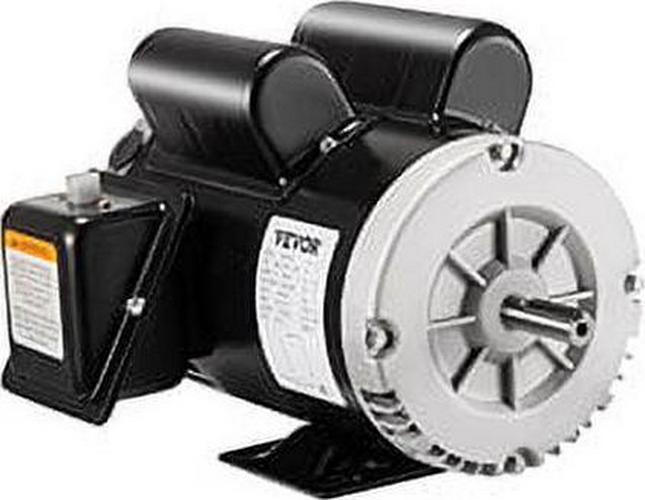

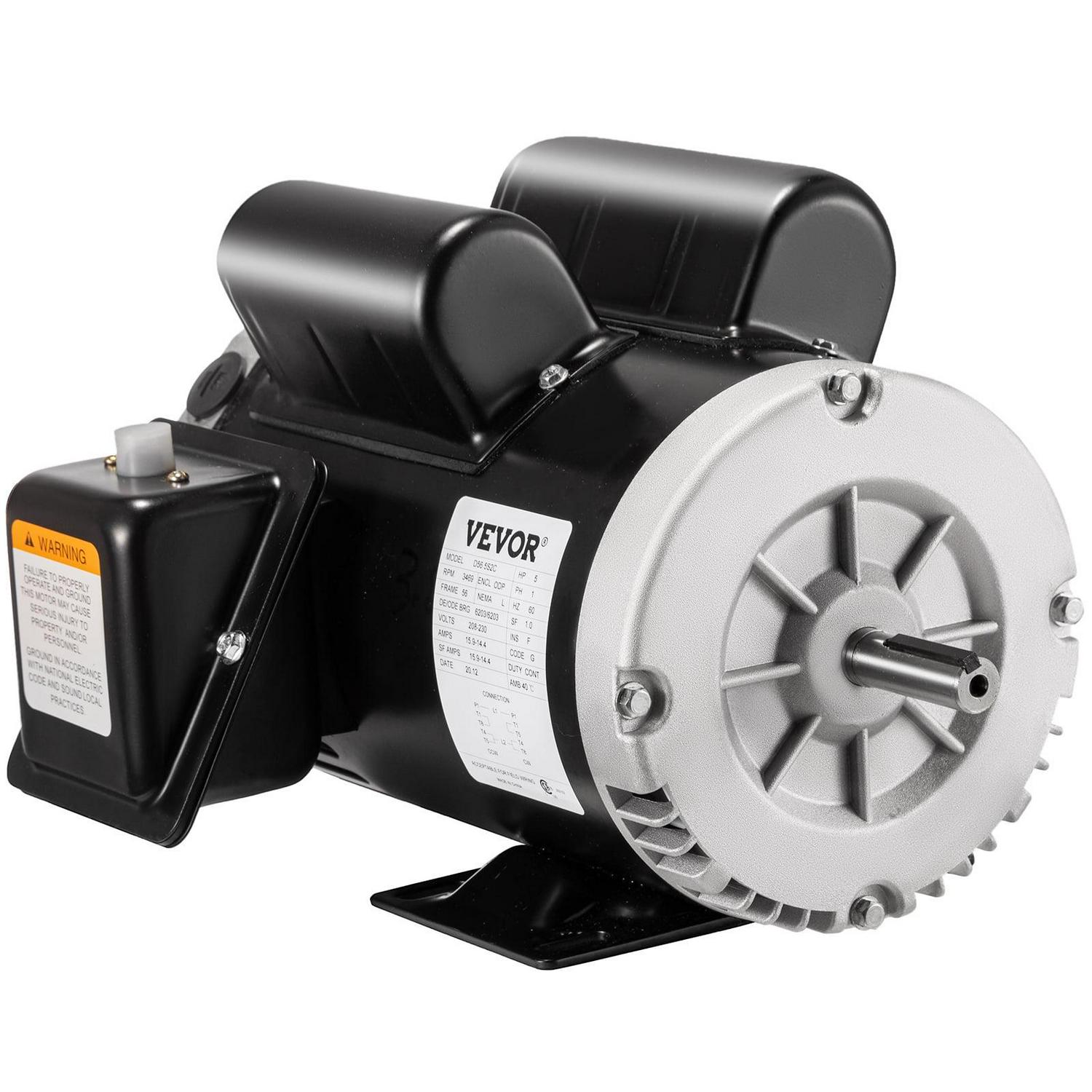

VEVOR 5 Hp Electric Motor 3.1 kw Rated Speed 3450 Rpm Single Phase Motor AC 208-230V Air Compressor Motor Suit for Home and Small Shop Air Compressors

$154.12

Out of stock

SKU: 239552474 Category:

Free shipping on all orders!

  • Providing Exceptional Support!
  • Our Commitment: Your Satisfaction, Guaranteed!
  • Your Security Matters: Secure Payments!
Guaranteed Safe Checkout

Description

VEVOR 5 Hp Electric Motor 3.1 kw Rated Speed 3450 Rpm Single Phase Motor AC 208-230V Air Compressor Motor Suit for Home and Small Shop Air Compressors

  • Brand: VEVOR
  • Assembled Product Weight: 40 lb
  • Manufacturer Part Number: DJCM0525600000001V7
  • Assembled Product Dimensions (L x W x H): 6.50 x 13.00 x 8.00 Inches

Brand Introduction
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees,VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service

Product Description

3.1 KW 5 HP SPL Air Compressor Electric Motor Single Phase
An AC electric motor is an electrical machine that converts AC electrical power energy into mechanical energy. The 3.1 KW Electric Motor CM05256 for air compressor. A 208-230 volt electric motor that turns at 3450 RPM. A single-phase motor that has a rigid base and 5/8″ keyed shaft. It is a five hp SPL electric motor that is commonly used for home and small shop air compressors.

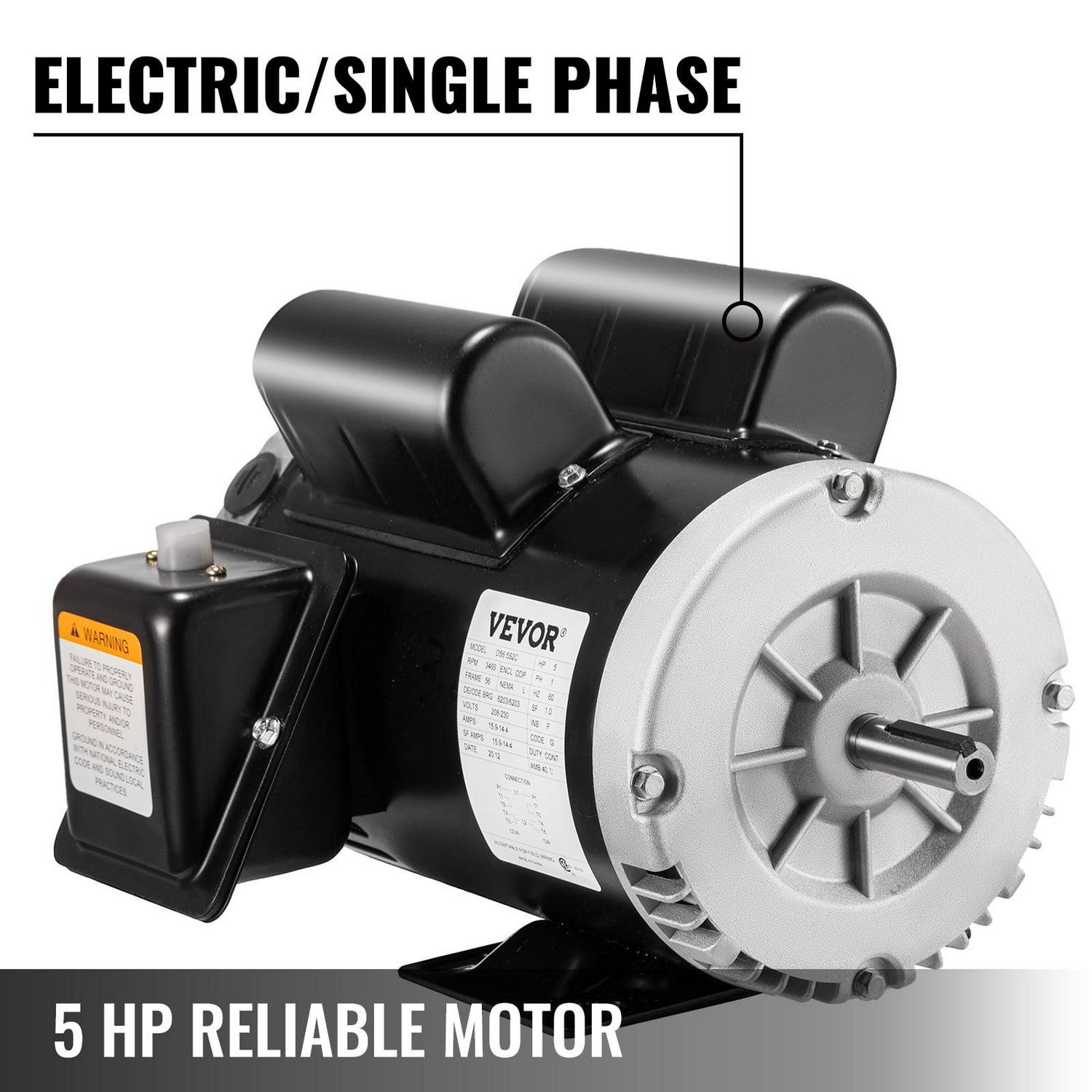

5 HP Reliable Motor

High power motor allows conserving energy over extended periods, featuring single-phase electric motor, reducing energy costs or overheads, effortless to move.

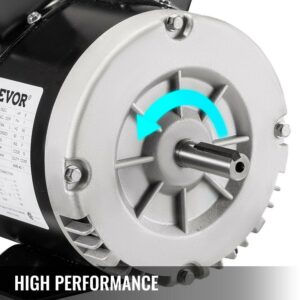

High Performance

Runs at 5 HP, with a maximum speed of 3450 RPM, synchronous speed: 3600 RPM, Voltage: 208-230V, Frame: 56, easy to use.

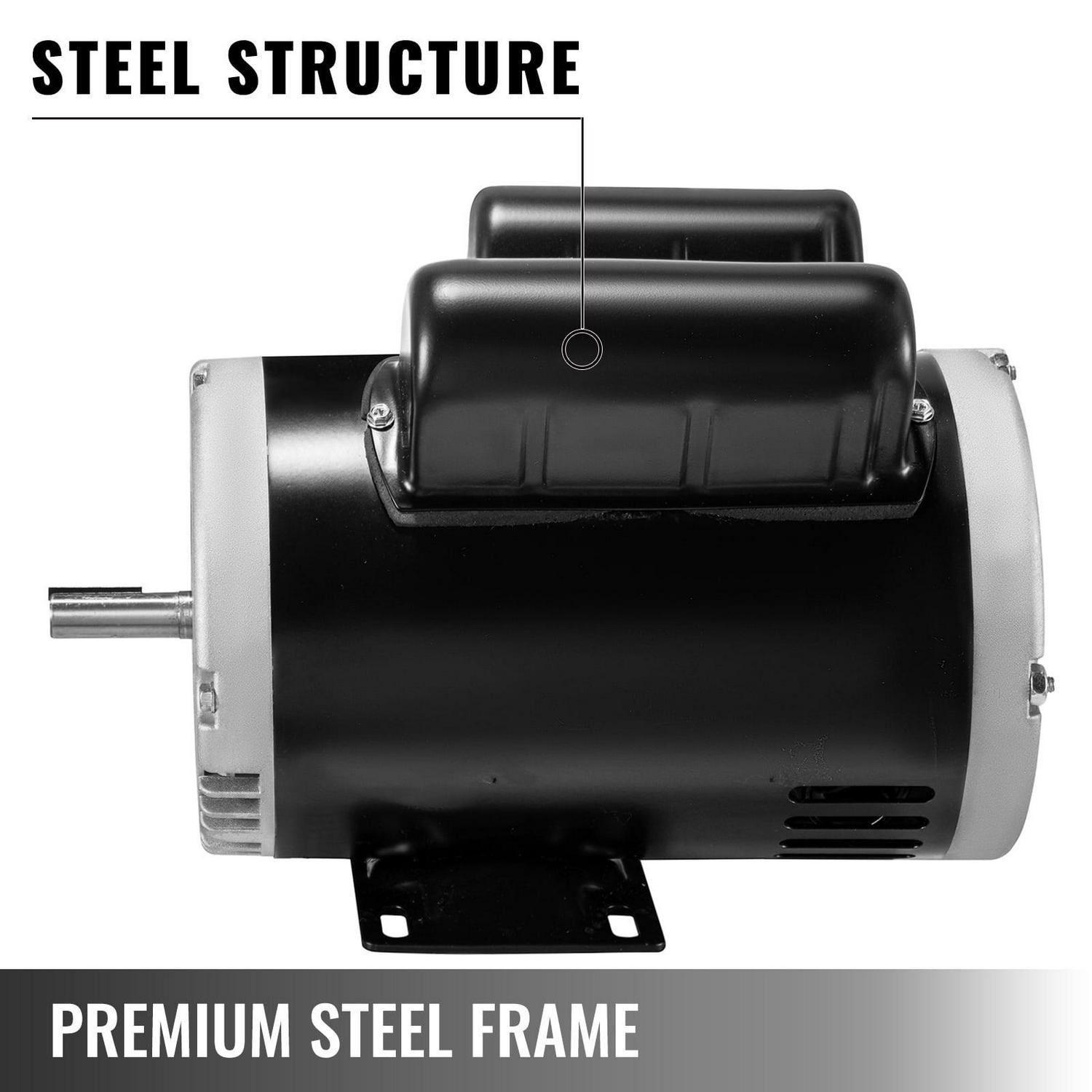

Premium Steel Frame

Heavy gauge steel frame construction for strength and durability, corrosion and wear resistance, and smooth surface provides comfortable use.

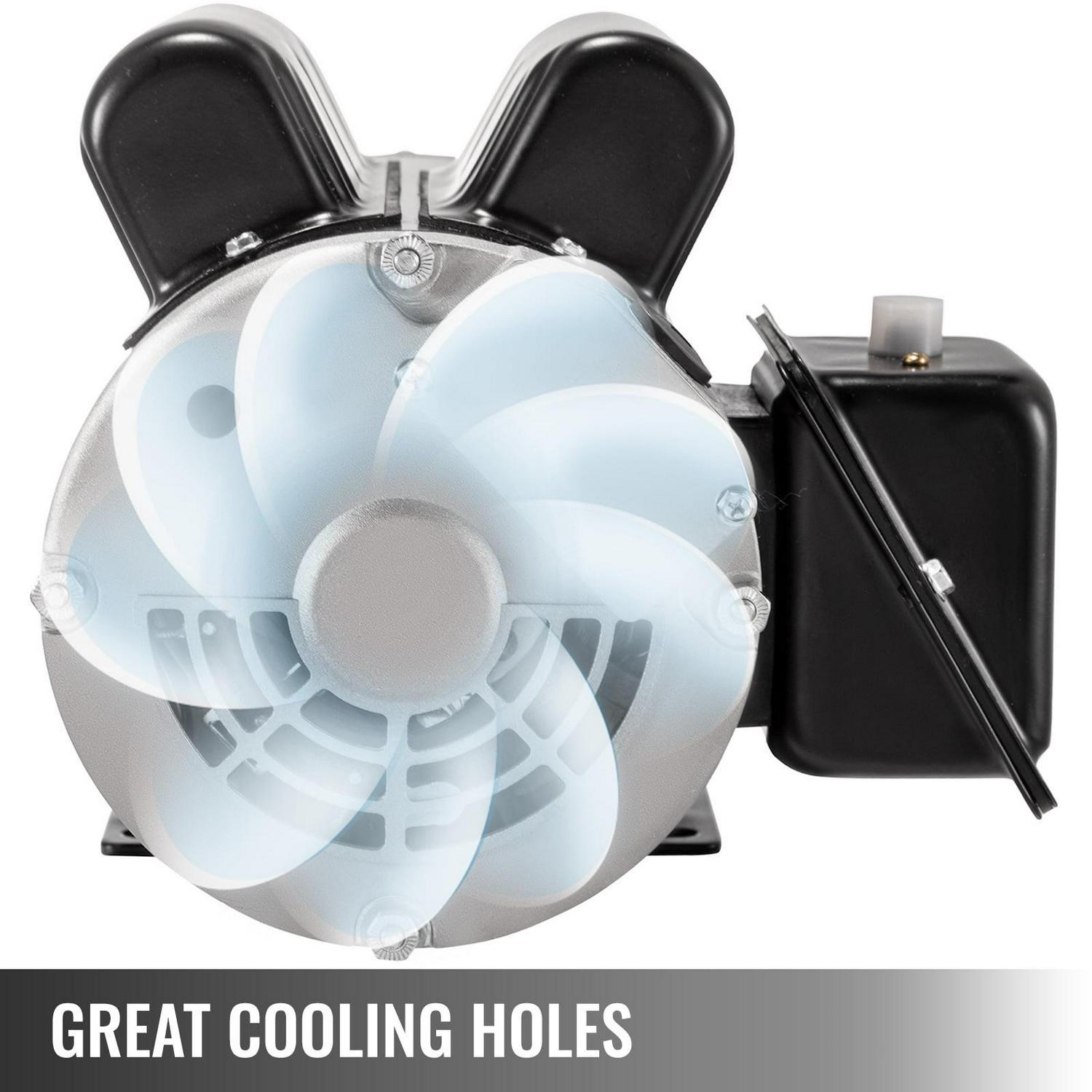

Great Cooling Holes

The air compressor motor has multiple heat dissipation holes, and it can quickly dissipate heat while running, can prevent foreign objects from being caught in the engine.

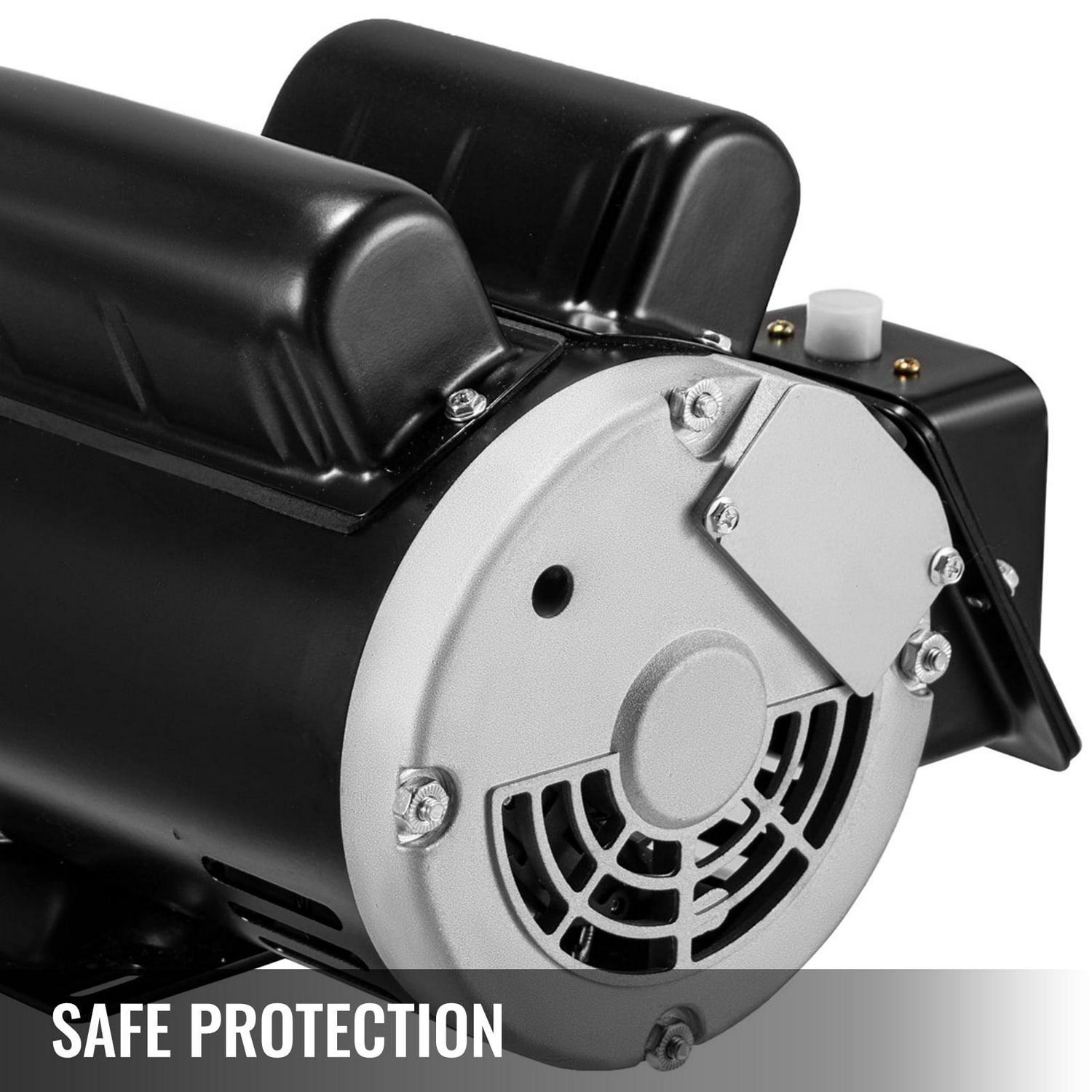

Safe Protection

Capacitor housing and conduit boxes protect all environments, and low-temperature manual overload protector protects against extreme overload.

Wide Application

The electric motor is suitable for air compressors, medical equipment refiners, metal cutting machine tools, pumps, fans, transport machinery mixers, food machinery, etc.

Specifications

Phase: Single Phase, 2 Pole
Voltage: 208-230V
Rated Load (HP): 5HP SPL
Amperage: 16-15 fl amps
Frequency: 60 Hz
Rated Speed: 3450 RPM
Synchronous Speed: 3600 RPM
Frame: 56 Frame
Shaft Diameter: 5/8″ Keyed shaft (1.6 cm)
Shaft Length: 1.875″ / 4.8 cm
Rotation: CCW (Counter clockwise rotation when viewed from the shaft end. THIS MOTOR IS NOT REVERSIBLE.)
Service Factor: 1
Mounting Type: Rigid
Enclosure Type: ODP
IP Rating: IP 23
AC Motor Type: Induction Motor
Motor Size(L x W x H): 13 x 6.5 x 8” / 33.02 x 16.51 x 20.32 cm

Package Content

1 x Electric Motor CM05256
– AC ELECTRIC MOTOR – The compact and small-sized AC motor features output 5 HP, 56 Frame and single-phase, easy to carry; the rated speed: 3450 RPM to be with high working efficiency, shaft diameter: 5/8″ (1.6 cm), shaft length: 1.88″ (4.8 cm).
– STEEL HOUSING – The induction motor shell is made of steel. The robust and reliable metal material can well protect the motor, the appearance is smooth, and the frame is stable, which can protect the internal circuit from thermal overload.
– FAST HEAT DISSIPATION – The air compressor motor has multiple heat dissipation holes to have excellent heat dissipation performance. It can prevent foreign objects from being caught in the motor.
– MANUAL OVERLOAD PROTECTION – The heavy-duty electric motor adopts capacitor housing, and conduit boxes protect all environments, low-temperature manual overload protector protects against extreme overload.
– MULTIPLE APPLICATION – The electric motors are commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields. For instance, the matching of water pumps, agricultural machinery, etc.

Additional information

Package Weight40 lbs
Package Dimensions8 × 13 × 6.5 in
Brand

VEVOR

UPC

650971646532

Model

CM05256

Color

Black
