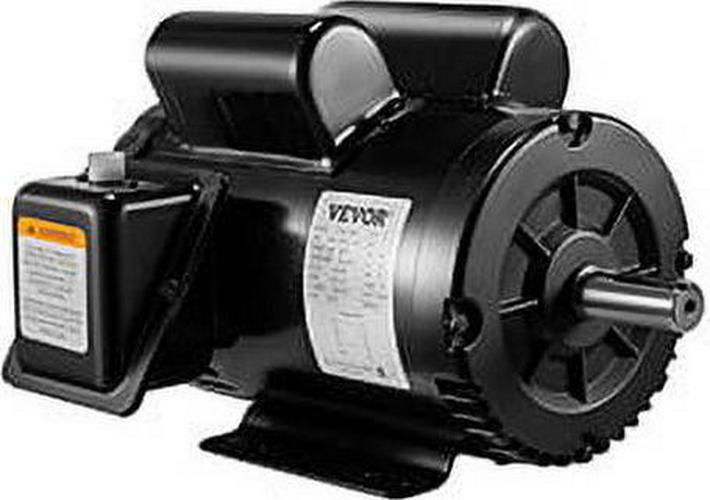

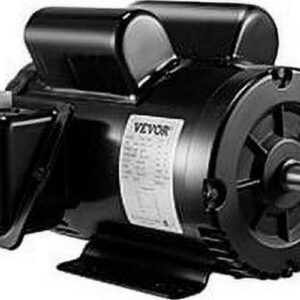

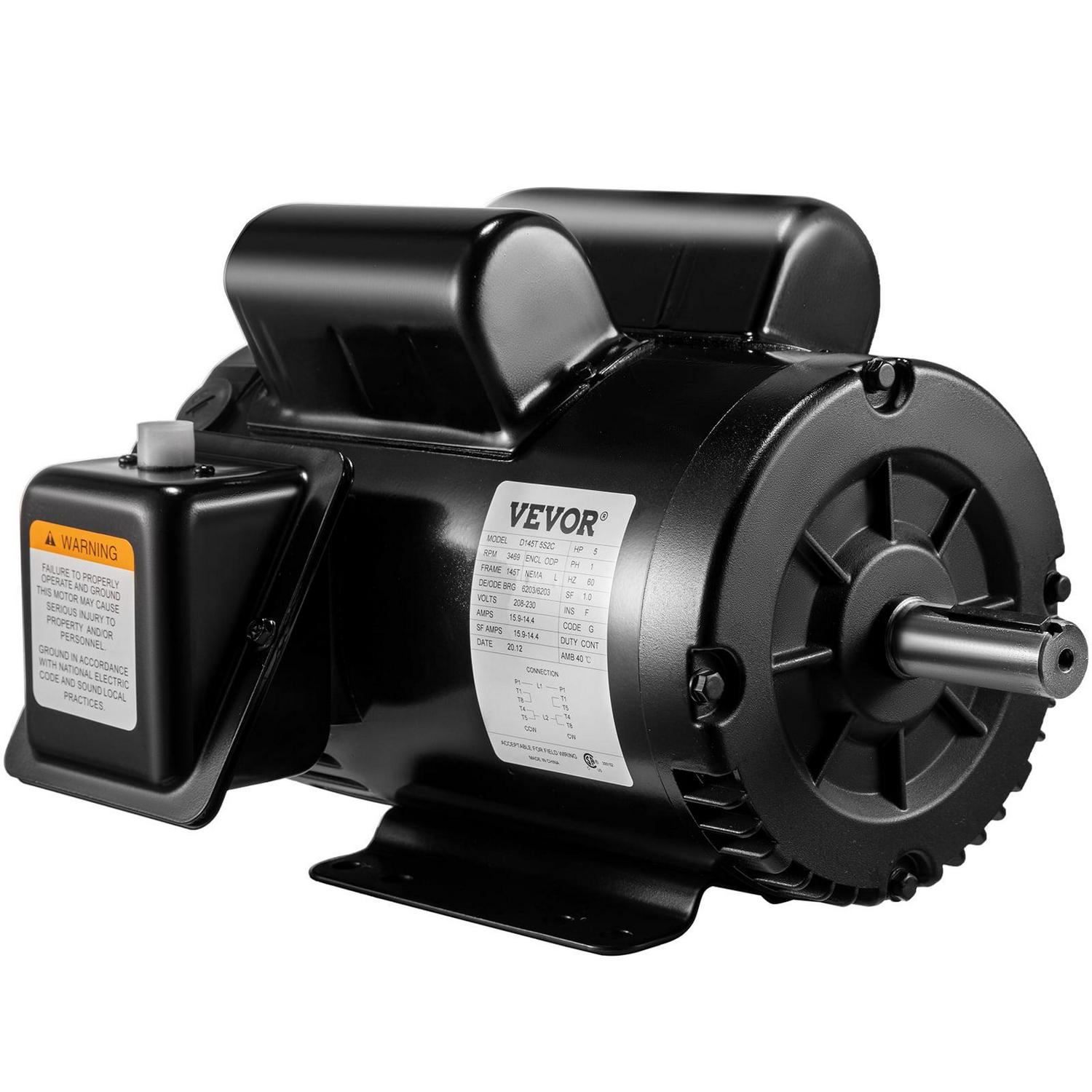

VEVOR 5HP Electric Compressor Motor, 3450RPM 143T/56 Frame Single Phase 7/8″ Shaft Diameter Air Compressor Motor 208-230V 60Hz AC Electric Motor

Brand Introduction
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees,VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service

Product Description

Compressor Duty 5HP AC Motor With Rated Speed 3450RPM

New 5 HP 230 volt compressor duty electric motor. This motor features a 143/5T frame with a 7/8″ diameter shaft and is 3450 RPM. This is a non-reversible motor and features counter-clockwise (CCW) rotation facing the shaft. This high-quality motor is able to reduce the starting amperage design to ensure the reduced voltage starting at rated load. Open drip proof is better used in the environment that are relatively clean and dry environments. Special design for Air Compressor duty. CCW only.

5HP Reliable Motor

The high-power motor has a single-phase motor and 230V voltage, which can save energy in a long time, reduce energy costs or overhead. Move effortlessly.

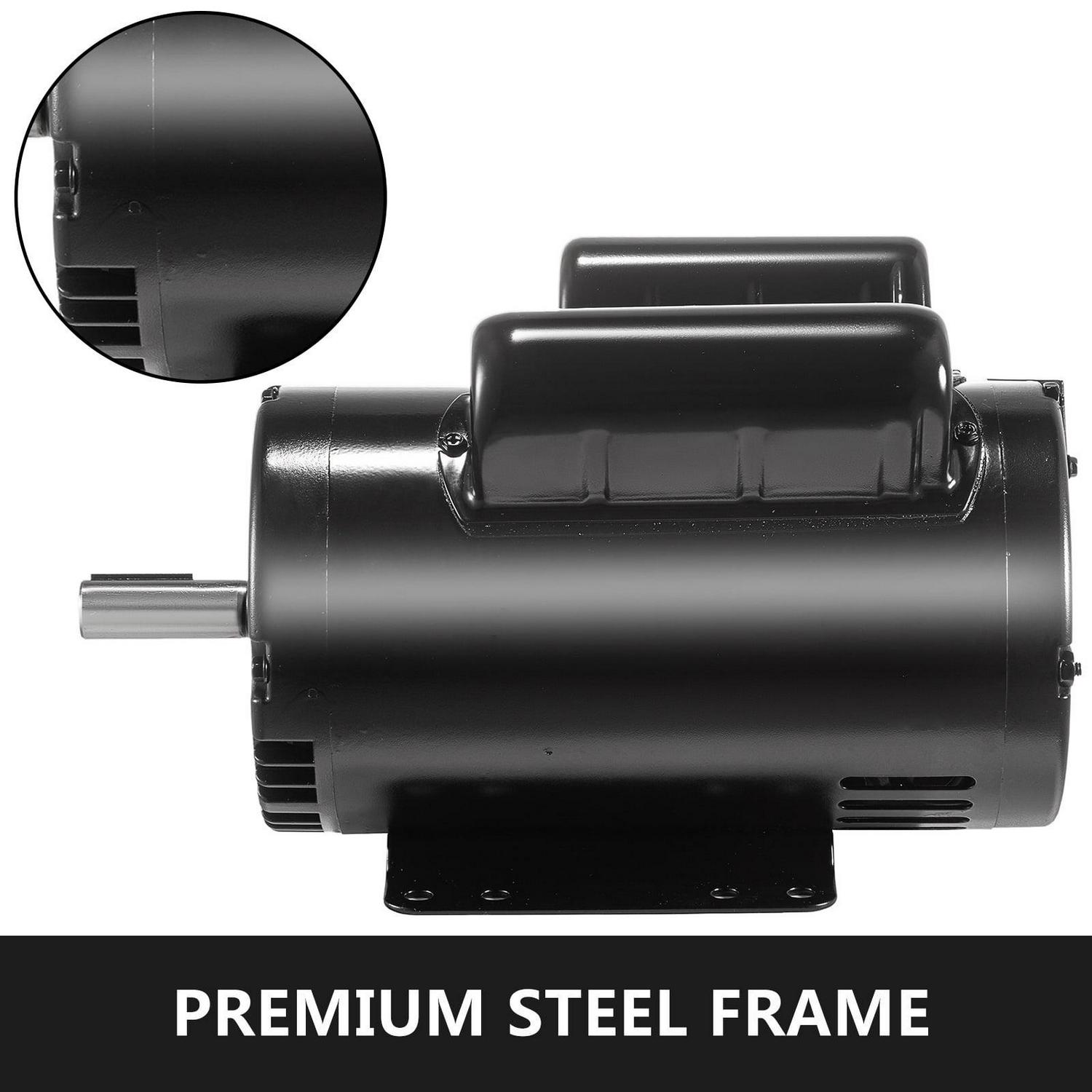

Premium Steel Frame

This electric compressor motor adopts heavy-duty steel construction for high strength and durability. Also, smooth surface provides fluent using. The color of the motor is black.

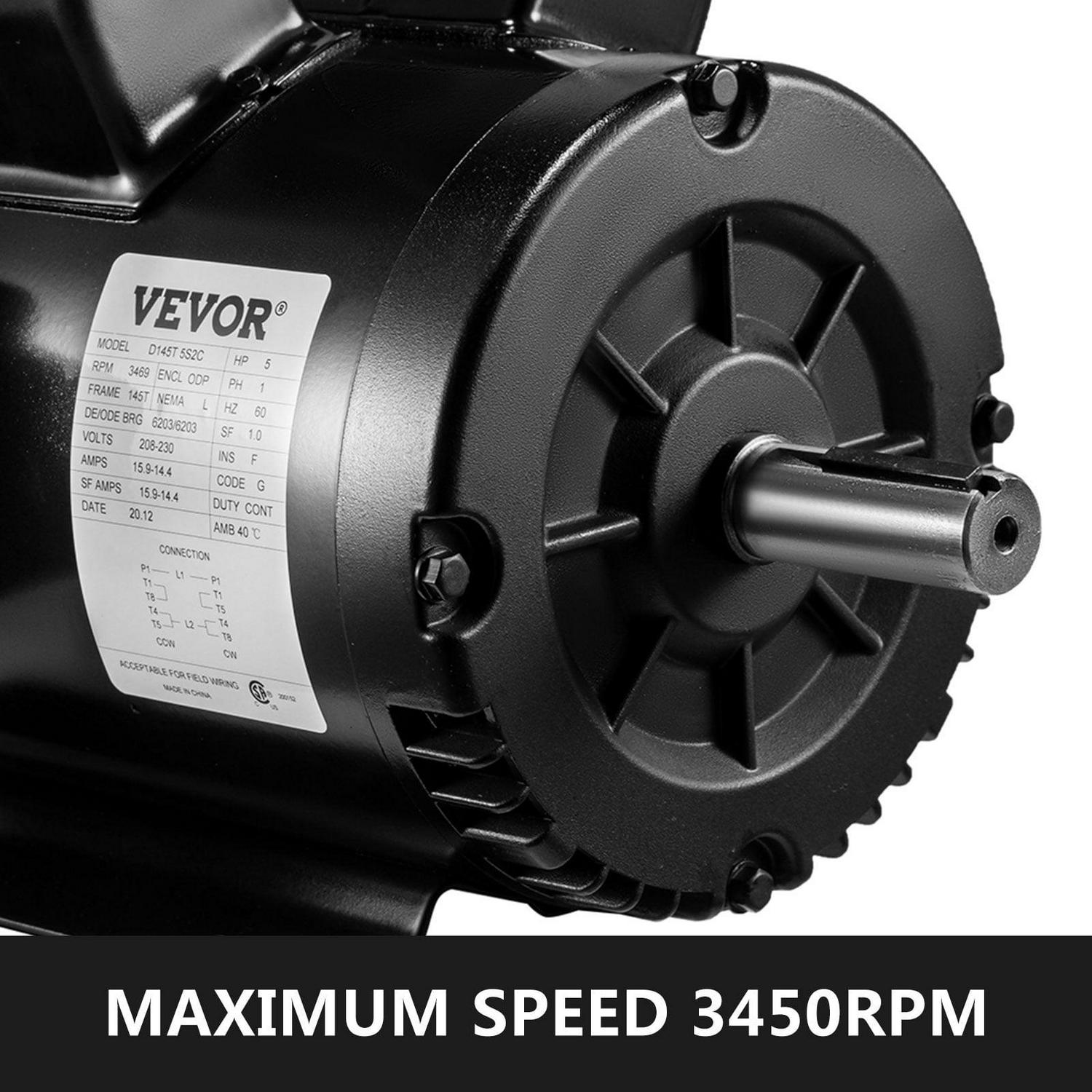

Maximum Speed 3450RPM

The air compressor motor runs at 5 hp, with a maximum speed of 3450rpm. Voltage: 208-230V 60HZ, Frame: 143T, Max. Ambient Temperature: 40 Degrees.

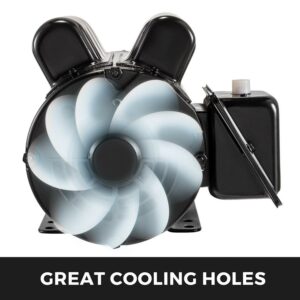

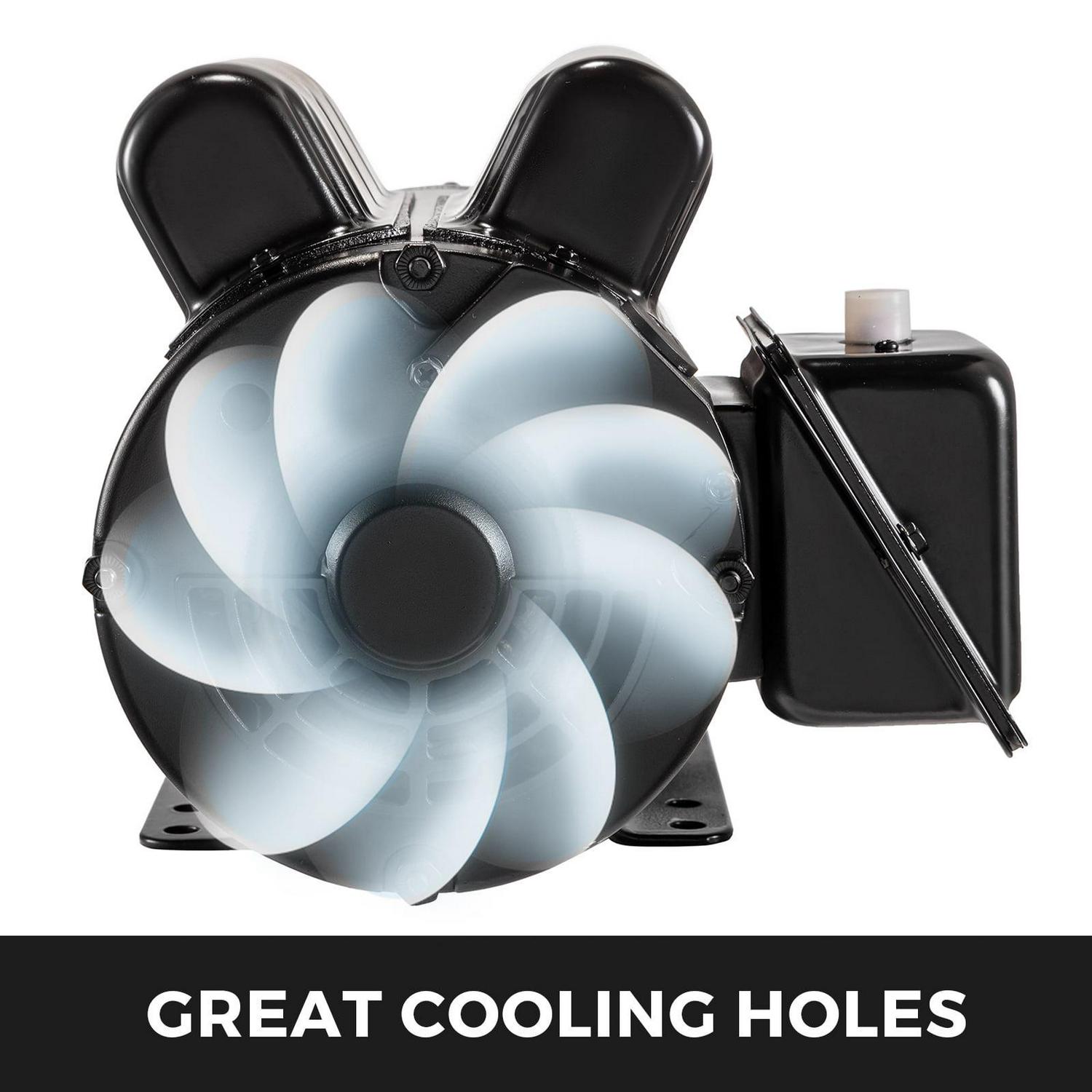

Great Cooling Holes

The air compressor motor has multiple heat dissipation holes, and it can quickly dissipate heat while running, can prevent foreign objects from being caught in the engine.

Manual Overload Protection

Gasketed capacitor housing and conduit boxes protect all environments, and the manual overload protector protects against extreme overload.

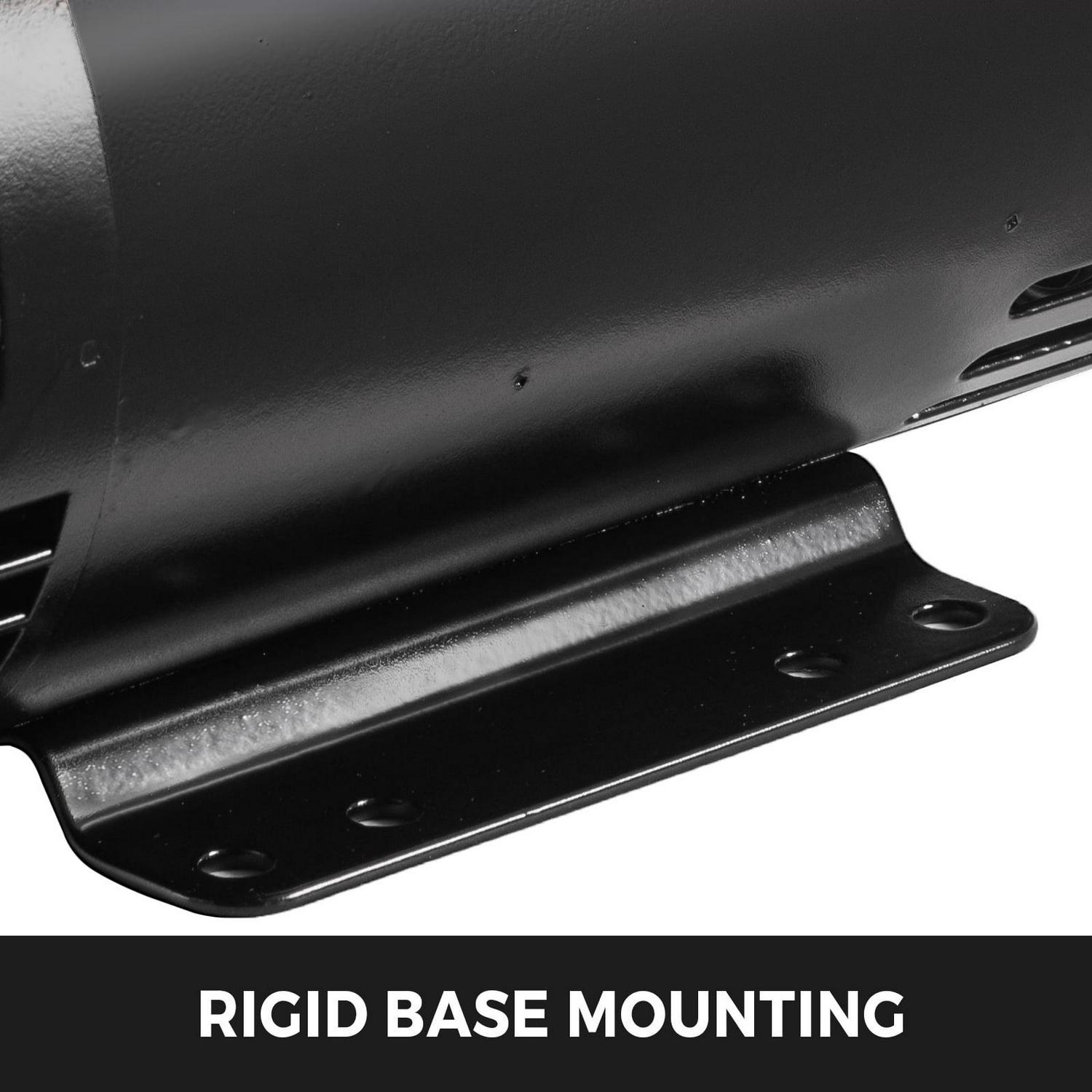

Rigid Base Mounting

The electric AC motor package for an air compressor includes a sturdy mounting bracket to improve the motor’s stability and reduce friction.

Specifications

Material: Steel
Output Power: 5HP, Single Phase
Voltage: 208-230V, 60HZ
Max. Speed: 3450RPM
Frame: 143/5T
Service Factor: 1
Shaft Diameter: 7/8″/2.5 cm Keyed shaft
Shaft Length: 2.36″/6 cm
Enclosure Type: ODP
IP Rating: IP23
Mounting Type: Rigid
Reversible/Non-Reversible: Non-Reversible
AC Motor Type: Induction Motor
Max. Ambient Temperature: 40 Degrees

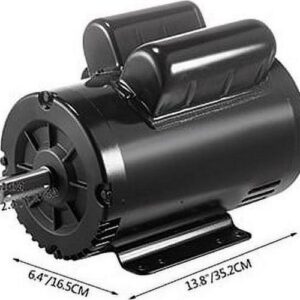

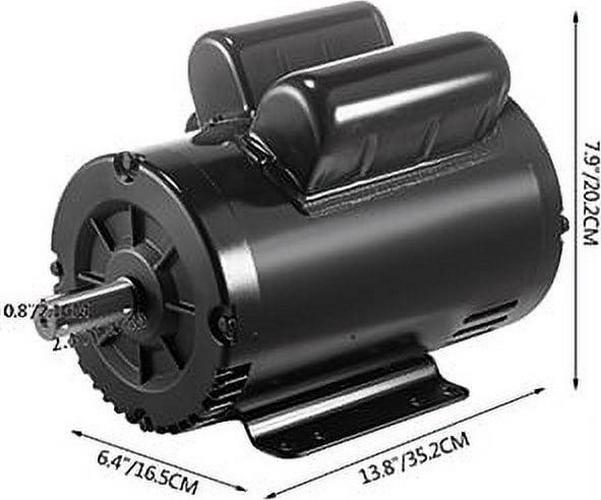

Motor Size(L x W x H): 36 x 16 x 21 cm/14.17 x 6.3 x 8.27″

Package Content

1 x 5HP Motor Compressor Duty
– POWERFUL AC MOTOR – The compact and small-sized electric compressor motor features output 5HP, 143/5T Frame, and single phase. The robust and reliable metal material shell protects the inner circuit from thermal overloading.
– 3450 RPM HIGH SPEED – The compressor duty motor can run at the rated speed of 3450 RPM with high working efficiency. Electric AC Motor runs with 5HP. Shaft Diameter: 7/8″ (2.5 cm), Shaft Length: 2.36″ (6 cm).
– FAST HEAT DISSIPATION – The air compressor motor has multiple heat dissipation holes to have excellent heat dissipation performance. It can prevent foreign objects from being caught in the motor.
– MANUAL OVERLOAD PROTECTION – The heavy-duty electric motor adopts gasketed capacitor housing and conduit boxes to protect all environments, and the low-temperature manual overload protector protects against extreme overload.
– MOUNTING BRACKET INCLUDED – Robust mounting bracket in the package is used to enlarge the electric compressor motor’s stability and reduce any friction. The ball-bearing system is also applied for multiple applications.
