VEVOR 8.5L Water Chiller CW-5200DG Water Cooling Chiller Industrial Water Chiller for 130W-150W Laser Engraving Machine

Brand Introduction
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service

Product Description

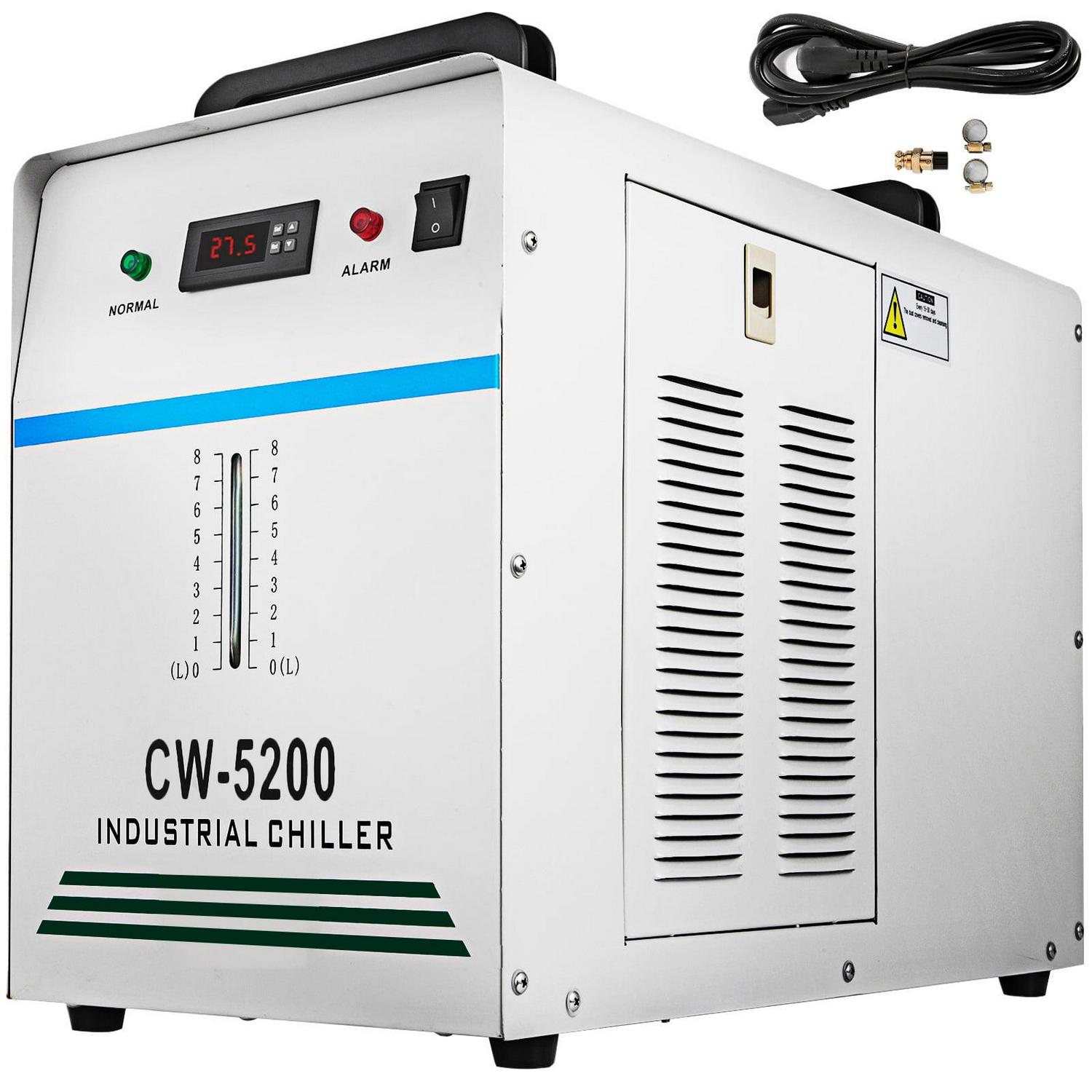

CW-5200 Industrial Water Cooler Chiller
CW-5200 Series is a professional cooling machine referring to international, advanced thermolysis cooling system design, suitable for small water-cooled cooling devices requested machinery. It has 8.5L cooling tank capacity With completed water flow and over high-temperature alarm functions. Built-In cooling fan for effective ventilation ensures its high heat dissipating capacity. Designed for cooling the one CO2 glass laser tube under 130W/150W of the laser engraving and cutting machine.

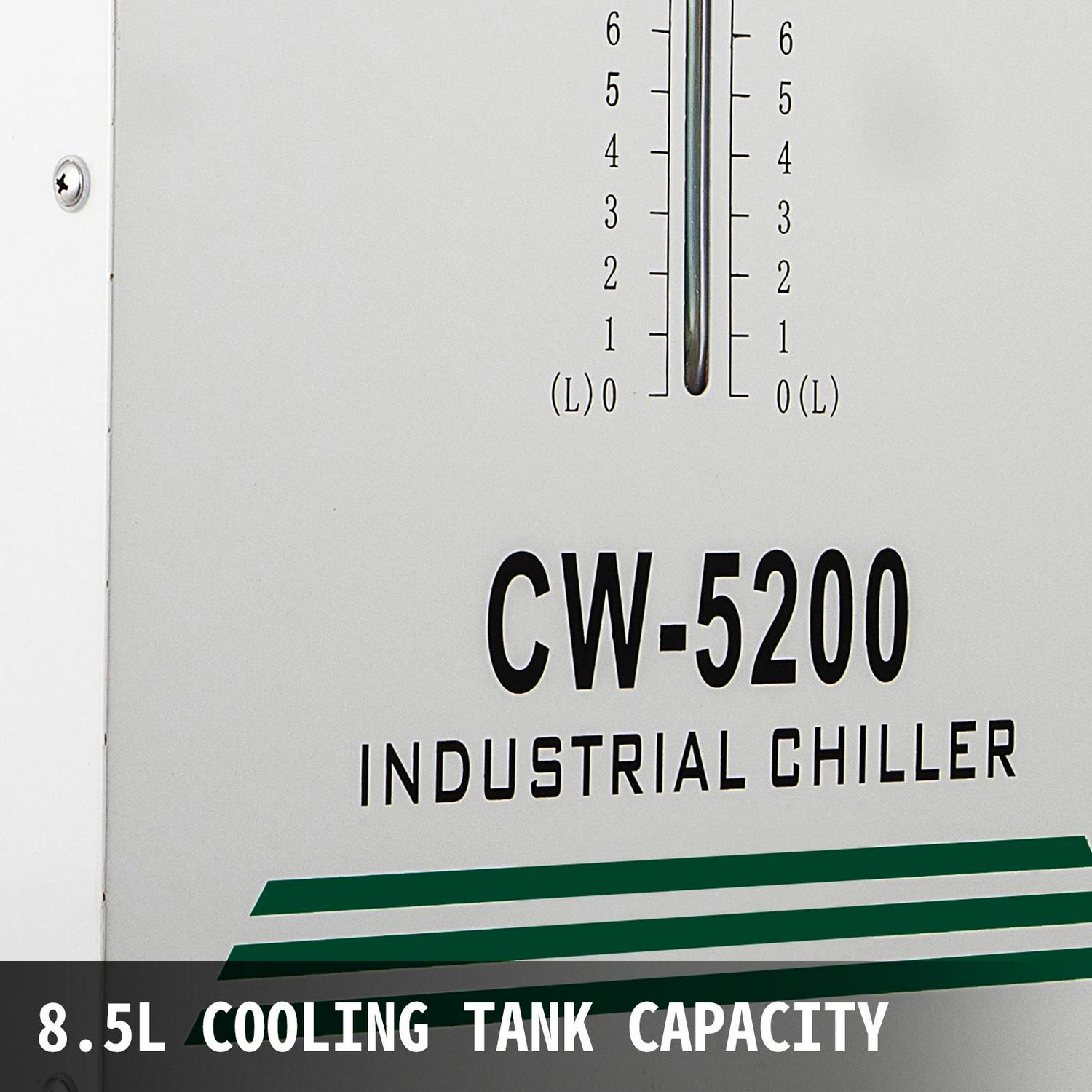

8.5L Cooling Tank Capacity
The water cooler chiller features a stable performance with an 8.5L large-capacity cooling box. Equipped with a precision scale, you can fill with water according to the scale.

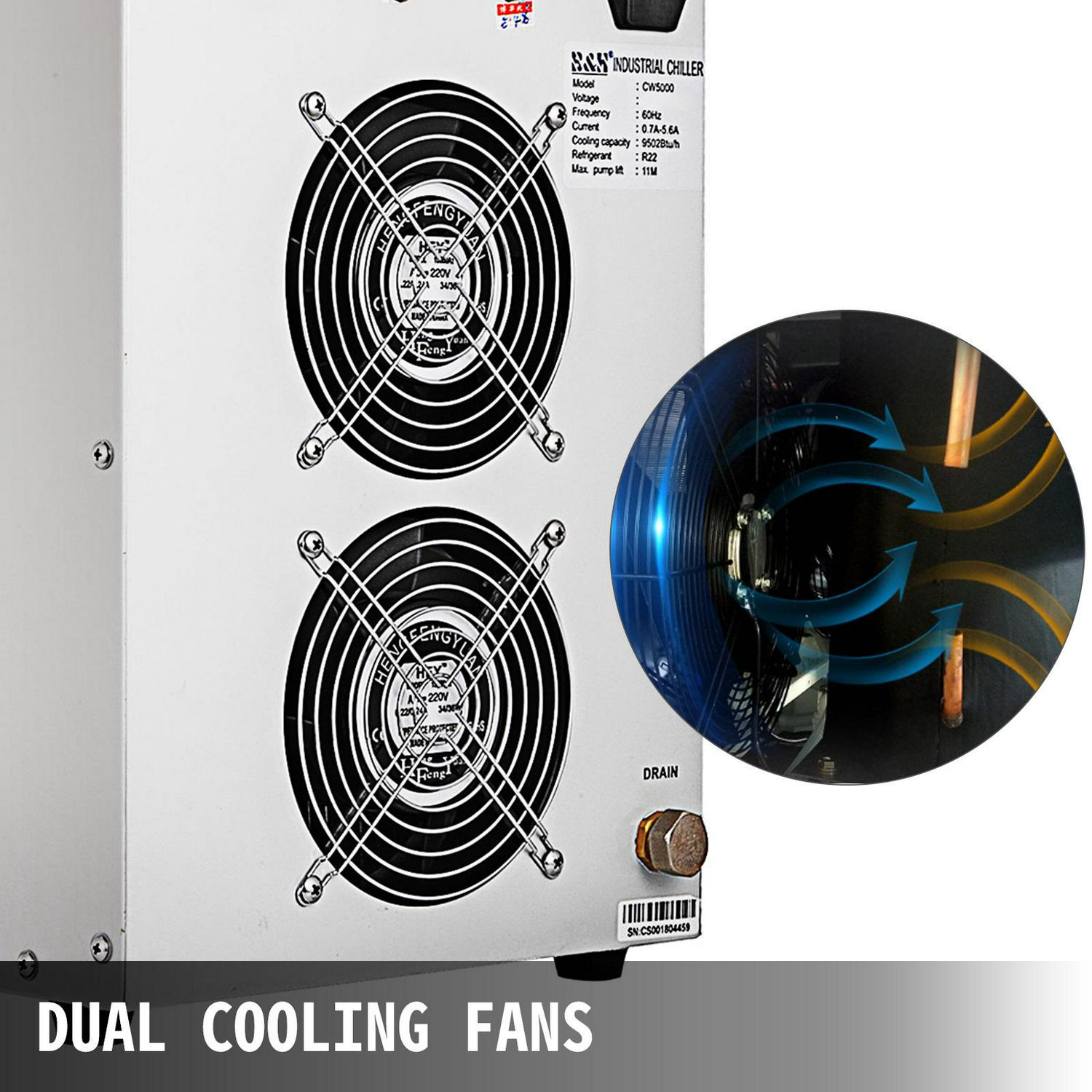

Dual Cooling Fans
Professional forced air-cooled radiators inside quickly takes away the heat. High heat dissipating capacity decides that the water cooler chiller is not easy to be blocked.

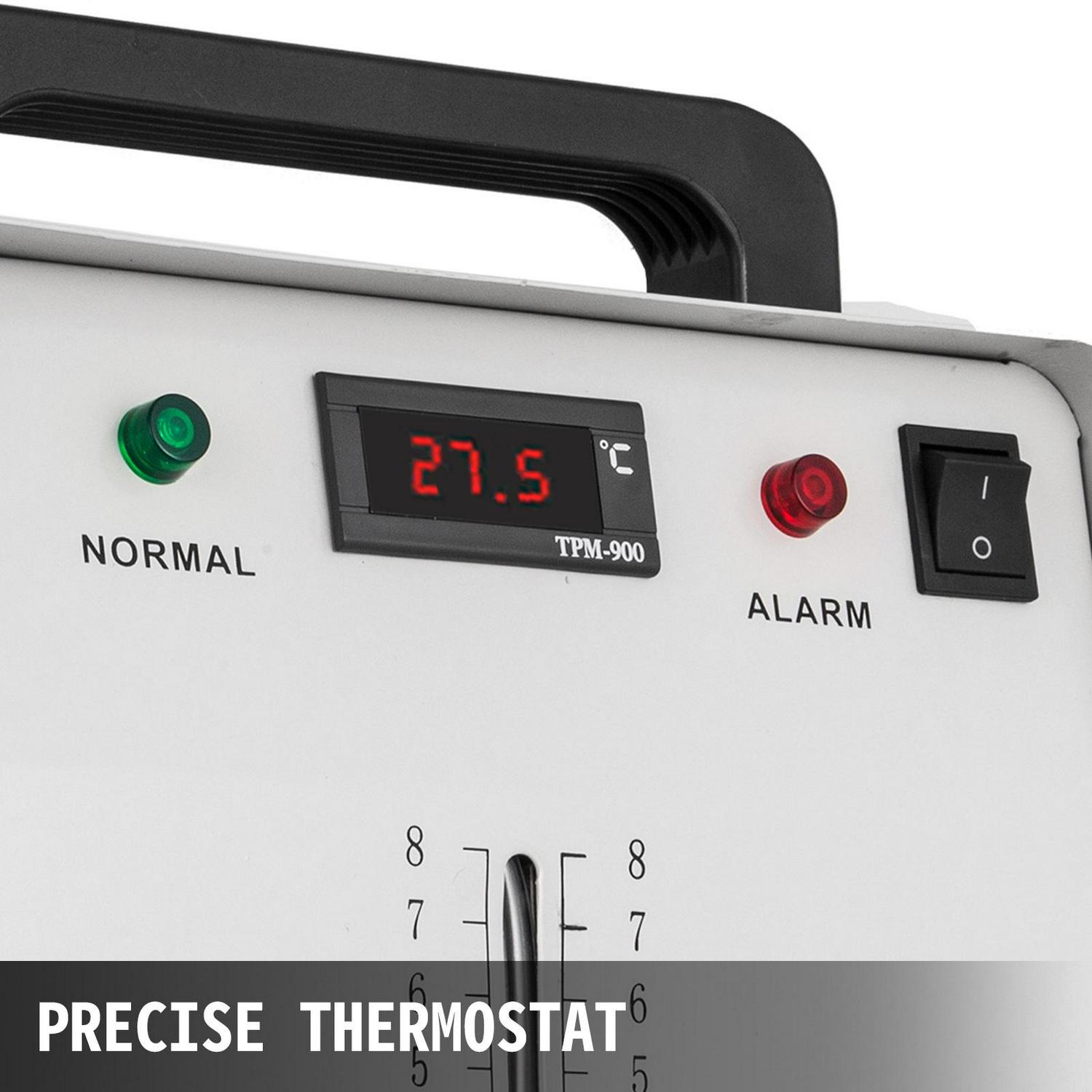

Precise Thermostat
This CNC machine industrial chiller equips an accurate temperature controller. You can adjust and monitor the real-time temperature accurately to ensure the working status of the machine.

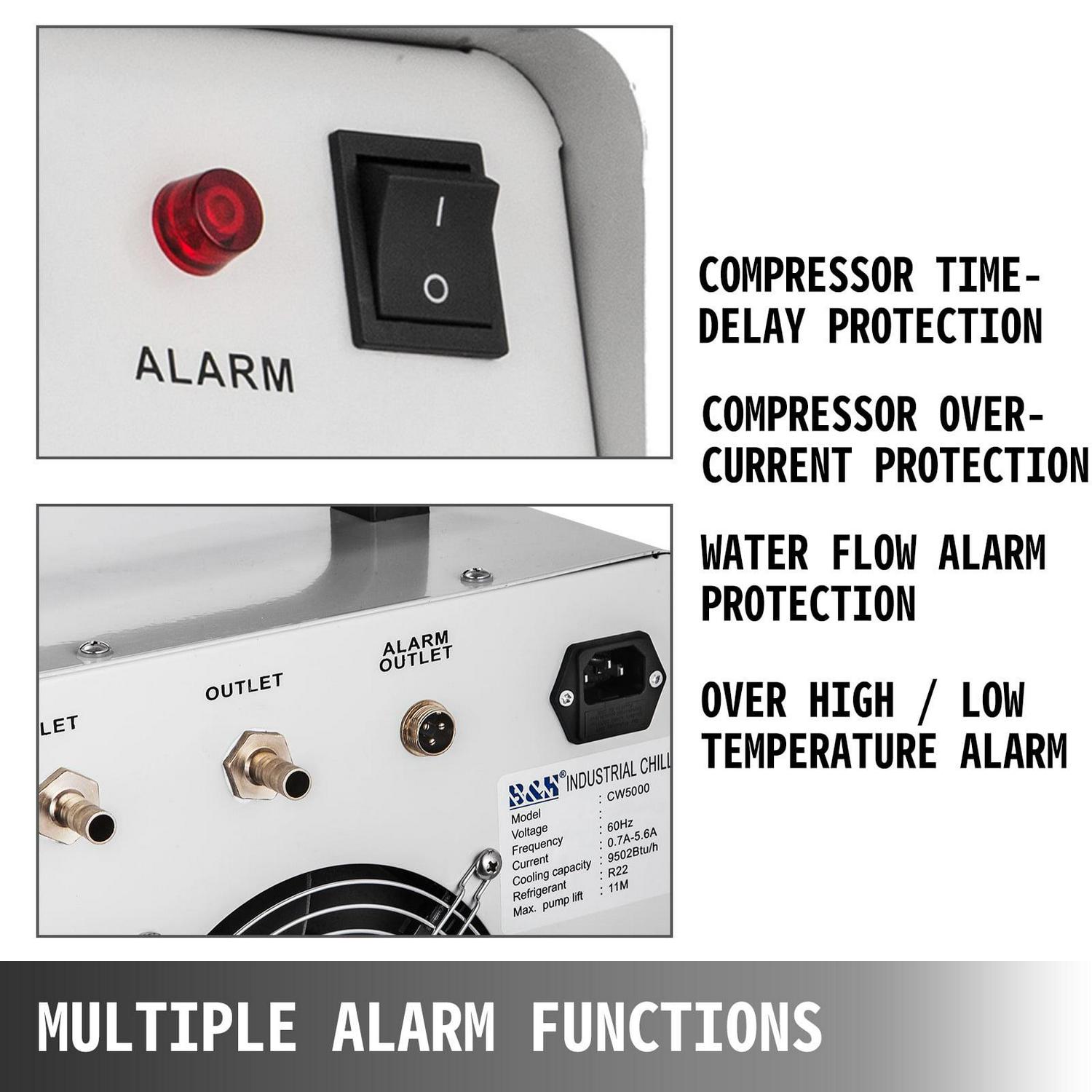

Multiple Alarm Functions
This laser engraver water chiller has various protection, and early warning functions water flow alarm protection, high/low temperature alarm, compressor delay protection as well as compressor over-current protection. These measures can protect the machine from overheating and extend its service life.

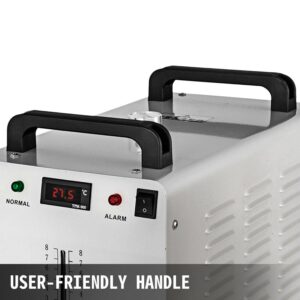

User-friendly Handle
Rubber handles are super durable and reliable. The ergonomic design makes it very comfortable to hold, saving time and effort as well as improving the working efficiency.
Wide Application
CW-5200 Series is a professional cooling machine, easy to install and operate, compact, and easily movable. It is designed for cooling the one CO2 glass laser tube under 130W/150W of the laser engraving and cutting machine.

Specifications
Model: CW-5200DG
Voltage:110V
Frequence: 60HZ
Current: 4.5~6.5A
Tank Capacity: 8.5L
Compressor Power: 0.68KW, 0.93HP
Refrigerating Capacity: 5186Btu/h, 1.52KW, 1307Kcal/h
Refrigerant: R-410a
Refrigerant Charge: 12.3oz / 350g
Precision: ±32.54 / 0.3
Reducer: Capillary
Pump Power: 55W
Maximum Flow: 10L/min
Inlet and outlet:External 10mm barbed connector
Maximum Pumping Lift: 11 Yards / 10M
Inlet and Outlet: External 0.4in / 10mm brass connector
Packing Dimensions: 28.3* 17.3 *24.4in / 720*440*620mm (L*W*H)

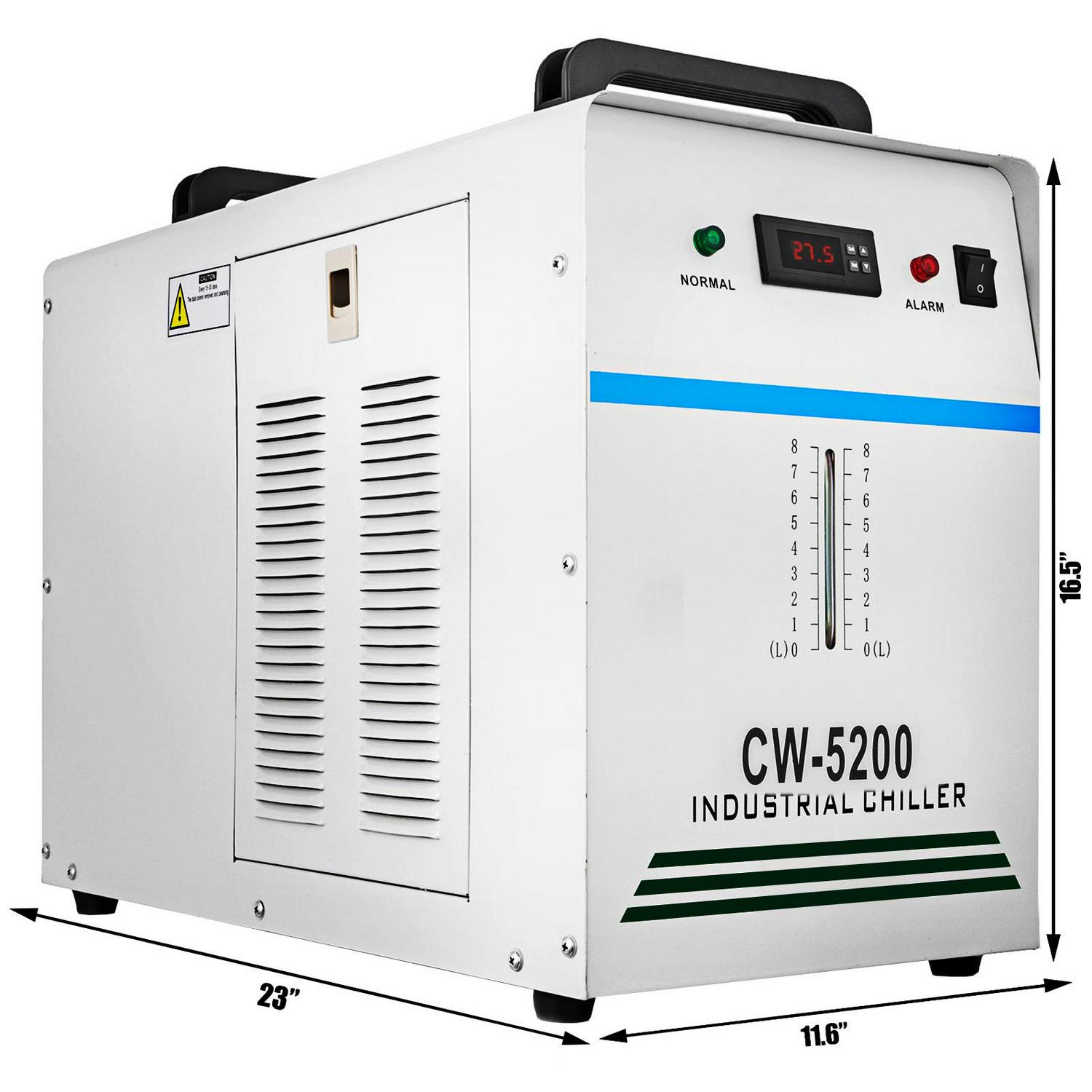

Prosuct Size: 22.83*11.41*18.50in / 580mm*290*470mm (L*W*H)
Protection: Over current protection for compressor, flow alarm, over temperature alarm

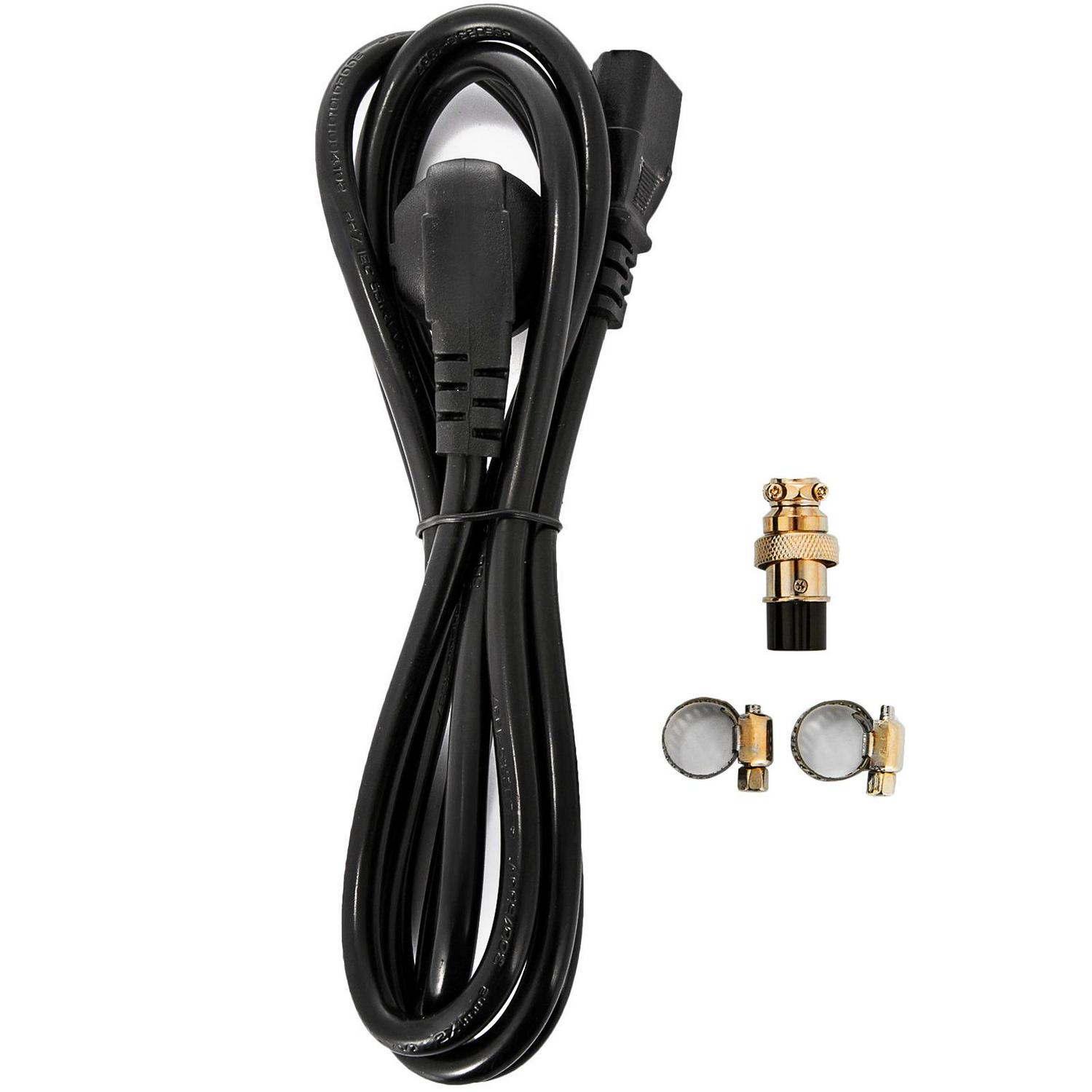

Package Content
1 × CW-5200DG Water Chiller Machine
1 × Power Cable
2 x Sealing Washer
1 × Spare Fuse
1 × User Manual
1 × Alarm Signal Output Plug

– PRODUCT PARAMETER – The CW-5200DG industrial water cooler chiller is 8.5L capacity, 10L/max.flow, Precision: ±32.54 /0.3 , Cooling capacity: 1749W, 110V Voltage, and 60HZ Frequency.
– EFFICIENT COOLING FAN – The water cooler chiller has two professional forced air-cooled radiators, high heat dissipating capacity, and not easy to be blocked. High-speed fans inside quickly take away the heat. And the CW-5200’s water inlet and outlet ports are made of anti-corrosive brass to keep from any leakage problems and extend long service life.
– CONSTANT INTELLIGENT TEMPERATURE MODE – CW-5200 series industrial chiller can be used to cool high-power lasers. Two working temperature modes are constant temperature and intelligent temperature adjustment. The smart temperature control mode can be adjusted to the corresponding water temperature as the temperature changes, and the water temperature can be automatically adjusted according to the season.
– VARIOUS ALARM FUNCTIONS -This professional industrial chiller has multiple warning protection mechanisms such as water flow alarm protection, high/low temperature alarm, compressor delay protection as well as compressor over-current protection.
– MULTIPLE APPLICATION – CW-5200 Series professional industrial water cooler machine is suitable for small water-cooled cooling devices requested machinery. The Industrial Water Chiller has a patent Certificate, CE, and ROHS Certificate. It is designed for cooling the one CO2 glass laser tube under 130W/150W of the laser engraving and cutting machine. Emitting rate higher than 60%.
