VEVOR 980W Magnetic Drill Press with 1-1/3 Inch (35mm) Boring Diameter Magnetic Drill Press Machine 2700 LBS Magnetic Force Magnetic Drilling System 680 RPM Portable Electric Magnetic Drill Press

Brand Introduction
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees,VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service

Product Description

Electric Magnetic Drill Press

It accept up to 2-inch, high-speed steel annular cutters with a maximum boring diameter of 1.37 in. (35 mm). The tool will attach directly to the metal drilling surface with a powerful electromagnet which has 10,000 N 2250Lbs. of max force and ensures the machine will not move during the drilling process.

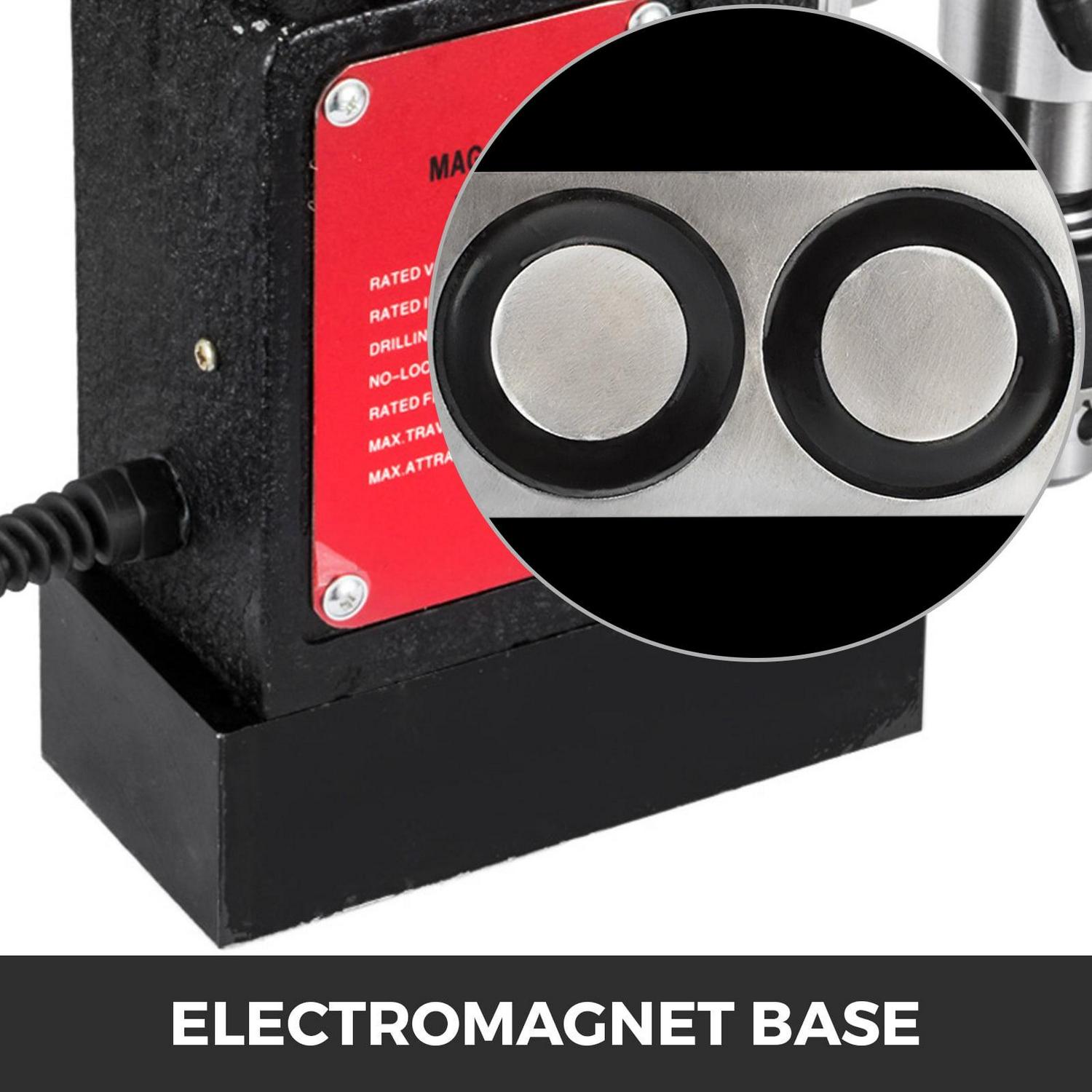

Electromagnet Base

Strong electromagnet base for side suction and back suction. Stable at work, to ensure both your efficiency and safety.

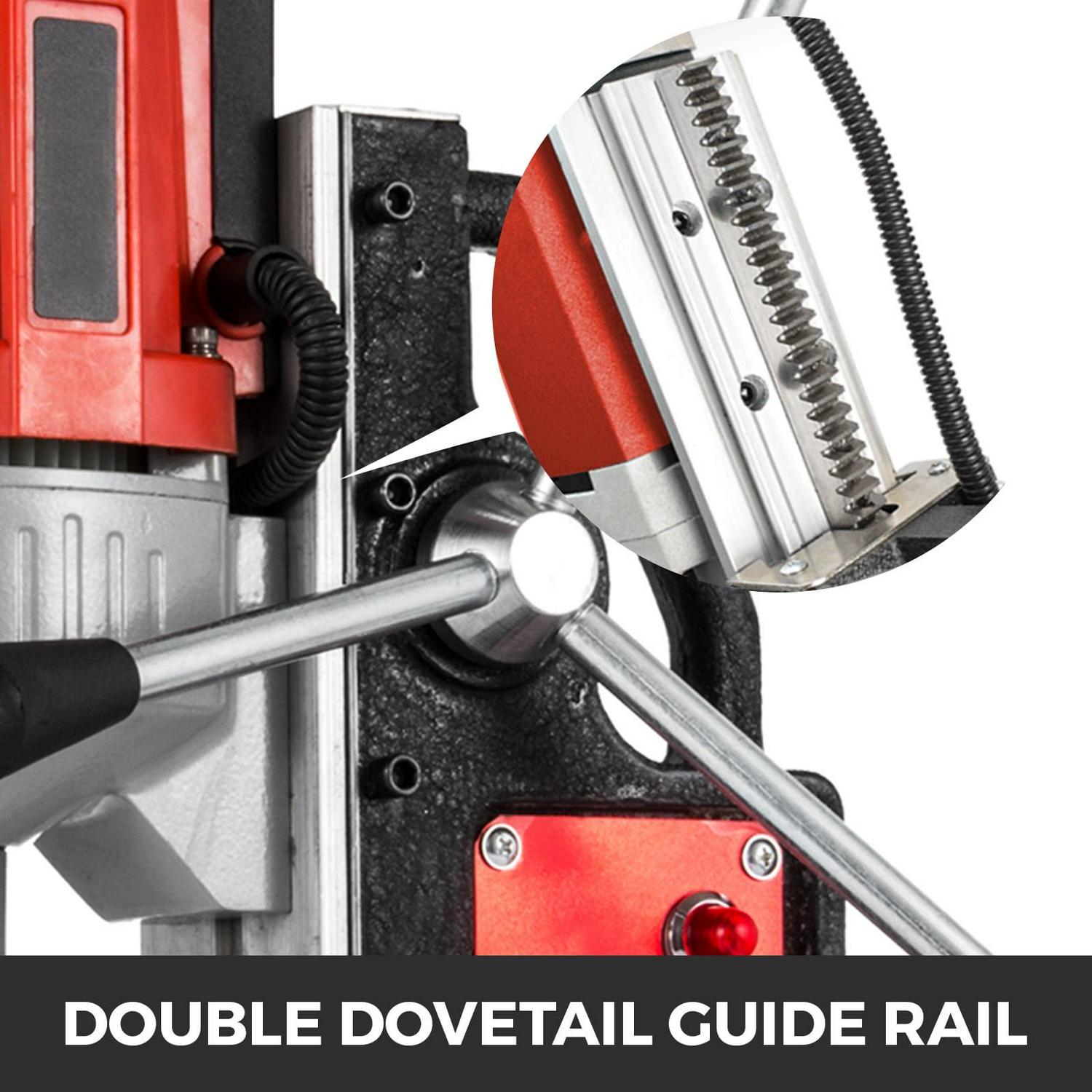

Double Dovetail Guide Rail

Aluminum alloy guide rail, which can not only add the rigidity to the machine, but also be able to adjust the height of the motor according to the demand.

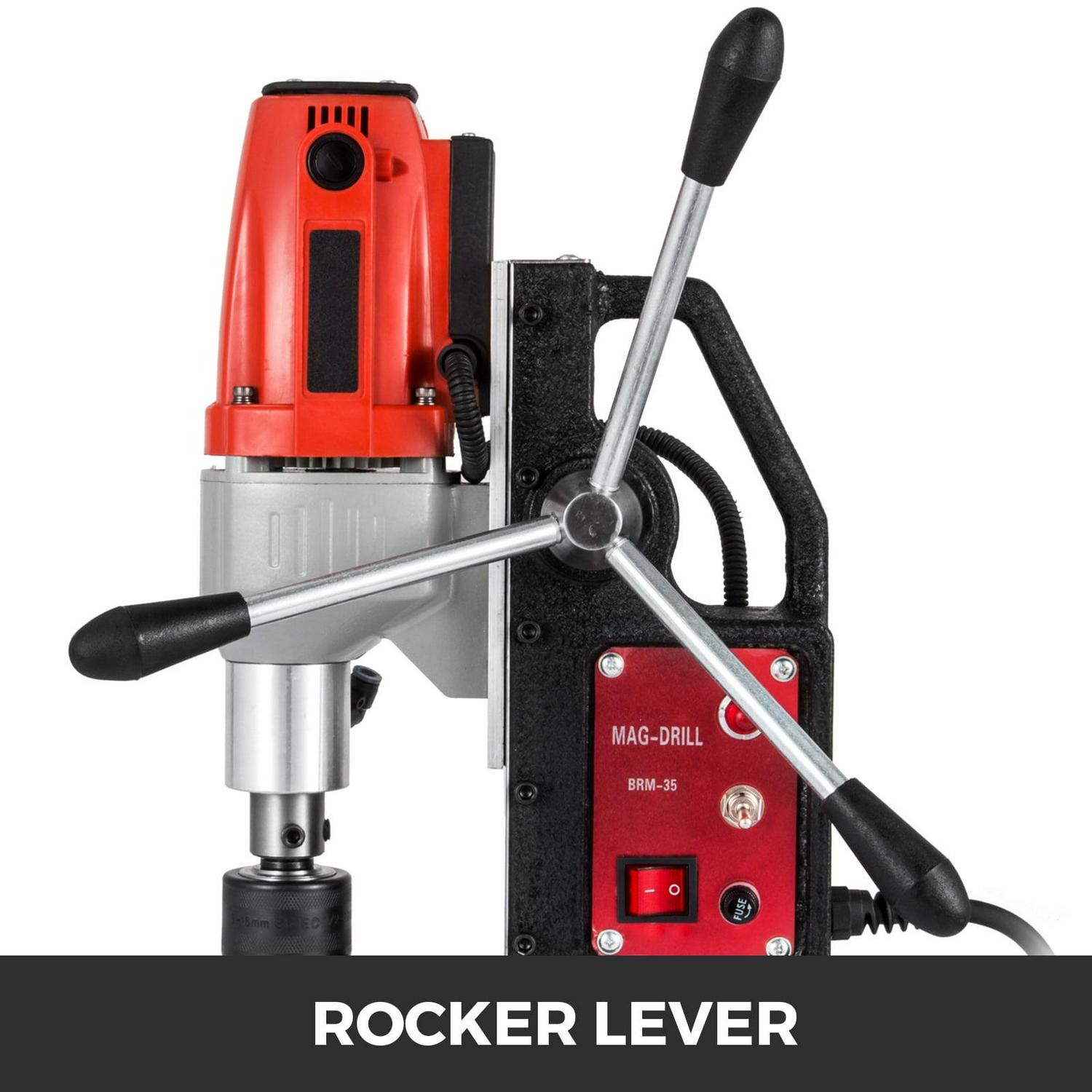

Rocker Lever

Rocker-type lifting rod with anti-slip rubber sleeve on its surface saves time and effort and it is also easy to operate.

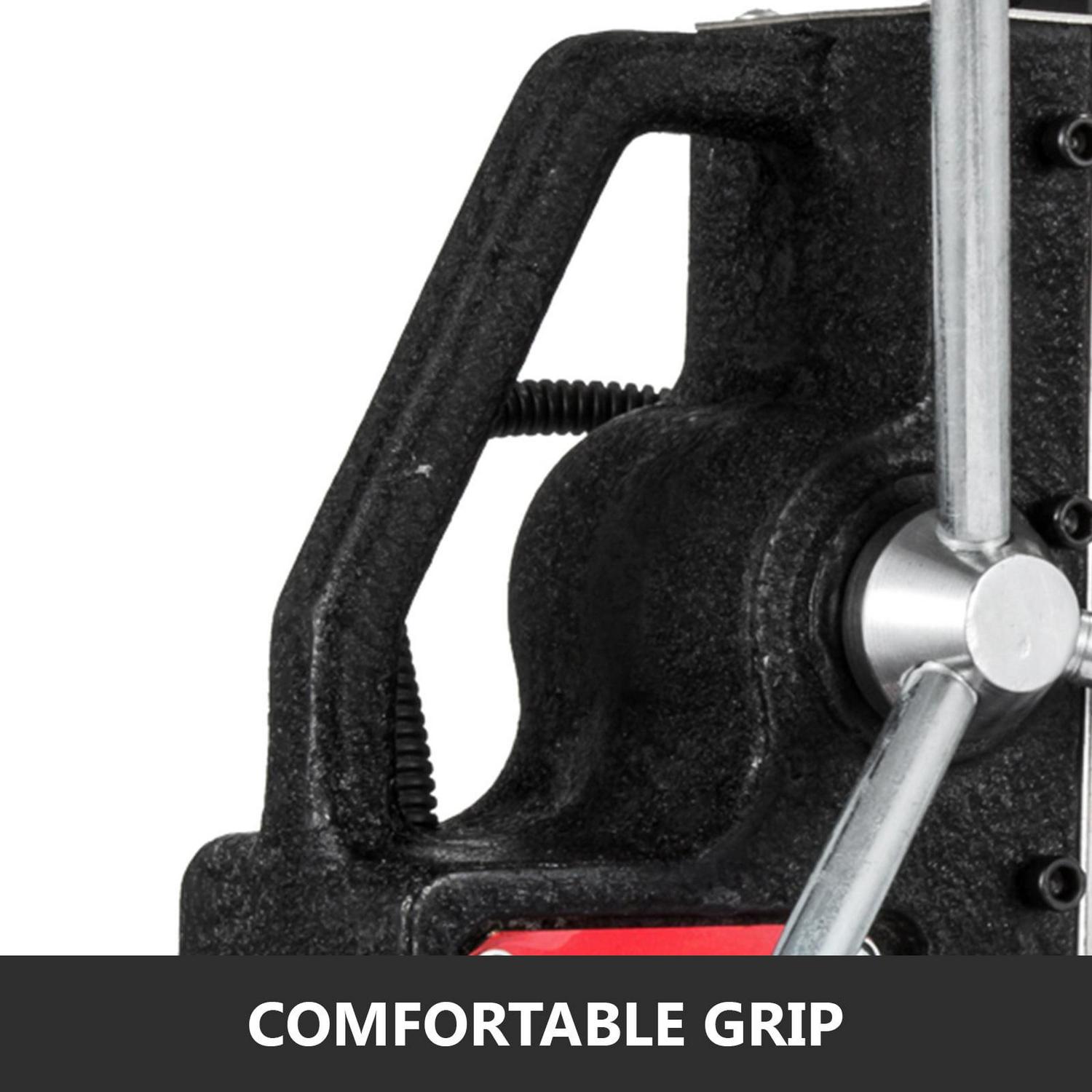

Comfortable Grip

The grip is designed to be ergonomic. This comfortable handle offer easy handling and easy carrying.

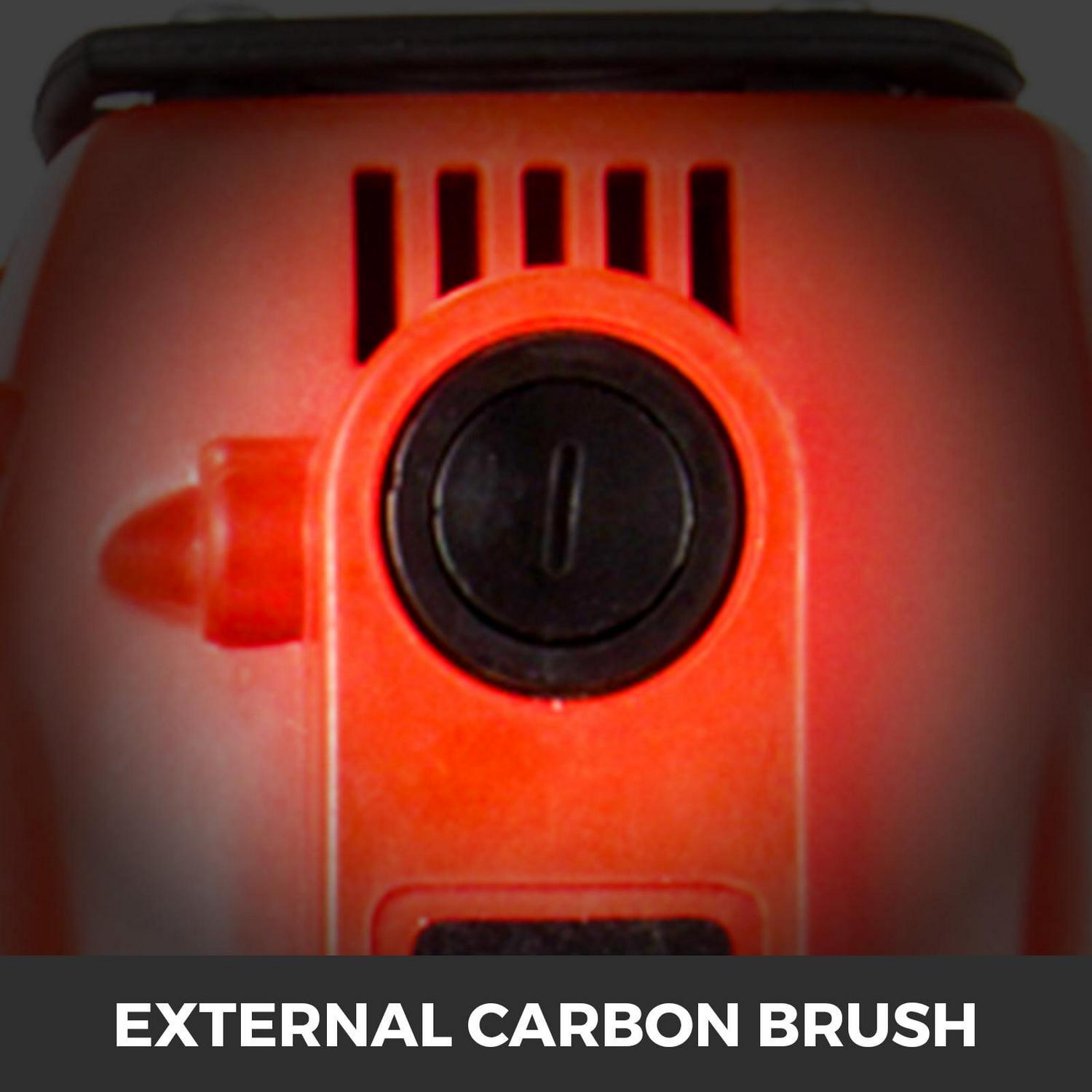

External Carbon Brush

External carbon brush makes it easy to replace, and the cover of the drill is safer and more durable.

Wide Application

Suitable for steel structure, shipbuilding, bridge engineering, wind power generation, drilling rig, electric power construction, railway manufacturing and other fields.

Specifications

Model: BRM-35
Power: 980 watts
Power supply: 110V/50Hz
Idle speed approx : 680 rpm
Max. Drilling (with core drill): 12-35mm
Max. Drilling depth (core drill): 2″(50mm)
Max. Drilling (with full drill): 1.5-13 mm
Max. Travel distance: 125 mm
Magnetic holding force: 10,000 N 2250Lbs
Magnetic foot dimensions ca: 160 x 80 mm

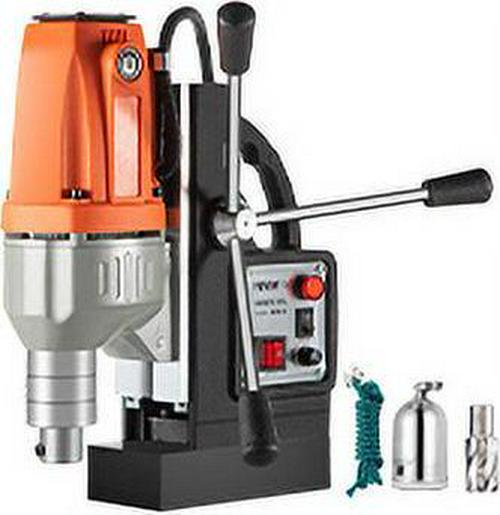

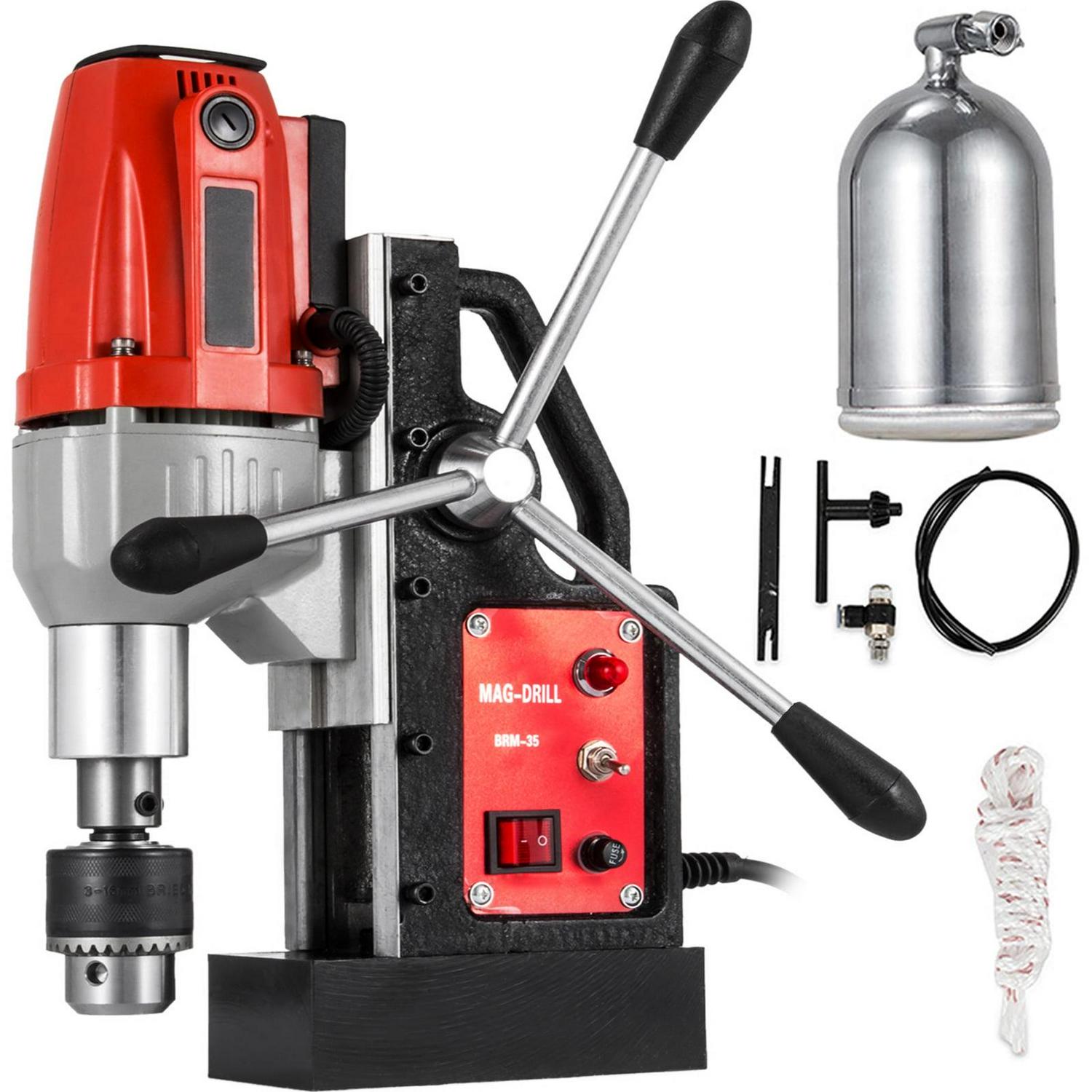

Package Content

1 X 35mm Core Drilling Machine
1 X kettle
1 X rope
1 X drill chuck
1 X Silk power chuck
1 X chuck key
– EASY USAGE – Magnetic drilling press rack and pinion gear system for exact drilling depth.
– MOTOR POWER:980W – Strong power magnetic drilling system motor: 980 W, 110 V, 50 Hz.
– HIGH PERFORMANCE – Maximum Boring Depth: 2 in.(50mm); Maximum Boring Diameter: 1.37 in. (35 mm).
– HIGH COMPATIBILITY – Max Magnetic Force: 10,000 N 2250Lbs ; tool Holder: 3/4-inch weldon shank;spindle Speed: 680 RPM.
– WIDELY USED – Suitable for steel structure, shipbuilding, equipment manufacturing, equipment installation, bridge engineering, wind power generation, drilling rig, electric power construction, railway manufacturing and other fields.
