VEVOR CNC 3018 PRO Router Machine with Transparent Enclosure, GRBL Control 3-Axis Milling Engraver Engraving Machine, DIY CNC Router Kit , Offline Controller, for Wood Acrylic Plastic PCB PVC Carving

Brand Introduction
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service

Product Description

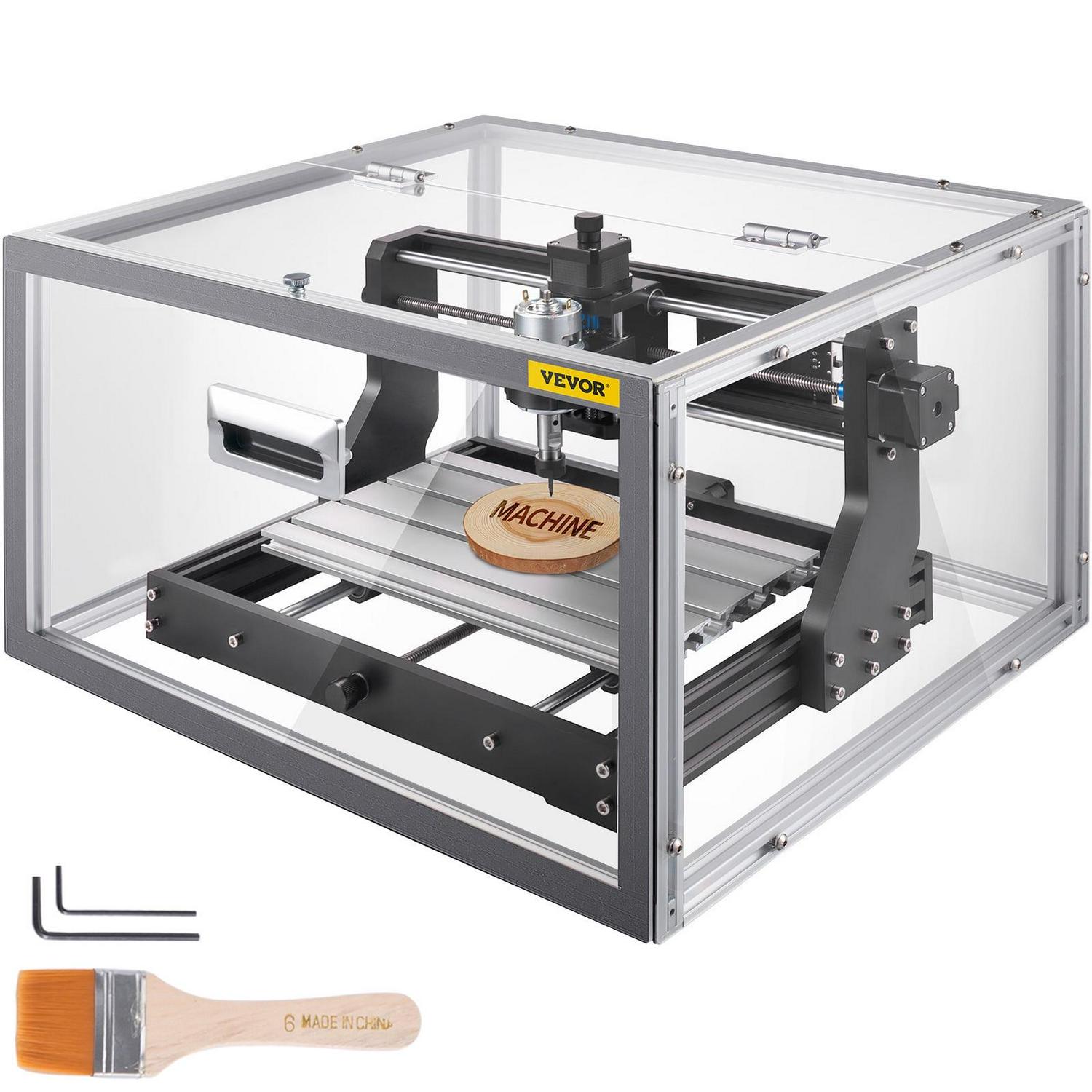

CNC 3018 PRO Router Machine w/ Transparent Enclosure
This CNC engraving machine with an effective working area of 11.8″(X)x7.1″(Y)x1.7″(Z) has an acrylic CNC enclosure to watch the engraving process from every side. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave plastics, soft aluminum, wood, PVC, etc.

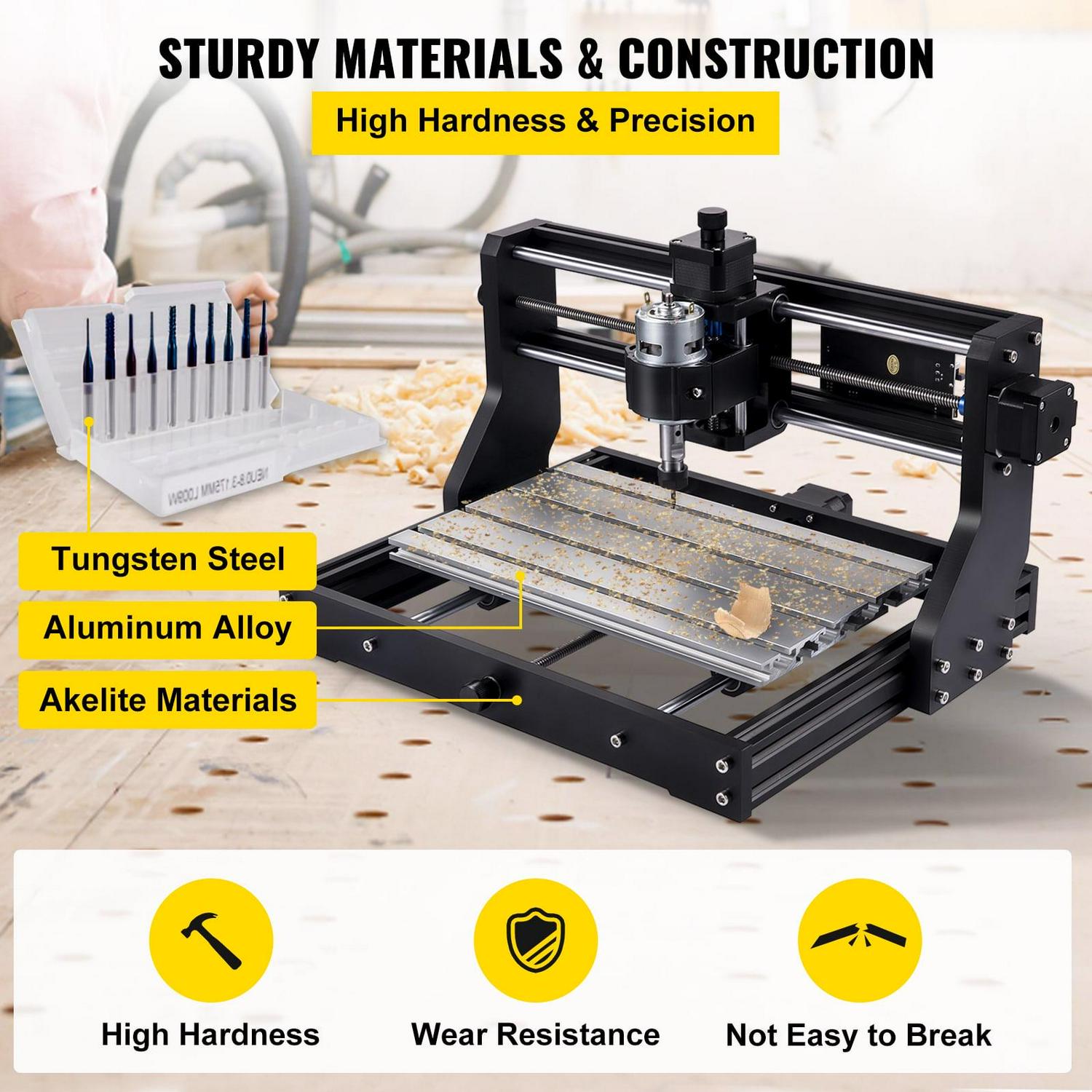

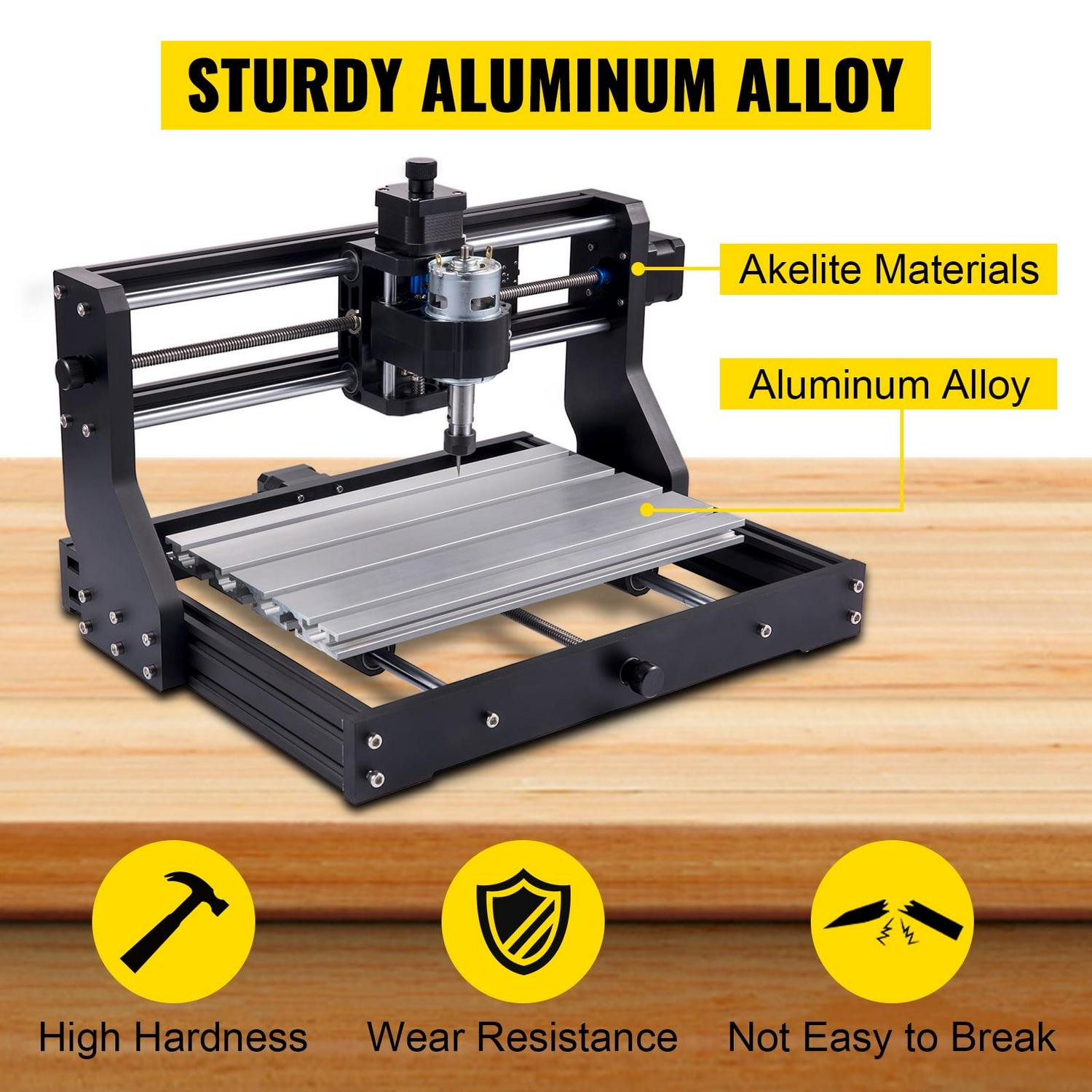

Sturdy Aluminum Alloy
CNC 3018 PRO router machine is constructed with aluminum alloy and bakelite materials, rustproof, hard-wearing, and durable. In addition, it has excellent cutting and milling performance to meet your various requirements.

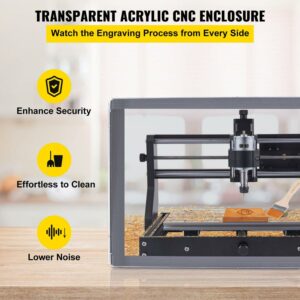

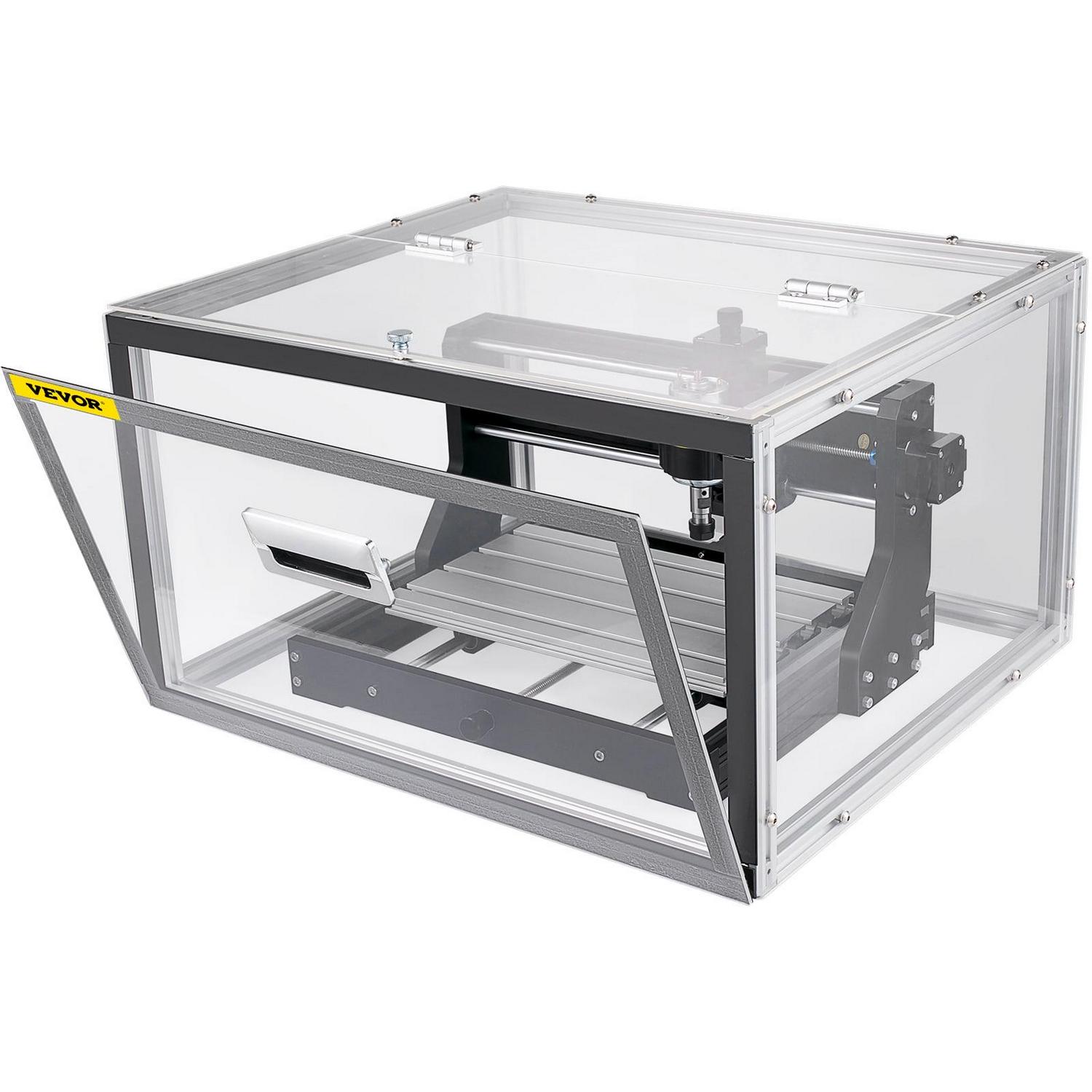

Acrylic CNC Enclosure
This acrylic CNC enclosure is constructed with premium aluminum alloy and acrylic boards to provide an all-around safe shield. It also prevents your workspace from being dirty and messy. Moreover, the noise will reduce up to 21dB during operation.

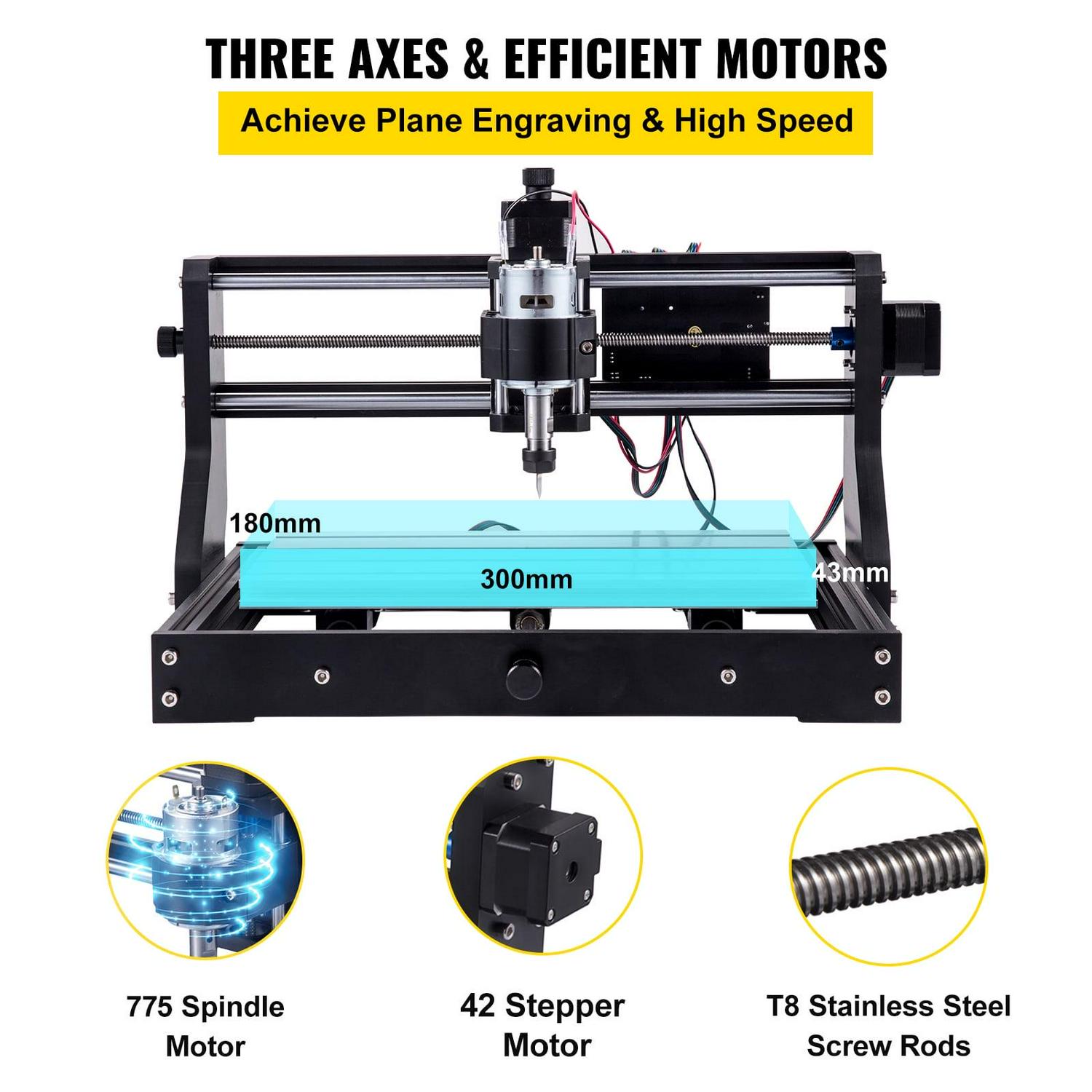

Three Refined XYZ Axes
The axes are equipped with knobs to help you move the carving machine manually. There are three 42 stepper motors on three axes for smooth movement. The 775 24V spindle motor on the Z-axis can reach the speed of 10000 r/min.

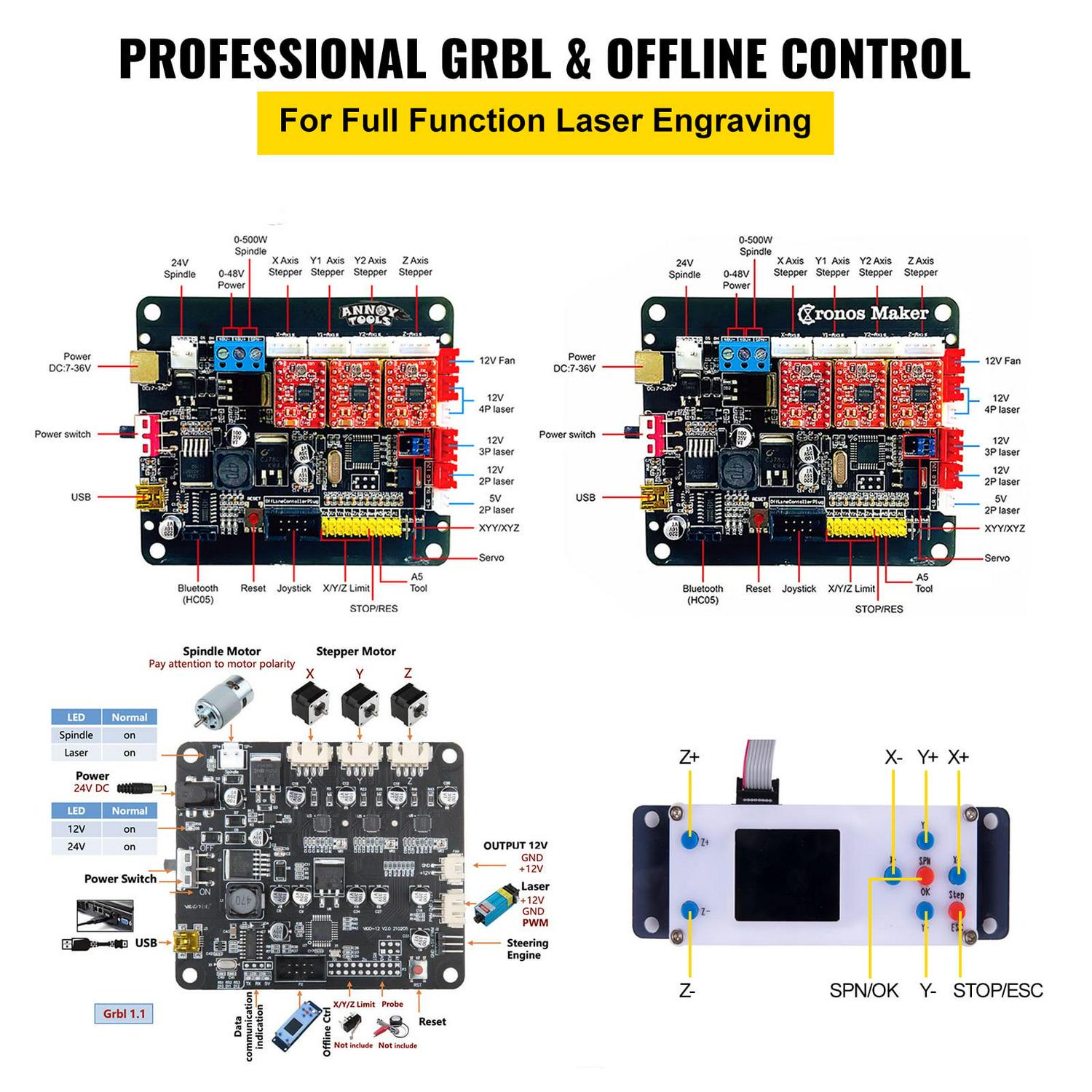

Full GRBL Control Board
CNC milling machine features the GRBL control board, which can be connected to a computer via a USB interface. And the 3Pin laser driver interfaces support PWM, TTL functions for full function laser engraving.
Functional Offline Controller
An offline controller of the 3-axis DIY CNC engraving machine is also included for easy remote control without a computer to improve your working efficiency for a precise carving setting significantly.

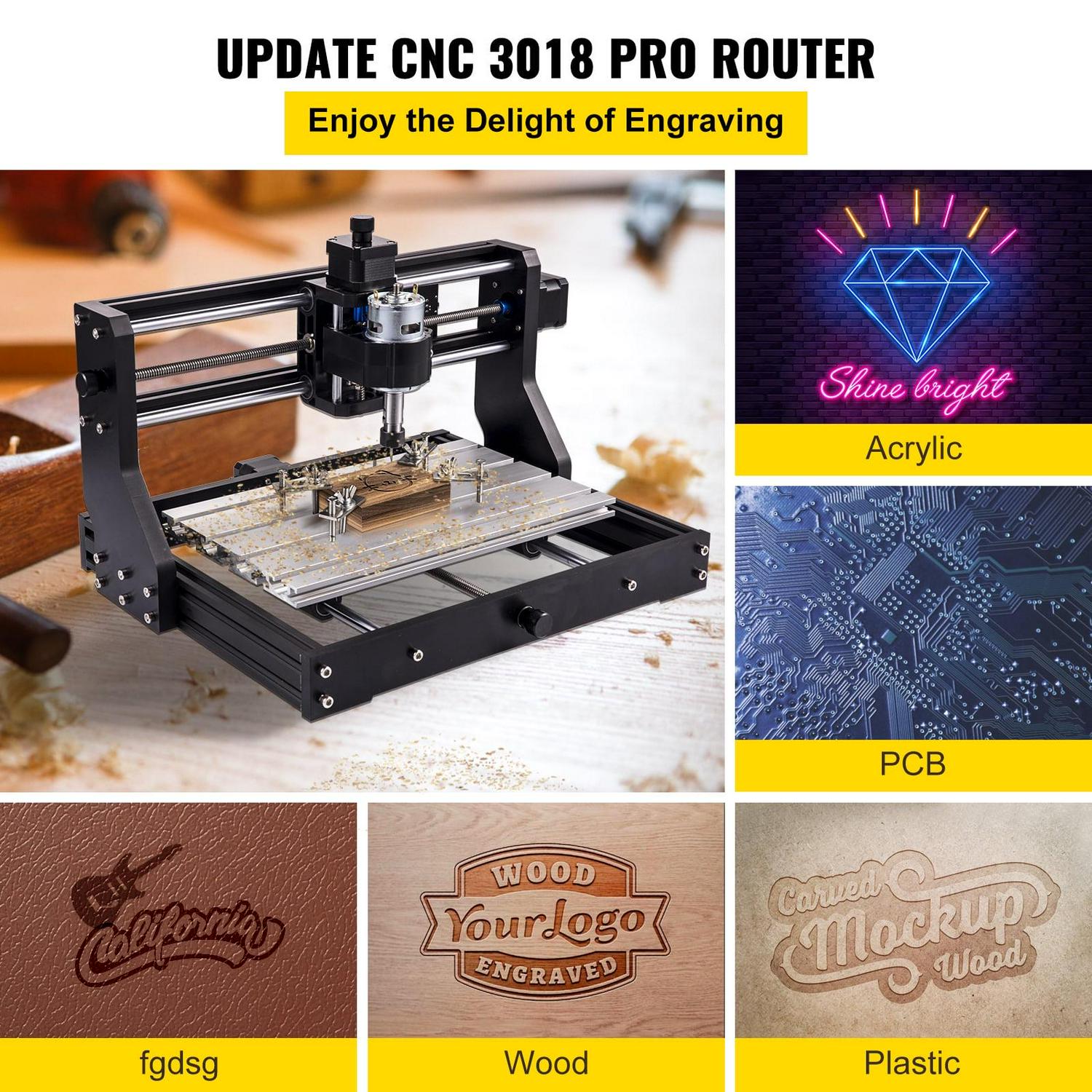

Wide Usage Scenarios
This CNC router machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials. It’s great for home DIY and small business.

Specifications
Model: 3018Pro
Active Working Area(X x Y x Z): 11.8 x 7.1 x 1.7″ / 300 x 180 x 43 mm
Machine Materials: Aluminum Profile & Bakelite
Power Supply: DC 24V 5A
Spindle Rated Power: 775 Spindle 60W; 10000 RPM
Stepping Motor: 42HD, 12V, Torque: 0.25 N/m
Accuracy: 0.004″ / 0.1 mm
Driving Units: T8 Stainless Steel Screws
Support Software: GRBL Control(Candle/Laser GRBL/Light Burn)
Cutter Diameter: 0.125″ / 3.175 mm
Supported OS: Windows XP/7/8/10, macOS/Linux
Enclosure Frame Material: Aluminum Alloy
Enclosure Panel Material: Acrylic
Enclosure Thickness: 0.12” / 3 mm
Machine Net Weight: 13.18 lbs / 5.98 kg
Enclosure Net Weight: 5.6 lbs / 2.54 kg
Machine Size(L x W x H): 15.7 x 13.0 x 9.4″ / 400 x 330 x 240 mm
Enclosure Size(L x W x H): 21.3 x 18.6 x 12.3″ / 542 x 472 x 313 mm
Package Content
1 x 3018 CNC Router Kit
1 x Acrylic CNC Enclosure
1 x Set of Mounting Tools
1 x User Manual

– Durable Aluminum Profiles: CNC 3018 PRO router kit is an upgraded version of the 3018 CNC. The frame is mainly made of aluminum alloy and bakelite materials, with high strength and high precision. The working travel of this engraving machine is 300(X) x 180(Y) x 43(Z) mm, ensuring sufficient functional area for different workpieces.
– Transparent Enclosure Included: This milling engraving machine has a transparent enclosure, enabling you to watch the engraving process from every side without being hurt by dust or chips. In addition, this acrylic CNC enclosure keeps your workspace clean and reduces noise so that you can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVCs, PCBs, etc.
– Upgraded Three Axes: Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of T8 stainless steel screw rods whose lead distance is 4 mm. It uses double copper nuts to clear round trip errors.
– GRBL & Offline Control: The GRBL control features an XYZ axis drive and full functionality. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer. 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.
– High-Efficiency Motors: This CNC 3018 pro engraver machine is equipped with three 42 stepper motors and a 775 (12-36V) 24V spindle motor with a rotational speed of 10000 r/min. And the engraver supports Windows XP SP3, win7, win8, win10 (32/64), macOS system, and other software to directly import JPG, BMP, PNG, DXF format files for engraving.
