VEVOR CNC Router Machine, 3018-PRO with GRBL Offline Control, Limit Switches & Emergency-Stop, PCB PVC Wood leather Engraving Machine, Dustproof Safe Acrylic Baffle, XYZ Working Area 300 x 180 x 45mm

$189.19

Out of stock

SKU: 643781547 Category:

Free shipping on all orders!

  • Providing Exceptional Support!
  • Our Commitment: Your Satisfaction, Guaranteed!
  • Your Security Matters: Secure Payments!
Guaranteed Safe Checkout

Description

VEVOR CNC Router Machine, 3018-PRO with GRBL Offline Control, Limit Switches and Emergency-Stop, PCB PVC Wood leather Engraving Machine, Dustproof Safe Acrylic Baffle, XYZ Working Area 300 x 180 x 45mm

  • Brand: VEVOR
  • Manufacturer Part Number: MG3018PROVER-H39OV1
  • Material: Aluminum Alloy
  • Manufacturer: VEVOR
  • Assembled Product Weight: 21.05 lb
  • Color: Yellow
  • Assembled Product Dimensions (L x W x H): 15.40 x 13.00 x 10.60 Inches

Brand Introduction
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees,VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service

Product Description

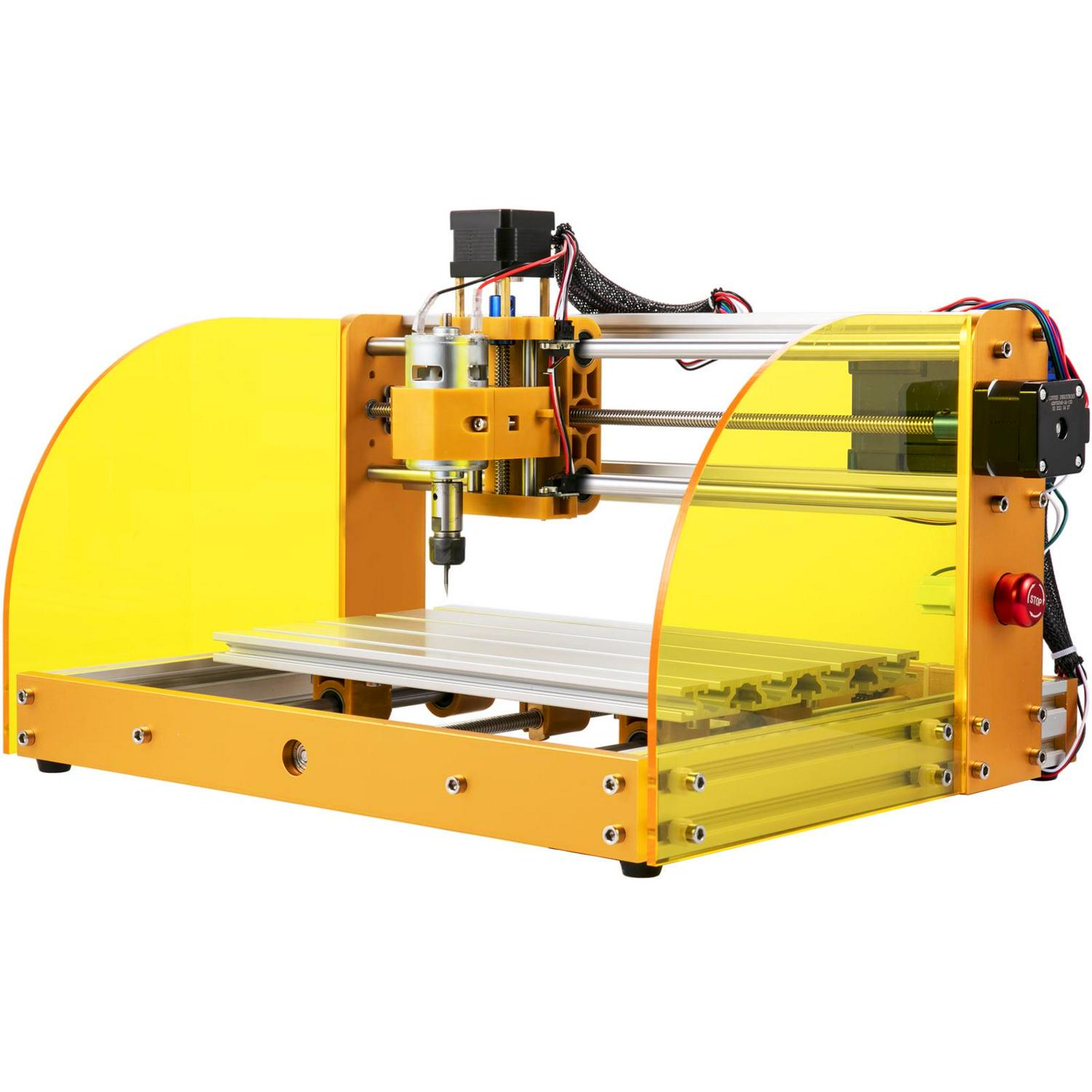

300 x 180 x 45mm CNC Router Machine 3018-PROV

This pre-assembled CNC router machine 3018-PROV has an effective working area of 300 x 180 x 45mm / 11.8 x 7.1 x 1.8”, allowing you to be up and running in less than an hour, making it no challenge for beginners. It features a GRBL control board with a 1.8″ display and acrylic baffles to block dust so that you can control them easily without computers. In addition, it’s an excellent affordable self-learning engraving tool for accurately engraving all types of plastics, soft aluminum, wood, PVC, and so on.

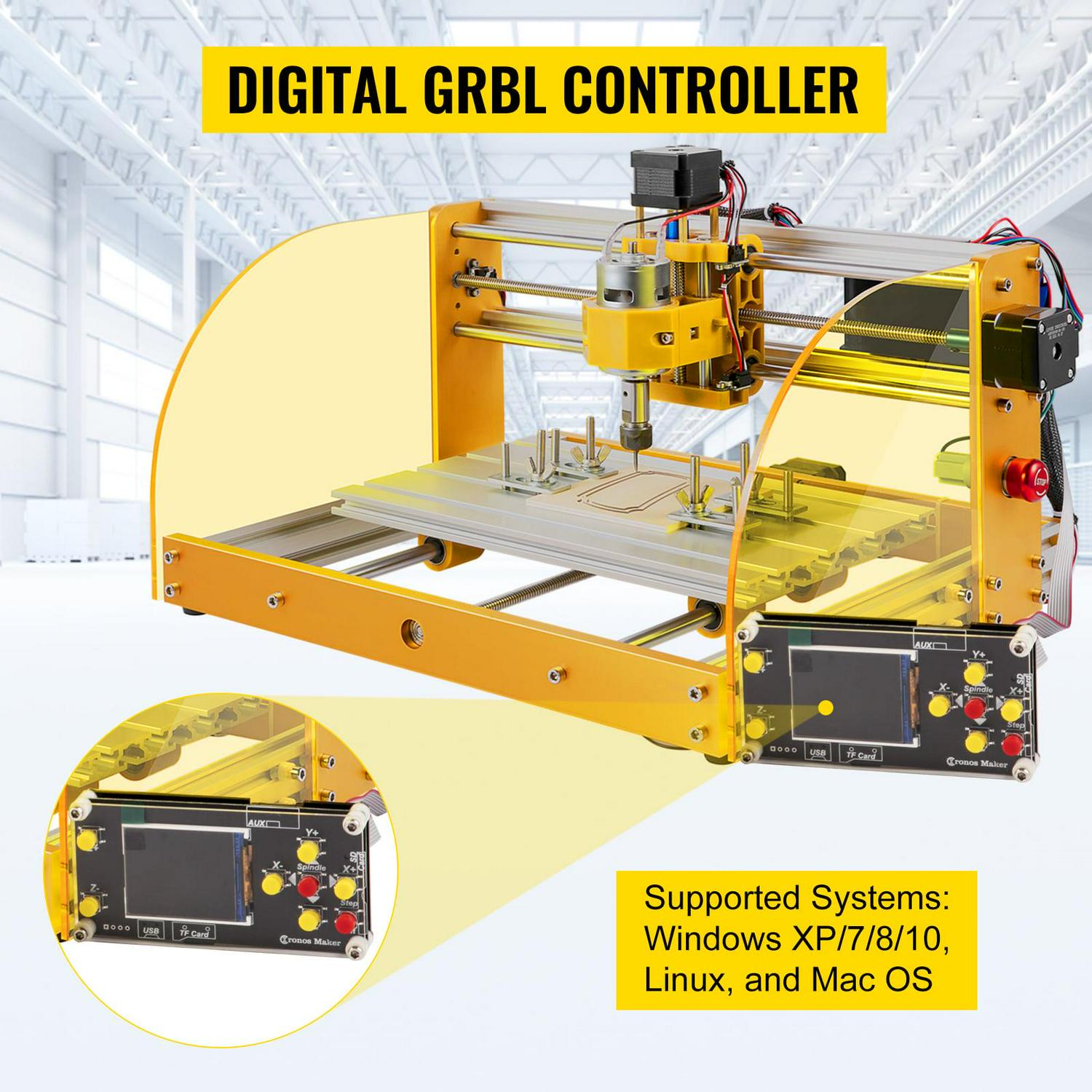

Digital GRBL Controller

This machine has a powerful offline controller with a 1.8″ display, so you can view readouts clearly. You can also connect it to a computer whose supported system includes Win XP, Win7 32/64 bits, Win8, Win10, Linux, and Mac OS.

Effortless Operation

The 5mm acrylic baffles can collect dust and block cutaway materials so that you can safely monitor the milling process at close range. We also design an emergency stop control for an immediate shutdown of your machine.

High Engraving Precision

There are three 42 stepper motors on three axes for smooth movement. The 775 (12-24V) spindle motor on the Z-axes can reach the speed of 10000 RPM. Besides, the 0.1mm professional drill bits significantly improve the engraving efficiency.

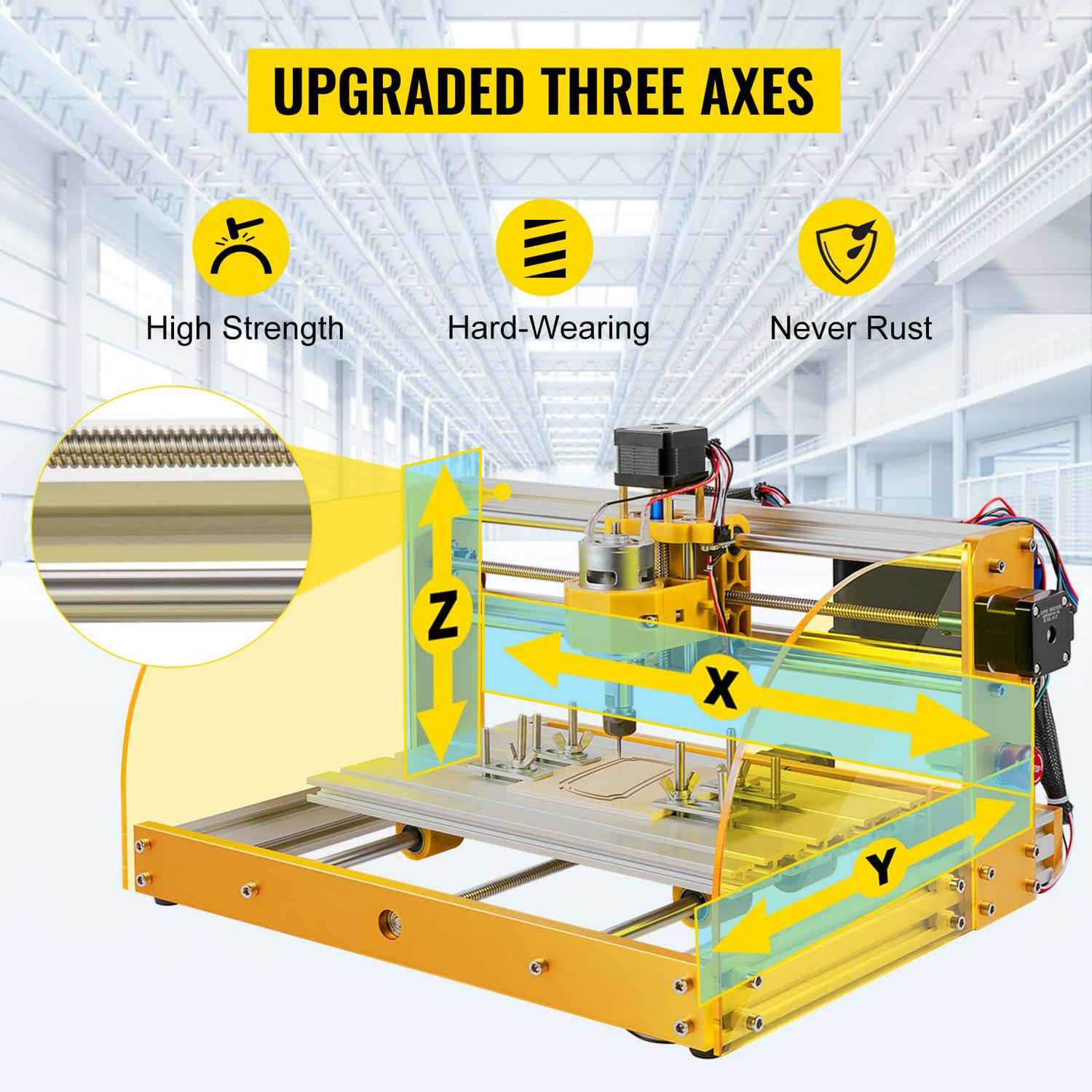

Upgraded Three Axes

Three refined axes of engraving machines are designed to achieve plane engraving. And the working travel of this machine is 300 x 180 x 45mm (X x Y x Z), ensuring a large engraving area. Besides, the driving units use double copper nuts to clear round trip errors.

Specifications

Model: CNC 3018-PRO
Frame Material: Aluminum Alloy
Panel Material: Acrylic
Input Power: DC 24V 5A
Working Area (X x Y x Z): 300 x 180 x 45 mm / 11.8 x 7.1 x 1.8”

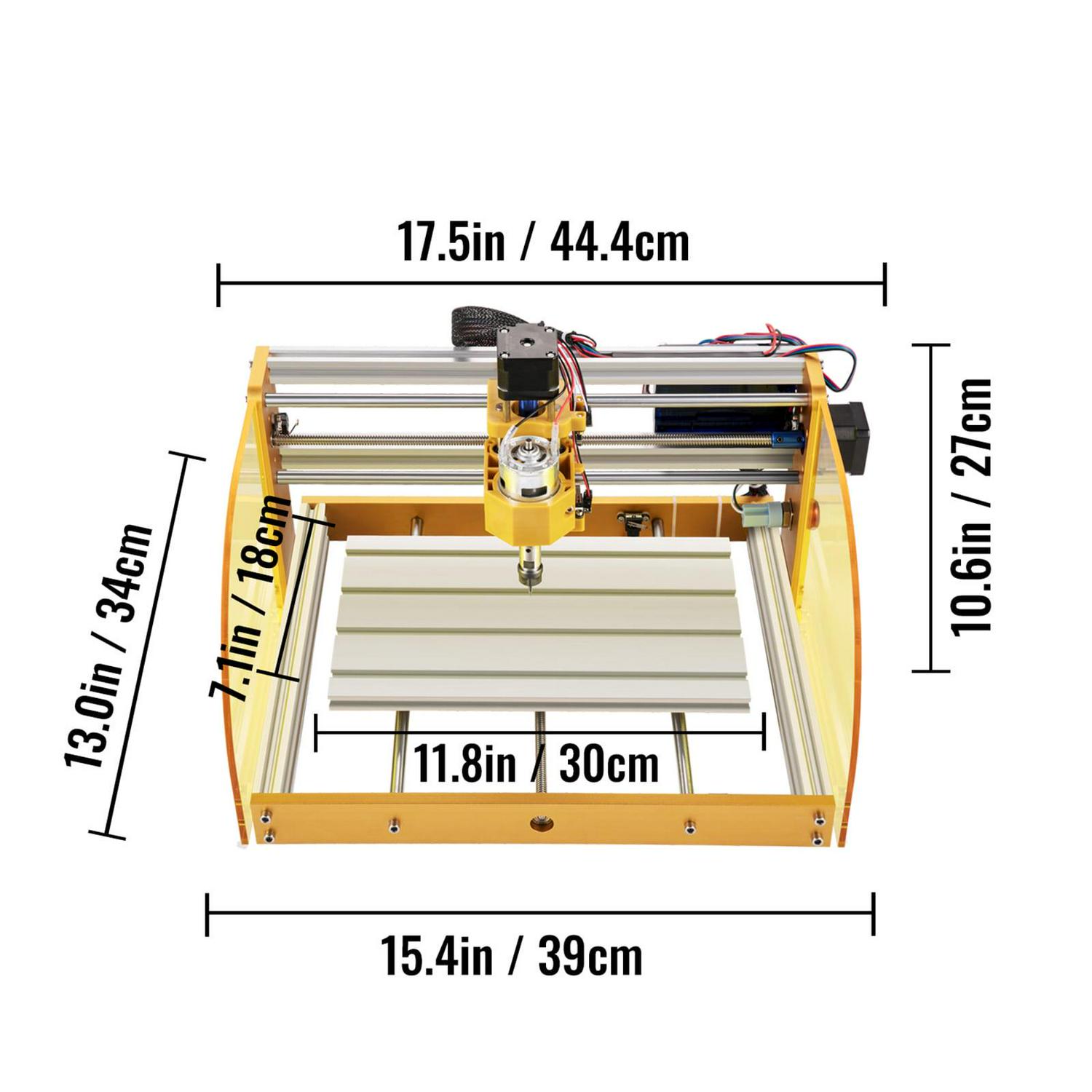

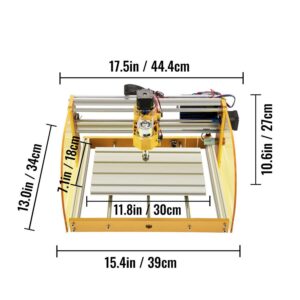

Frame Size (L x W x H): 400 x 330 x 240 mm / 15.7 x 13.0 x 9.4”
Spindle: 775 motor, 12-24V, 10000 RPM
Rated Power: 60W
Maximum Power: 120W
Accuracy: 0.1 mm / 0.004″
Connection: USB
Applies to: Win XP, Win7 32/64 bits, Win8, Win10, Linux, and Mac OS
Control Software: GRBL Control
Net Weight: 11 kg / 24.25 lbs
Stepper Motor: Size 42, 1.3 A, 12V; Torque: 0.25 N.m
End Mill Diameter: 3.175 mm / 0.125″

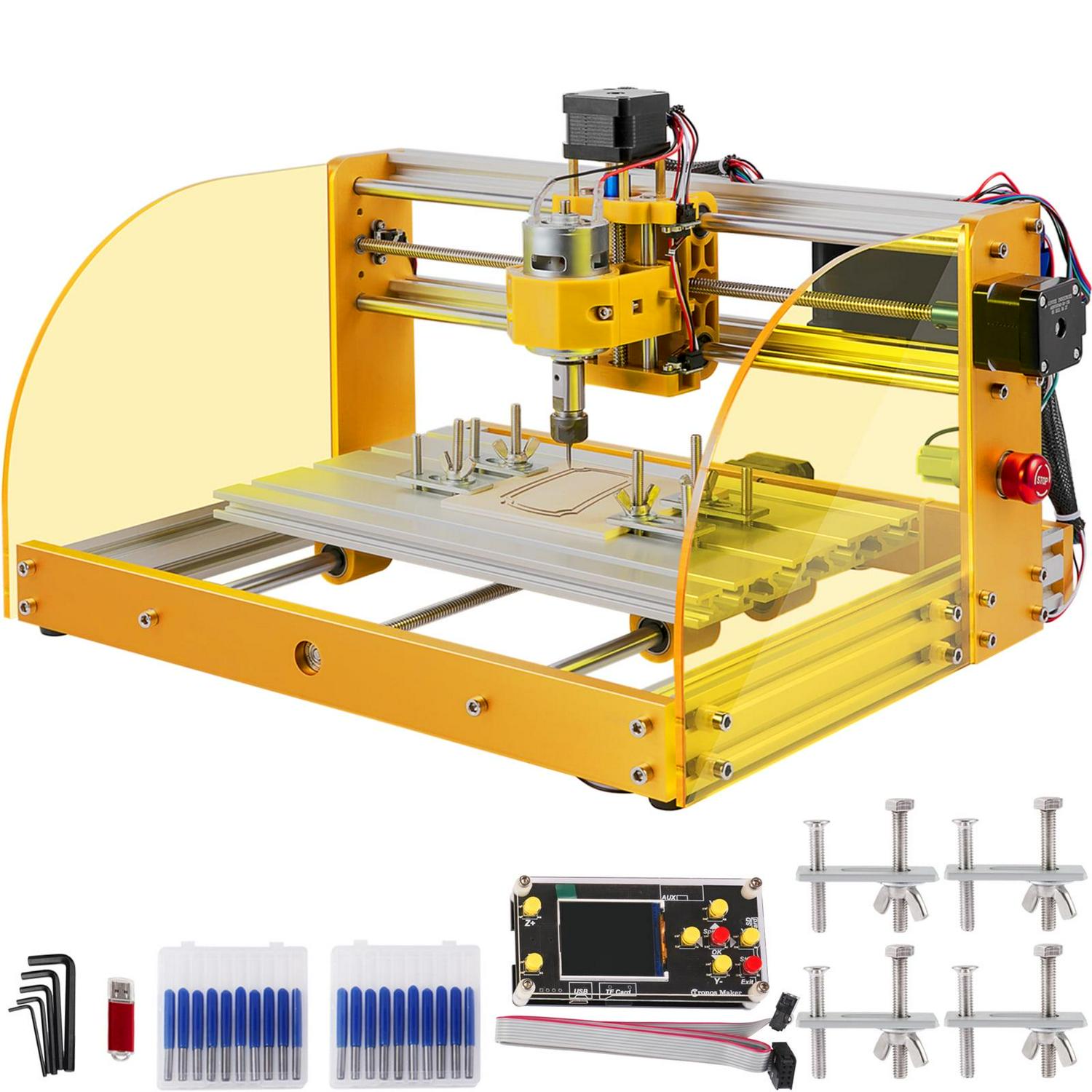

Package Content

1 x 3018-PRO CNC Router Machine
1 x GRBL Control Board
1 x Power Supply
20 x Drill Bits
1 x Set of Tools
1 x Brush
1 x USB Flash Drive
1 x User Manual
– GRBL Offline Controller: This cutting machine has an independent GRBL controller. The operable 1.8″ display can adjust the XYZ axes and manually turn on or off the spindle. You can also connect it to a computer via the USB interface, implementing more steps.

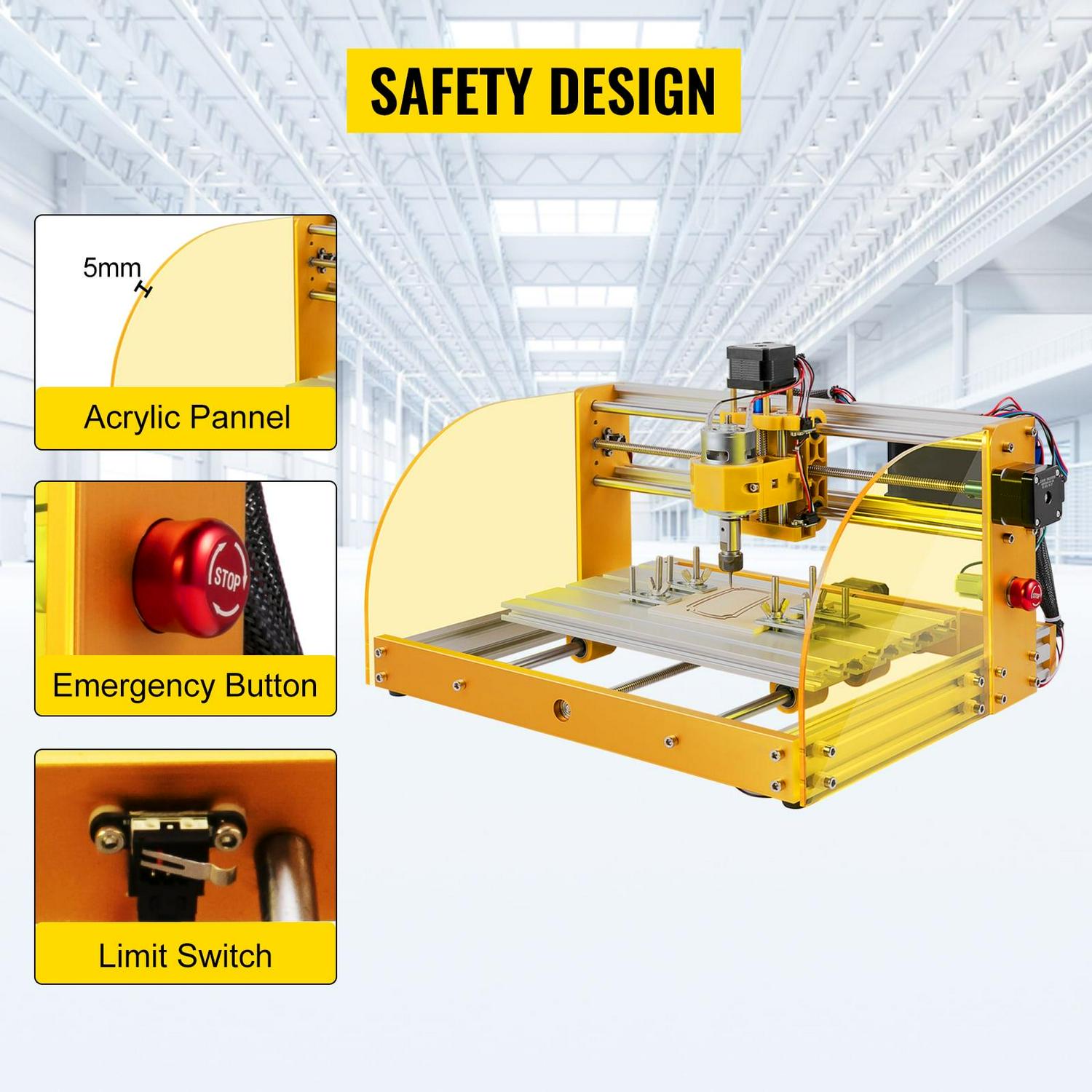

– Double Security Design: This CNC router machine features two 5 mm acrylic baffles on each side, so you can safely monitor the engraving process and make clean-up more effortless to help contain dust and provide a safety barrier.

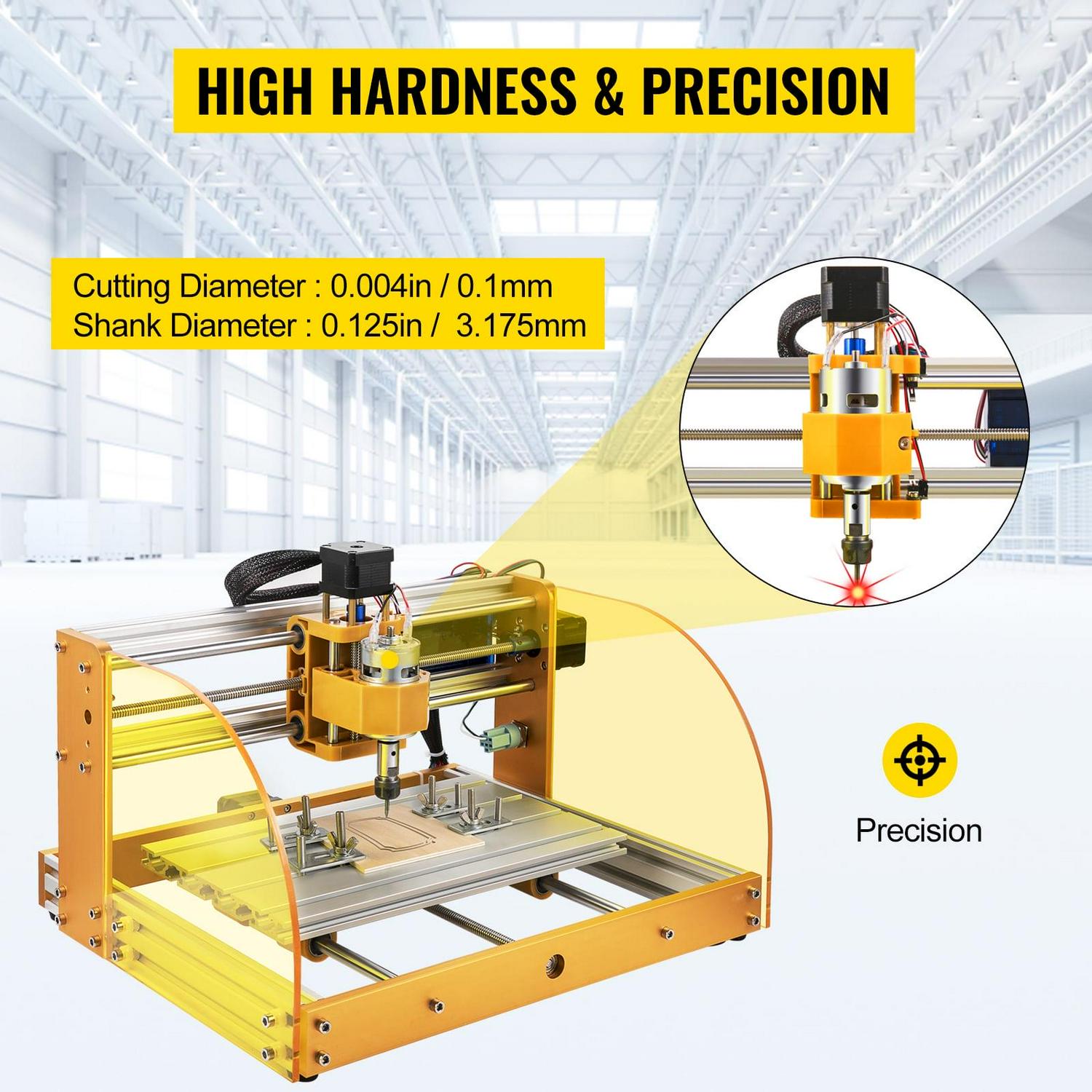

– High Hardness & Precision: This CNC 3018-PRO is constructed with an aluminum alloy frame and three refined XYZ axes, featuring corrosion resistance and increased stability. Powerful spindle and stepper motors jointly forge such excellent cutting and milling performance, meeting your various requirements.

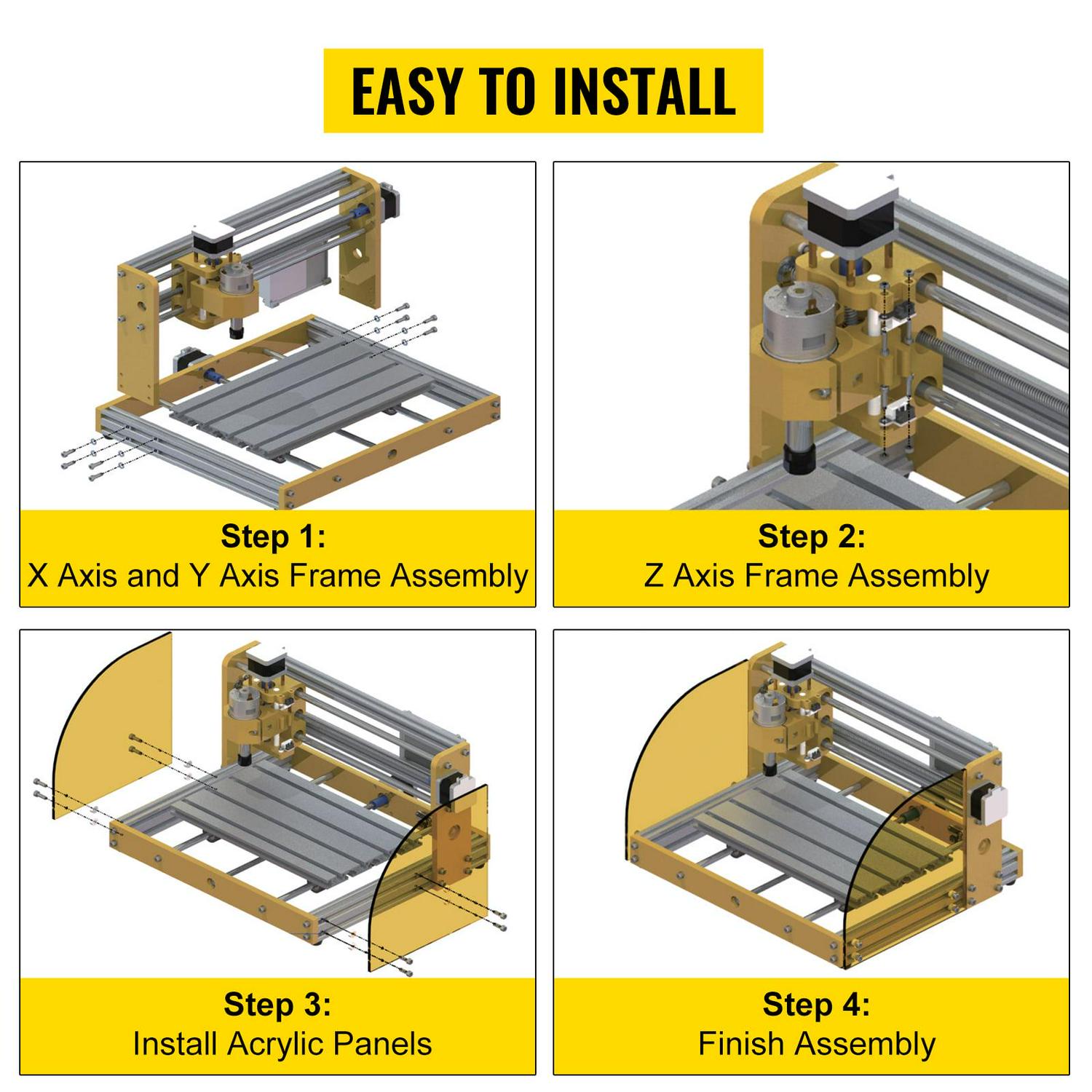

– Efficient Pre-assembly: For your convenience, we have assembled the basic frame in advance to save your time. With the detailed user manual and assembly instructions, you only need to spend 30-60 minutes finishing the assembly.
– Extensive Application: This CNC 3018-PRO machine comes with 20 pcs drill bits, featuring high strength, high precision, and outstanding performance, which is your ideal option to engrave plastics, soft aluminum, acrylics, PVC, PCB, wood, and many more.

Additional information

Package Weight21 lbs
Package Dimensions10.6 × 13 × 15.4 in
Brand

VEVOR

UPC

700721017300

Model

CNC 3018-PRO

Color

Yellow
