VEVOR Dividing Head BS-1 Dividing Head Set 6″ 3-jaw Chuck Semi Universal Milling Set with 6″ Chuck +Tailstock +Dividing Plates for Milling Grinding Drilling Machine

Brand Introduction
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service

Product Description
6″/160MM Dividing Head for Milling Machine
Semi-Universal Dividing Head is a simple Index Center and can be used for direct and indirect dividing. Complete the gear, face, flute processing and no need accessories, the same construction as universal type. With rotary indexer, the 24 quick-dividing holes can complete BS-2A 2,3,4,6,8,12,24 division indexding. Attaches 3 dividing plates along with the dividing head indirect dividing in any division indexding 2-50.51-380.

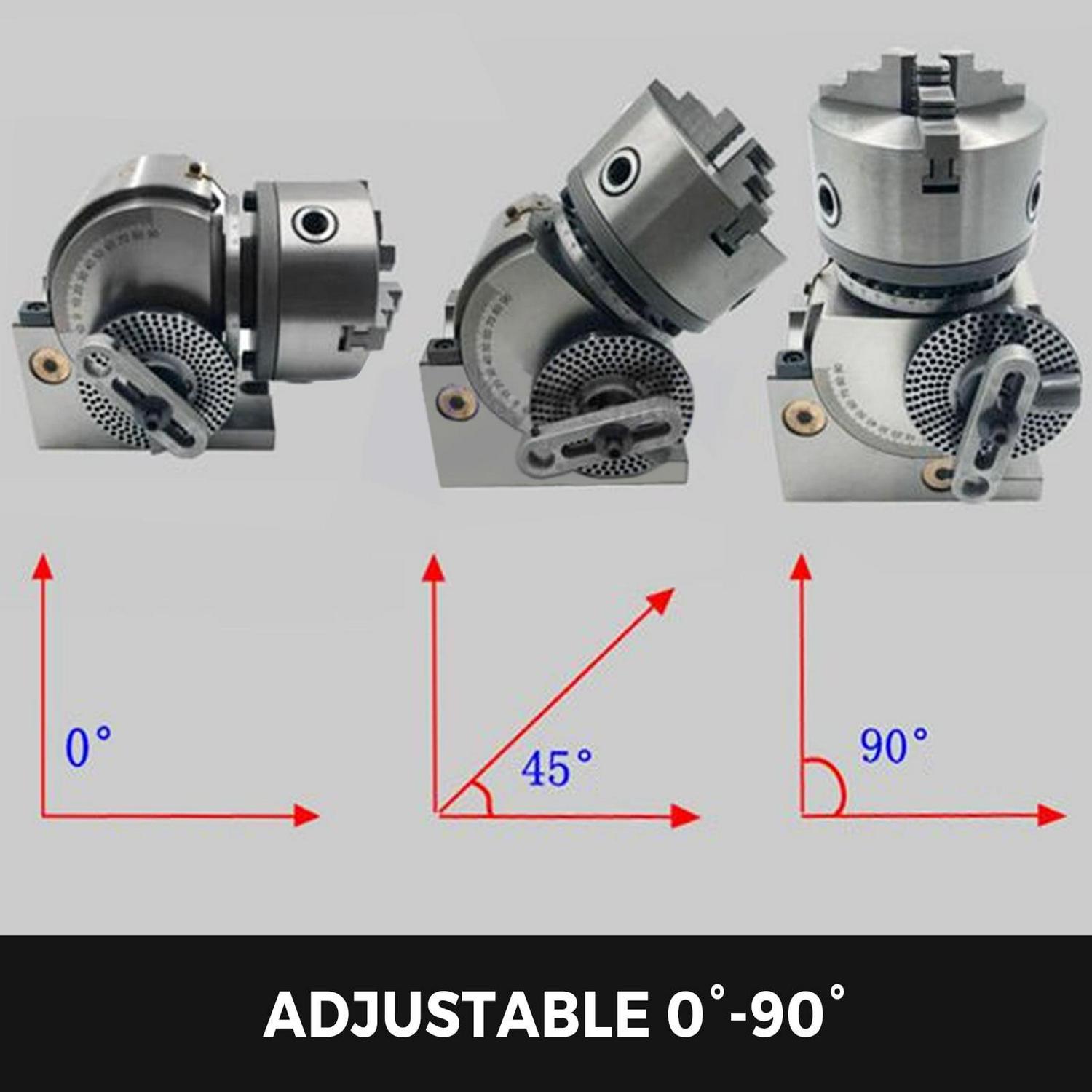

Adjustable 0°-90°
Vertical & horizontal milling machine with Head stock chuck for lathe. Swing: 6-1/2″/168mm, Center Height: 5″/128mm.

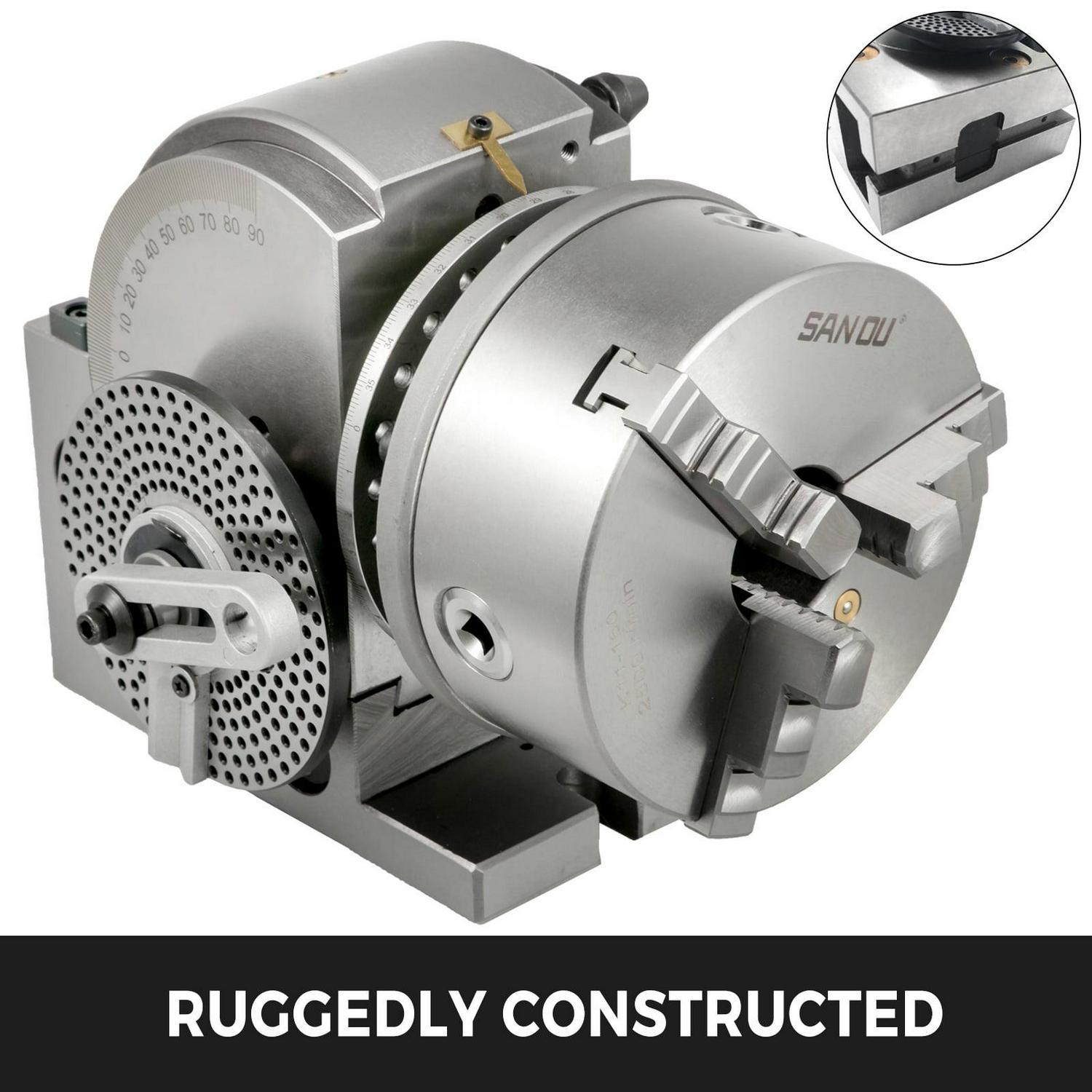

Ruggedly Constructed
Ruggedly constructed hardened and ground worm gear. Reduction Ratio: 1:40.

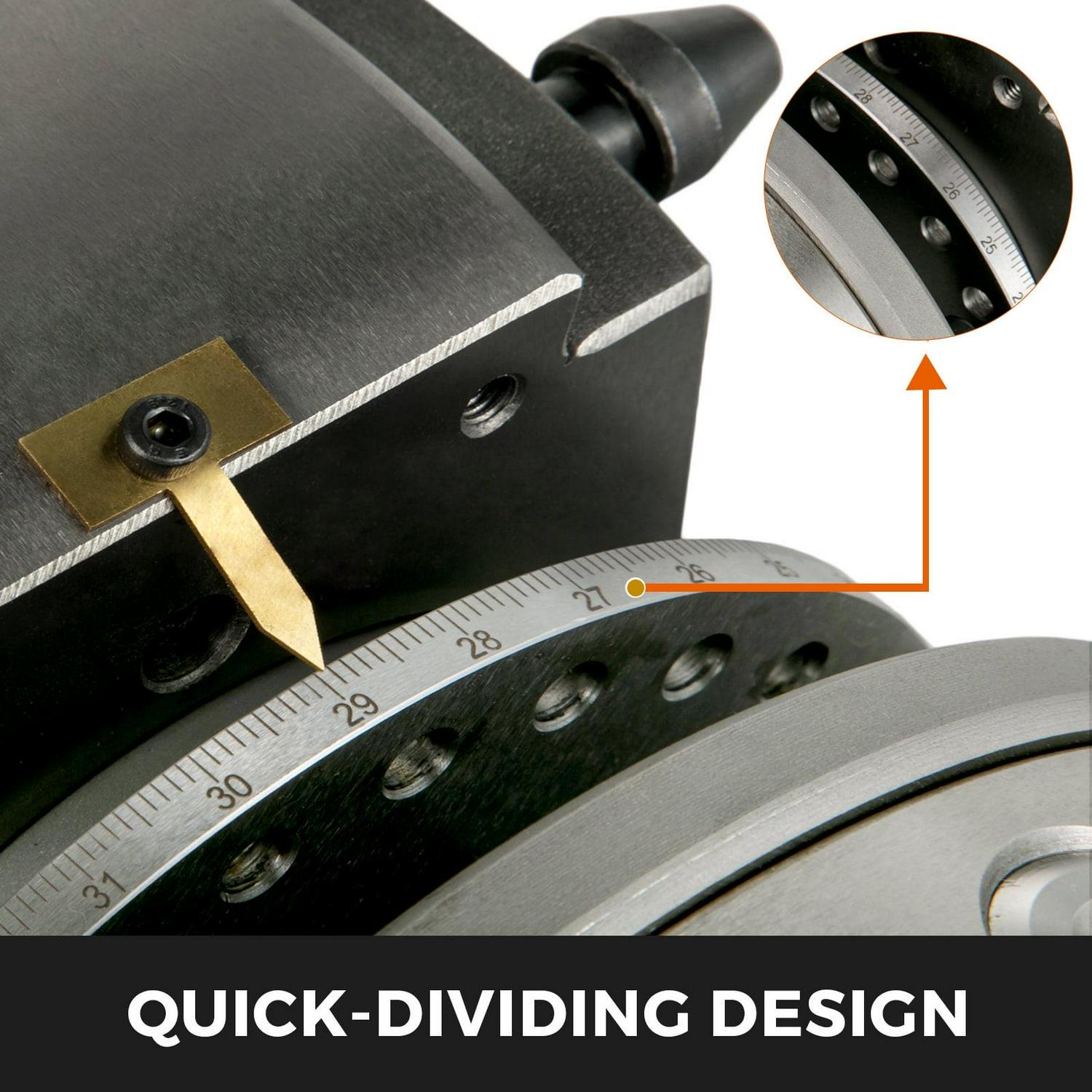

Quick-dividing Design
Designed with rotary table and indexing chuck, 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing.

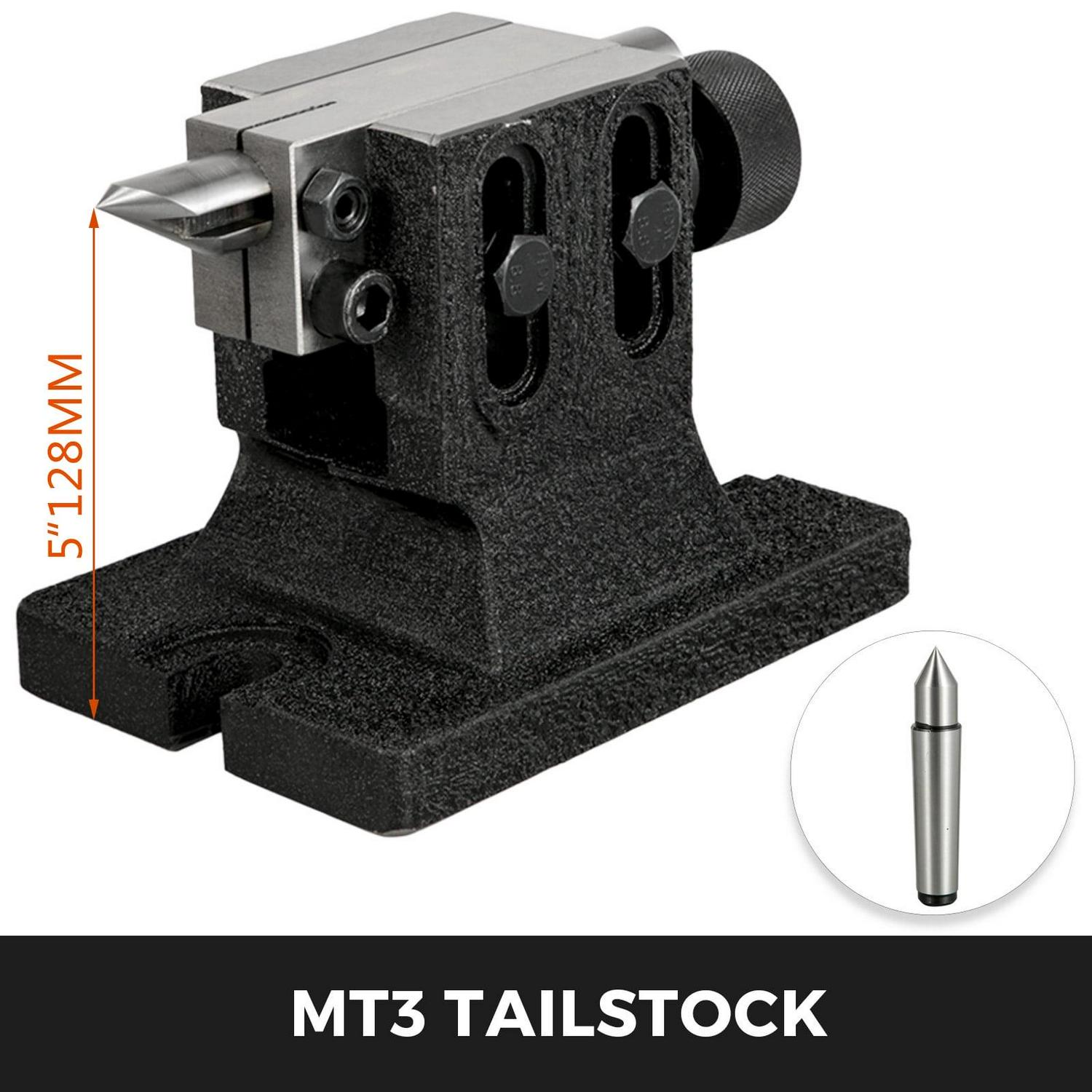

MT3 Tailstock Adjustable
Ball bearing precision, smooth turning. One more dead center for free.

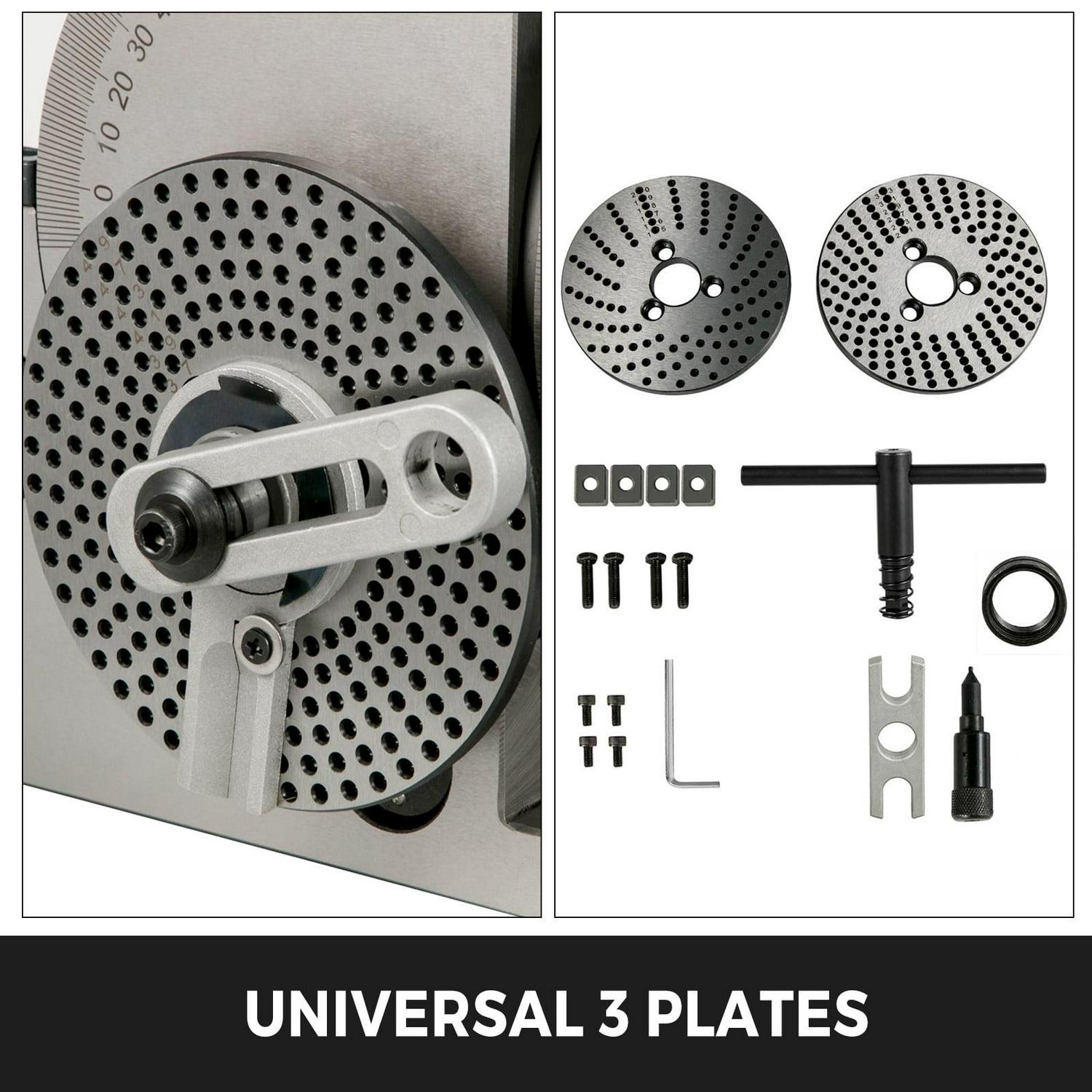

Universal 3 Plates
3 dividing plates for different sizes with easy indexing of divisions from 2 to 50 and most numbers up to 380.

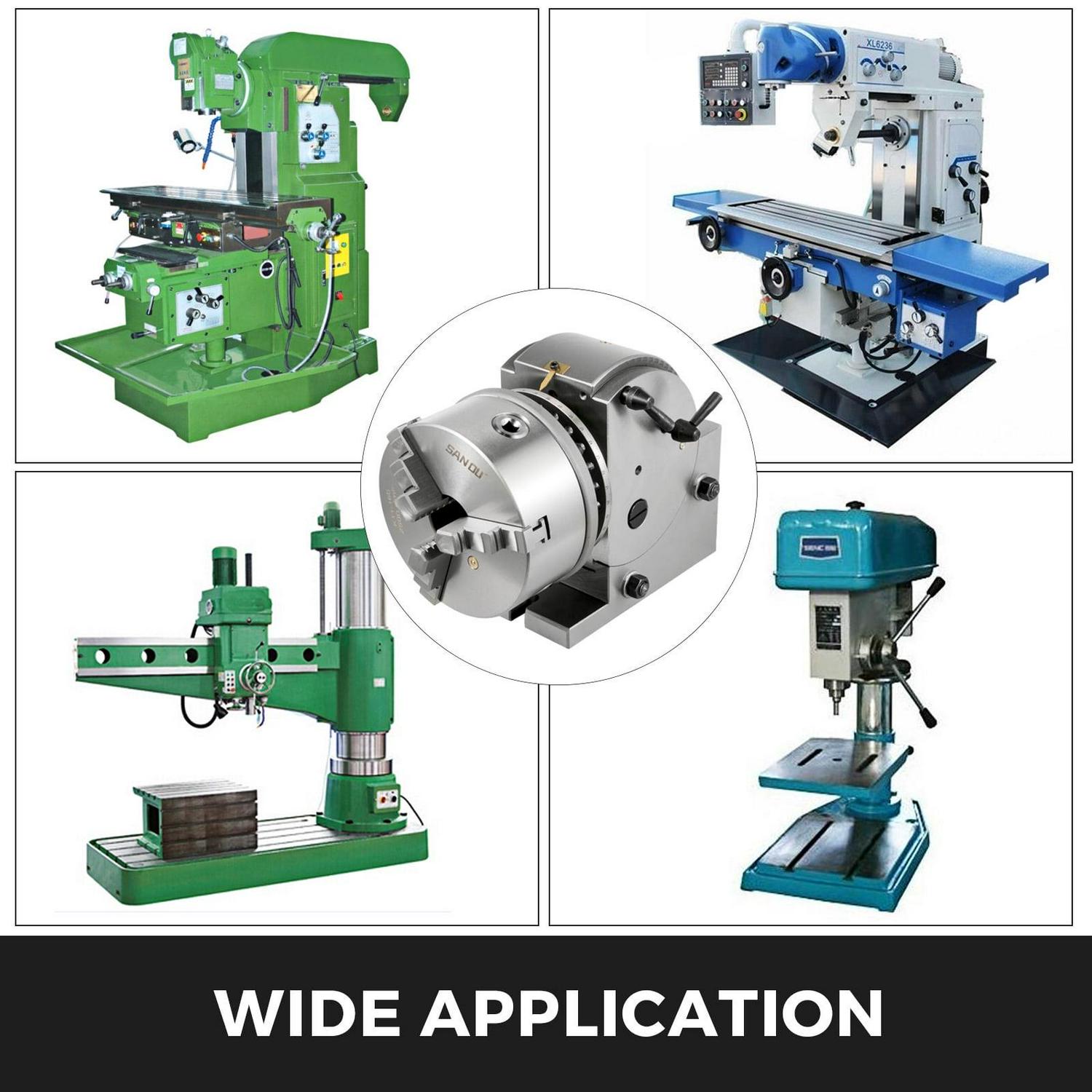

Wide Application
Ideal choice for various uses in milling, grinding and drilling work.

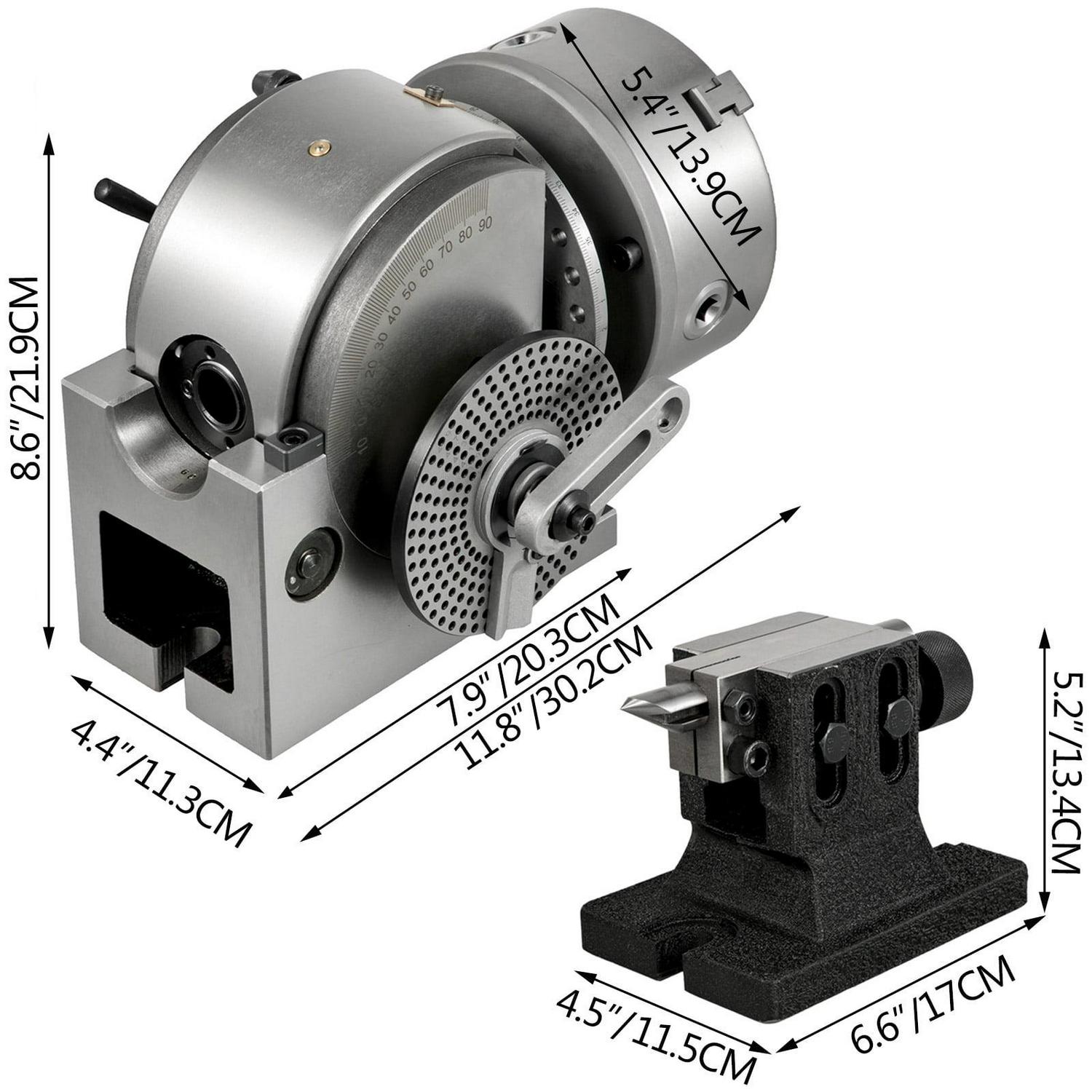

Specifications
Chuck Diameter: 6″/160mm
Spindle Speed: 2500Rpm
Swing: 6-1/2″/168mm
Center Height: 5″/128mm
Reduction Ratio: 1:40
Tailstock: MT3

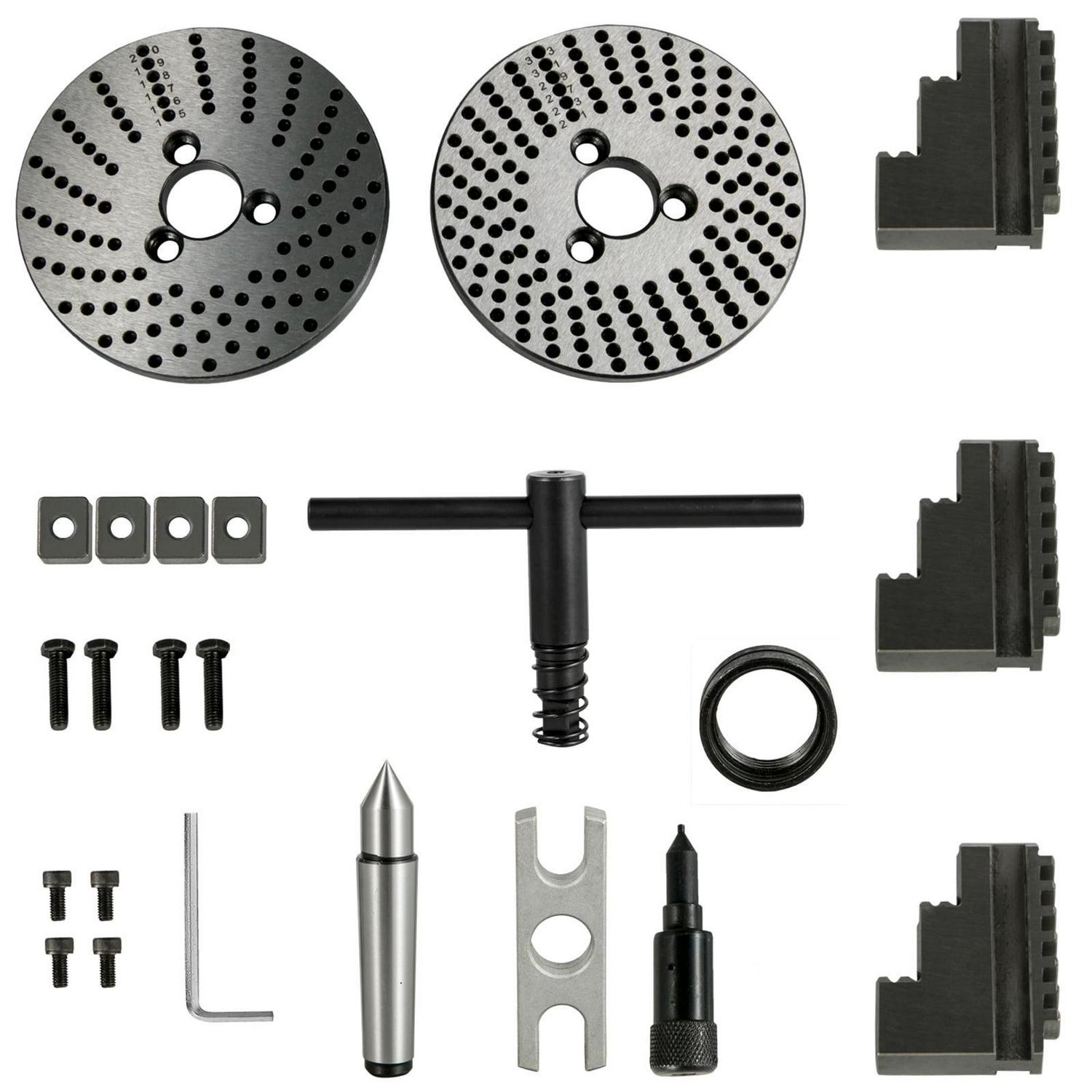

Package Content
1 x 6″ Dividing Head
2 x Dividing Plate
3 x 6″ Chuck Jaw
1 x Dead Center
1 x Tailstock
Some Related Accessories

– Adjustable Angle – The semi universal dividing head features 6″ 3-jaw chuck, Spindle Speed: 2500Rpm. Headstock adjustable from the horizontal position to 90 degree upward. Swing: 6-1/2″/168mm, Center Height: 5″/128mm. Free 3 more jaws for 6″ chuck.
– Solid Construction – Made from HT200 to be long life. Rigid frame provides high accuracy with little backlash for a smooth rotation. Reduction Ratio: 1:40.
– Clear Accurate – Dividing head milling machine with laser engraving scales. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. One circle for 360 degrees, one scale stands for 1 degree.
– MT3 Tailstock Adjustable – Huge live center for heavy duty workpieces. Ball bearing precision; turns smoothly. Tailstock: MT3. One free dead center.
– Rich Dividing Head Set – 3 dividing head index plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and certain other numbers.
