VEVOR Dust Collector, 1.5 HP Portable Vortex Dust Collector, 647 CFM Woodworking Dust Collector with 13.2-Gallon Collection Bag and Mobile Base, 220V Dust Collection System 25-Micron Canister Kit

Brand Introduction
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees,VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service

Product Description

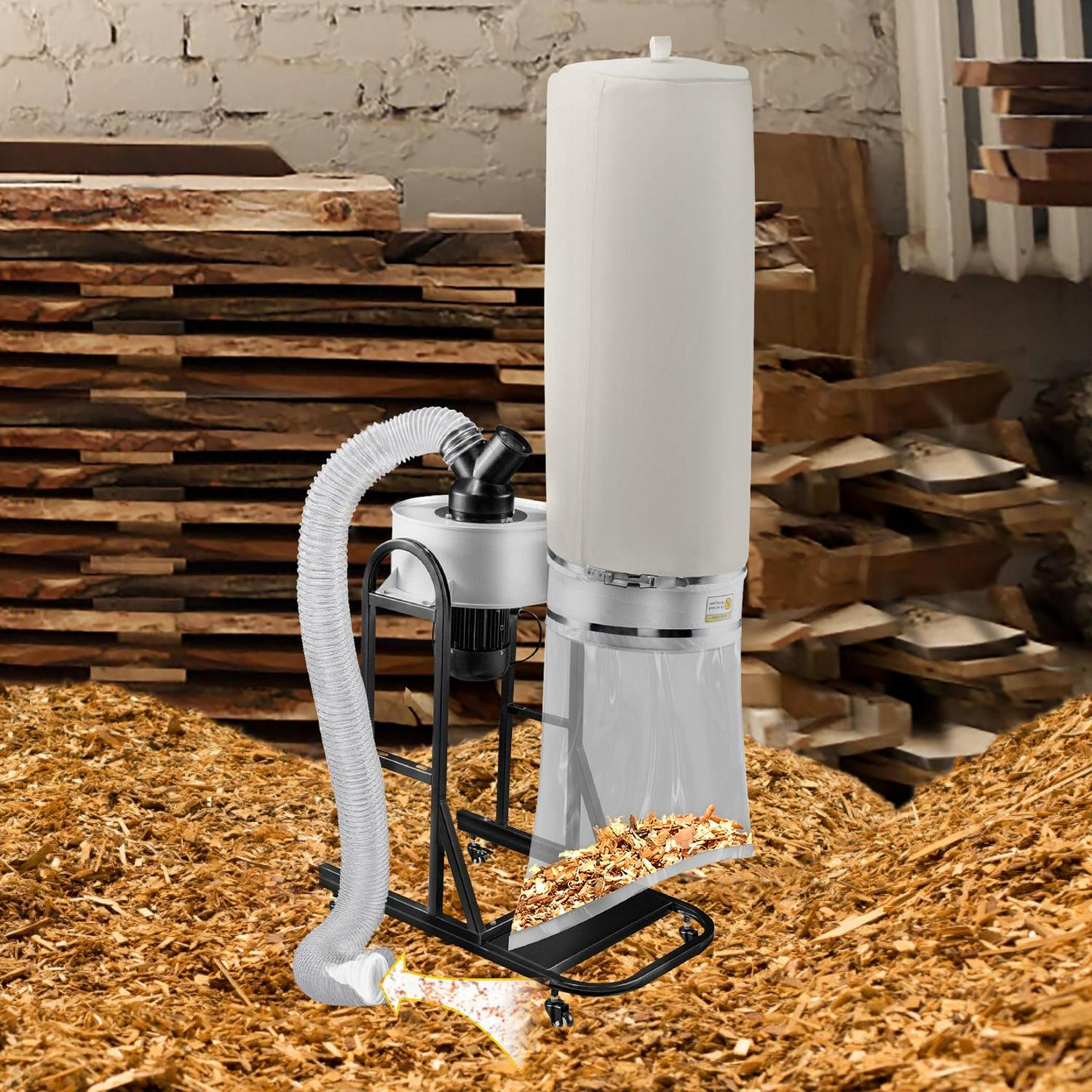

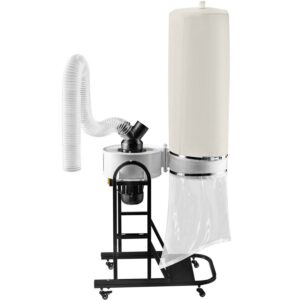

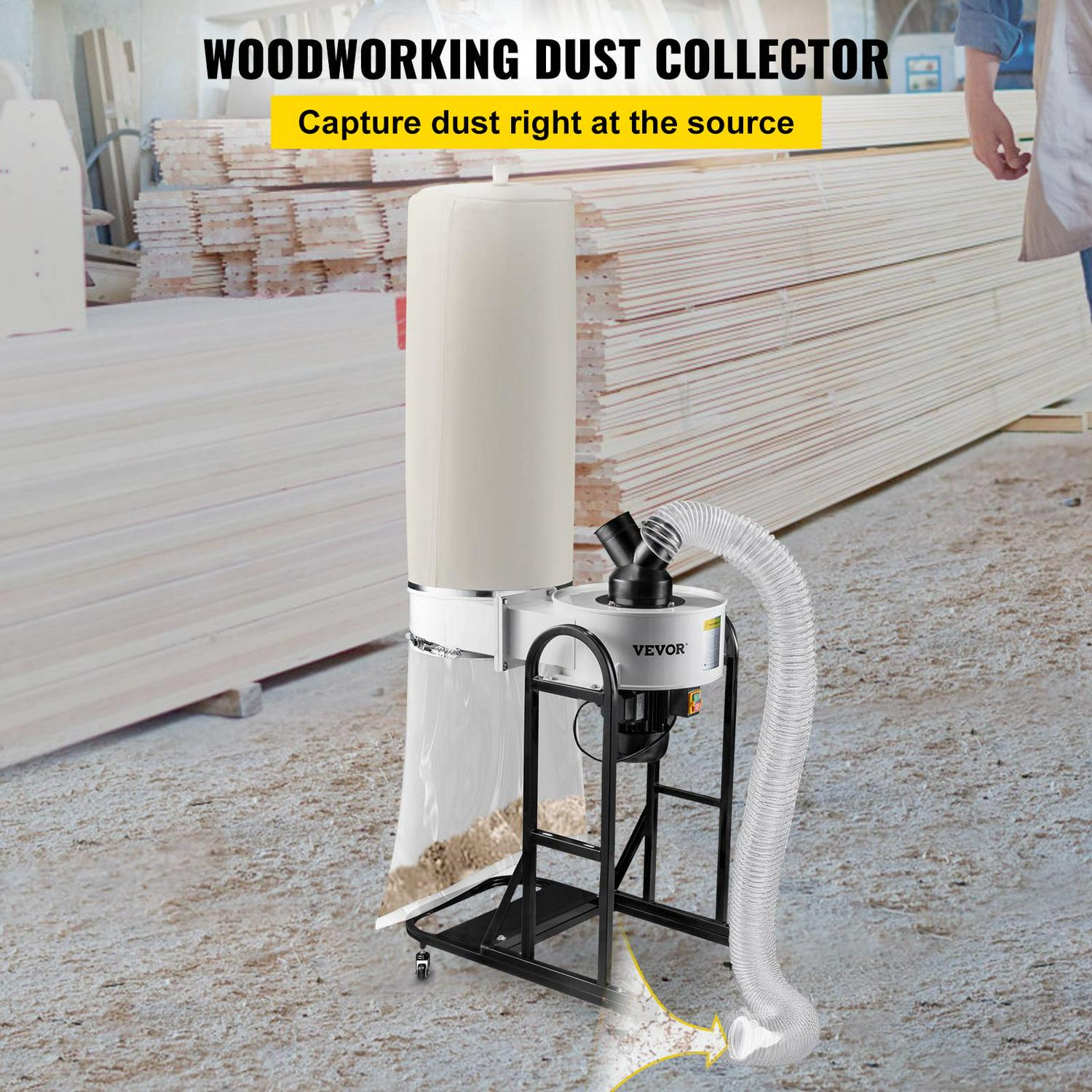

Woodworking Dust Collector

This dust collector will meet your dust management needs with a continuous-duty rating, safety features, and user-friendly design. Features include a fan-cooled and permanently lubricated motor, quick-release bag clamps for fast emptying, and casters for easy portability. It helps a great deal to take care of the cleaning bit.

1.5 HP Induction Motor

Our TEFC induction motor adopts copper core coils to ensure efficient and stable running without being damaged by dust particles. The 1.5-HP motor blower provides up to 647 CFM.

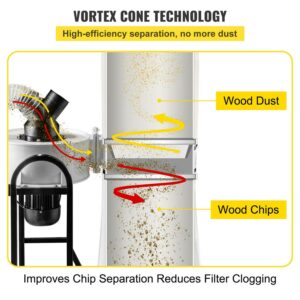

Vortex Cone Technology

With the vortex cone, filters stay cleaner performance, not easy to get clogged. In addition, the two-bag system allows dust to fall and deposit in the lower collection bag.

Direct-Mount Fine Filter

Direct-mount filter eliminates airflow restriction, increasing system efficiency. The upper bag filters wood dust down to 2.5 microns from the collected air.

On/Off & Removable Bag

13.2 gallon/1.77 cubic feet collection bags made from transparent and recyclable plastic. The sewn-in and snap-in filter bag rings are faster and easier for emptying and re-attaching. Enjoy the lock-out switch to eliminate unauthorized use.

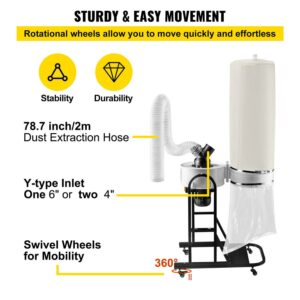

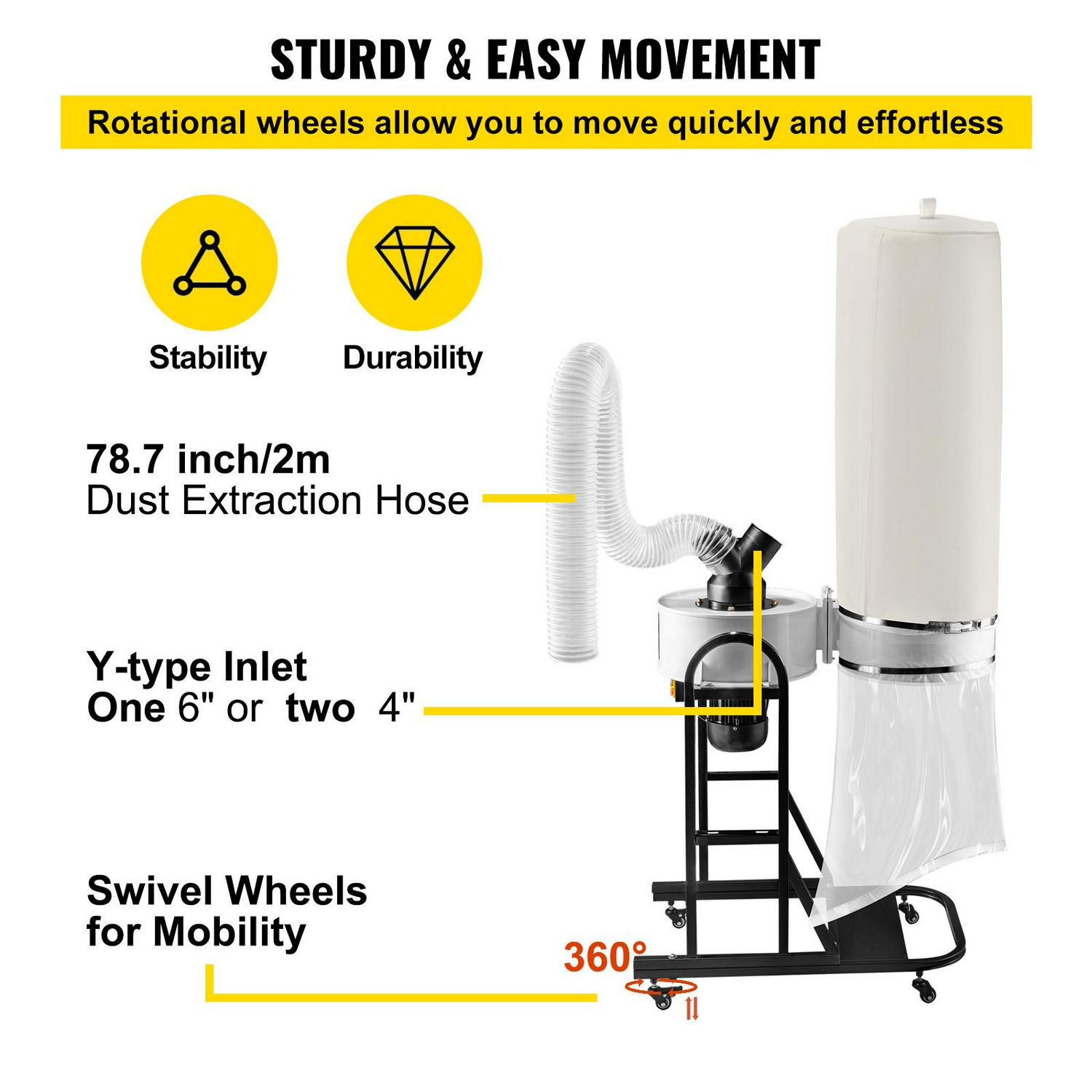

Flexibility & Portability

The dust collector features a 6-inch inlet or a removable Y-fitting with two 4-inch ports, equipped with a 78.7 inch/2 m flex hose. Including four casters for easy maneuverability, it can be operated as either a stationary dust collector or a mobile unit.

Multiple Scenes

The cyclone dust collector keeps the air and the workspace clean. Widely used in coal, cement, grain, thermal power, metallurgy, sweeper, steel industry, or processing center manufacturing dust removal facilities.

Specifications

Model: VV-DC-220V
Material: Steel with Powder Coating
Motor: 1.5 HP, 220V, Single-phase, 2950 RPM, 7.1 A
Air Suction Capacity: 647 CFM/ 1100 m³/h
Impeller: Cast Aluminum Alloy
Standard Bag Filtration: 25 Microns
Collector Bag Volume: 1.77 Cubic Feet/ 50 L
Wind Pressure: 1800 Pa
Static Pressure: 2600 Pa
Sound Rating: 73 dB
1-Hose Connection Diameter: 6″/150 mm
2-Hoses Connection Diameter: 4″/95 mm
Horse Length: 78.7″/2 m

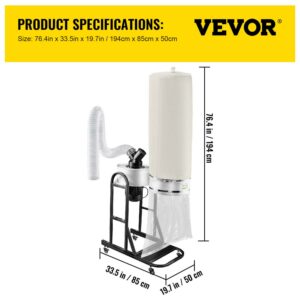

Product Dimensions: 33.5″ x 19.7″ x 76.4″/85 x 50 x 194 cm
Product Weight: 66 lbs/30 kg

Package Content

1 x Dust Collector
3 x Collection Bags
1 x Hose
1 x Instruction
– Excellent Suction Function: The 1.5 HP, 7.1 Amp low noise motor creates a powerful 647 CFM airflow to exhaust dust and purify the air. Sound Rating: 73 dB. After using, a clean work environment will come back again.
– Advanced Separation Technology: Vortex cone technology of the cyclone dust collector improves chip separation and packing efficiency. The two-bag system drops the heavy chips into the lower bag, then sends the dirty air through the top bag (filter), giving cleaner air back.

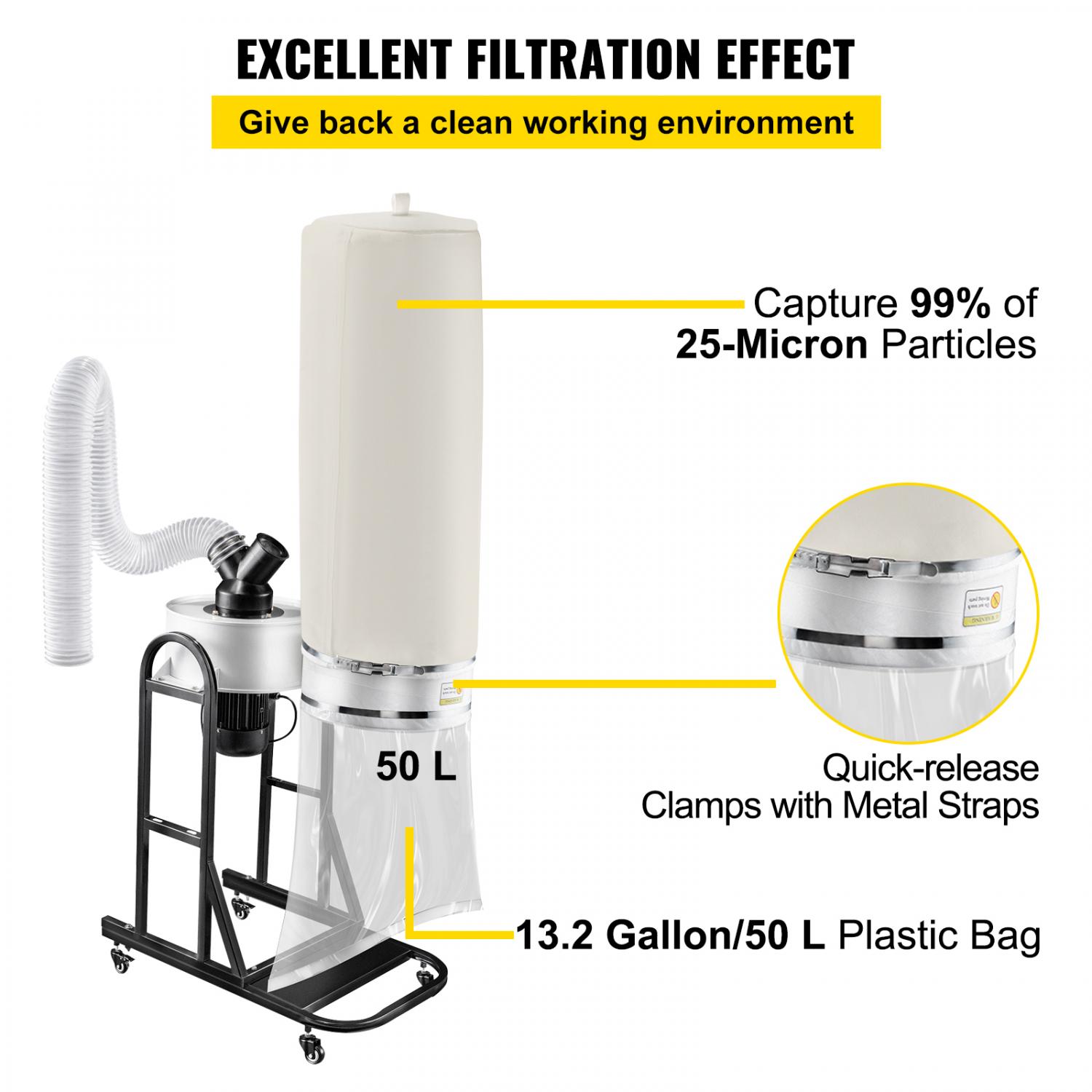

– Large Capacity Bags: The 13.2 Gallon/50 L Collection Drum has quick-release levers and independent casters for easy emptying. The canister filter captures 99% of 25-micron particles, significantly increasing filtration effectiveness. The directly-mounted feature is time-saving and labor-saving.
– Flexible and Portable: The dust collection system features a 6-inch inlet with a removable Y-fitting with two 4-inch openings, which can be used to branch lines to service more than one machine. A 78.7 inch/2 m flexible hose ensures your long-distance work. There are four wheels. Among them, two are lockable, ensuring flexible and easy movement.
– Wide Application: The cyclone dust collector is widely used in industries, such as machinery, textile, household appliances, food, coal, building materials, sweeper, dust removal equipment manufacturing, etc.
