VEVOR Electric AC Motor, 1725rpm 3/4HP Single Phase 56C Frame Air Compressor Motor Reversible 5/8″ Shaft Diameter Electric Motor for Air Compressor General Equipment, 115/230VAC

Brand Introduction
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service

Product Description
0.75 Hp Electric Motor 56C Frame Single Phase
The listing is about electric motor 143456C, an electrical machine that converts electrical energy into mechanical energy. It is a 0.75 hp SHDC electric motor that is commonly used to match water pumps, agricultural machinery, and general equipment. A 115/230 volt electric motor that turns at 1800 RPM. A single-phase motor that has a rigid base and 5/8″ keyed shaft.

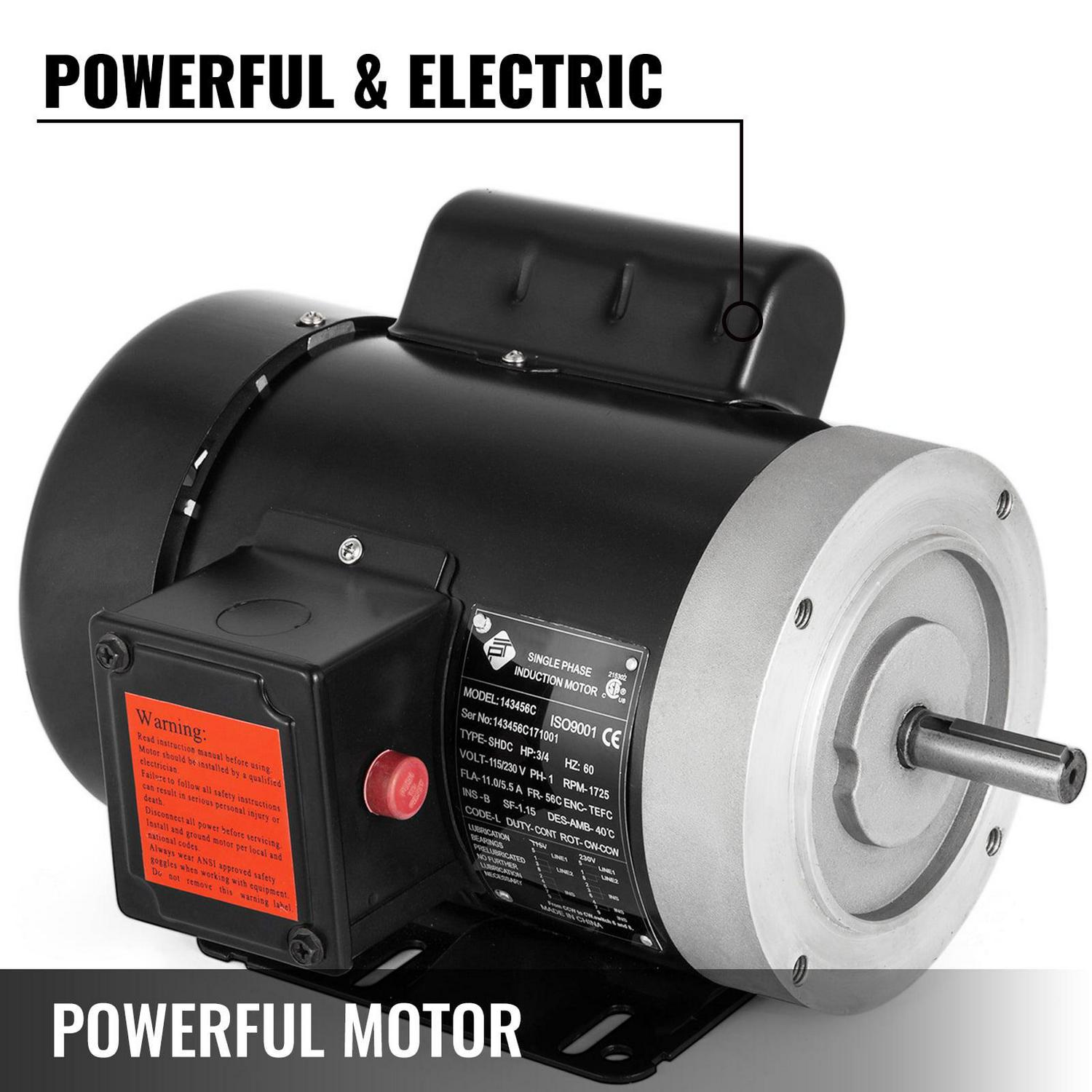

Powerful Motor
The high-power motor has a single-phase motor and 115/230V voltage, which can save energy in a long time, reduce energy costs or overhead. Move effortlessly.

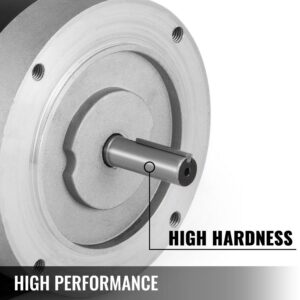

High Performance
The electric motor 56C runs at 0.75 HP, and the maximum speed is 1725 RPM, Synchronous speed: 1800 RPM, high hardness shaft is more durable.

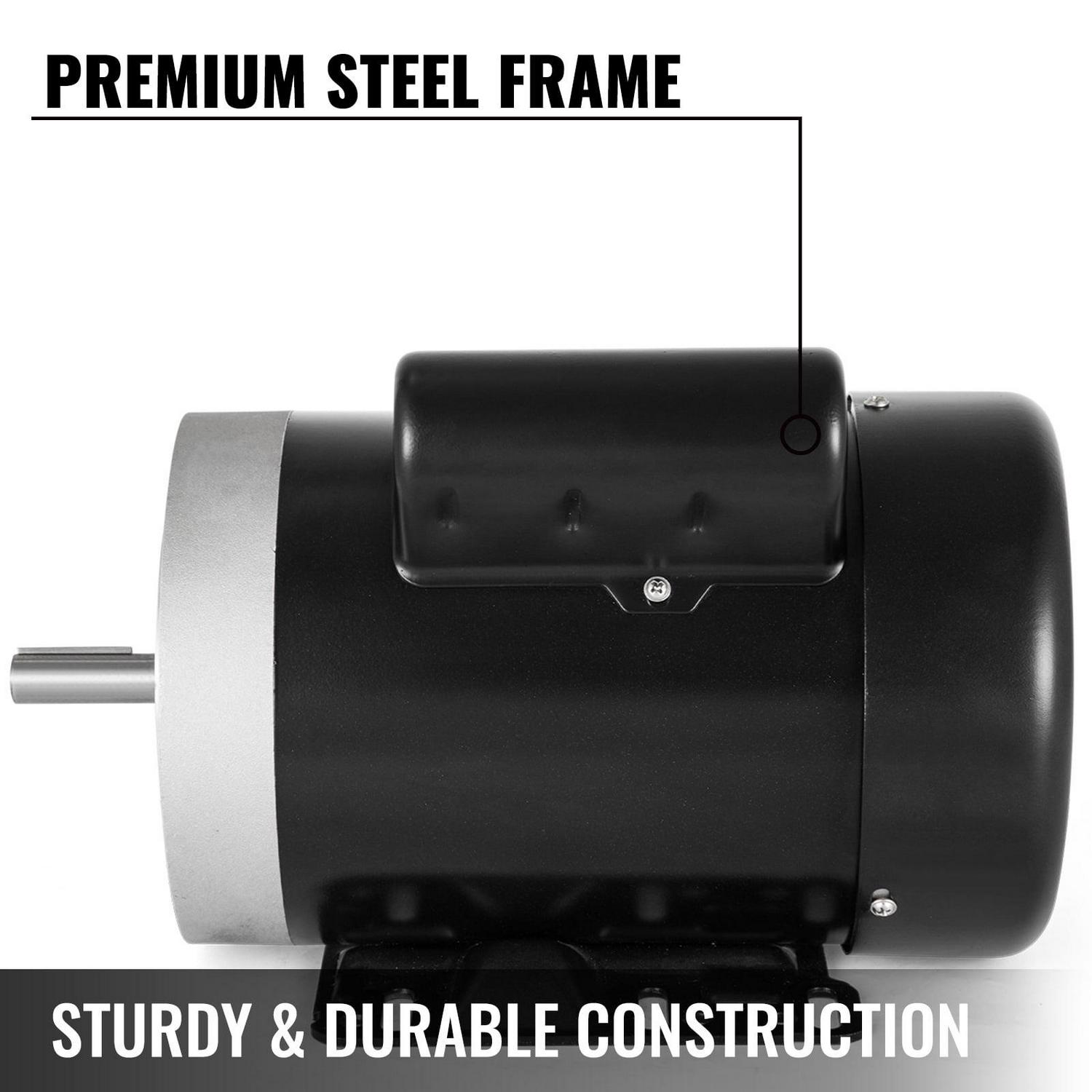

Sturdy & Durable Construction
The motor housing is made of durable metal material, robust and reliable, with strength and durability, corrosion resistance, and smooth surface provides comfortable use.

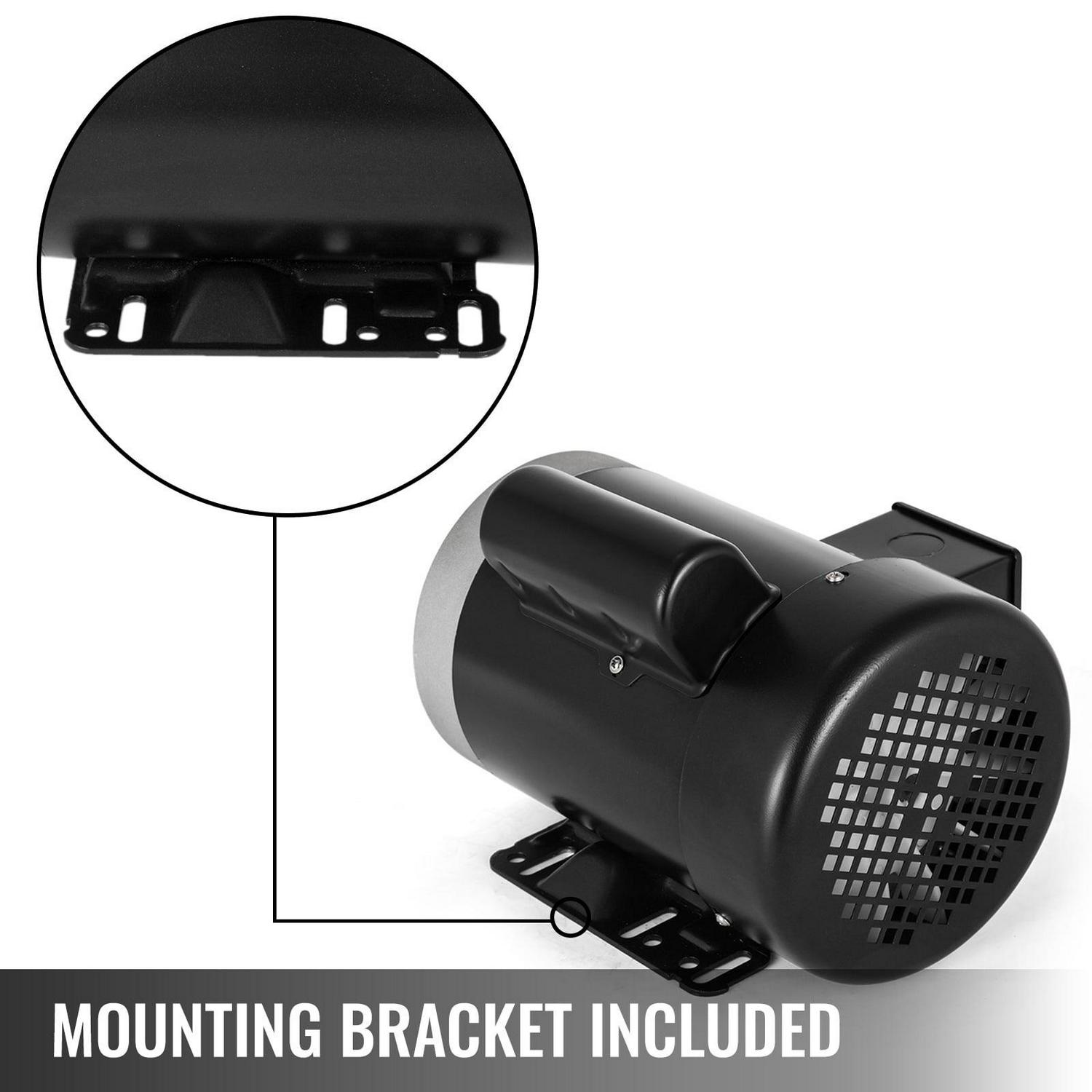

Mounting Bracket Included
A sturdy mounting bracket is included in the package to improve the motor’s stability and reduce friction, ball-bearing systems are also suitable for many applications.

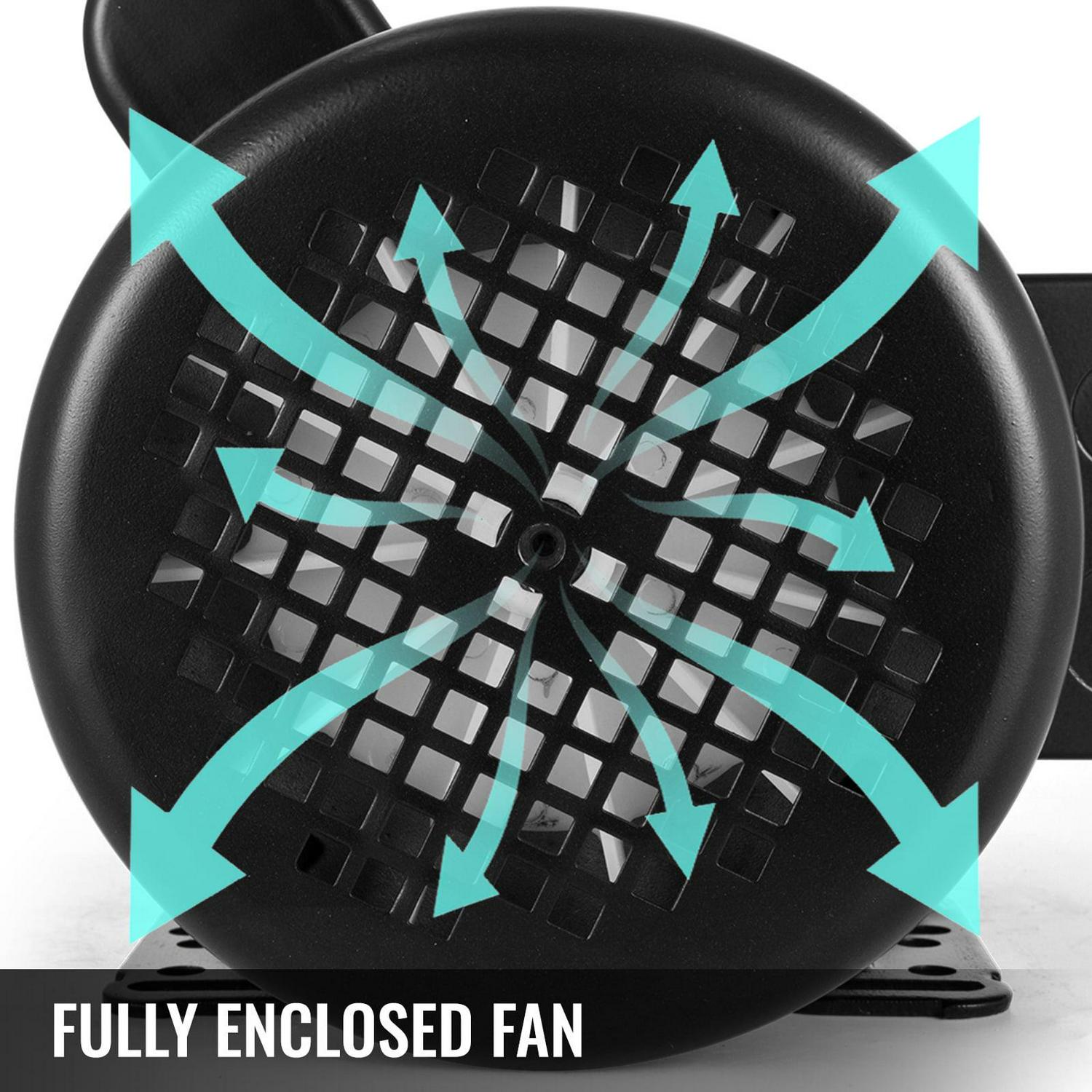

Fully Enclosed Fan
Even in dusty or damp environments, the big fan at one end cools the motor in hours’ running to reduce the energy costs and the running temperature.
Wide Application
The electric motor is suitable for air compressors, medical equipment refiners, metal cutting machine tools, pumps, fans, transport machinery mixers, food machinery, etc.

Specifications
Type: SHDC
Phase: Single phase
Horsepower: 0.75 HP
Voltage: 115/230V
Full load amps: 11.0/5.5A
Frequency: 60 Hz
Rated speed: 1725 RPM
Synchronous speed: 1800 RPM
Frame: 56C Frame
Shaft diameter: 5/8″ Keyed shaft (1.6 cm)
Shaft length: 1.875″/4.8 cm
Rotation: CW-CCW
IP Rating: IP 55
Service factor: 1.15
ENC: TEFC
Insulation Class: B
Pole: 4
Mounting Type: Rigid/Flange installation
Reversible/Non-Reversible: Reversible
AC Motor Type: Induction Motor
Motor Size(L x W x H): 12 x 8 x 8”/30.48 x 20.32 x 20.32 cm
Package Content
1 x Electric Motor 143456C

– 0.75 HP ELECTRIC MOTOR – The compact and small-sized AC motor features output 0.755 HP, 56C frame, and single phase. Gasketed capacitor housing and conduit boxes protect all environments.
– WORKING EFFICIENCY – The electric motor 56C can run at the maximum speed of 1725 RPM, high working efficiency, Voltage: 115/230V 60 HZ, shaft diameter: 5/8″ (1.6 cm), shaft length: 1.88″ (4.8 cm), upper hardness shaft is more durable.
– STEEL HOUSING – The compressor duty motor is made of high-quality steel material. The firm and solid material can protect the engine well, and the smooth appearance is easy to clean; it includes the mounting bracket, and the bracket structure is stable and easy to use.
– HIGH SPEED COOLING FAN – Big fan at one end cools the motor in hours’ running, even in dusty or damp environments, reducing energy costs or overheads, reducing the running temperature, increasing winding lifetimes.
– MULTIPLE APPLICATION – The electric motors are commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields. For instance, the matching of water pumps, agricultural machinery, etc.
