VEVOR Electric Brushless DC Motor 72V 3000W Brushless Electric Motor 4900RPM Brushless Motor Kit with Controller and Throttle Grip for Electric Scooter E Bike Engine Motorcycle DIY Part

Brand Introduction
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees,VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Product Description

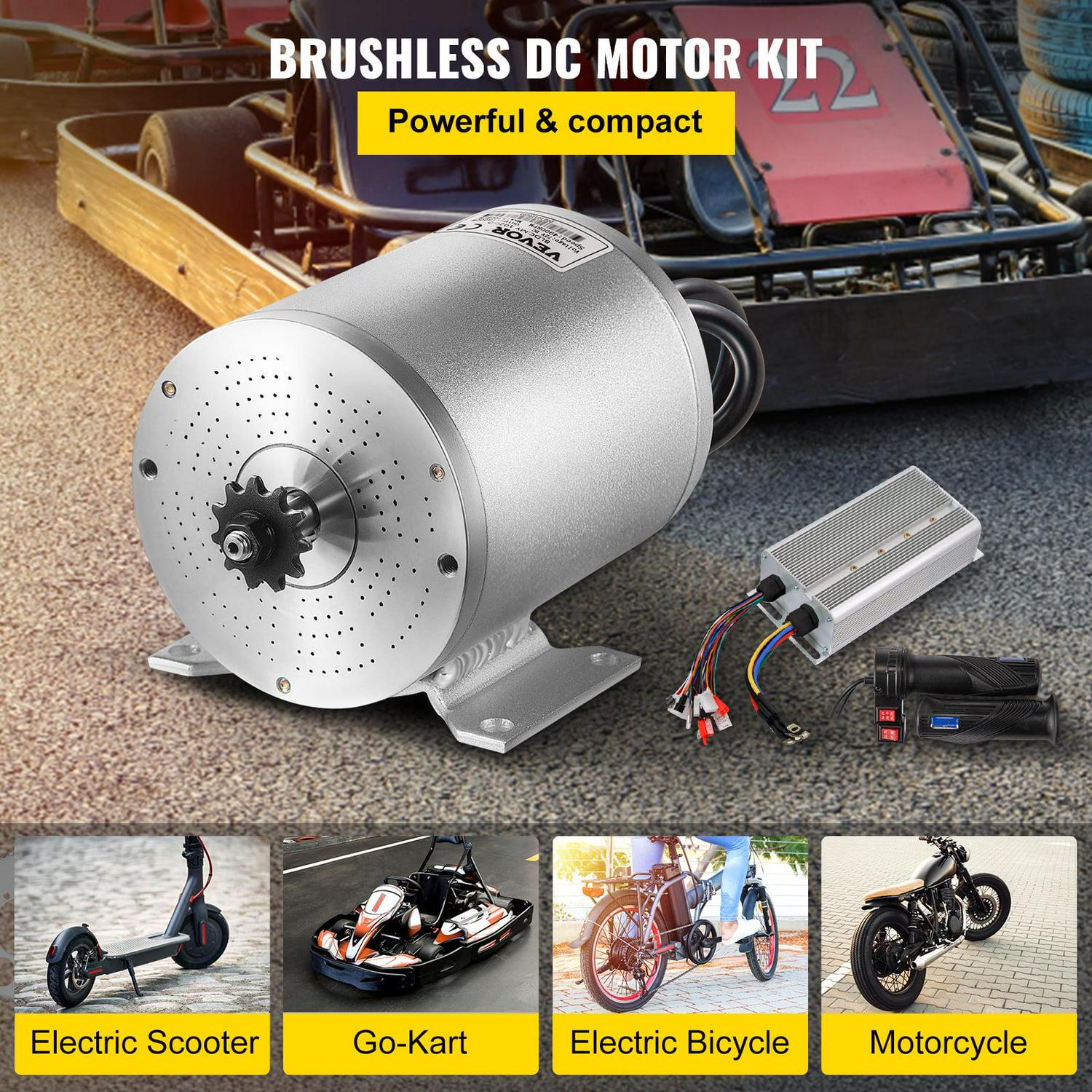

72V 3000W 4900RPM Brushless DC Motor Kit
This brushless electric motor is built with a 100% copper core for low noise operation and high working efficiency. It features an aluminum alloy shell and complete accessories kit to help you fix the motor and making a safe operation. It is ideal for go karts, Electric Scooters, E-bike, ATV, motorized bicycle, etc.

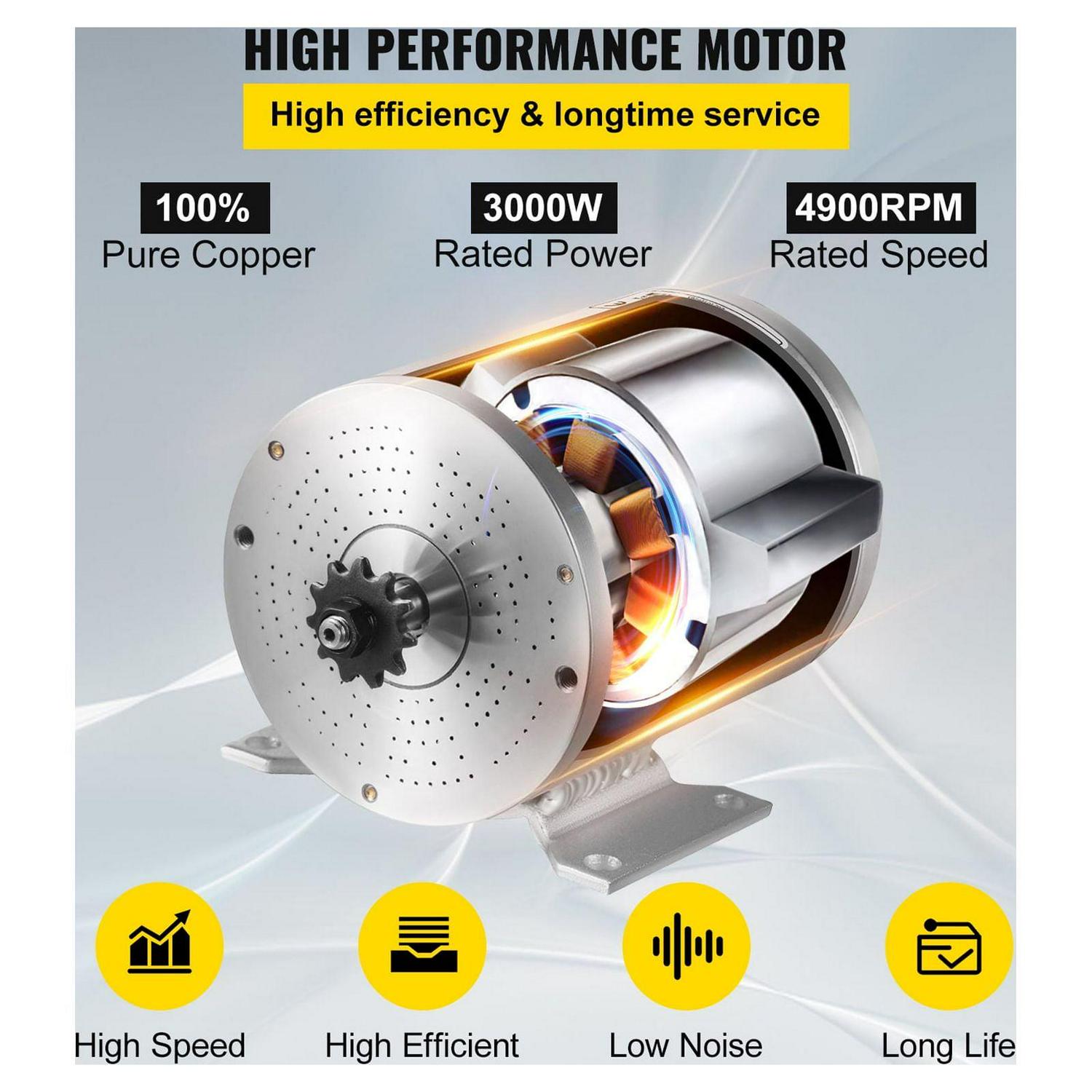

Pure Copper Coils
The motor for the pool pump features a 100% pure copper core for high conductivity, high-temperature resistance, low noise, and saves energy for a long time.
4900 RPM High Speed
This brushless electric motor kit runs at 3000W, the rated speed is 4900RPM, and the maximum speed is 6500 RPM. Thus, it is able to provide fast speed and powerful motion for your machines.
Durable Aluminum Alloy Shell
The electric motor brushless is made of aluminum alloy material, which is able to resist oxidation, compression, vibration, and deformation. In addition, it is lightweight enough to carry and process with ease.

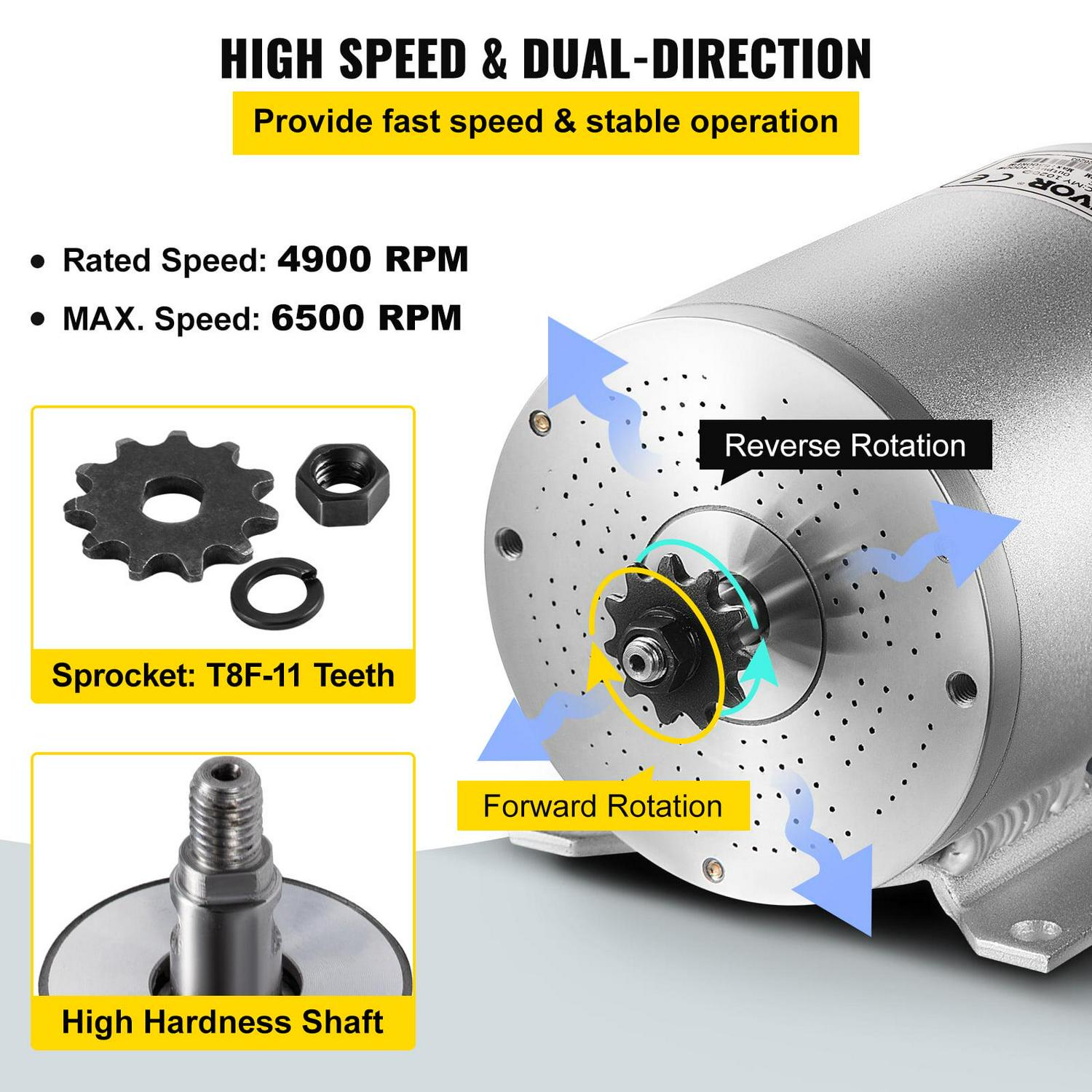

Dual-Direction Design
You can switch the rotation in either the clockwise or counterclockwise direction by reversing the go kart electric motor’s power wires, which is easy to adjust.

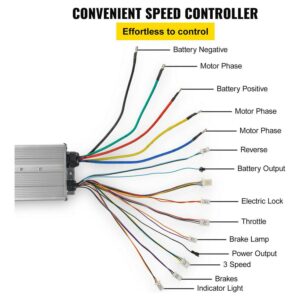

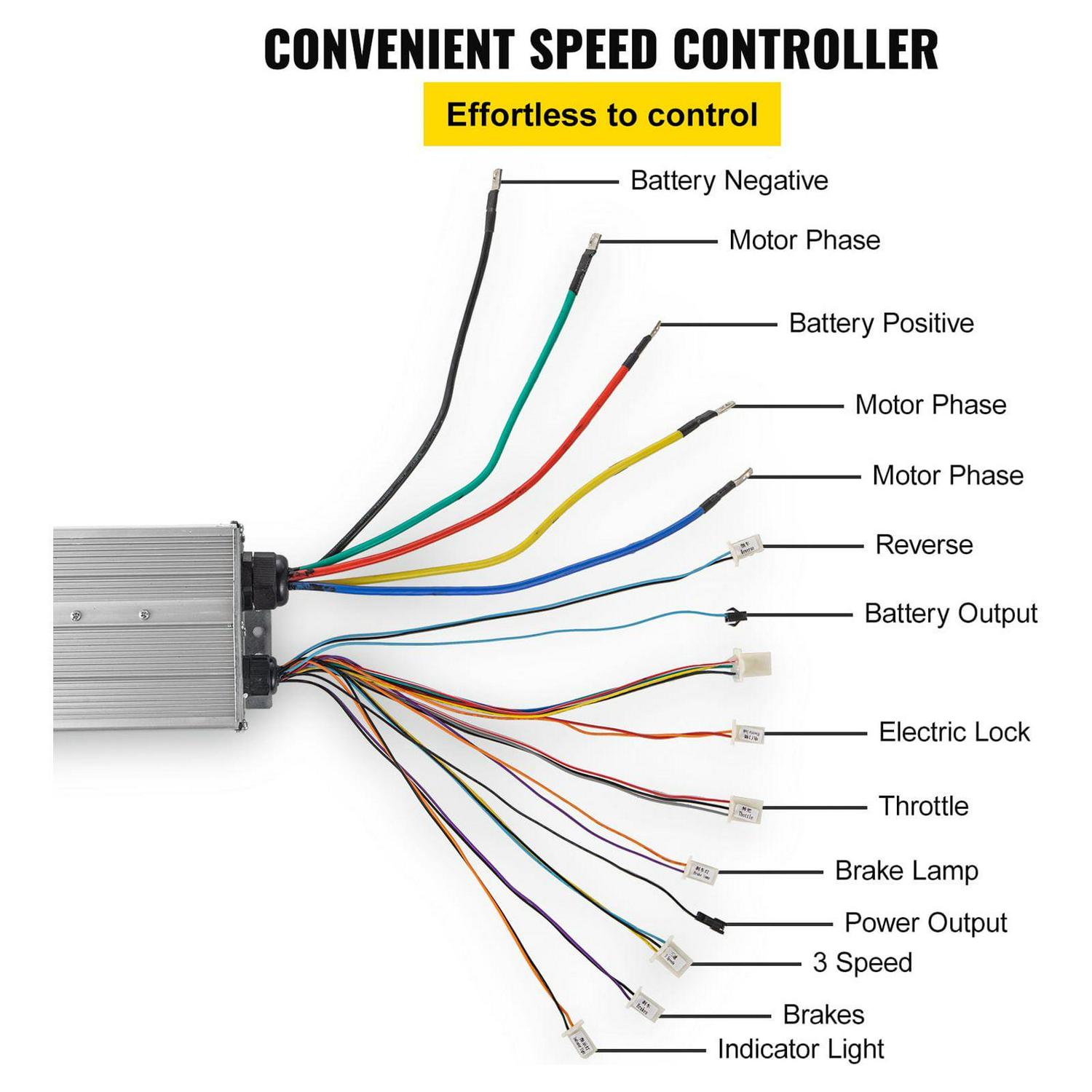

Convenient Speed Control
Speed controller allows you to control the speed effortlessly. The complete set of a brushless motor, speed controller, throttle grip, and other necessary components facilitate you to operate the machine.
Wide Application
It is ideal for Electric Scooters, Motorcycle, Ebike Bicycles, Motorcycle, E Tricycle, Mid Drive Motor Kit, Complete Sets, DIY Engine Systems, Cycling Parts, Mini Electric Motorcycles, DIY Engine Kit, etc.

Specifications

Model: MY1020D
Input Voltage: 72V DC
Output Power: 3000W
Rated Current: 43A
Rated Speed: 4900 RPM
Maximum Speed: 6500 RPM
Sprocket: T8F-11 Teeth
Horsepower: 4.07 HP
Rated Torque: 849.67 oz.in / 6 N.m
Maximum Current: 65A
No-load Current: 4.0A
Peak Efficiency: 85%
Working Temperature:
Motor Net Weight: 10.36 lbs / 4.7 kg

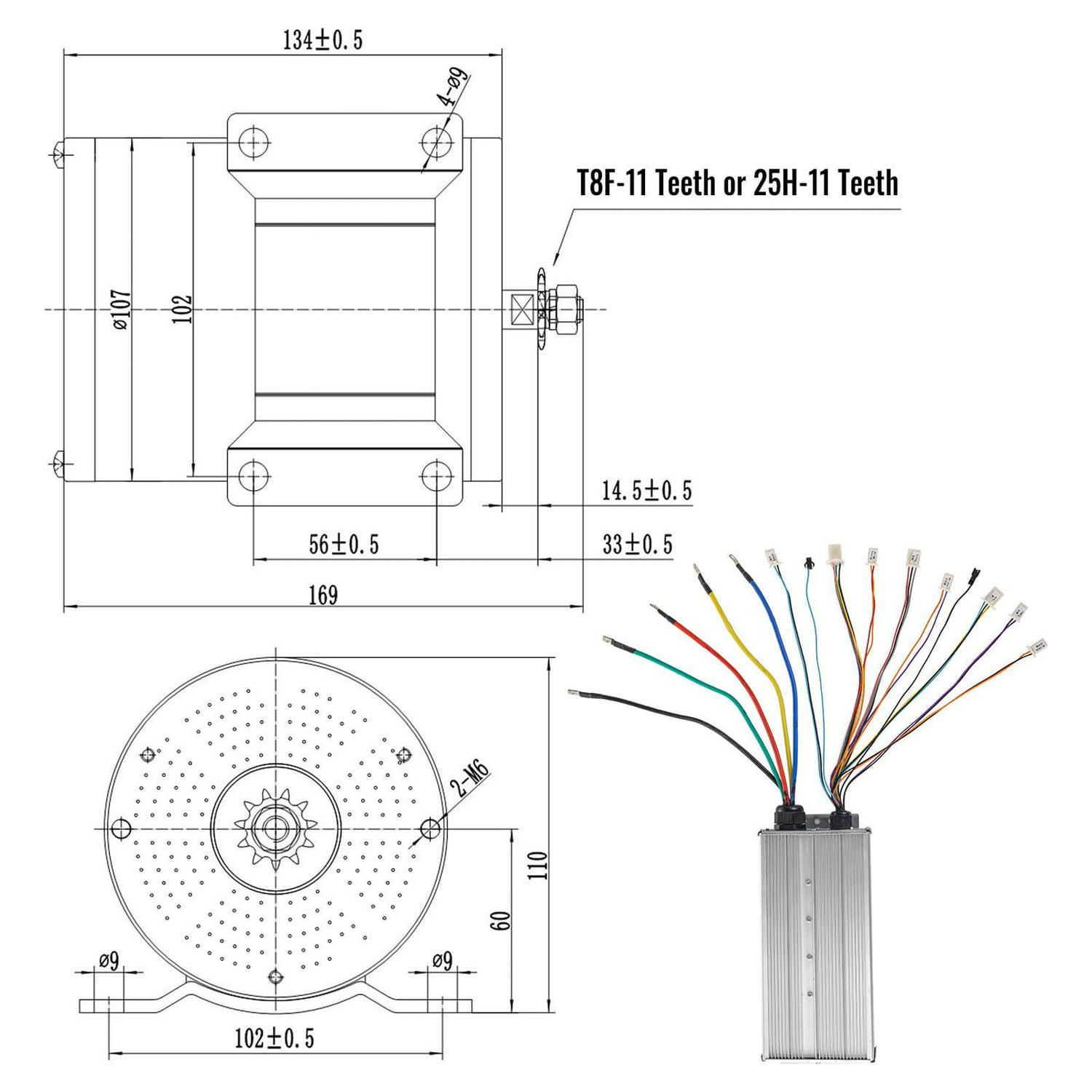

Motor Mount Bracket Size: 2.2 x 4” / 56 × 102 mm

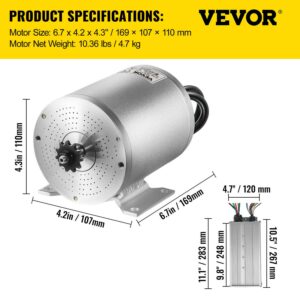

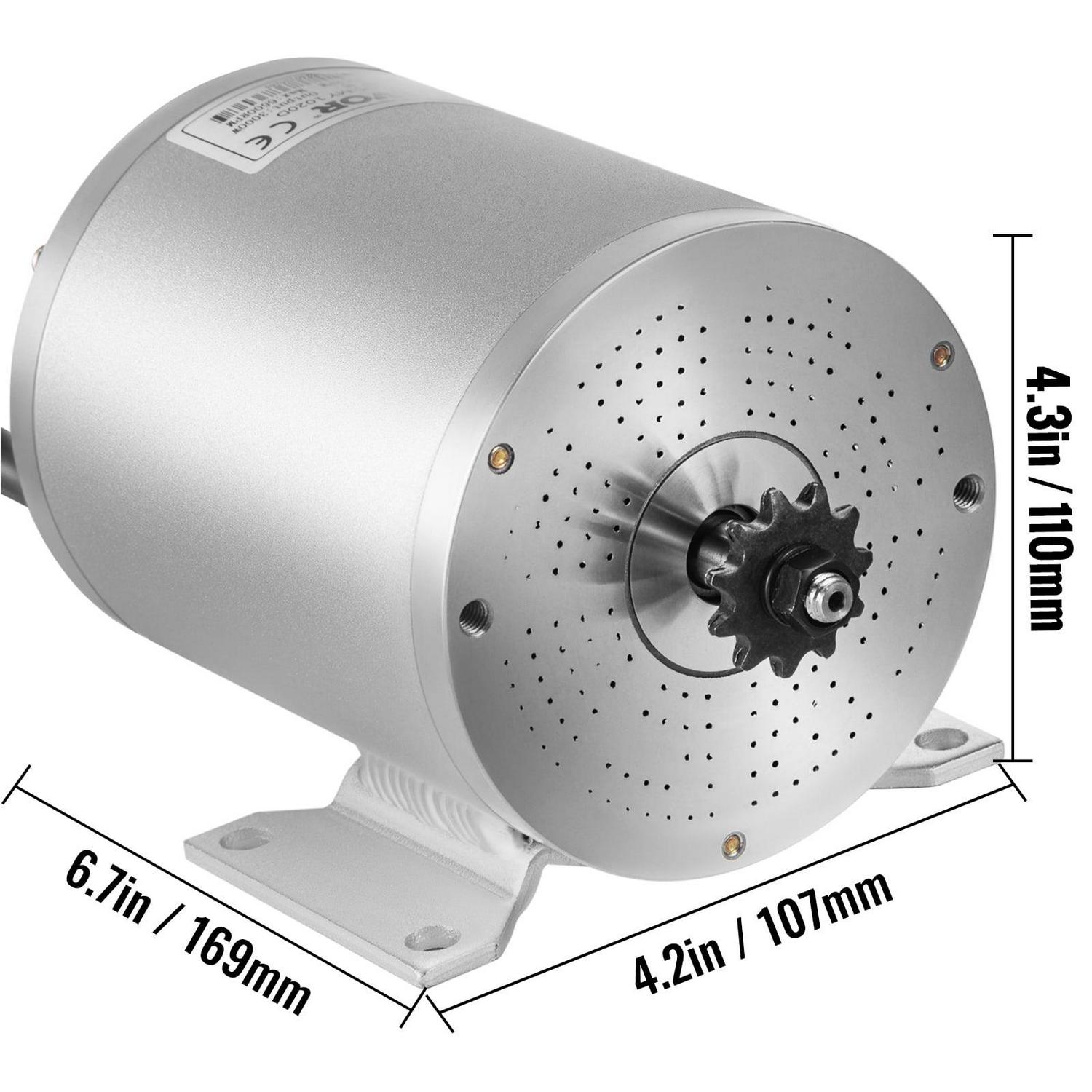

Motor Dimensions(L x W x H): 6.7 x 4.2 x 4.3” / 169 × 107 × 110 mm
Controller Model: BY24WF01-B
Controller Current: 65A
Controller Phase Degree: 120°
Controller Conversion Efficiency: 85%
Controller Under Voltage Protection Voltage: 62V

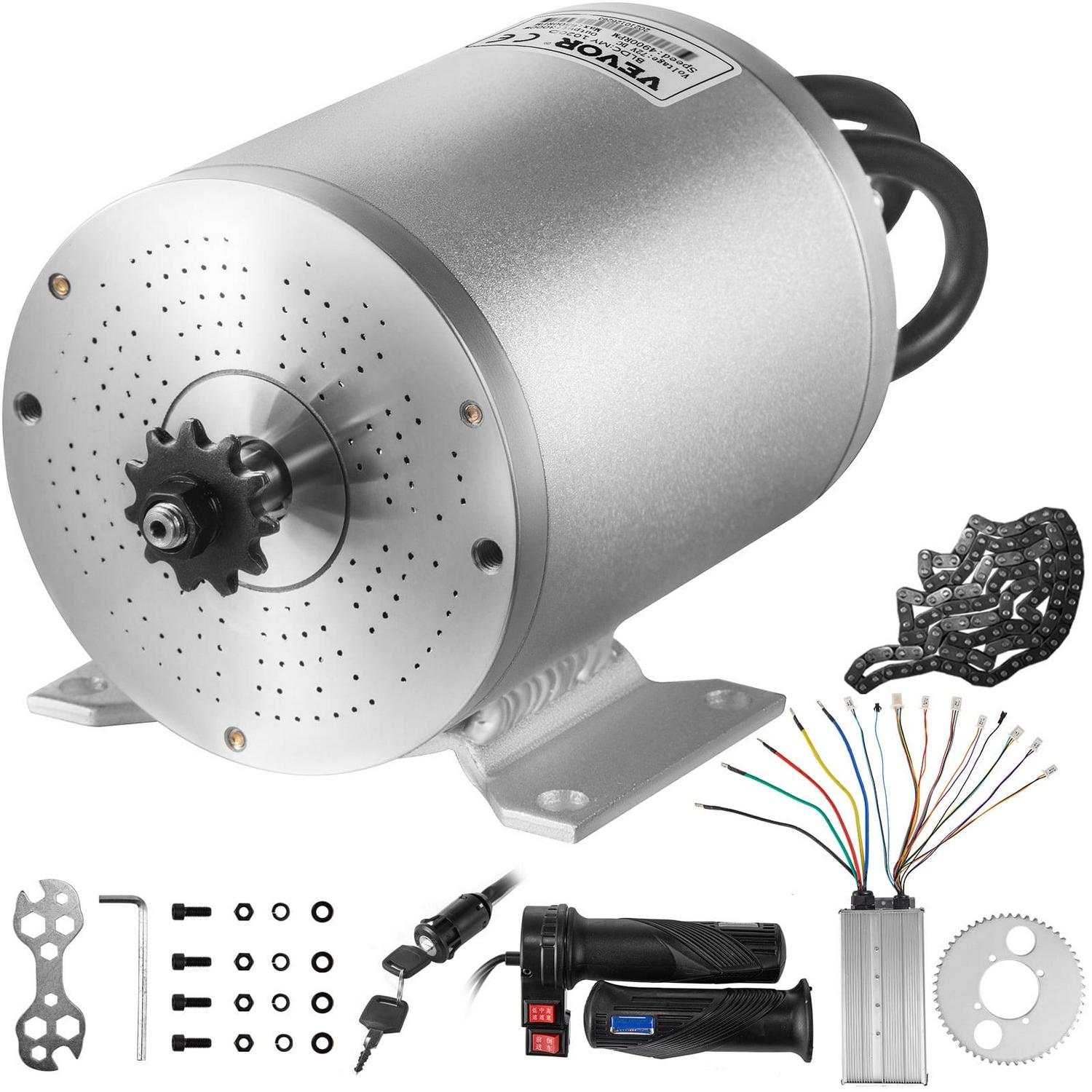

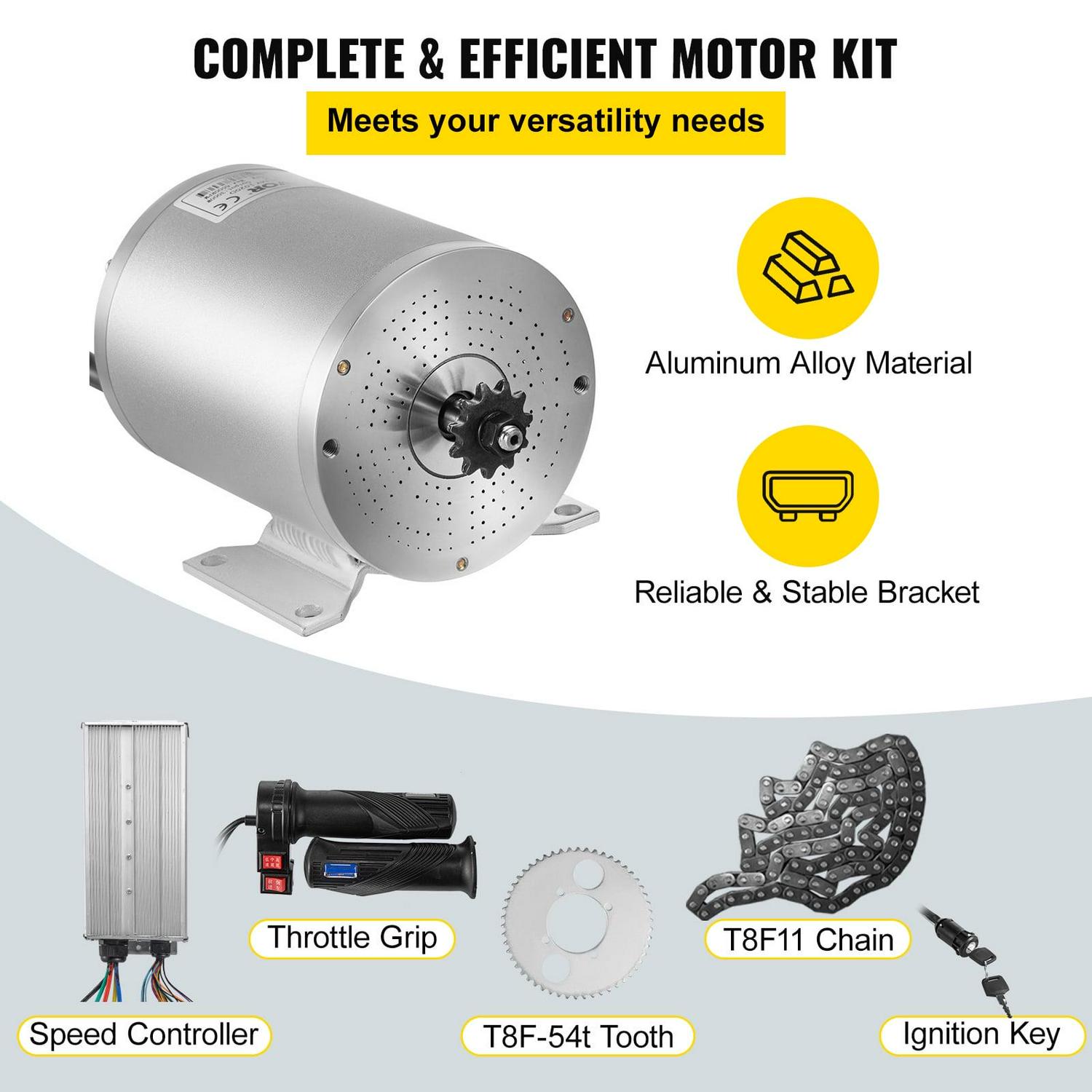

PackageContent

1 x 73V 3000W Motor
1 x Controller
1 x Multifunctional Throttle Grip
1 x Ignition Key
1 x T8F-54t Tooth
1 x T8F11 Chain
1 x Set of Mounting Screws
– The electric go kart motor features an aluminum alloy shell to resist heat, cold, and corrosion, which is not easy to rust. This forward and backward rotation motor so that you can switch the rotation.
– This brushless go kart motor comes with a controller to provide speed control in the desirable ranger, speed adjustment way: Potentiometer. Model: BY24WF01-B, Current: 65A, Phase Degree: 120°, Conversion Efficiency: 85%, Controller Under Voltage Protection Voltage: 62V.
– Brushless motor is much better than the brushed motor due to its high efficiency, power frugal, low noise, long lifespan, stable operation. It is suitable for go karts, scooters, e-bike, ATV, motorized bicycle, moped, mini bikes, pocket bikes, etc.
