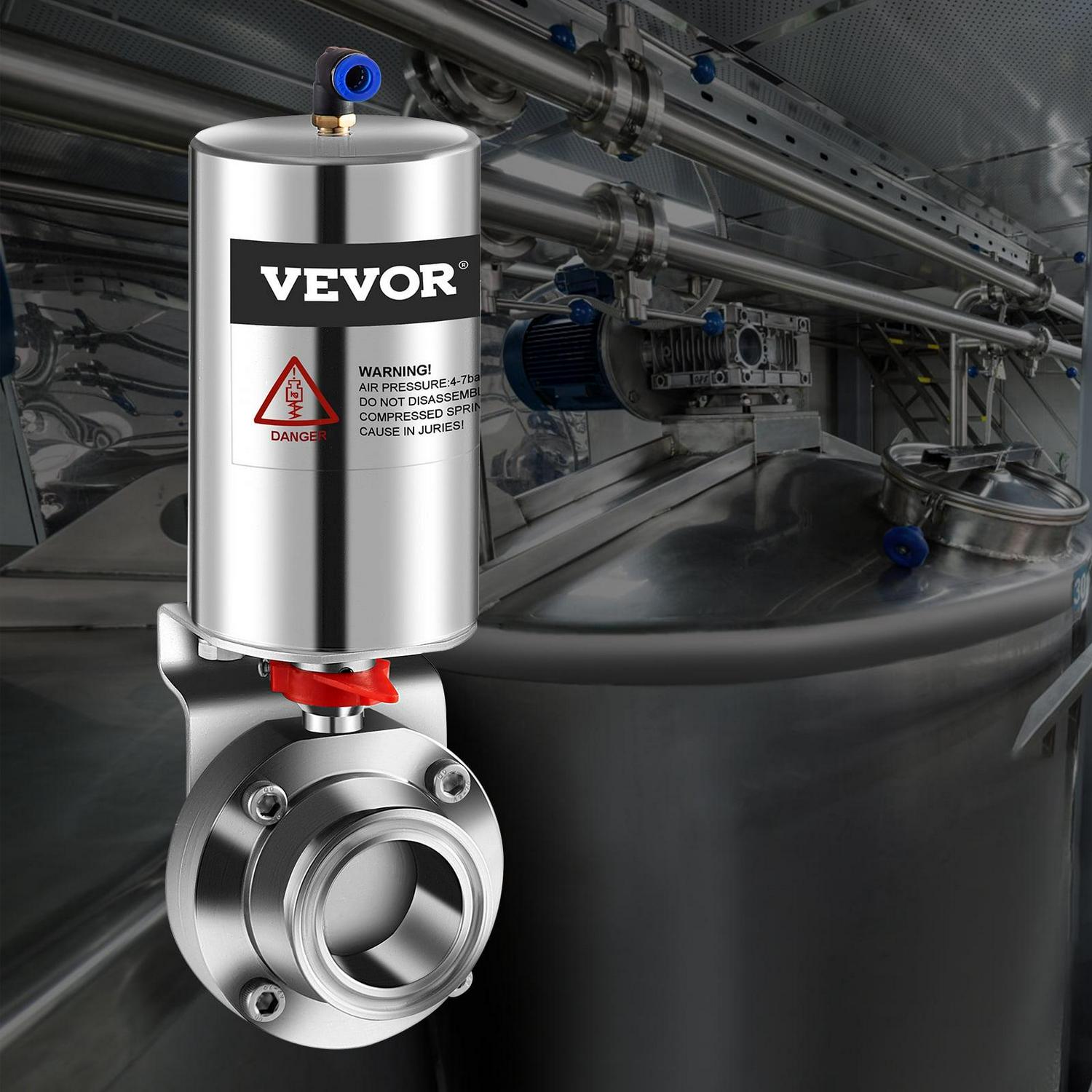

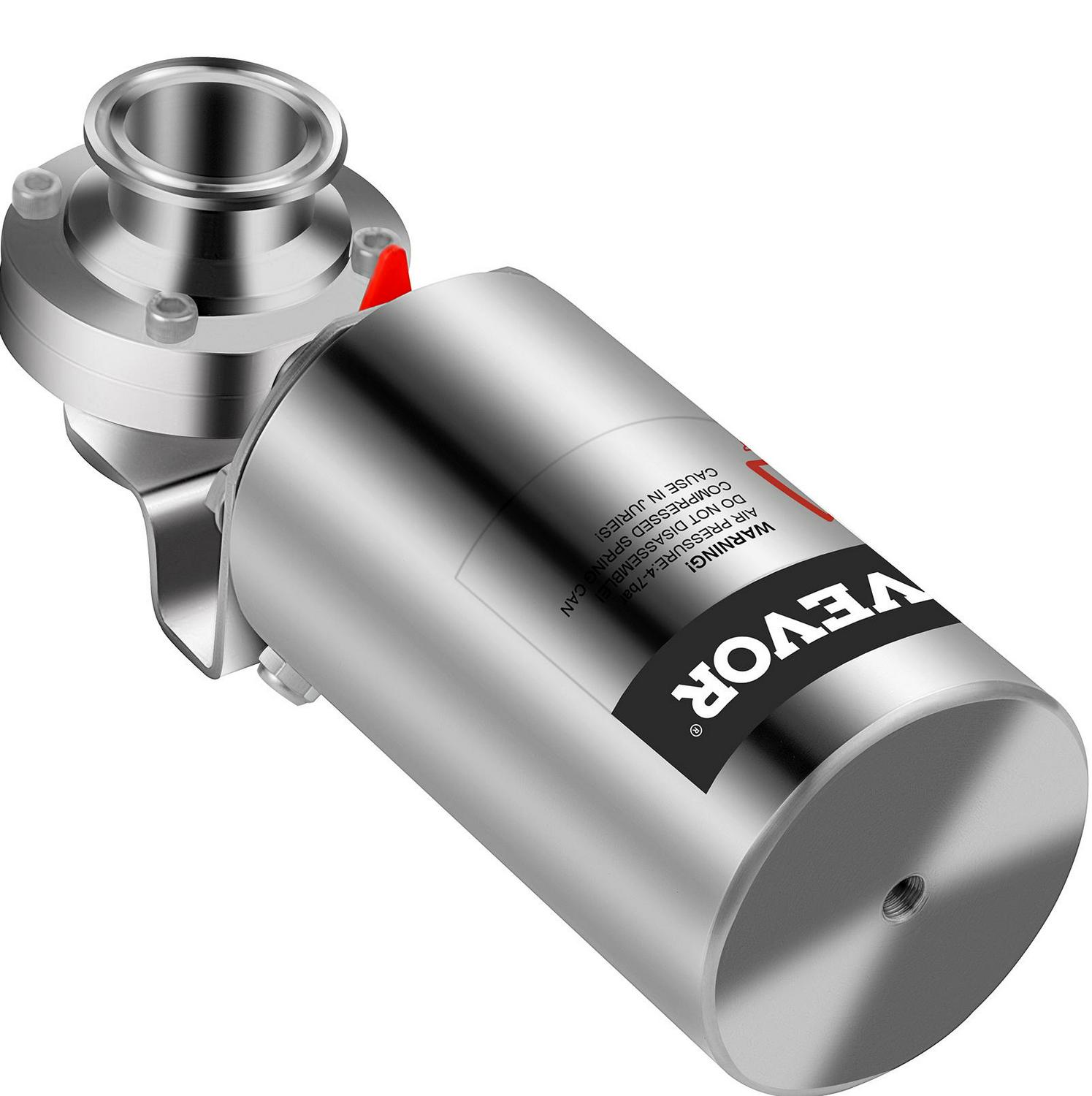

VEVOR Pneumatic Butterfly Valve, 2″ Pneumatic Sanitary Valve, Heavy-Duty 304 Stainless Steel Tri Clamp Pneumatic Valve, Silicone Seal Pneumatic Butterfly with Pneumatic Actuator Clamp Single Acting

Brand Introduction
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees,VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service

Product Description

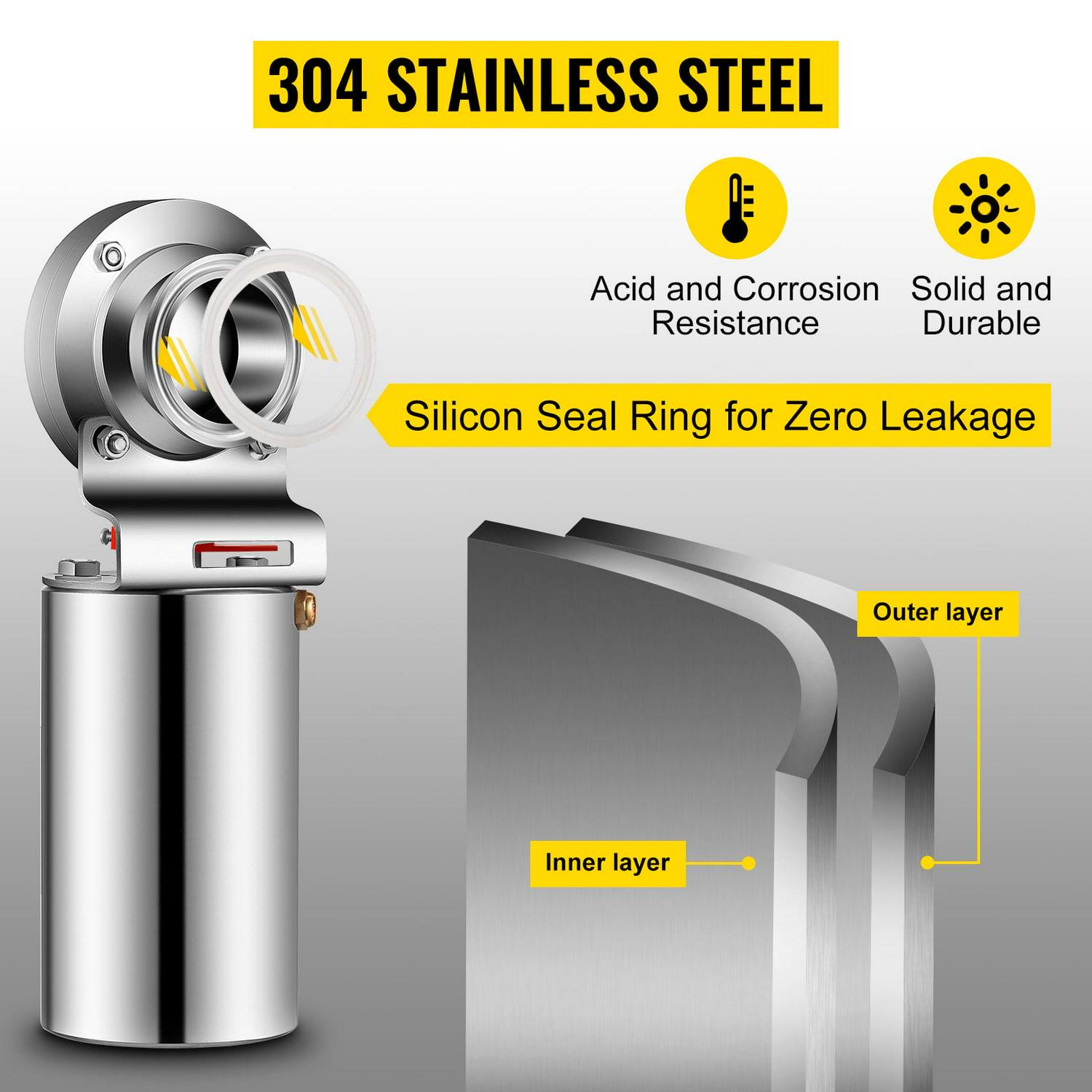

304 Stainless Steel

Compromise with 304 stainless steel; our pneumatic sanitary valve features the characteristic of corrosion resistance and acid resistance, high strength, and strong adaptability. A sealing silicone ring inside has good sealing performance and is not easy to leak.

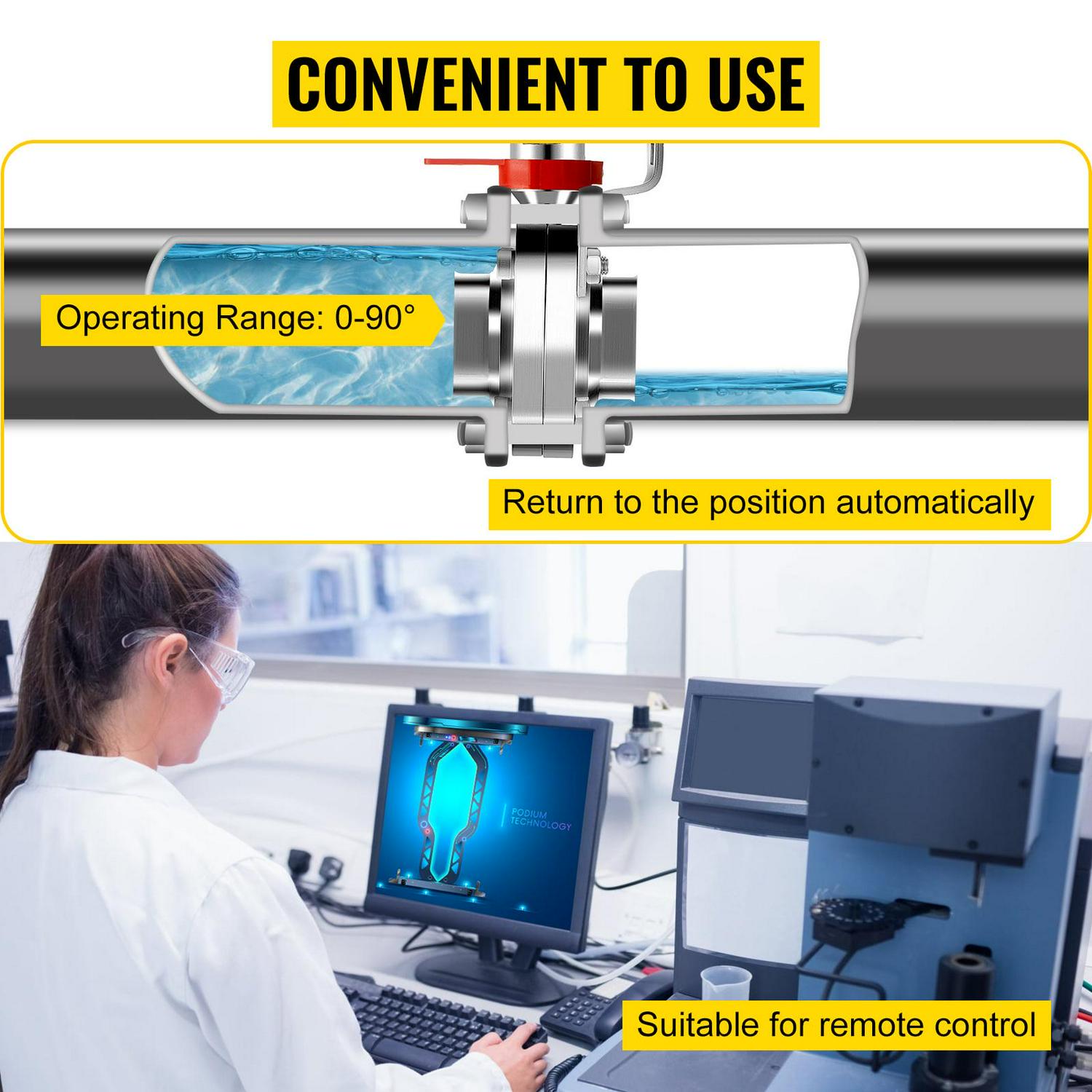

Convenient to Use

Operation mode: pneumatic. Control mode: single-acting, automatic return. Working range: 0-90°. The sealing surface and the spherical surface are often closed, which is not easy to erode by the medium and can realize remote control.

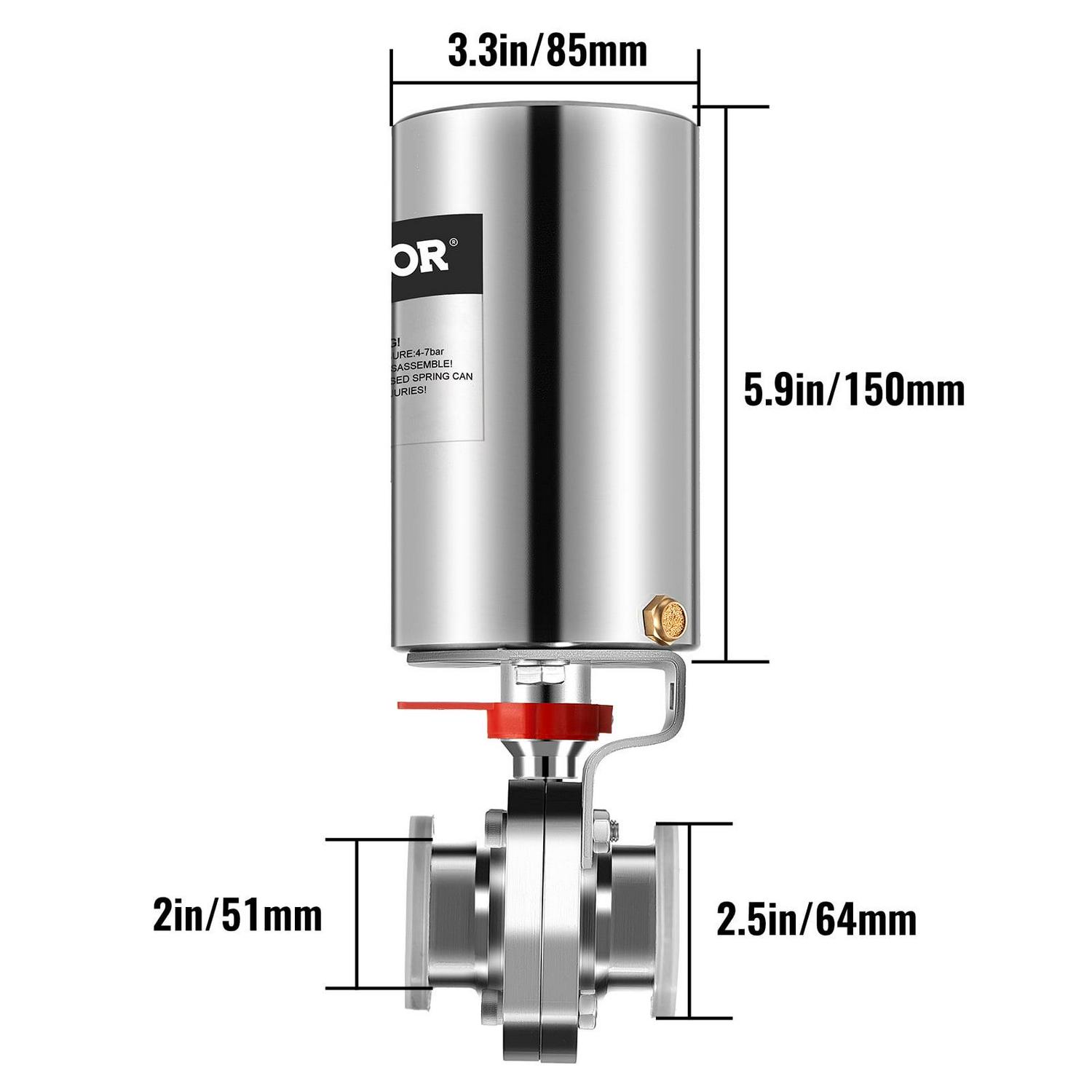

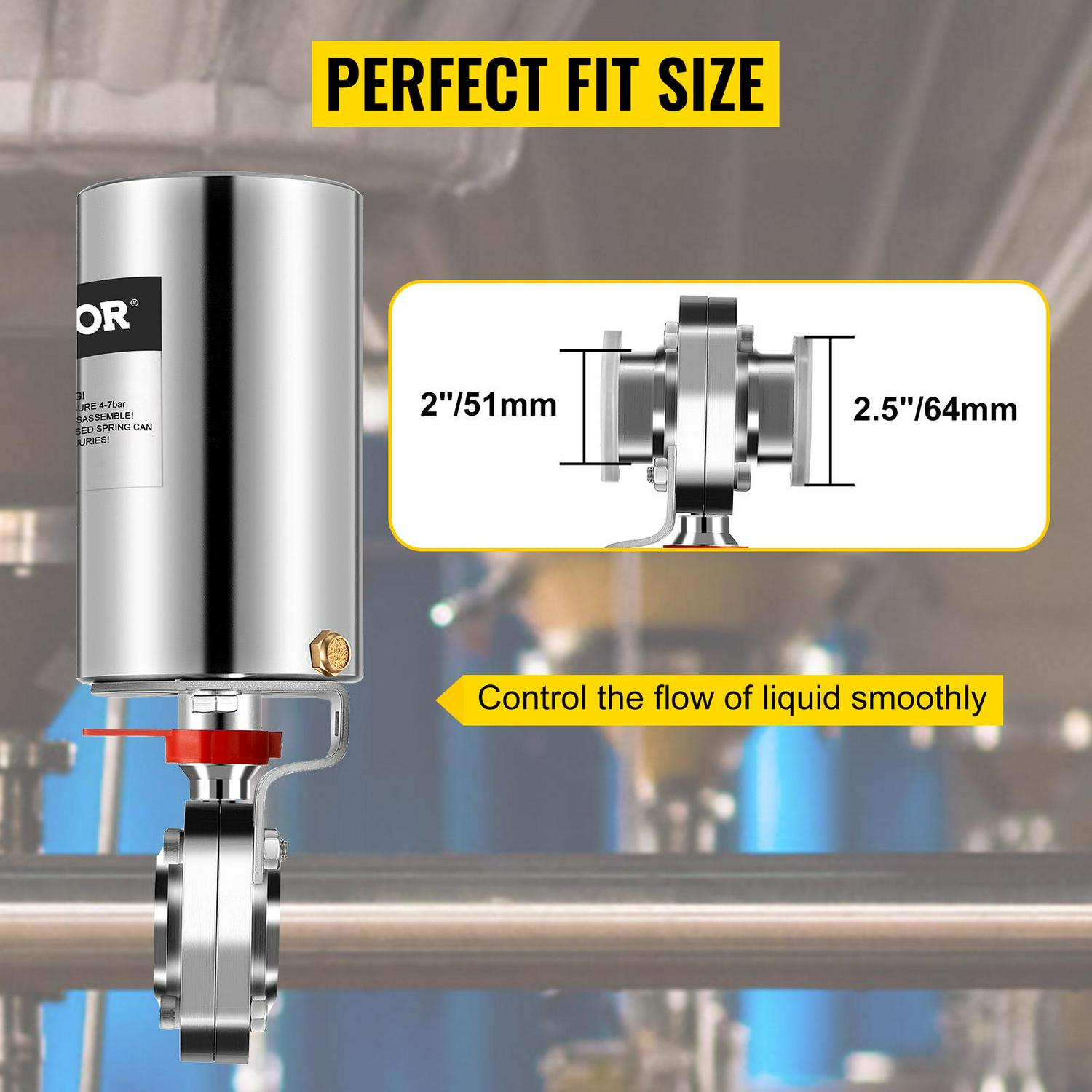

Perfect Fit Size

Dimensions: Tube outer diameter is 2 in / 51 mm; The size of the ferrule is 2.5 in / 64 mm. Our tri-clamp pneumatic valve is used to cut off, distribute, and change the flow direction of the medium in the pipeline to make the butterfly valve accumulate the least liquid and block the liquid outflow.

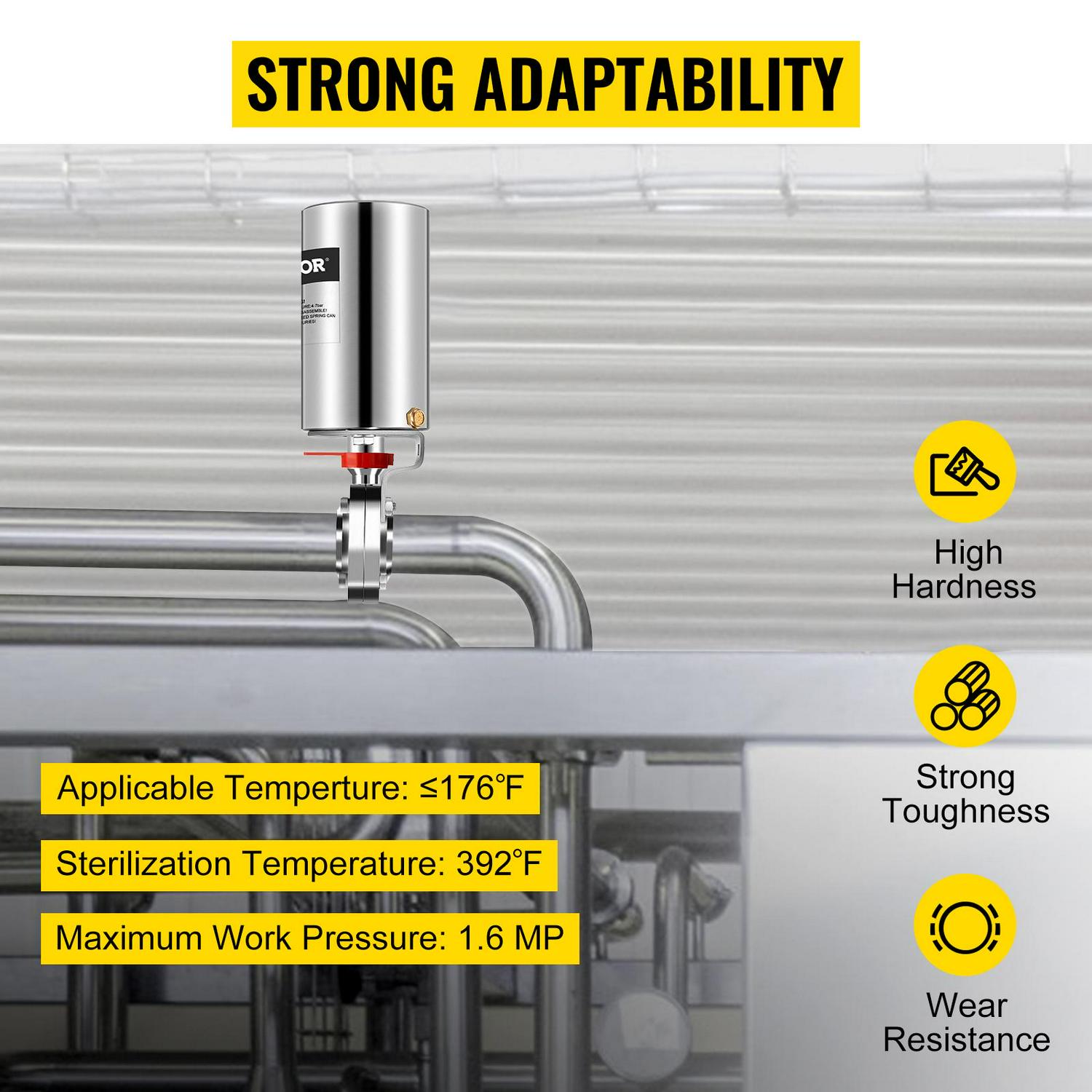

Strong Adaptability

Temperature grade: 14 to 176 ; Applicable temperature: 176 ; Sterilization temperature up to 392 . The maximum pressure is 1.6mp. This tri-clamp pneumatic valve has strong toughness, high hardness, corrosion resistance and is designed for long service life.

Exquisite Detail Design

Simple structure, small size, lightweight, only 9.7 lbs / 4.4 kg, the upper air nozzle has good sealing performance, which can quickly connect air piping or pneumatic tools. The middle red pendulum needle is used to indicate the open or closed state of the butterfly valve, which serves as a reminder.

Wide Application

Pneumatic sanitary butterfly valves are very suitable for various applications in stainless steel piping systems. It is widely used in water, oil, air, food, pharmaceutical, beer beverage, mechanical equipment, automation equipment, and other fields.

Specifications

Model: VV-SPJDF-QD51
Material: 304 Stainless Steel
Tube Outer Diameter: 2 in / 51 mm
Ferrule Size: 2.5 in / 64 mm
Operating Range: 0-90°
Work Pressure: 0-1.6MPa / 232 psi
Applicable Temperature: 176 / 80
Temperature Class: 14 – 176 / -10 – 80
Sterilization Temperature: 392 °F / 200
Operation: Pneumatic
Connection: Clamp
Control Method: Single Acting, Automatic Return Position
Weight: 9.7 lbs / 4.4 kg

Package Content

1 x Pneumatic butterfly valve
2 x Silicone Gaskets
2 x Air Nozzle
1 x Instruction
– FOOD-GRADE 304 STAINLESS STEEL – The pneumatic butterfly valve comprises 304 stainless steel material, no odor, high strength, and good corrosion resistance. They are specially designed for long service life. There is a silicone ring inside to ensure the tightness so that the liquid is not easy to leak.
– HASSLE-FREE OPERATION – Convenient operation allows you rapid opening and closing, only to rotate 90° from fully open to fully closed. Control mode: single-acting, automatic return, You can perform local control and remote control, saving human resources and time to a large extent.
– ACCURATE PRODUCT PARAMETER – The outer diameter of the sanitary pneumatic valve is 2 in / 51 mm, the size of the ferrule is 2.5 in / 64 mm. Our butterfly valve adopts a disc-shaped butterfly plate, which can better control the flow of liquid.
– EXCELLENT & STABLE PERFORMANCE – Applicable temperature: 176 °F; Environment temperature: 14 °F to 176 °F; Sterilization temperature can reach to 392 °F. Air supply pressure: 5bar-8bar. Maximum pressure 1.6Mp. Our pneumatic butterfly valve is more adaptable than other models on the market.
– APPLICABLE MEDIUM – Our tri-clamp butterfly valve is simple in structure, compact in body, light in weight, and made into a large diameter. Applicable media: water, oil, air; widely used in food, pharmacy, beer beverage, biological engineering, mechanical equipment, and other fields.
