VEVOR Stepper Motor Driver Nema34 12N.m Integrate Closed Loop Position Encoder DC 24-60V Stepper Motor Hybrid Servo Drive Kit for CNC Control,Motor Driver Kit

Brand Introduction
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees,VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service

Product Description

Nema34 12N.m Closed Loop Stepper Motor Hybrid Servo Drive Kit

This two-phase hybrid stepper motor servo driver adopts new control technology and closed-loop control technology, preventing loss of movement synchronization and ensures accuracy. Load-based current control technology can effectively reduce temperature rise of motor and prolong motor service life. Built-in position and alarm output signal is convenient for PC monitoring and controlling. Position out-of-tolerance alarm function ensures machining equipment safe operation.

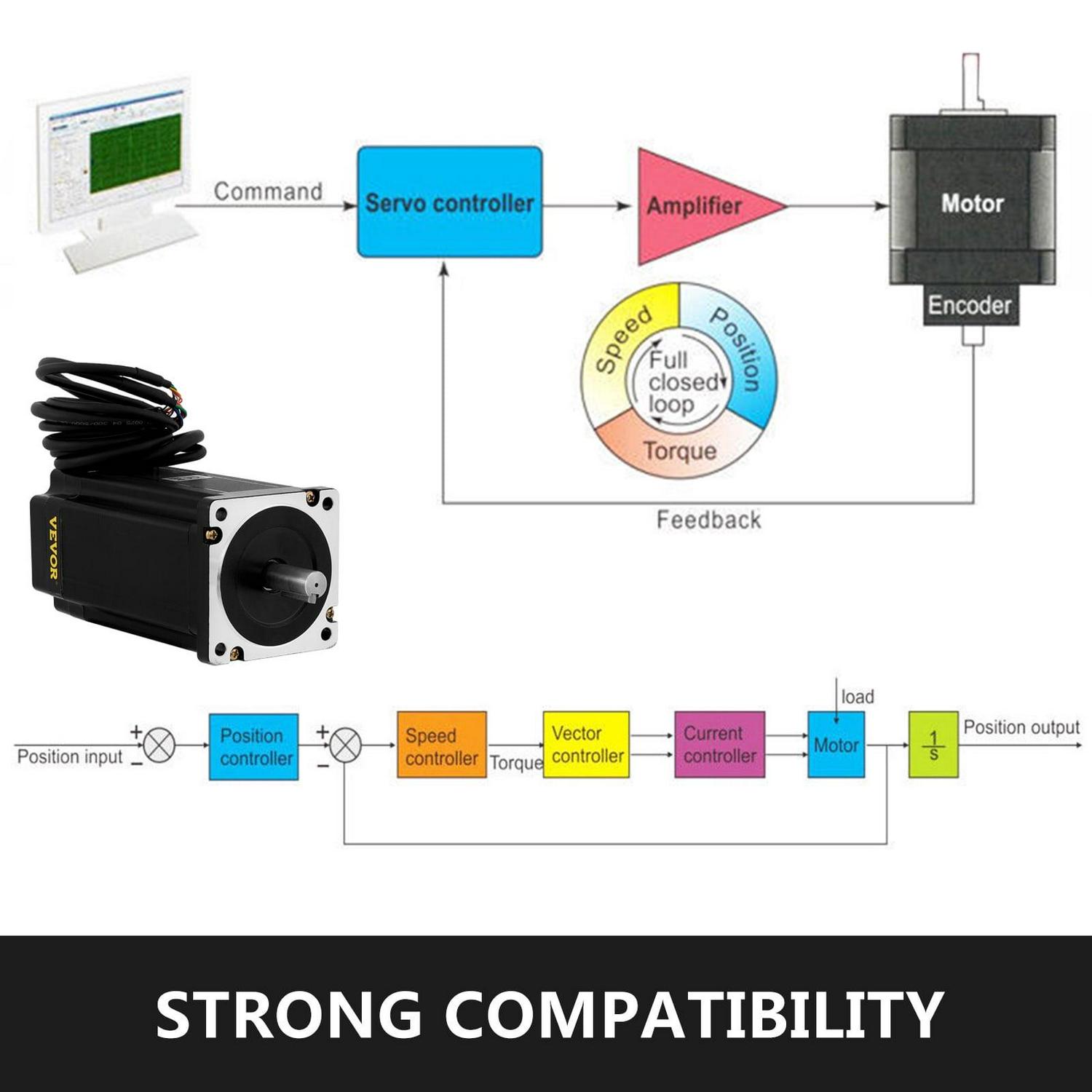

Strong Compatibility

Full closed loop control, compatible with 1000 lines encoder. No adjustment in general application. Without losing step, high accuracy in position, close to 100% of the torque output.

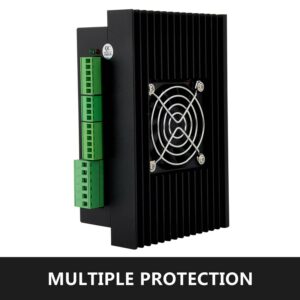

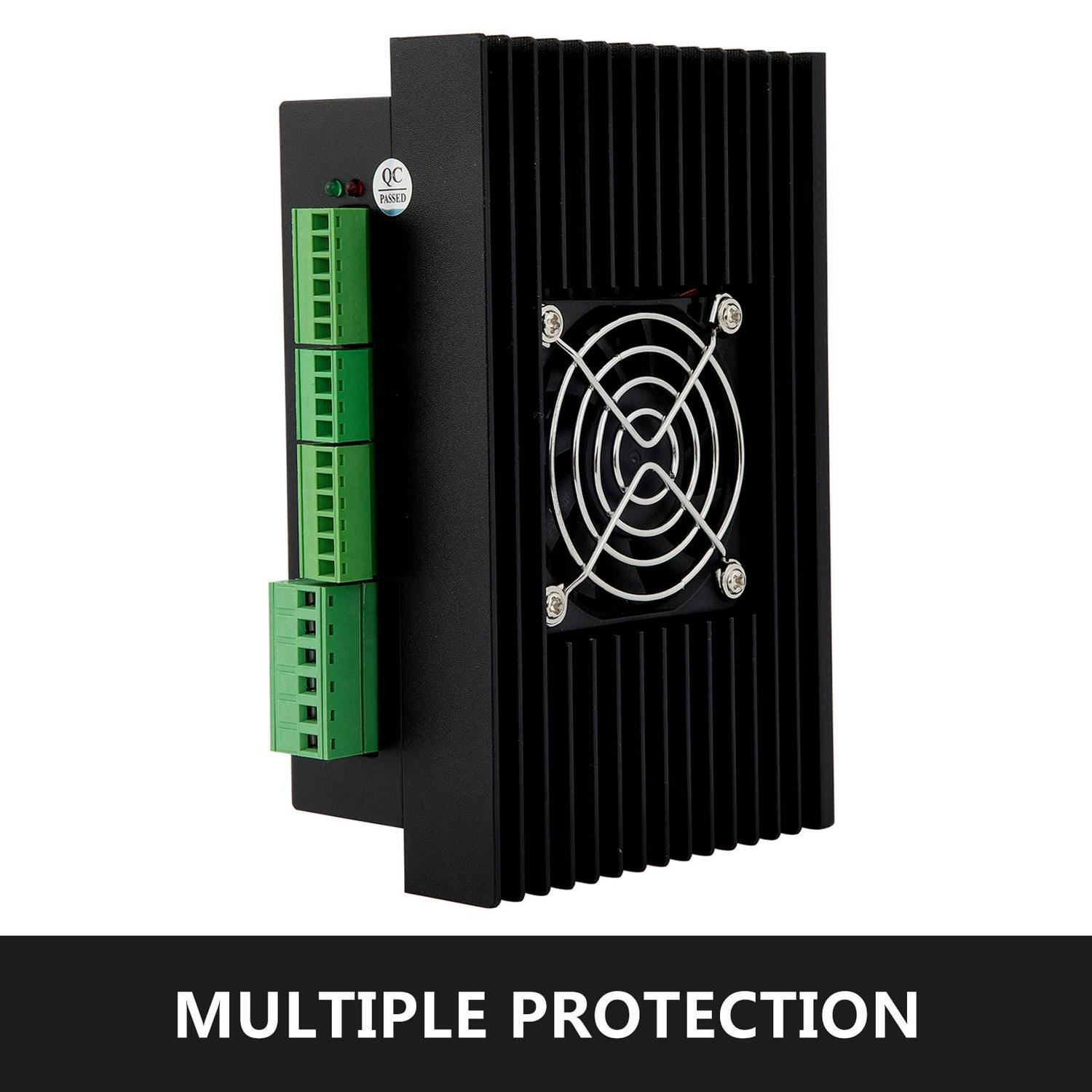

Multiple Protection

Protective function covers over voltage, over current, tracking error and over-proof. Insulation Class: B.

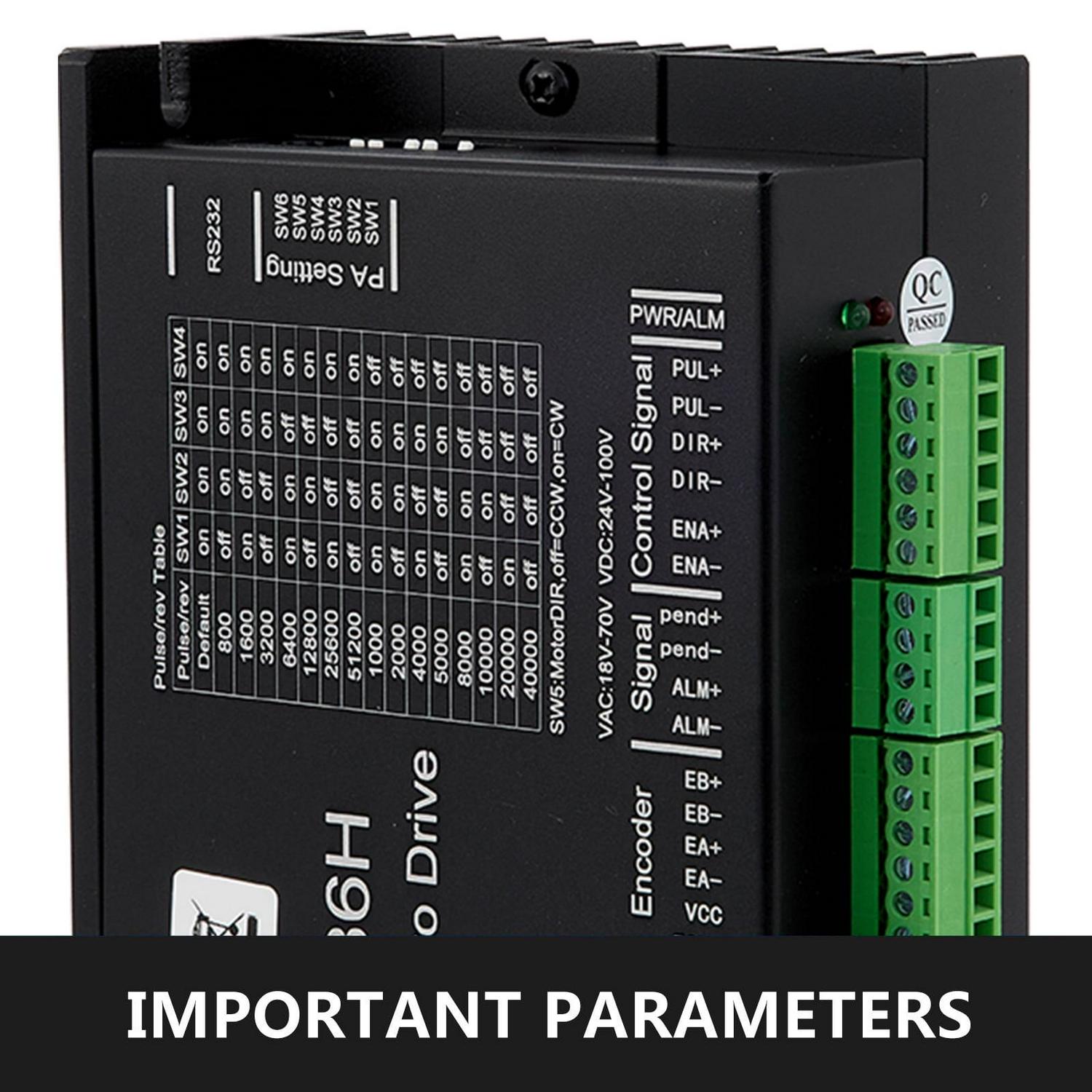

Important Parameters

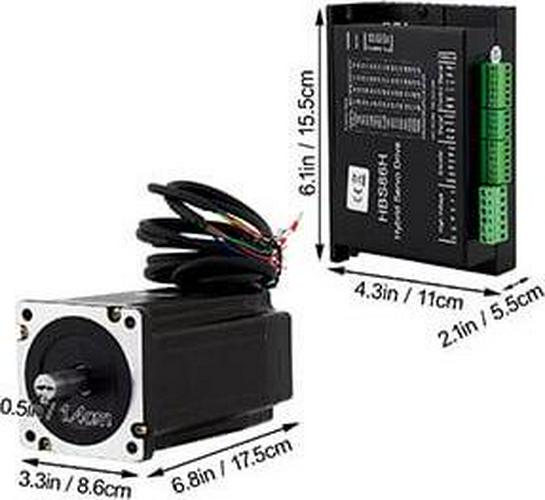

Working with continuous voltage: 24-1000VDC, motor has torque 12N.m, continuous current 6A. Shaft Length: 3.8cm(1.5″), Shaft Width: 1.5cm(0.59″).

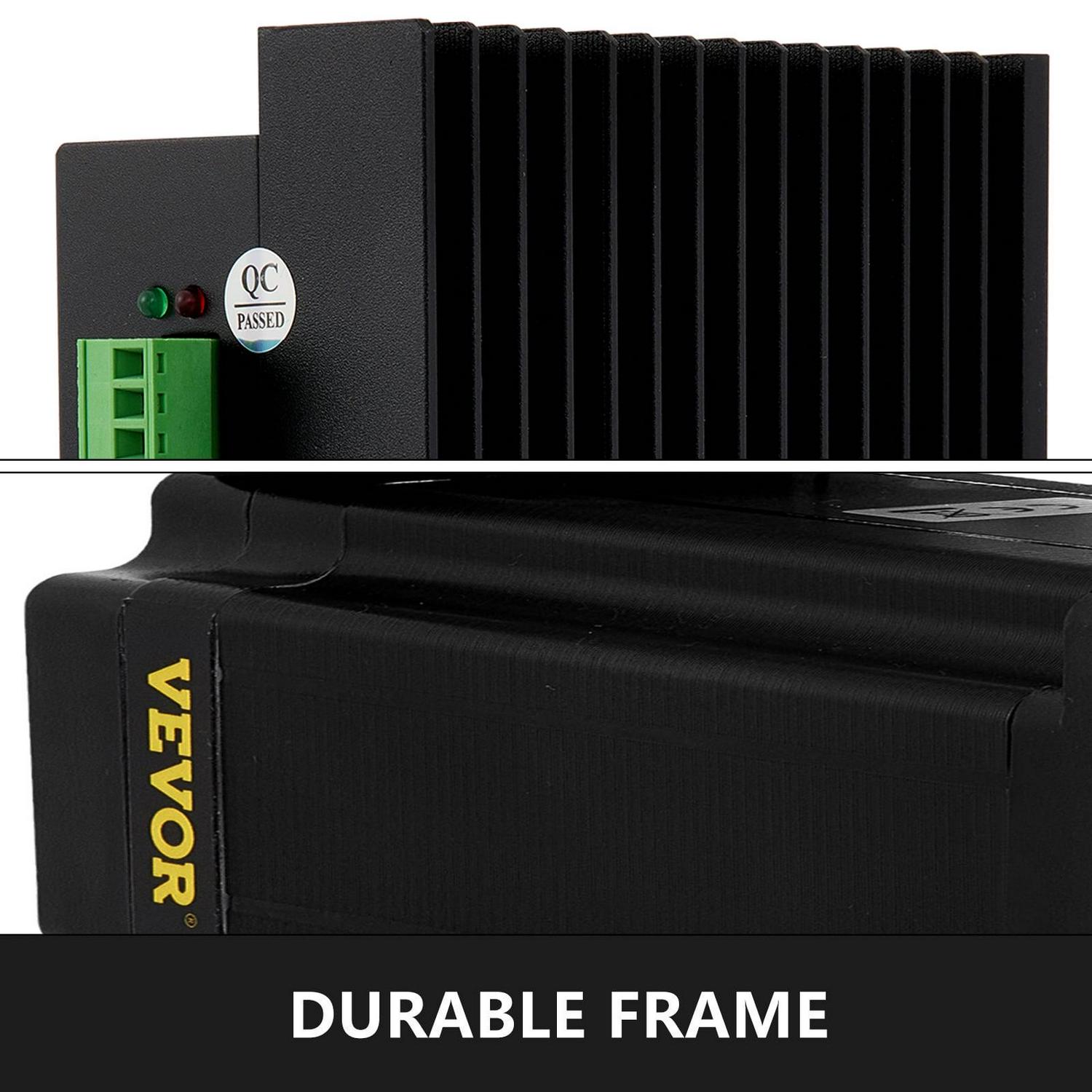

Durable Frame

Black motor body + blue driver cover are made of silicon steel sheet and aluminum alloy, durable and long lasting.

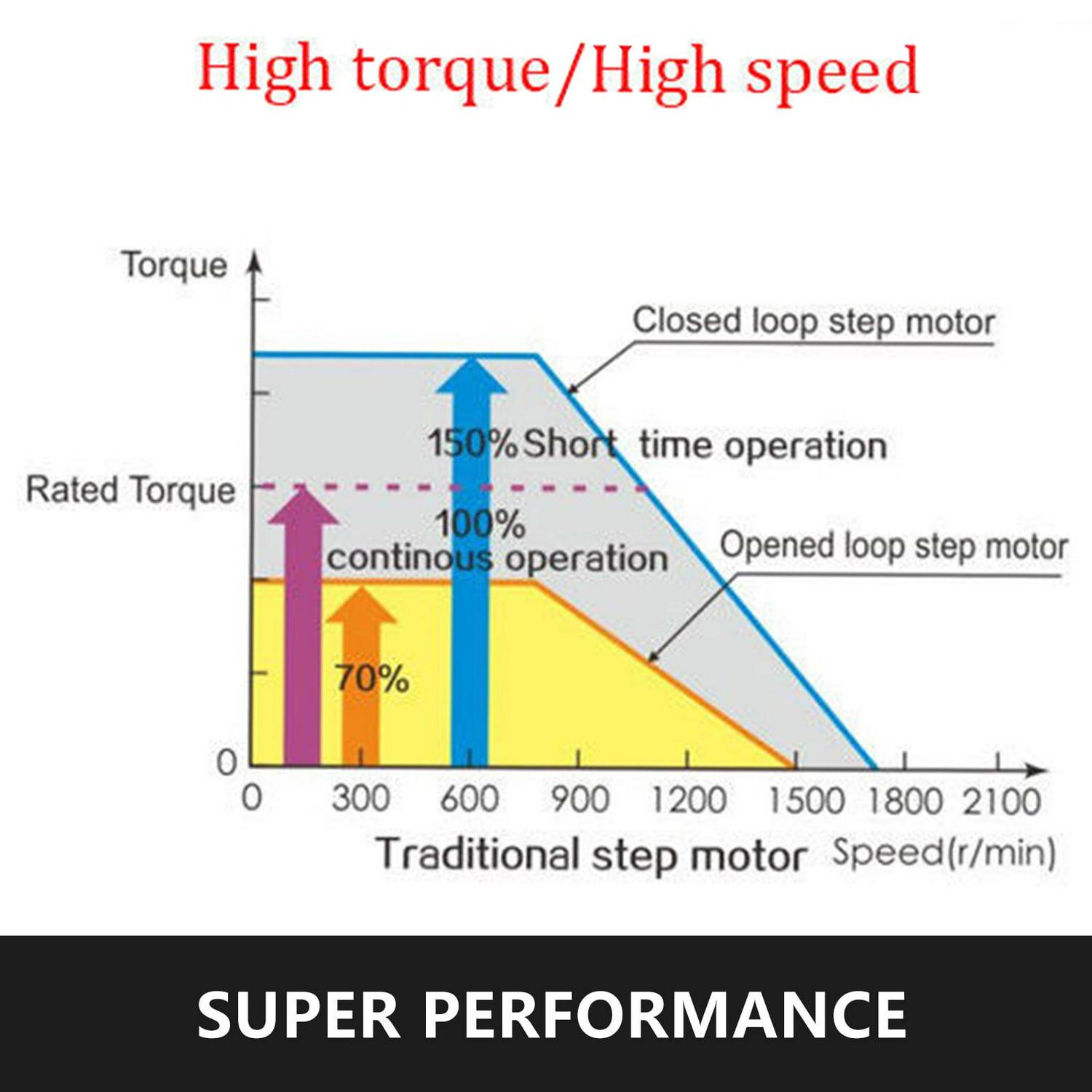

Super Performance

Fit for all kinds of machinery load conditions (including low rigidity belt wheel and pulley) without adjusting the gain parameters. Suitable for condition of short-distance quickly start/stop and zero-speed stop stable.

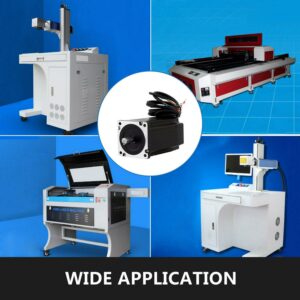

Wide Application

Widely used in engraving machines, laser machines, CNC machine tools, medical equipment, electronic processing equipment, automatic production lines, lithium production equipment, textile machinery, clothing and other automation equipment.

Specifications

Continuous Voltage: 24-100VDC
Step Angle: 1.8
DC Resistance(±10%): 0.8
Phase Inductance(±20%): 6mH
Insulation Resistance: 100MOhm(500VDC)
Insulation Class B
Encoder Resolution: 1000 Line
Weight: 5.7Kg

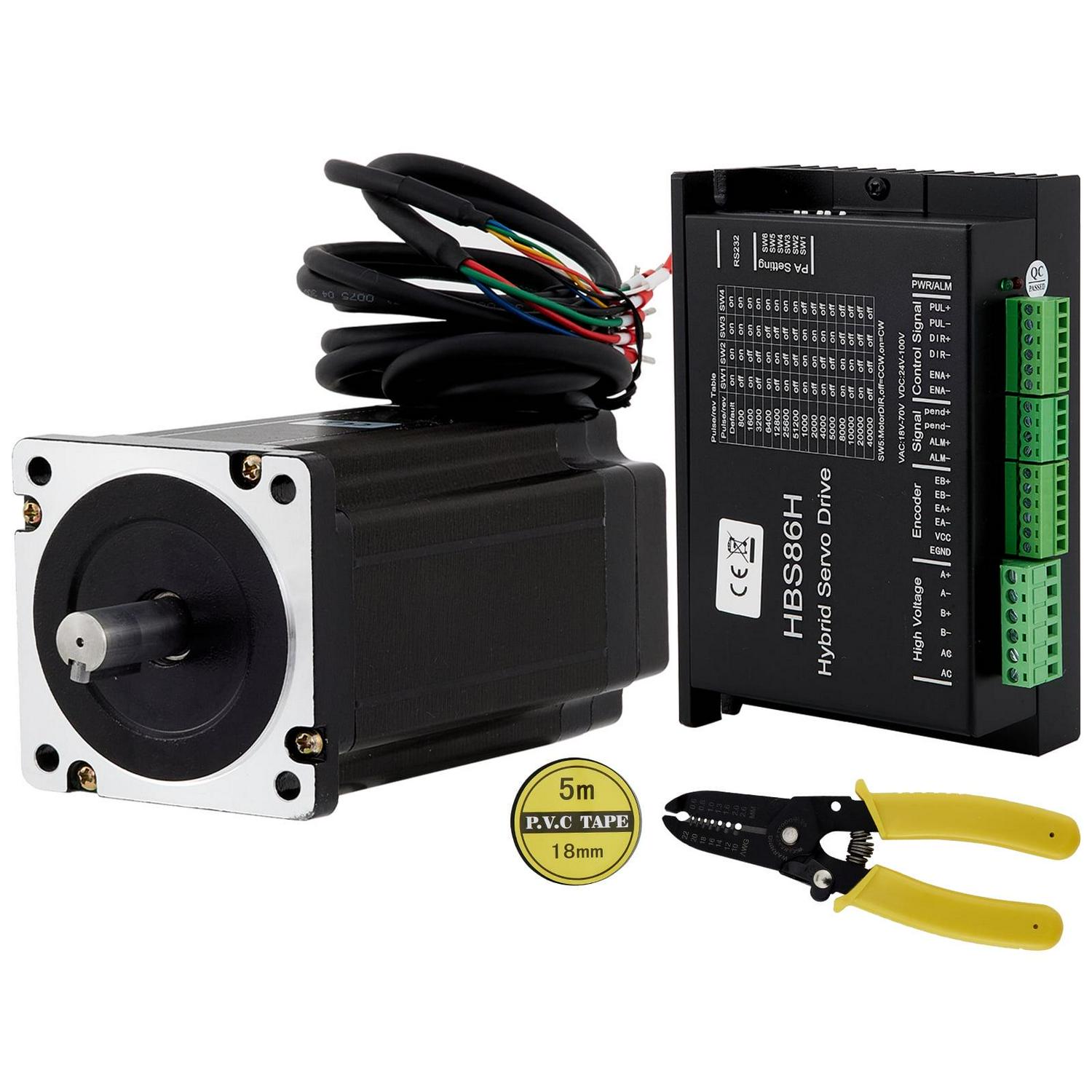

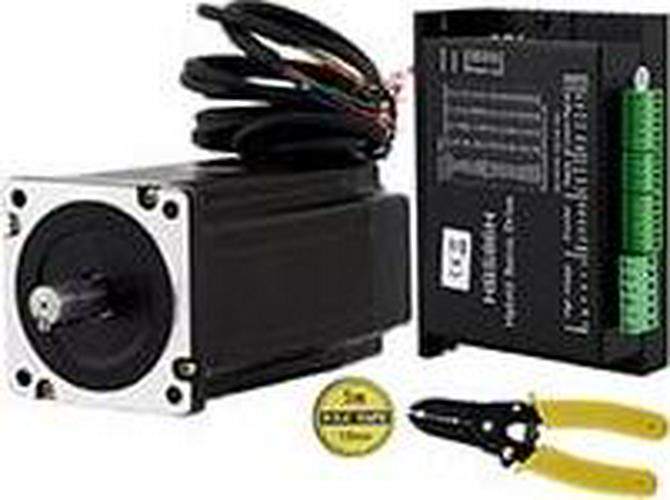

Package Content

1 x Hybrid Closed-loop Stepper Motor
1 x Stepper Driver
1 x Encoder Cable
1 x Power Cable
– FULL CLOSED-LOOP CONTROL – Stepping closed-loop circuit system, no loss of movement synchronization. Motor runs smoothly, vibrates mildly, and improves acceleration deceleration dynamic performance.
– PROTECTIVE FUNCTION – Stepper motor driver supports over current protection, over voltage protection. Insulation Class B.
– MAIN PARAMETERS – Motor has 12N.m holding torque, continuous current 6A. Shaft Length: 3.8cm(1.5″), Shaft Width: 1.5cm(0.59″). DC Resistance(±10%): 0.8 , Phase Inductance(±20%): 6mH, Insulation Resistance: 100MOhm(500VDC).
– HIGH SPEED RESPONSE – Applied new control technology and vector control technology to prevent out-of-control and ensure product accuracy. Especially for short-distance, short-time, fast start-stop and zero-speed stable stop.
– VARIOUS APPLICATION – Durable material frame for long life using with desktop CNC routers, small CNC mills, laser cutters/engravers, dental mills, electronic assembly &inspection equipments, labeling equipments…
