VEVORbrand Dividing Head BS-0 5Inch 3 Jaw Chuck Dividing Head Set Precision Semi Universal Dividing Head for Milling Machine Rotary Table Tailstock Milling Set

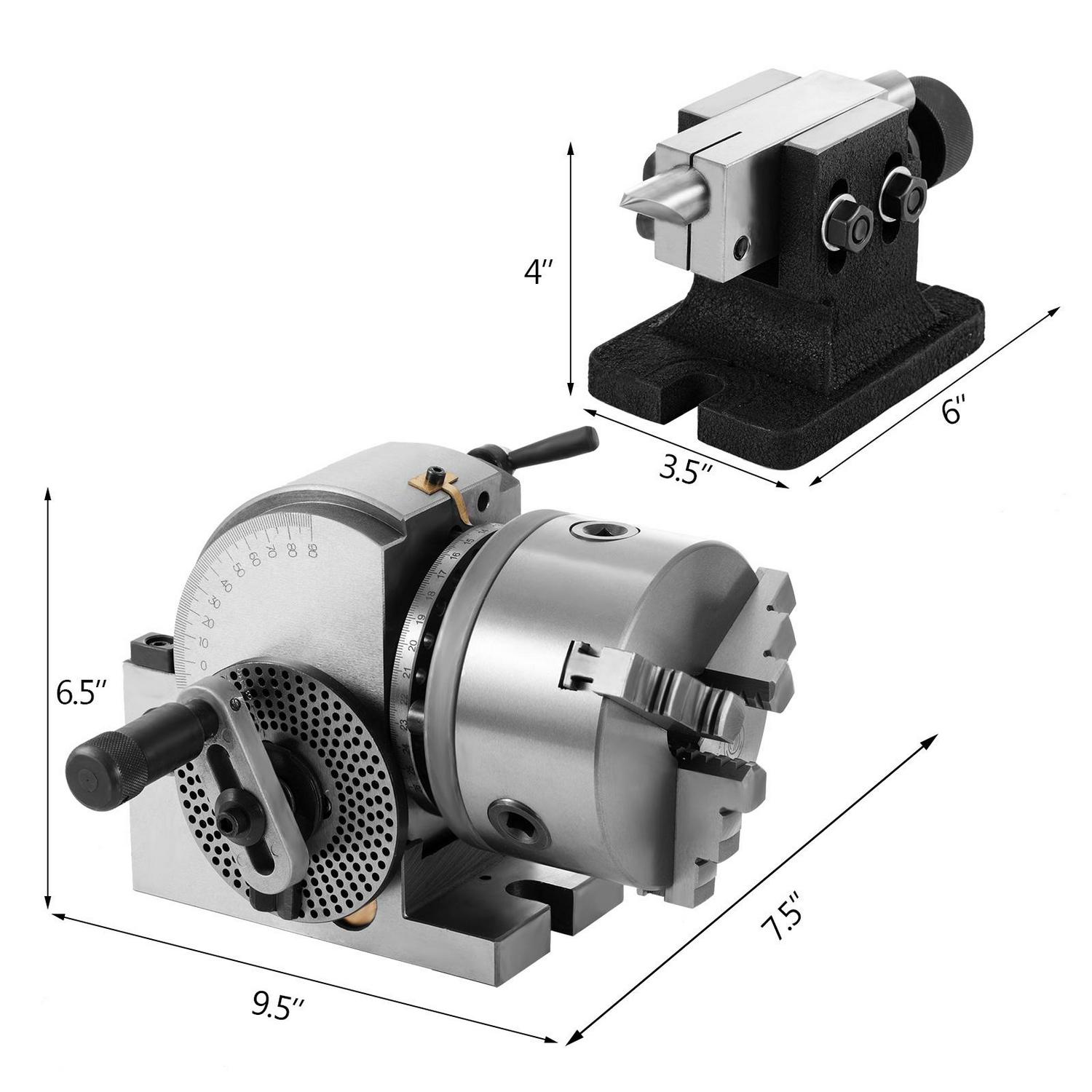

- Assembled Product Dimensions (L x W x H): 9.50 x 7.50 x 6.50 Inches
Brand Introduction
VEVORbrand is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVORbrand is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVORbrand has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVORbrand
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service
Product Description
BS-0 Precision Dividing Head
The indexing head doesn’t only look great, but allow you to do more with your milling machine: measuring specific angles and dividing a circle into equidistant arcs. It comes with 3 interchangeable indexing plates and a tailstock to ensure more precise and stable work. It will be your perfect assistant to machine the flutes of a milling cutter, cut the teeth of a gear, mill curved slots, or drill a bolt hole circle around the circumference of a part.

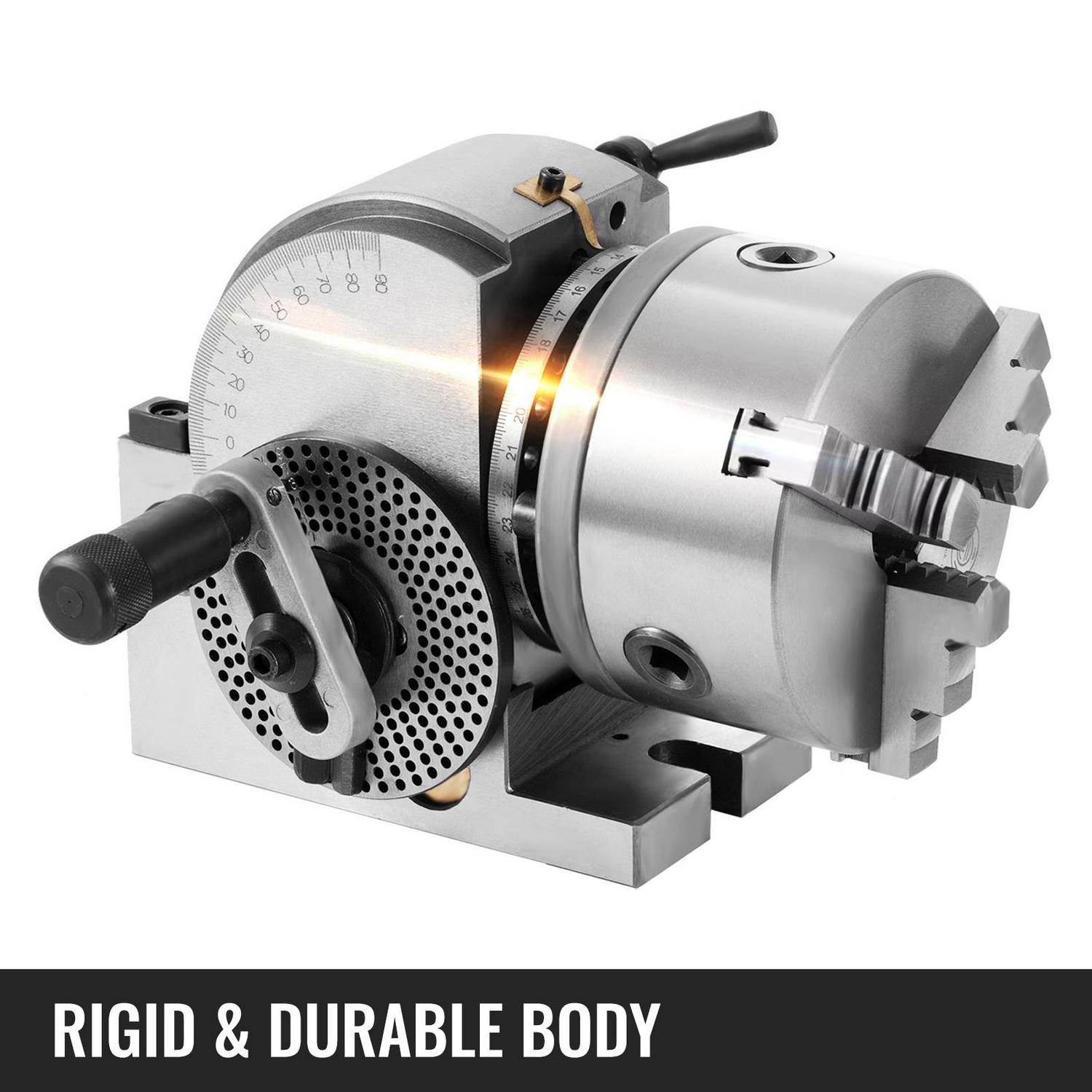

Rigid & Durable Body
The indexing head features a long service life due to its rigid quality. It is designed with a mirror finish that resists wear and tear and looks low-profile.

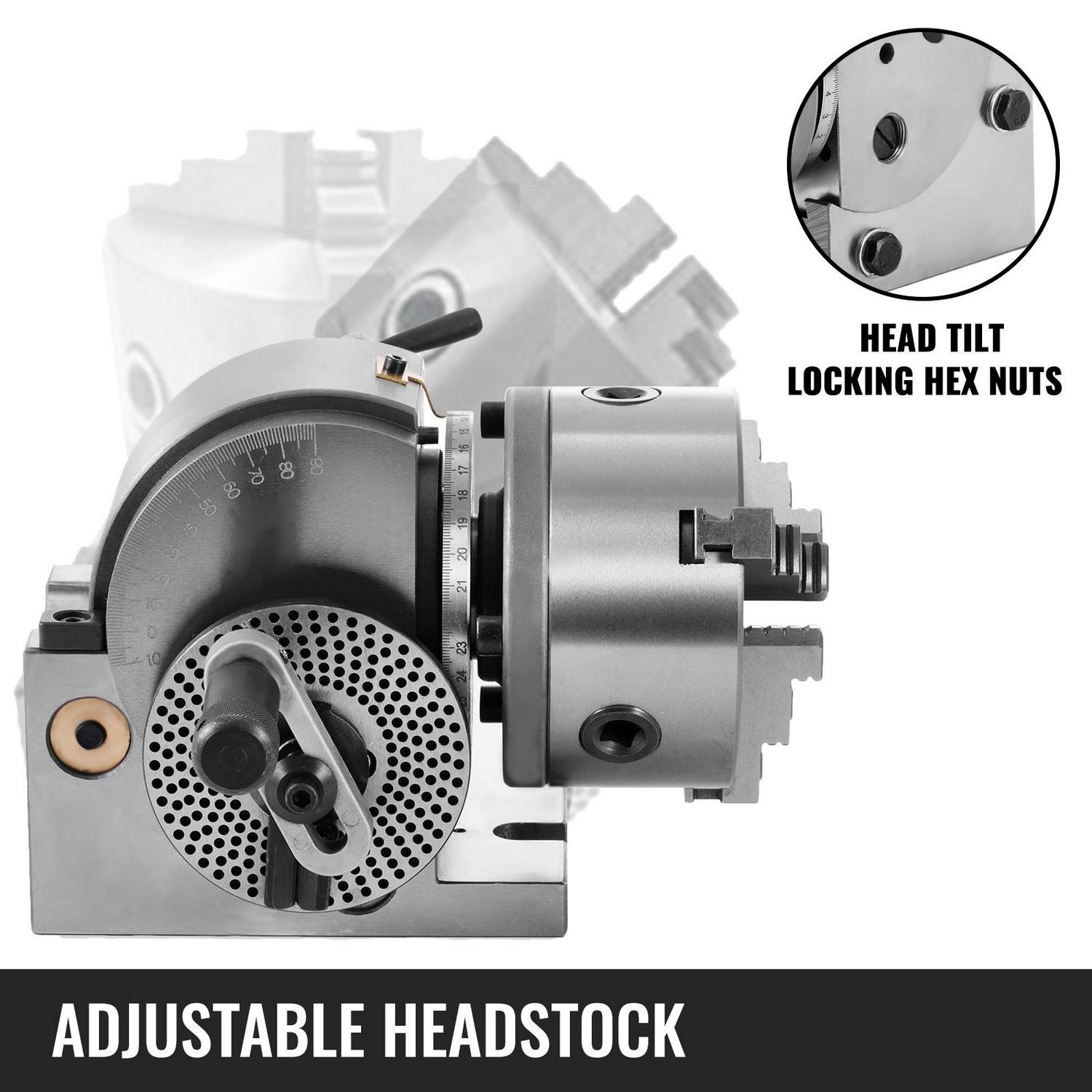

Adjustable Headstock
The dividing head is enabled to tilt from 10° below horizontal to 90° vertical. And that will be convenient if you want to cut the part from a certain angle.

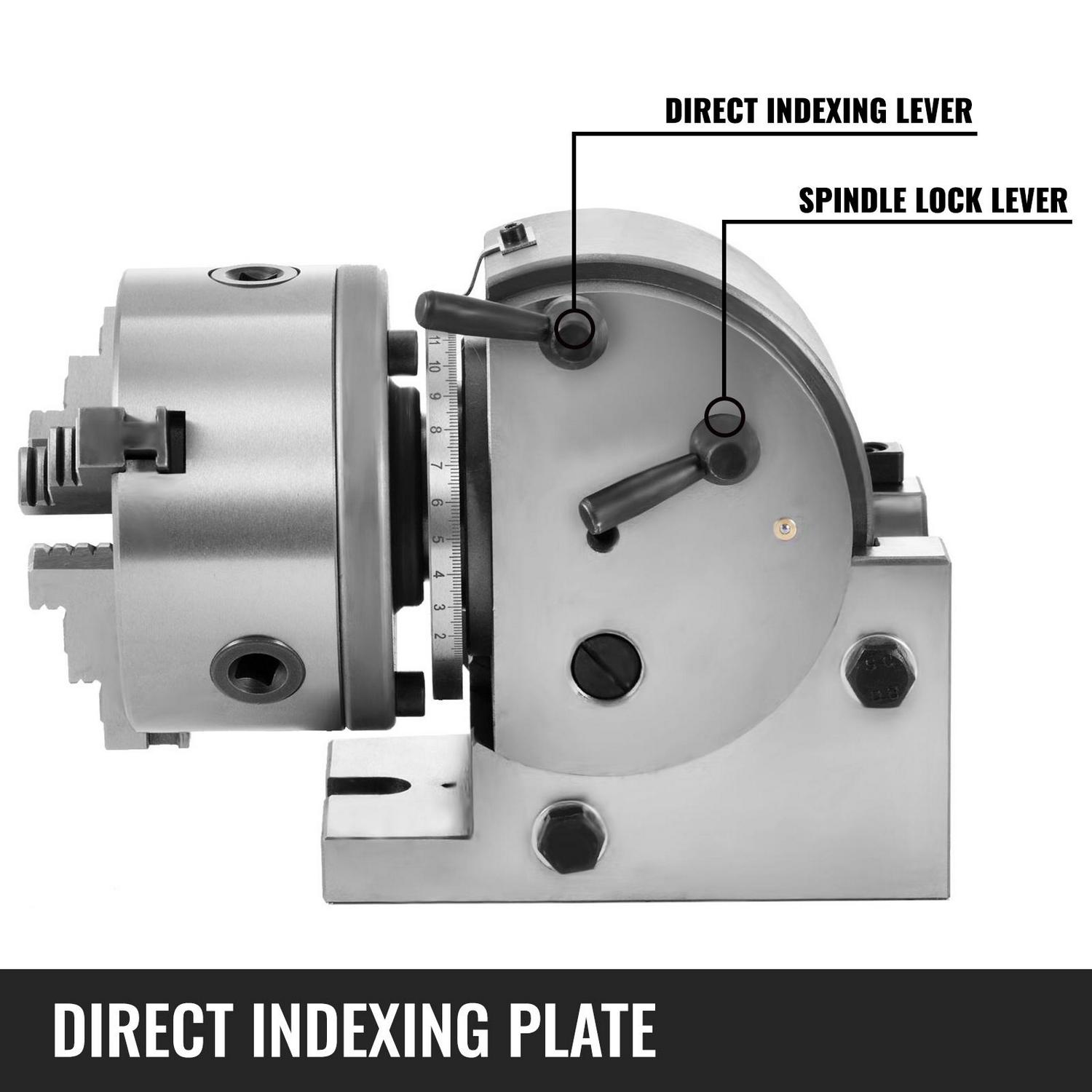

Direct Indexing Plate
By turning the 1st level that extrudes the pin, the pin goes into the plate and you can divide the full circle into 2, 3, 4, 6, 8, 12, or 24 divisions. The other level prevents the spindle from vibrating during machining.

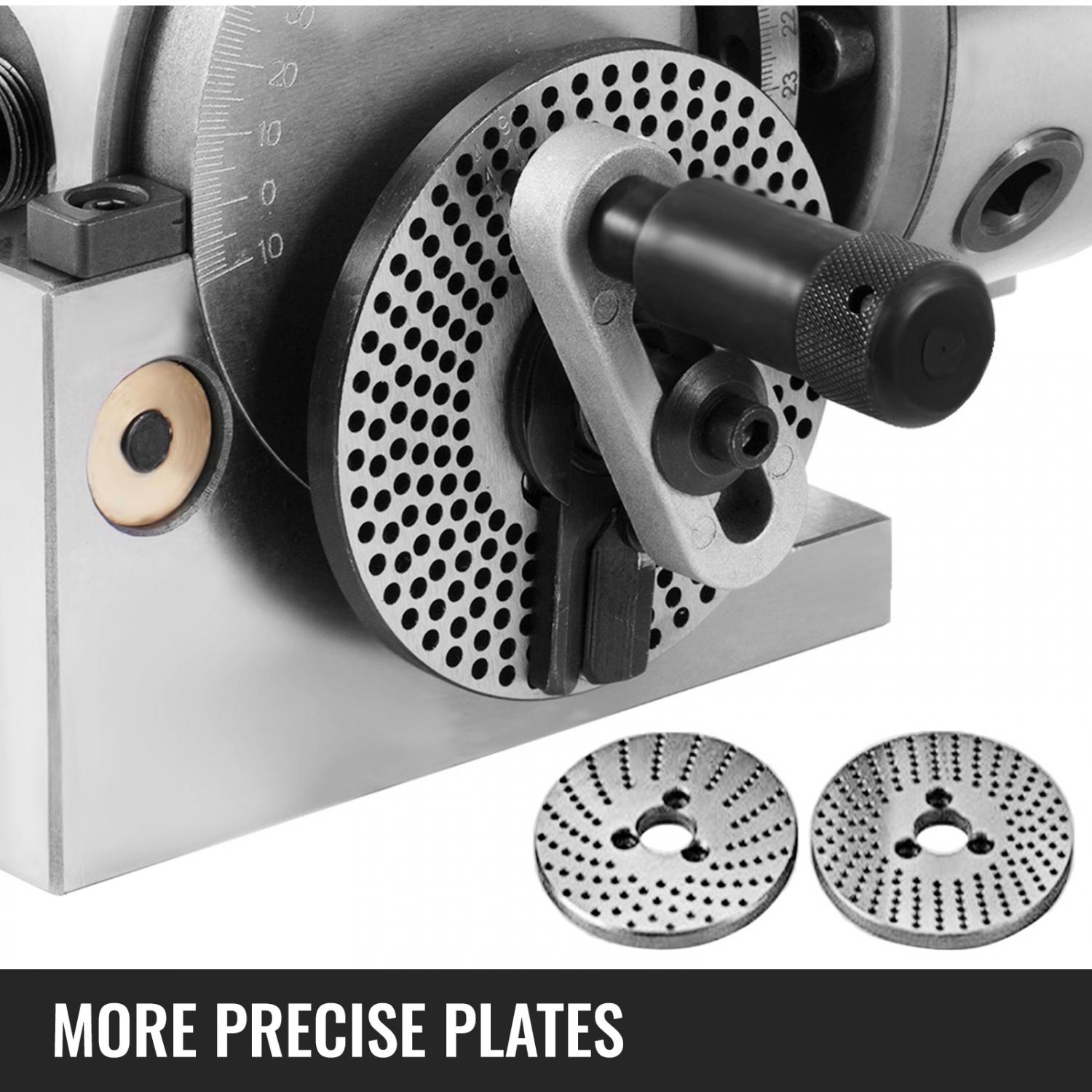

More Precise Plates
The high precision performance of the indexing head is achieved with indirect indexing plates A, B, and C. All divisions 2-50 can be done, but some from 51 to 380 cannot be obtained. Check the manual before setting.

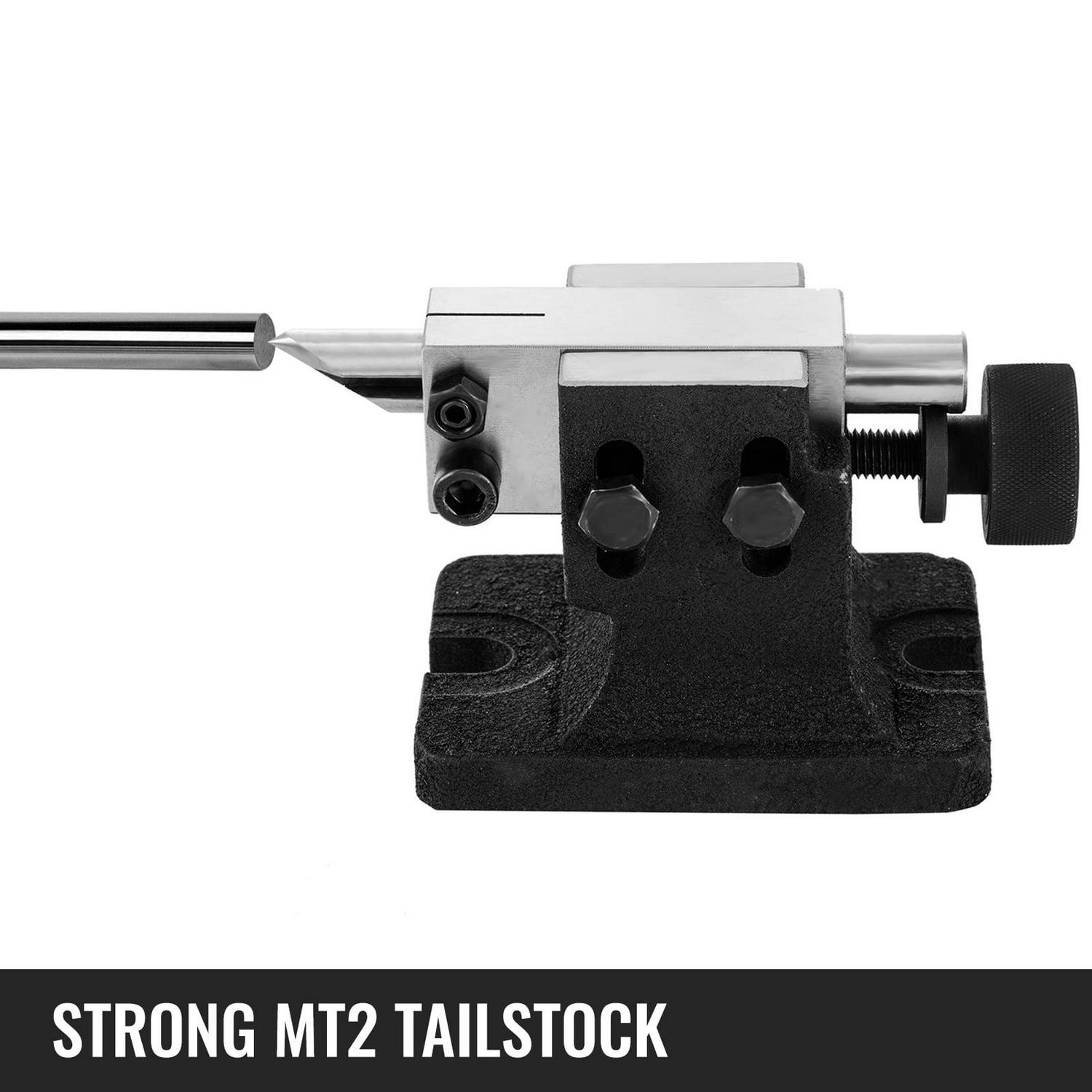

Strong MT2 Tailstock
The MT2 tailstock gives strong support to the workpiece being machined. It is particularly useful when the workpiece is relatively long and slender.
Wide Application
The rotary indexer is used on the tables of milling machines and other machine tools including drill presses, grinders, and boring machines.
Specifications
Swing: 6-1/2″
Center Height: 3-15/16″
Headstock Taper: MT2
Weight: 23 kg (50.7 lbs)
Package Dimensions: 410*235*205 mm (16*9*8 in)

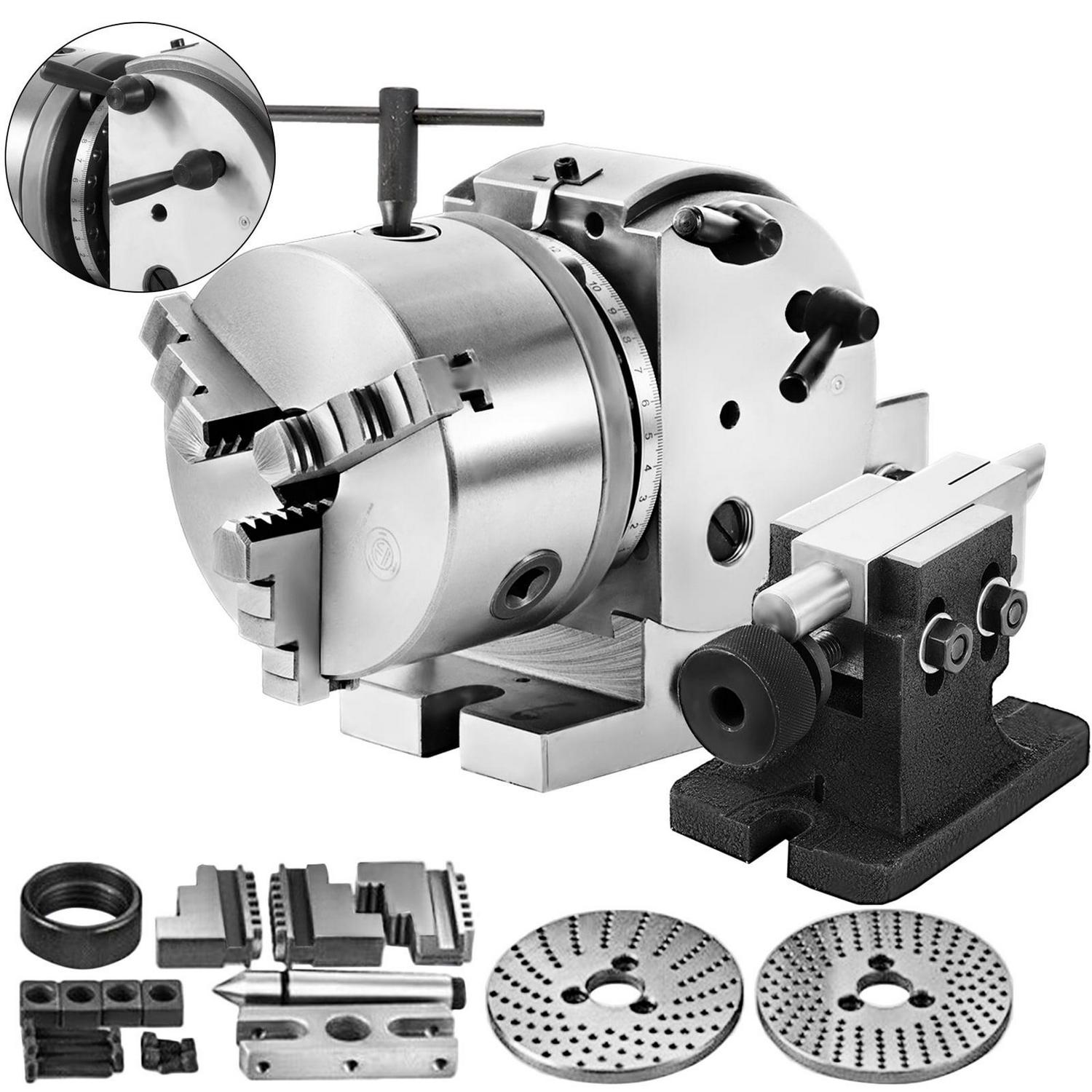

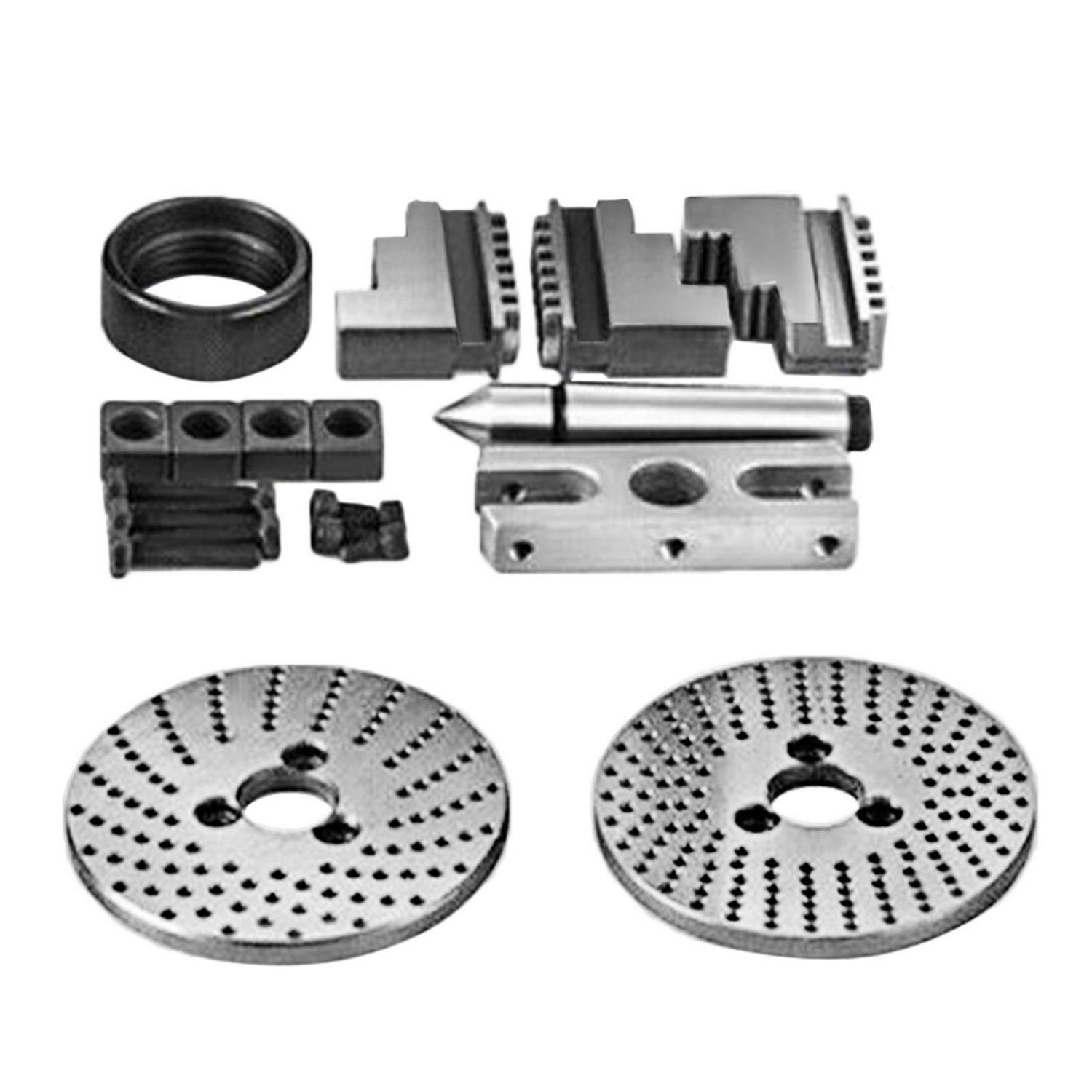

Package Content
1 X Dividing Head
3 X Dividing Plates
1 X Tailstock
1 X 125 mm 3-Jaw Chuck
