VEVORbrand Electric Brushless DC Motor,48V 2000W Brushless Electric Motor,4300 RPM High Speed Motor,w/ 34A Controller and Throttle Grip for Go Kart ATV Electric Scooter Motorcycle Mid Drive Motor
- Assembled Product Weight: 10 lb
- Brand: VEVOR
- Features: Compact
- Manufacturer: VEVORbrand
- Manufacturer Part Number: ZLDJWSD2K48V102SN
- Assembled Product Dimensions (L x W x H): 6.70 x 4.20 x 4.20 Inches
Brand Introduction
VEVORbrand is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees,VEVORbrand is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVORbrand has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVORbrand
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service
Product Description

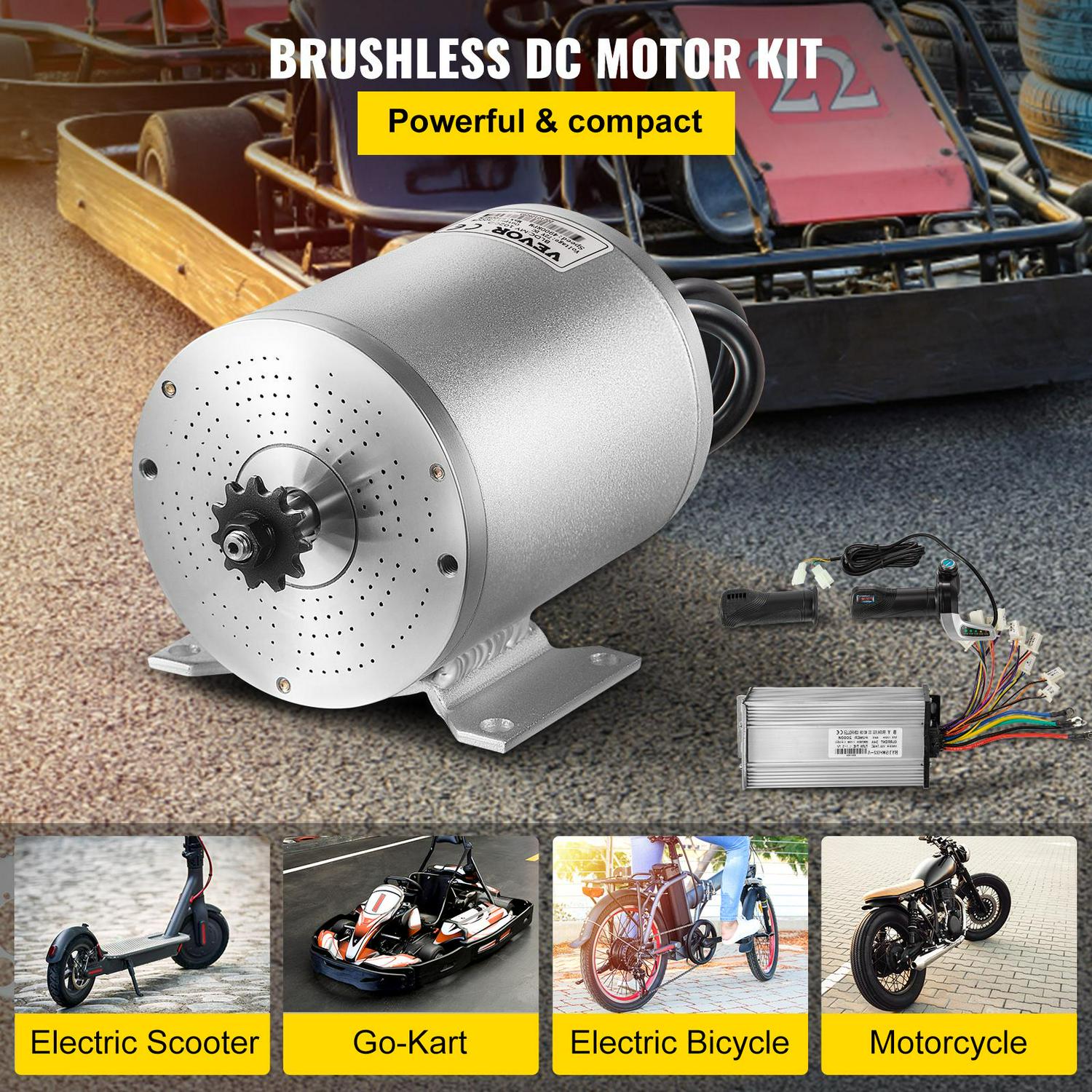

48V 2000W 4300RPM Brushless DC Motor Kit
This brushless electric motor is built with a 100% copper core for low noise operation and high working efficiency. It features an aluminum alloy shell and complete accessories kit to help you fix the motor and making a safe operation. It is ideal for go karts, Electric Scooters, E-bike, ATV, motorized bicycle, etc.

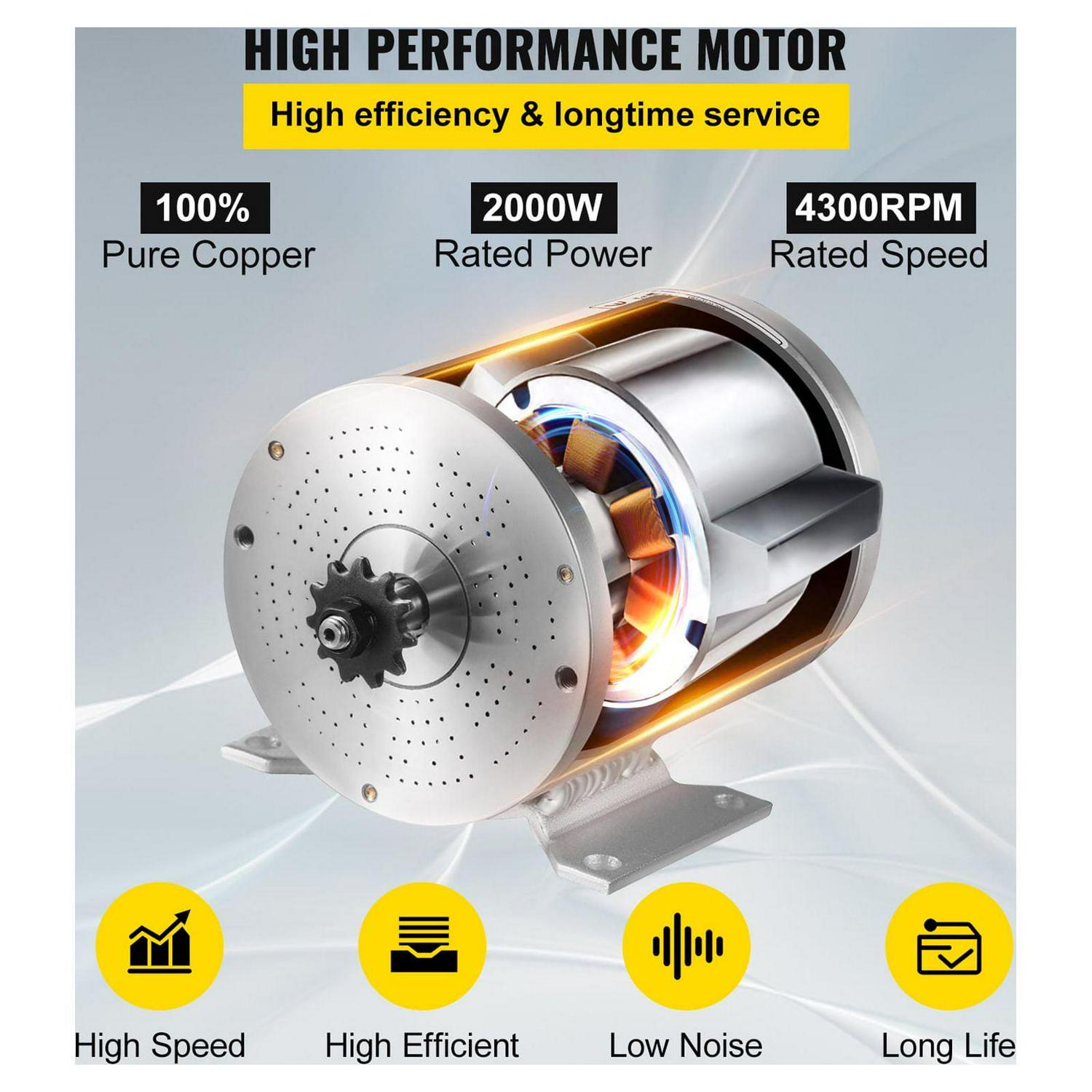

Pure Copper Coils
The motor for the pool pump features a 100% pure copper core for high conductivity, high-temperature resistance, low noise, and saves energy for a long time.

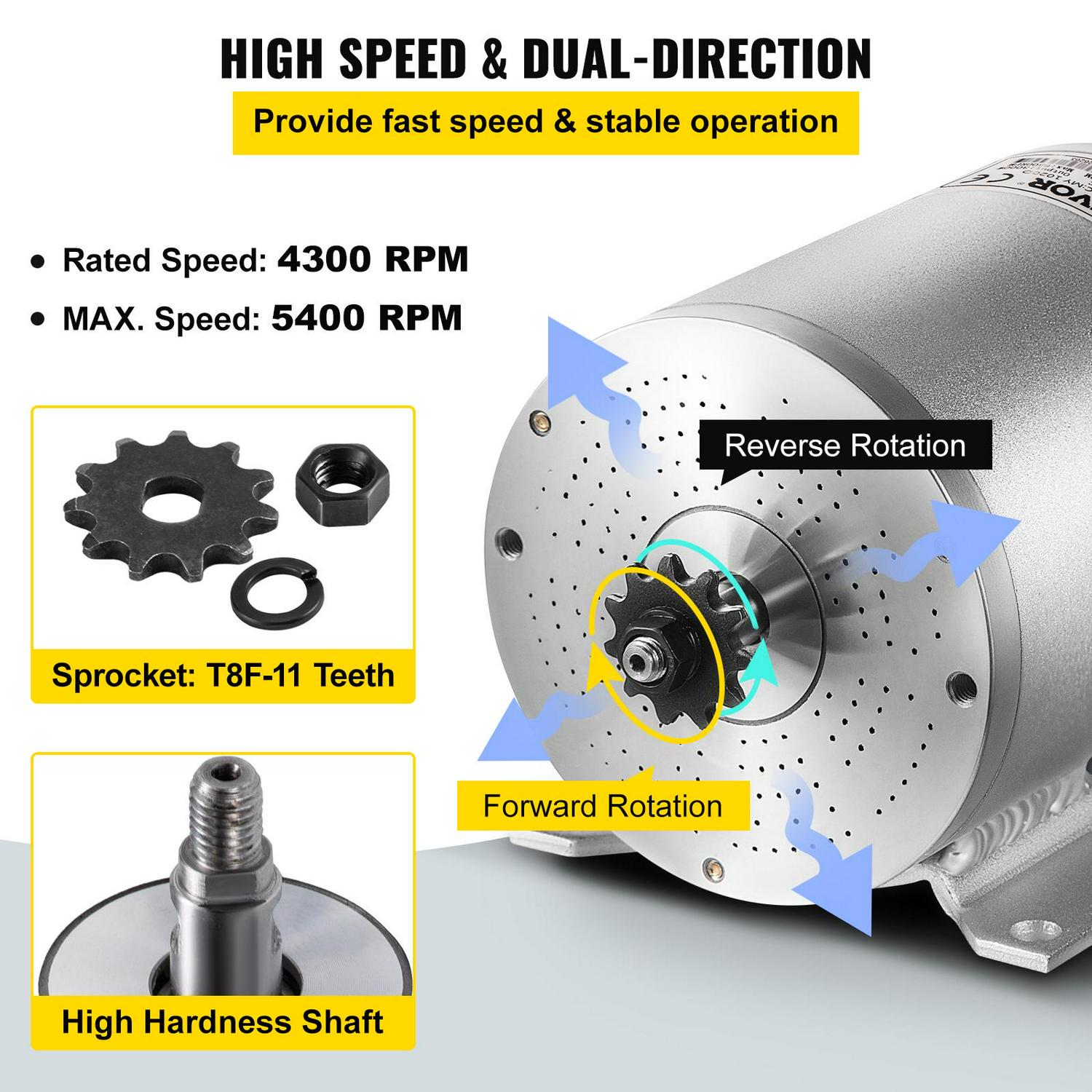

4300 RPM High Speed
This brushless electric motor kit runs at 2000W, the rated speed is 4300RPM, and the maximum speed is 5400 RPM. Thus, it is able to provide fast speed and powerful motion for your machines.
Durable Aluminum Alloy Shell
The electric motor brushless is made of aluminum alloy material, which is able to resist oxidation, compression, vibration, and deformation. In addition, it is lightweight enough to carry and process with ease.
Dual-Direction Design
You can switch the rotation in either the clockwise or counterclockwise direction by reversing the go kart electric motor’s power wires, which is easy to adjust.

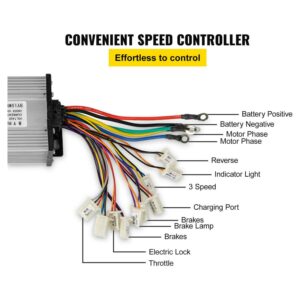

Convenient Speed Control
Speed controller allows you to control the speed effortlessly. The complete set of a brushless motor, speed controller, throttle grip, and other necessary components facilitate you to operate the machine.
Specifications
Model: MY1020D
Input Voltage: 48V DC
Output Power: 2000W
Rated Current: 34A
Rated Speed: 4300 RPM
Maximum Speed: 5400 RPM
Sprocket: T8F-11 Teeth
Horsepower: 2.71 HP
Rated Torque: 566.45 oz.in / 4.0 N.m
Maximum Current: 41A
No-load Current: 5.0A
Peak Efficiency: 82%
Working Temperature:
Motor Net Weight: 9.7 lbs / 4.4 kg

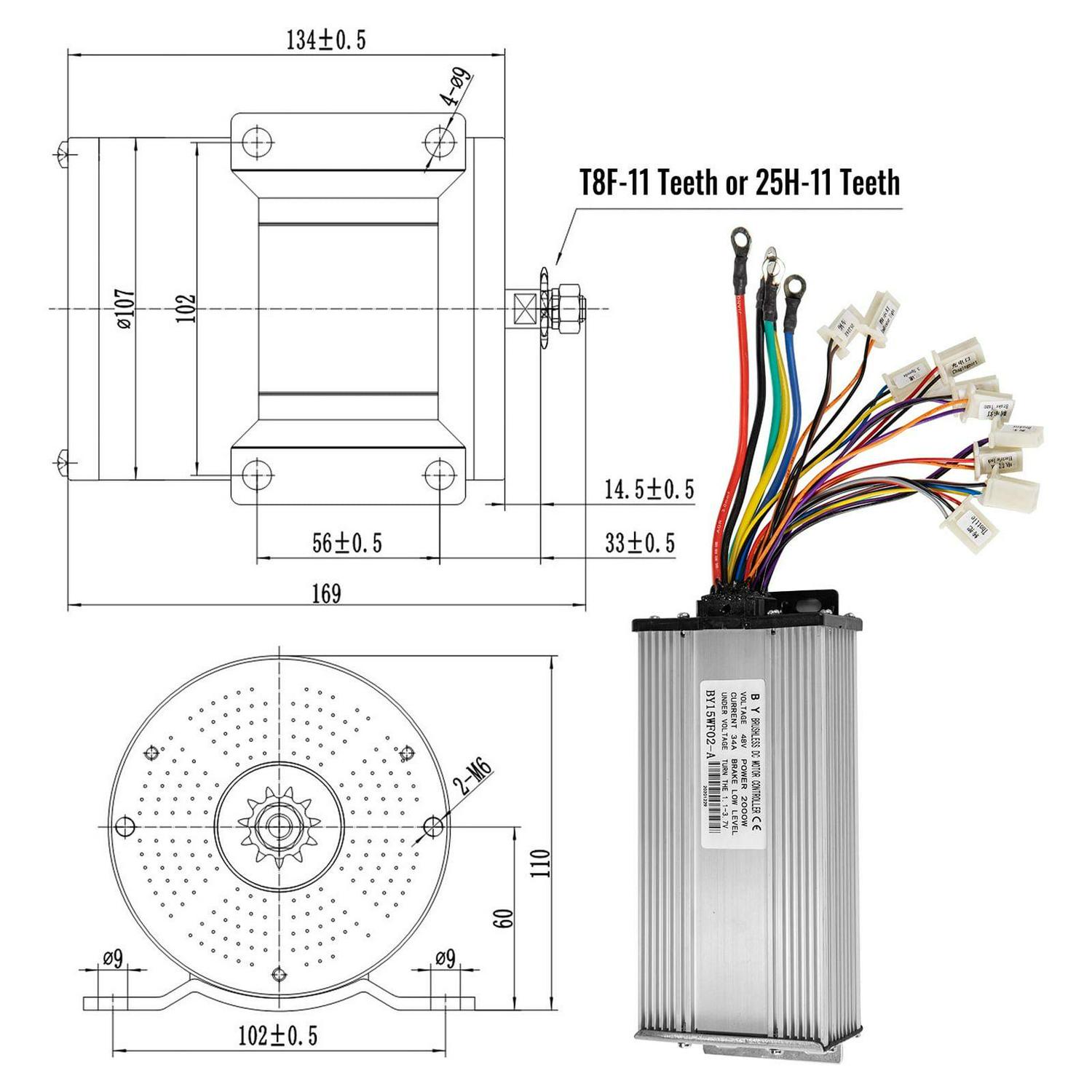

Motor Mount Bracket Size: 2.2 x 4” / 56 × 102 mm
Motor Dimensions(L x W x H): 6.7 x 4.2 x 4.3” / 169 × 107 × 110 mm
Controller Model: BY15WF02-A
Controller Current: 34A
Controller Phase Degree: 120°
Controller Conversion Efficiency: 85%
Controller Under Voltage Protection Voltage: 41V

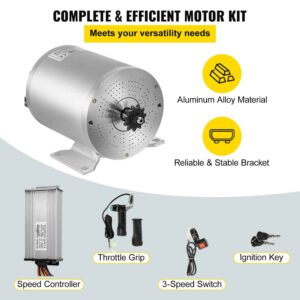

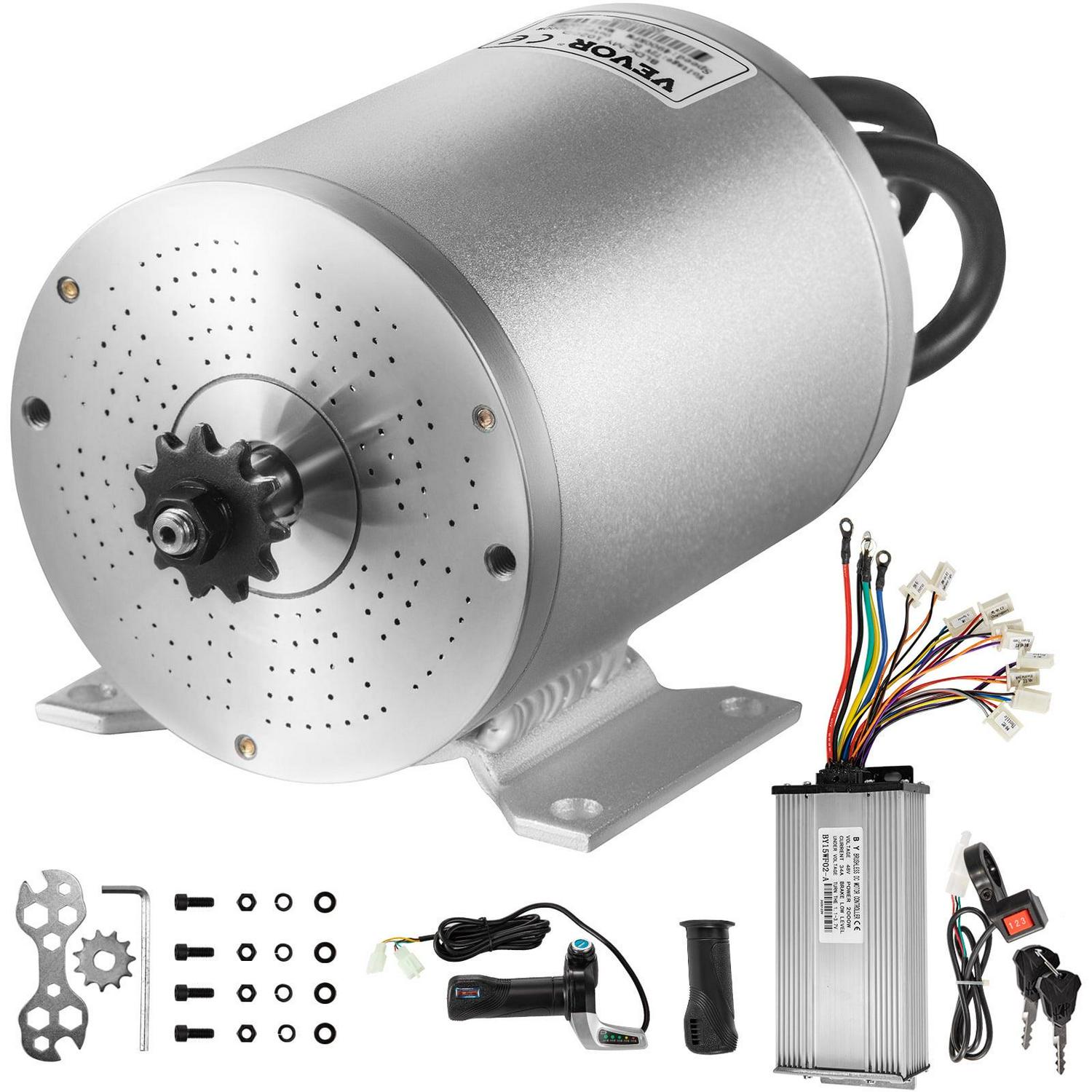

Package Content
1 x 48V 2000W Motor
1 x Controller
1 x LCD Twist Throttle Grip
1 x 3-Speed Switch
1 x Set of Mounting Screws
– FUNDAMENTAL PARAMETERS – This brushless electric motor is powerful and efficient. Model: MY1020D, Input Voltage: 48V DC, Output Power: 2000W, Rated Current: 34A, Rated Speed: 4300 RPM, Maximum Speed: 5400 RPM, Sprocket: T8F-11 Teeth, Horsepower: 2.71 HP, Rated Torque: 566.45 oz.in / 4.0 N.m, Maximum Current: 41A, No-load Current: 5.0A, Peak Efficiency: 82%, Working Temperature:
– 2000W BRUSHLESS MOTOR – The brushless dc motor adopts a 100% copper core for low noise operation and excellent speed regulating performance. The high-precision rotor is made of high tech, finish for water resistance and high working efficiency.
– STURDY ALUMINUM CONSTRUCTION – The electric go kart motor features an aluminum alloy shell to resist heat, cold, and corrosion, which is not easy to rust. This dc electric motor is a forward and backward rotation motor so that you can switch the rotation.
– SPEED CONTROLLER INCLUDED – This brushless go kart motor comes with a controller to provide speed control in the desirable ranger, speed adjustment way: Potentiometer. Model: BY15WF02-A, Current: 34A, Phase Degree: 120°, Conversion Efficiency: 85%, Under Voltage Protection Voltage: 41V.
– MULTIPLE APPLICATION – Brushless motor is much better than the brushed motor due to its high efficiency, power frugal, low noise, long lifespan, stable operation. It is suitable for go karts, scooters, e-bike, ATV, motorized bicycle, moped, mini bikes, pocket bikes, etc.
