VEVORbrand Steel Electrical Box 24″x 16″x 10″ ,Carbon Steel Hinged Junction Box, IP65 Weatherproof Metal Box Wall-Mounted Electronic Equipment Enclosure Box with Mounting Plat

Product Description

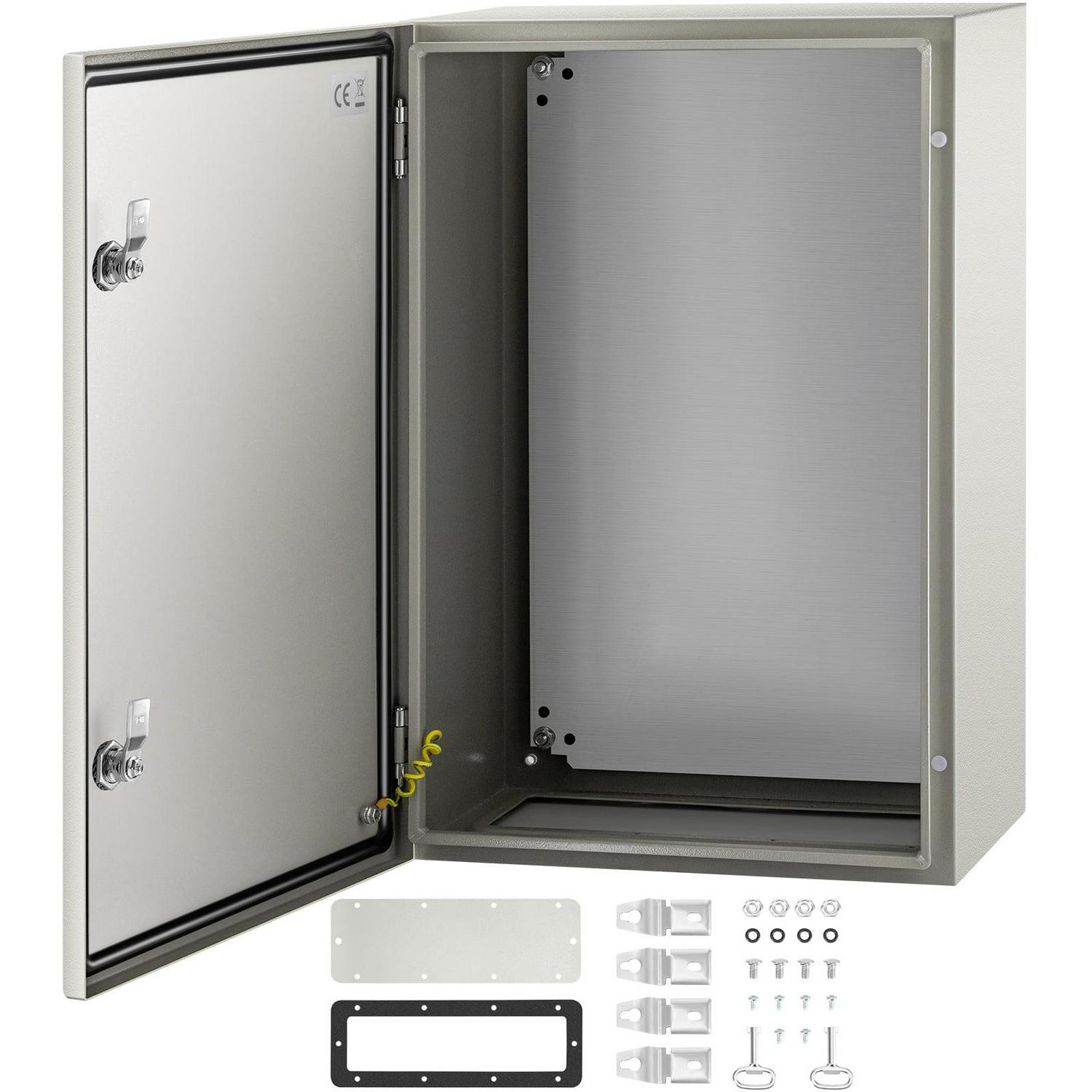

24” x 16” x 10” Carbon Steel Electrical Enclosure Box
The electrical box comprises premium carbon steel, with a sophisticated lock core, high-strength hinge, sealing rubber strip, and IP65 protection level to well-protect the internal electrical safety in harsh environments. It is widely used for indoor and outdoor applications to protect circuits from liquids and corrosion, such as electricity, construction, hotel, and other industries.

Premium Carbon Steel
The electrical box comprises 0.059”/1.5 mm carbon steel with high toughness, pressure resistance, and rust resistance. The enclosure is polished smoothly and corrosion-resistant with the epoxy polyester powder coating.
Thickened Dust Lock
The inner lock core uses metal to prevent damage caused by excessive force. The durable and reliable cabinet door lock is applied for a convenient opening with longer service life.
High Strength Hinge
The electrical box adopts reinforced hinges, which will not be damaged if it is repeatedly opened and closed. The copper core spring can relieve the pressure when opening and closing the box door.
Rubber Sealing Strip
The sealing rubber strip is close to the box door with strong sealing performance to preventing dust and raindrops from dripping into the box and causing electricity leakage.
IP 65 & Protective
The IP65 waterproof design can effectively block splashing water, rain, dust, snow, oil into the electrical enclosure and causing damage. It can keep your equipment well-protected in harsh environments.
Effortless to Install
2MM detachable galvanized back plate can be removed and installed simply with high hardness and oxidation resistance. Four mounting holes on the back are convenient for wall-mounting.

Specifications

Model: SPT
Color: Gray (RAL7032)
Material: 0.059”/1.5 mm Carbon Steel
Coating: Epoxy Polyester Powder Coating
Mounting Plate: 0.079”/2 mm Detachable Galvanized Back Plate
IP Rating: IP65
Connection Type: Hinged
Feature: Lockable, Waterproof

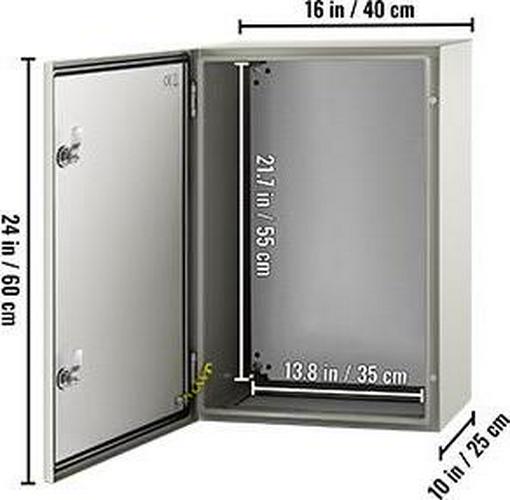

Dimension(W x H x D): 24 x 16 x 10”/600 x 400 x 250 mm
Net Weight: 37.48 lbs/17 kg
Certification: CE Certification

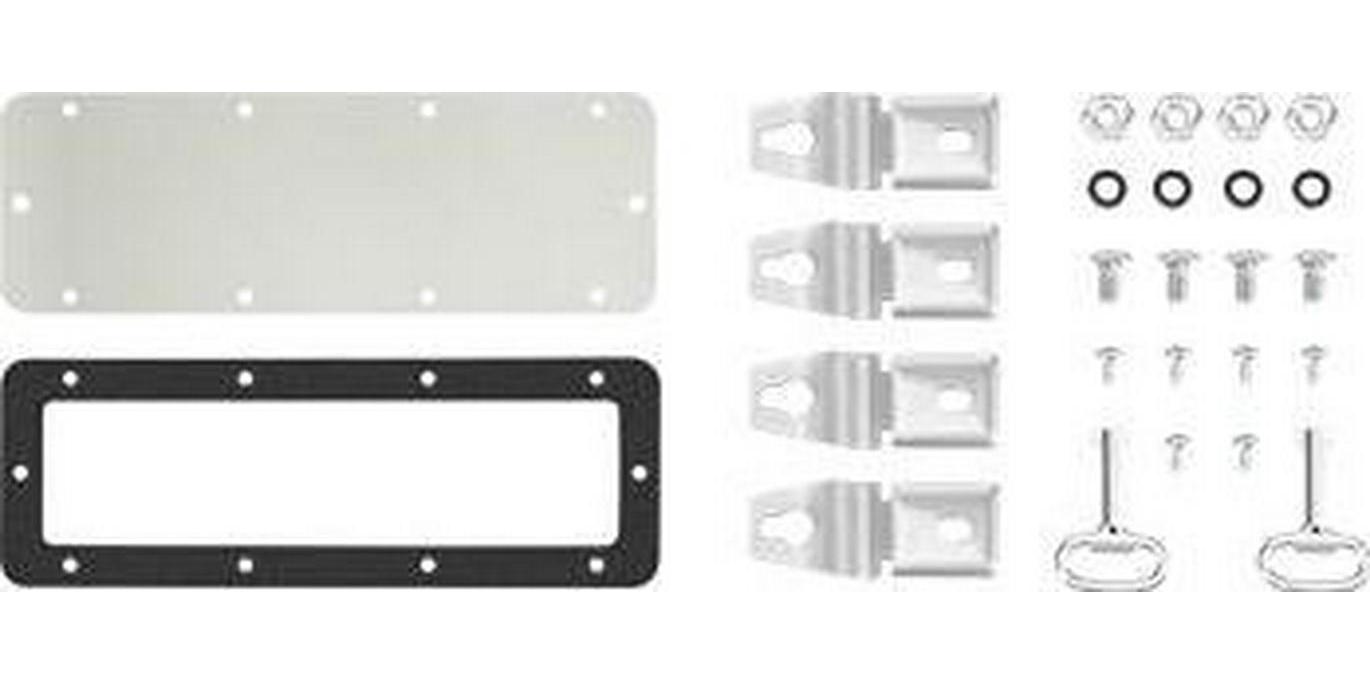

PackageContent

1 x Electrical Box
2 x Keys
1 x Mounting Plate(The mounting plate has been assembled in the box)
1 x Set of Wall Mounting Pendants
1 x Bottom Sealing Plate
– STURDY CONSTRUCTION – The electrical enclosure adopts professional carbon steel made by precise cutting and welding. It has stronger wear resistance and can prevent rain erosion the epoxy polyester powder coating for good mechanical properties and leveling property.
– REINFORCED LOCK & HINGE – The electronic equipment enclosure box features a high-quality lock core with a reliable precision structure that is not easy to fall off. The high-strength hinge is applied to ensure that the box door is not easily damaged or broken by extrusion.
– WATERPROOF SEALING STRIP – The hinged junction box is sealed with rubber strips to prevent rainwater from entering and protecting internal electrical safety. The steel electrical box is built with an IP65 protection class and earthing screw to ensure electrical safety and product safety.

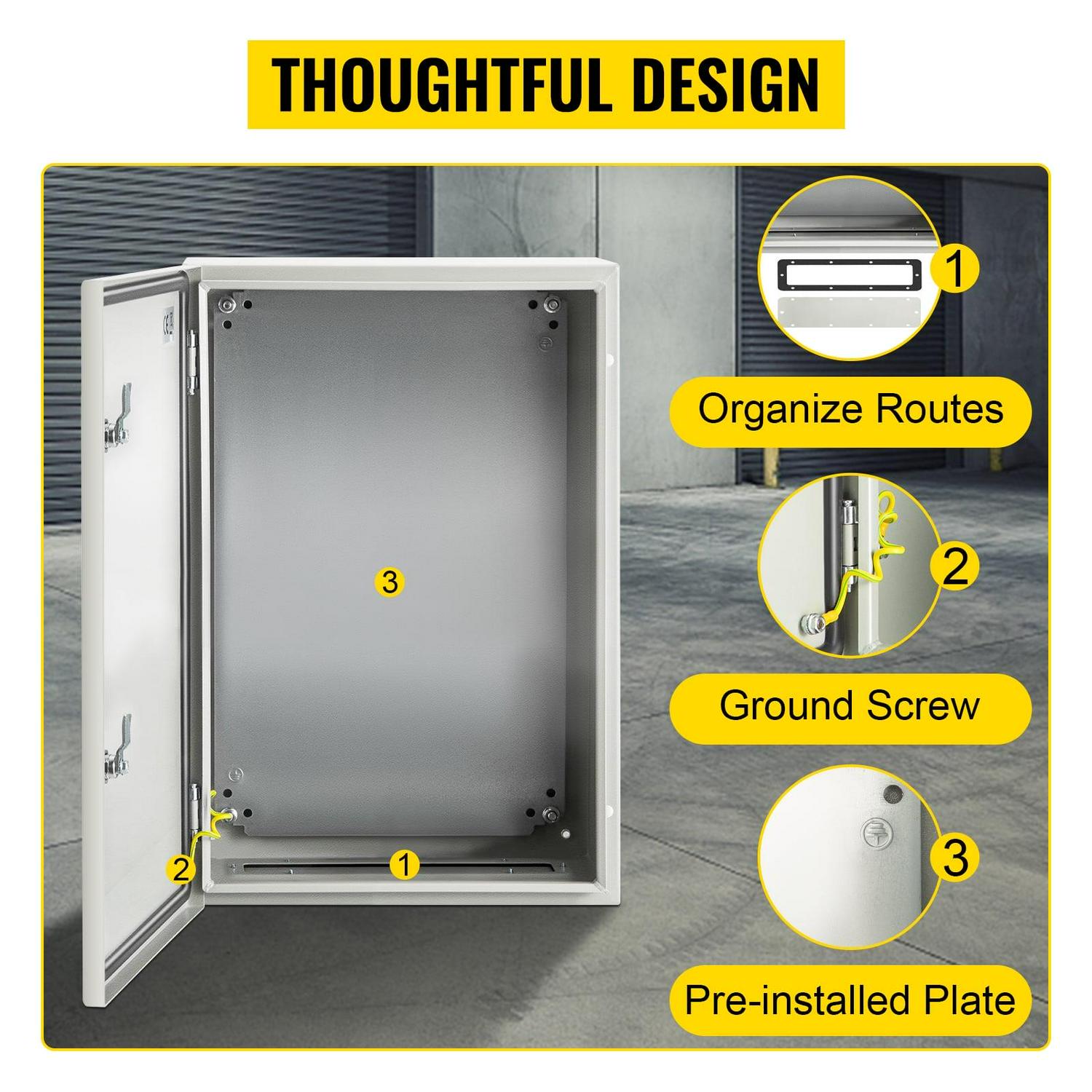

– CONVENIENT INSTALLATION – The metal enclosure box is equipped with a removable galvanized mounting backplate to facilitate installing the electrical components. Complete accessories and four wall mounting holes in the back make it easy to fix the wall’s electrical box.
– EXTENSIVE USE – Steel electrical box is suitable for indoor and outdoor applications to protect circuits and prevent corrosion. It is ideal for industrial equipment and medical devices, such as factories, construction sites, malls, squares, residential areas, courtyards, etc.
