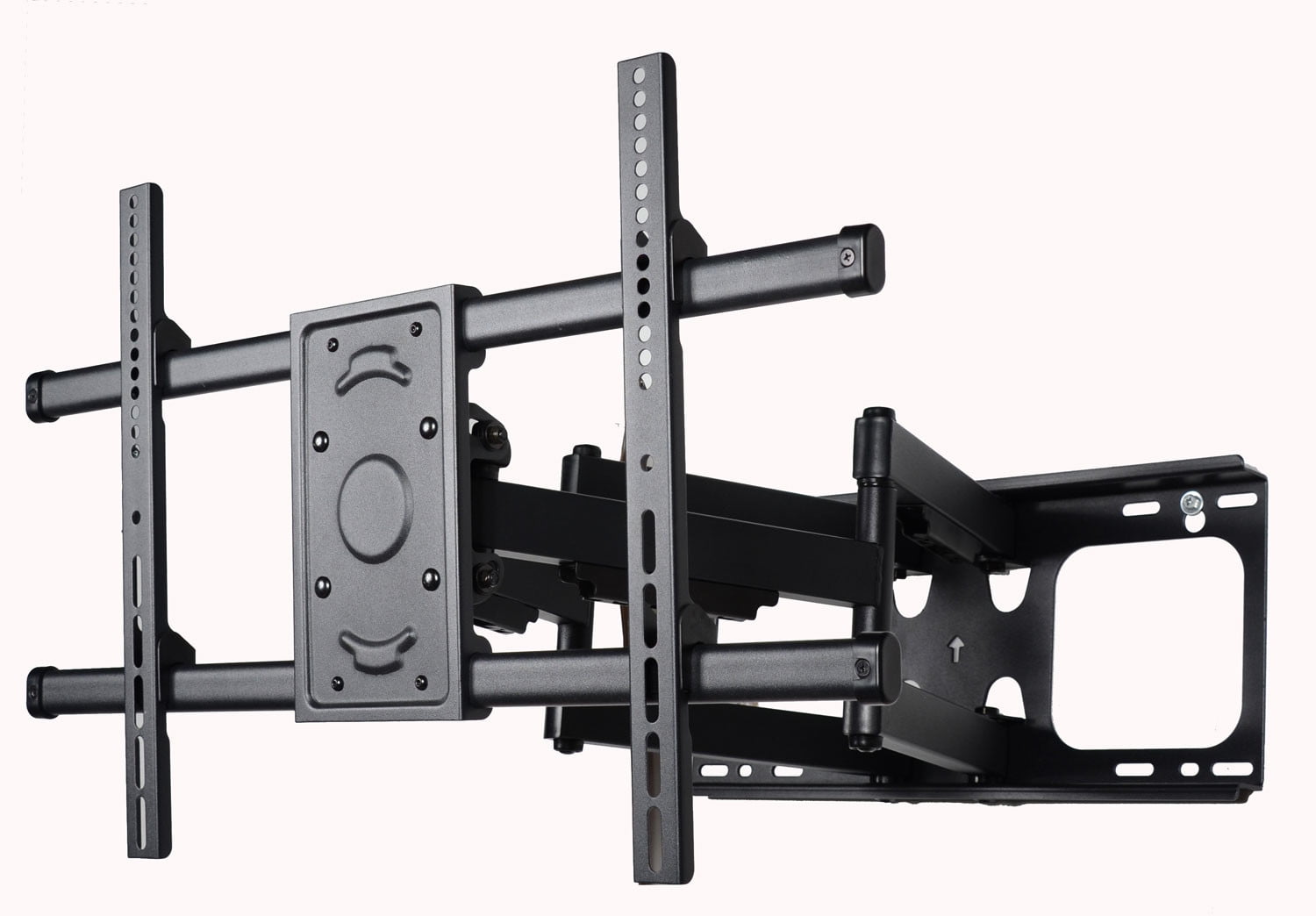

VideoSecu Articulating TV Wall Mount for most 39-70″ LCD LED Plasma HDTV UHD Display Heavy Duty Tilt Dual Arm BCL

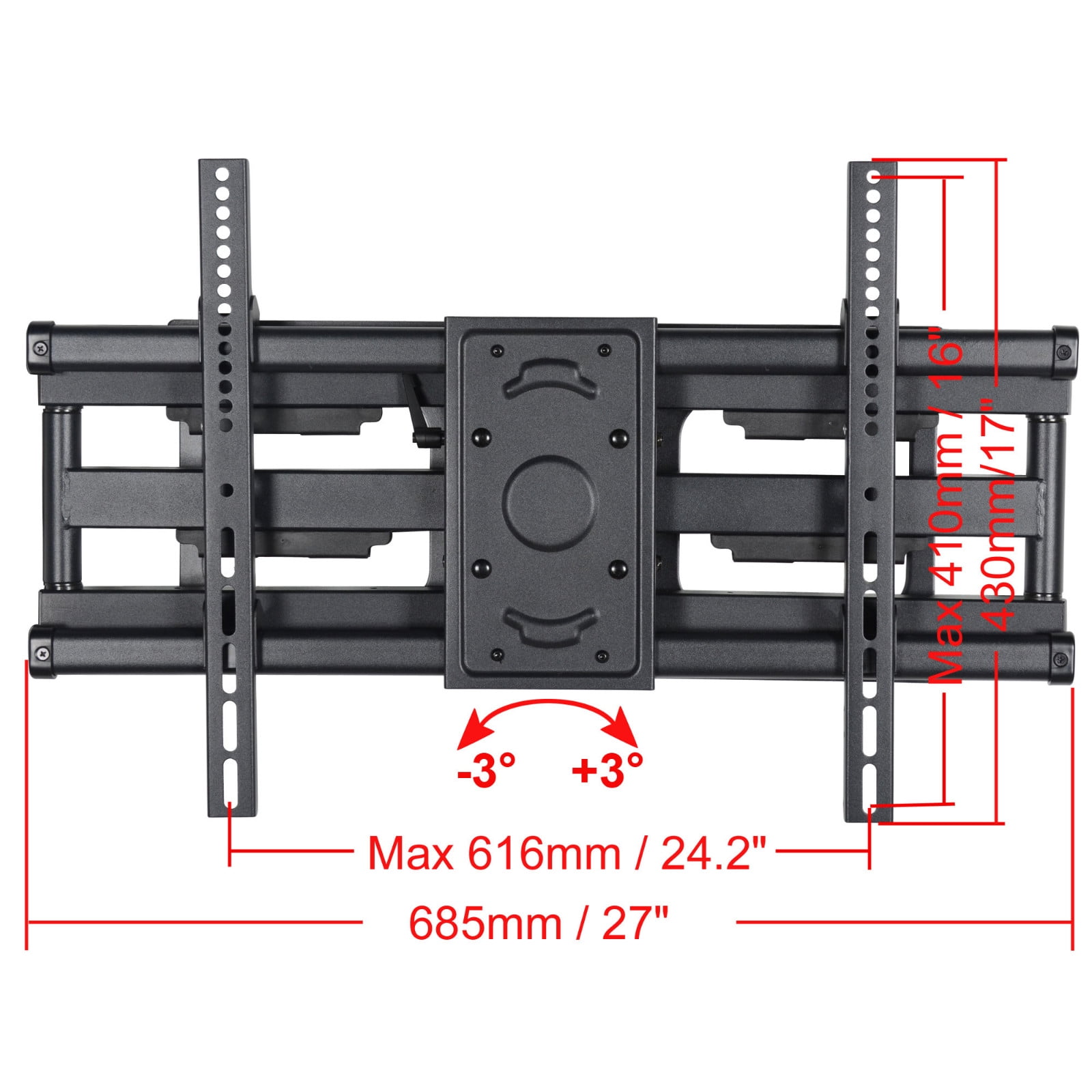

Features: *Premium quality – heavy duty steel construction with durable powder-coated in black finish *Multi-directional adjustment tilt, swivel and extend for perfect viewing angle *Post-installation level adjustment allows the TV to perfectly level *The lock and release design secures the TV into place for additional security and offers convenient installation *The center of the TV can lateral shift on wall plate to middle, left, or right *The rectangle cable management covers on the arm keeps the wire concealed and prevent pinching *Nesting arm design allows display to be folded parallel to wall to save place Specification: *Fits most 40 – 75 inch TV displays, some LED up to 88 inch (Please check VESA and weight) *Fits VESA mounting hole patterns 690×480/ 684×400/ 684×300/ 600×400/ 500×300/ 400×400/ 400×300/ 300×300/ 300×200/ 200×200/ 200x100mm or any hole patterns within 200-690mm wide and 100-480mm high *Loading capacity up to 135lbs/61.2kg *Adjustable tilt 12 degrees forward or 8 degrees backward for perfect viewing angle *Roll +/-5 degrees for level adjustment *Swivel left and right for comfortable view angle in different positions *Extension & Depth: the mount pulls out up to 24 inch from the wall or to be folded parallel to the wall less than 2.77 inch to save space *Fits 25 inch apart wood studs *Wall plate dimension: 670x312mm (26.4″x12.3″) *Warning: This mount does not fit 70 ” or above TVs which were manufactured before 2013 Package contents: TV wall mount, HDMI cable, standard mounting hardware and user manual Please check whether the mount is suitable for your TV: Please check the weight of your TV; it must be less than 135 lbs. Look at the back of your TV, find the mounting holes and measure width and height, if the width is within 27.2″, height is within 18.9 “, then the mount will work perfect for you.
