VEVOR Air Hydraulic Pump 10000 PSI Air Over Hydraulic Pump 1/2 Gal Reservoir Air Treadle Foot Actuated Hydraulic Pump 3/8″ NPT with 6 FT Hose 2 Connector Single Acting for Car Repair (Blue)

Brand Introduction
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service

Product Description
10,000 PSI Air Hydraulic Foot Pump
This hydraulic foot pump is made of rugged construction parts for long service life. Baked Powder TUFF COAT finish maximizes assembly corrosion resistance and 5ft with 3/8 NPT quick hydraulic coupler with dust cap. This pump is designed to provide hands-free operation for effortlessly pumping and releasing load as needed. It is suitable for heavy machinery rigging and moving, auto repair, oil rigging, machine maintenance, etc.
All Metal Construction
This hydraulic foot pump adopts durable metal material, which is anti-vibration and anti-deformation. All-metal construction is built to handle tough industrial applications and last with fully reliable components.
Foot Control
The hydraulic pump uses the high-strength foot pedal with 3 pedal functions: apply pressure, maintain pressure, and release pressure for easy control and operation that is time-saving and labor-saving.

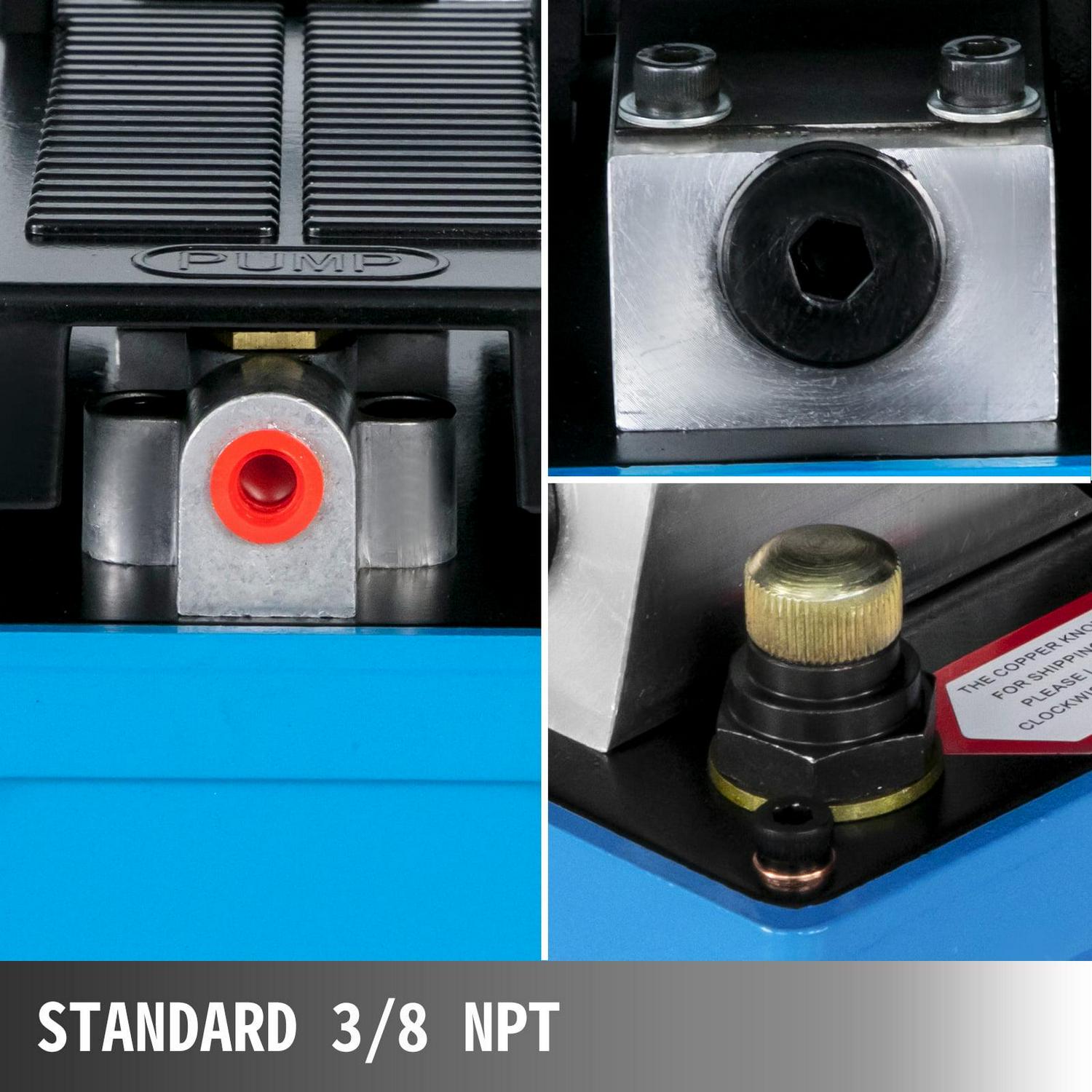

Standard 3/8 NPT
All threads on all components in the set are standard 3/8 NPT with dust cap, which will not leak oil and have abrasion resistance. Longer service life is provided.

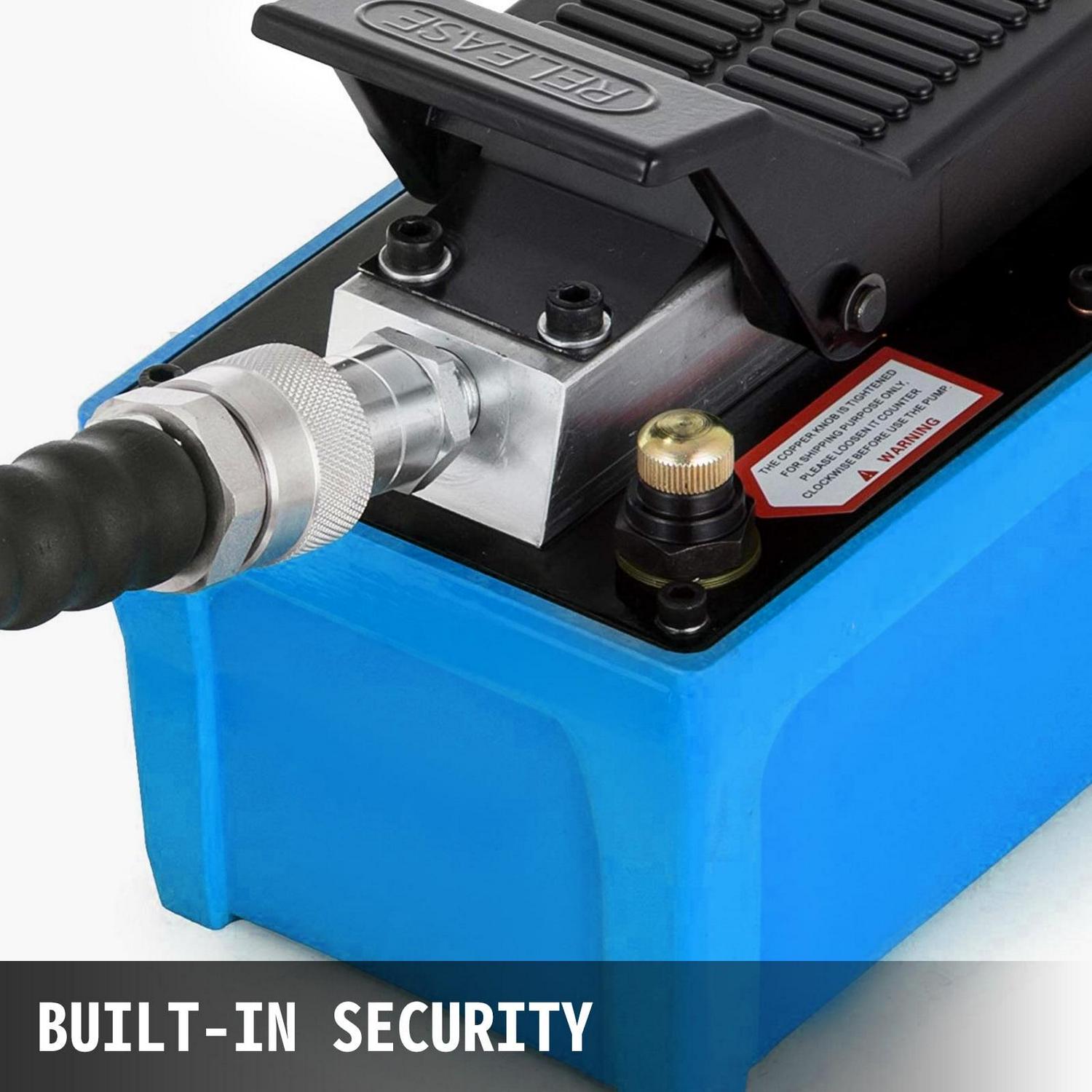

Built-In Security
3/8 NPT oil output safely builds to 10,000 pounds and has a built-in safety overload pump saver.

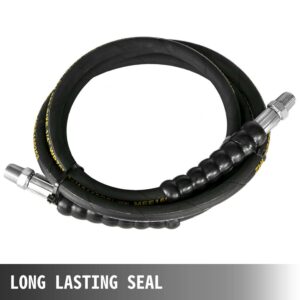

Long Lasting Seal
This hydraulic pump comes with a high-quality oil pipe to resist high pressure and not easy to be broken with the double protection of embedded steel wires and thickened outer layer.

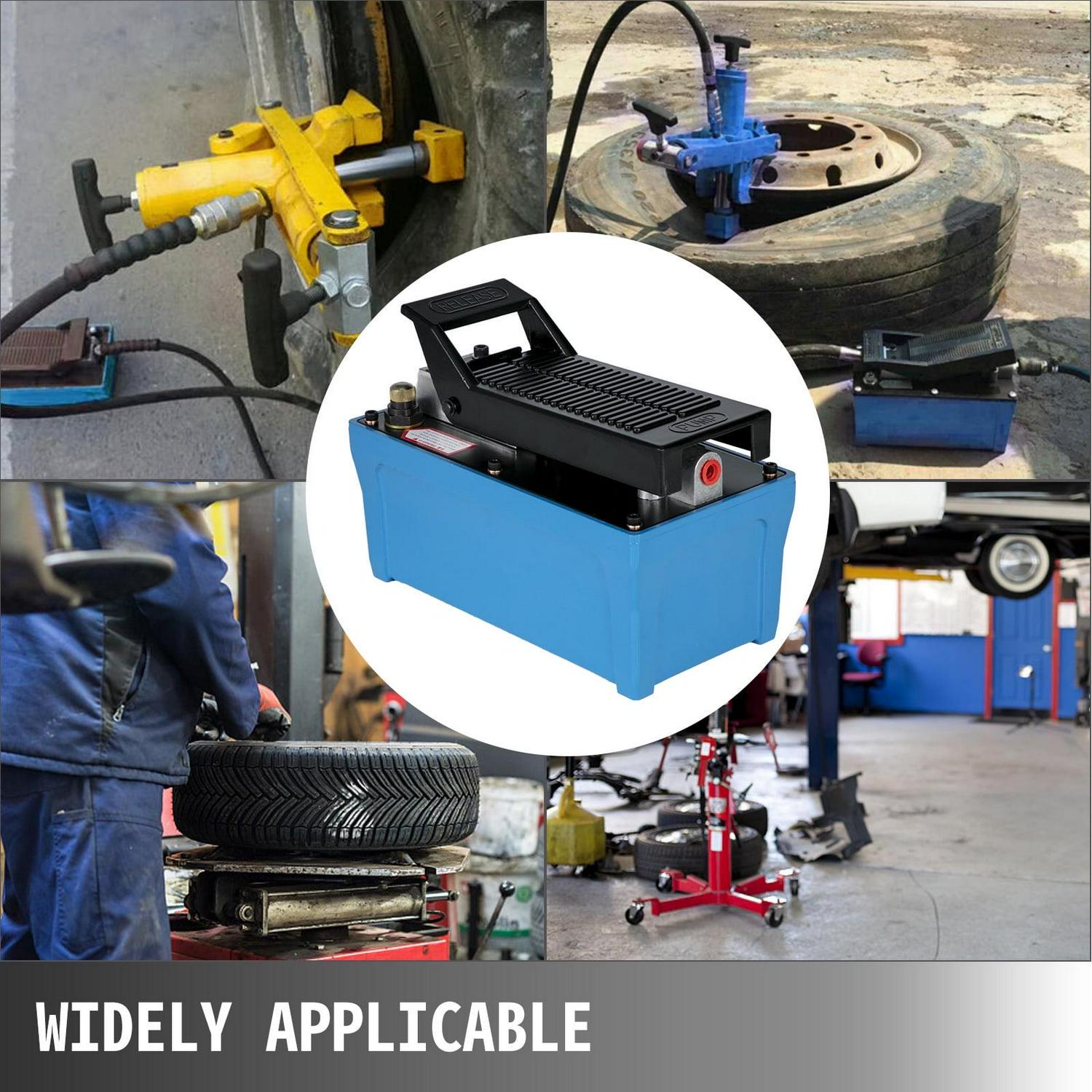

Widely Applicable
This air hydraulic foot pump is suitable for heavy machinery rigging and moving, auto repair, oil rigging, machine maintenance, etc.

Specifications
Type: Air Powered Hydraulic Pump
Action: Single acting
Control: Foot pedal pump – Release pressure to return fluid
Includes Hydraulic Hose: 5 ft with 3/8 NPT – Quick hydraulic coupler with dust cap
Flow Rate: 0.85 liters (0.22 gallons) per minute
Air Connection: 1/4″ Female NPT
Hydraulic Oil Type: AW-46
Oil Capacity: 103 in³ (1.7 liters / 1700 cc), 0.45 gallons
Max Input Air Pressure: 120 PSI
Max Output Hydraulic Pressure: 10,000 PSI
Connector Type: 3/8″ NPT ISO 14540 quick hydraulic coupler with dust cap
Weight: 17.72 lbs/8.04 kg

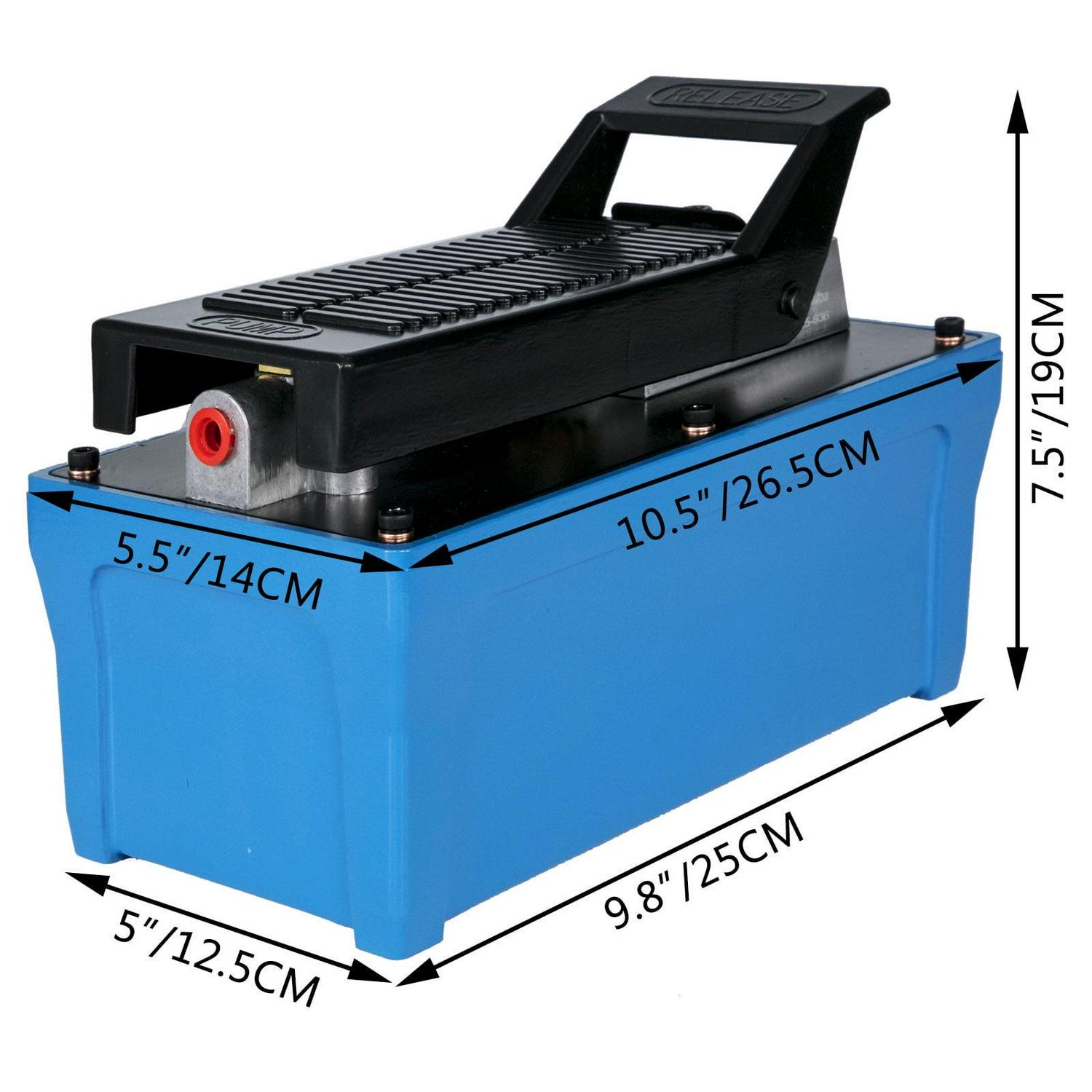

Dimensions (L x W x H): 12.2 x 8.26 x 7.4″/31 x 21 x 19 cm

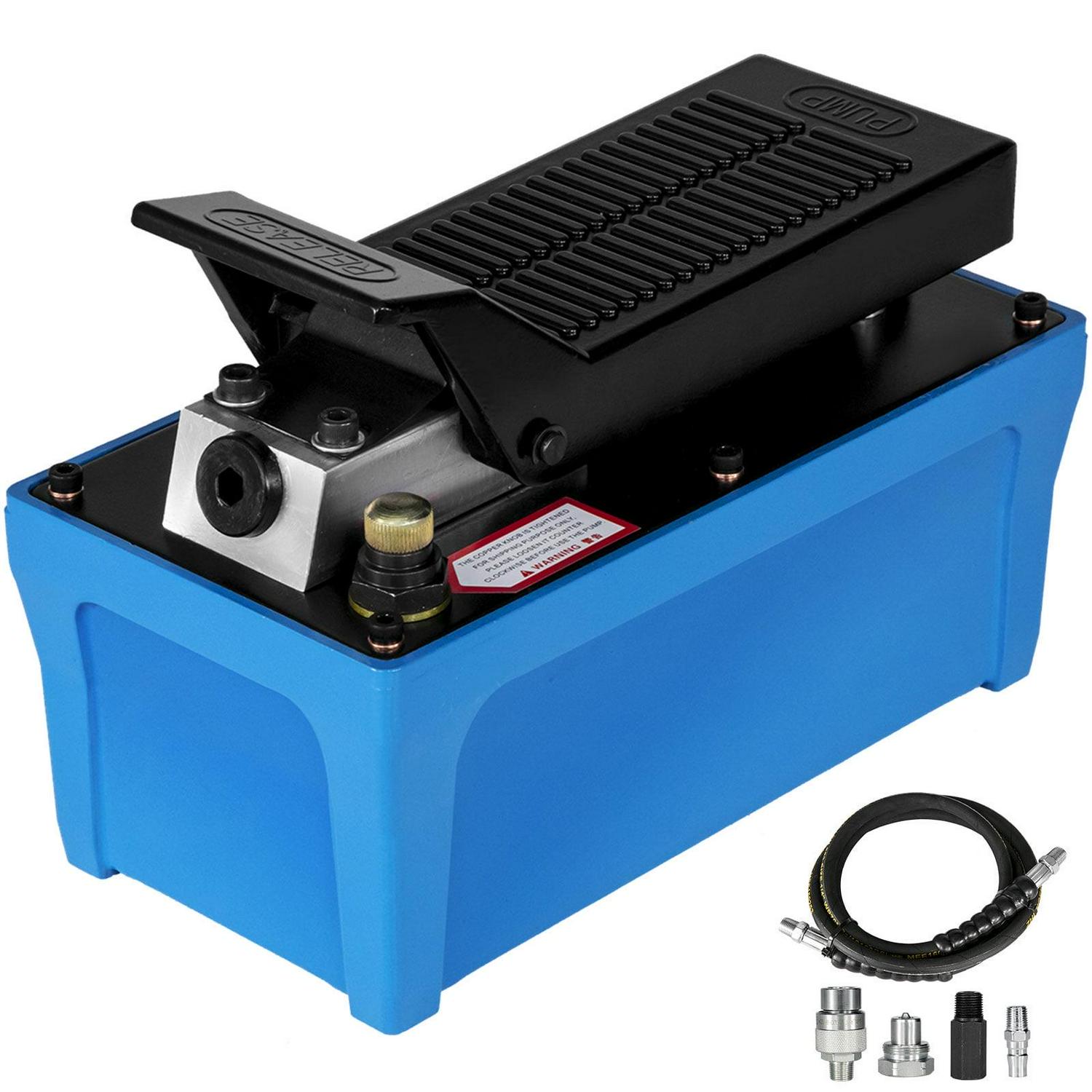

Package Content
1 x Blue foot pump

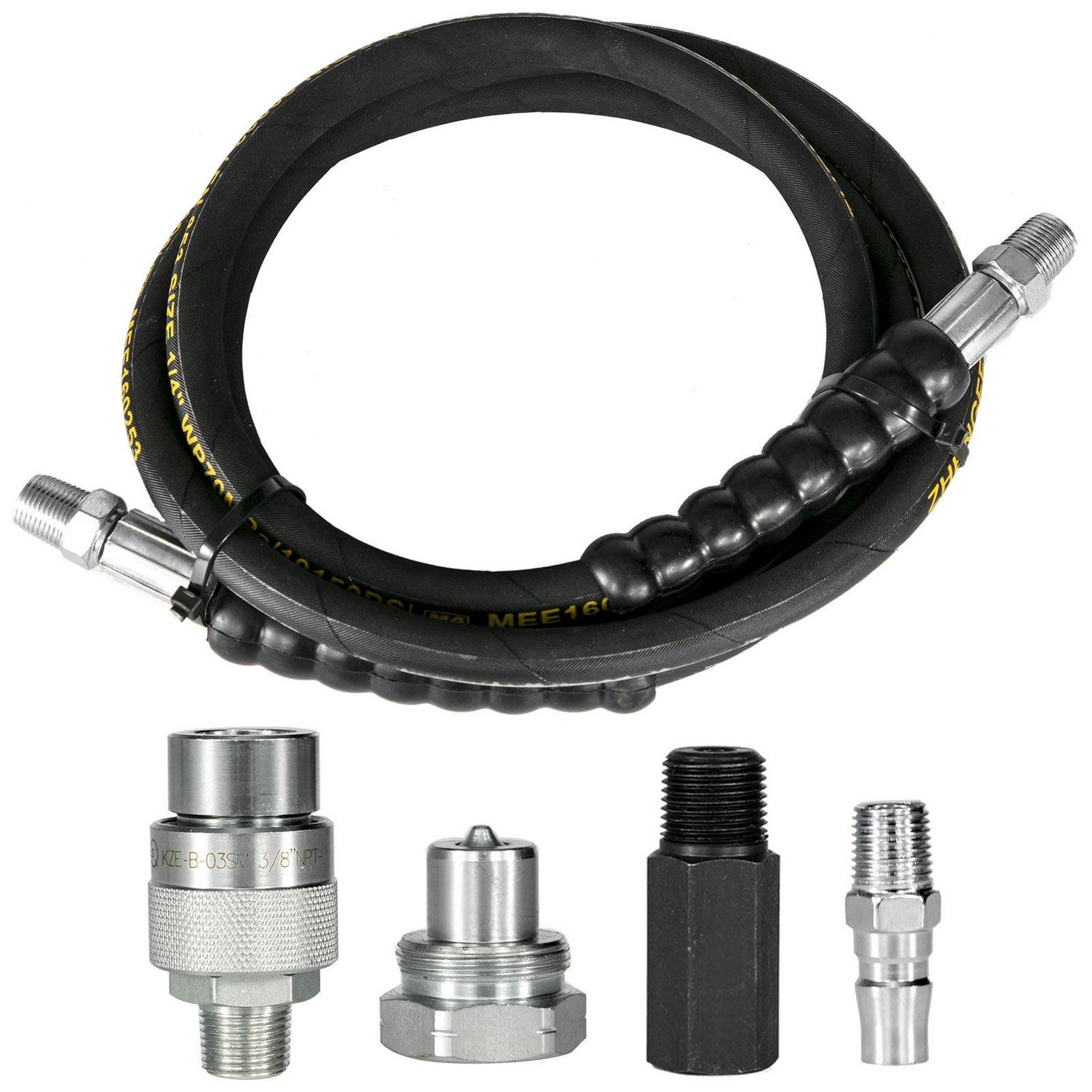

1 x High pressure oil pipe
2 x Quick connector
1 x Air gun connector with air pipe
1 x Manual

– PREMIUM QUALITY PARAMETERS – The shell and pump core of this air hydraulic foot pump is made of high-quality material for rust resistance. Baked Powder TUFF COAT finish maximizes assembly corrosion resistance. This hydraulic pump’s maximum output hydraulic pressure is 10,000 PSI with 0.85 liters/0.22 gallons per minute flow and 120 PSI Max Input Air Pressure.
– FOOT-ACTUATED DESIGN – This air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation, which is able to save the operator’s time and effort with strong power and high output pressure. It is easier to use simple pedal control to pump, hold, or release the load.
– STANDARD CONNECTOR TYPE – The pump features a 3/8″ NPT connector quick hydraulic coupler with dust cap and the cast steel oil port, which will not leak oil easily and is abrasion-resistant. Air Connection: 1/4″ Female NPT; Oil Capacity: 103 in³ (1.7 liters / 1700 cc), 0.45 gallons.
– DURABLE OIL PIPELINE – This hydraulic ram pump is equipped with a high-pressure oil pipe that applies double protection of embedded steel wires and a thickened outer layer. The oil port is made of cast steel to resist oxidation, compression, and deformation, no worry about the oil leak.
– EXTENSIVE USE – This hydraulic foot pump is designed for various plungers, presses, and hydraulic pullers. It is ideal for massive machinery rigging and moving, auto repair, automobile manufacturing, oil rigging, machine maintenance, and single-acting cylinders.
