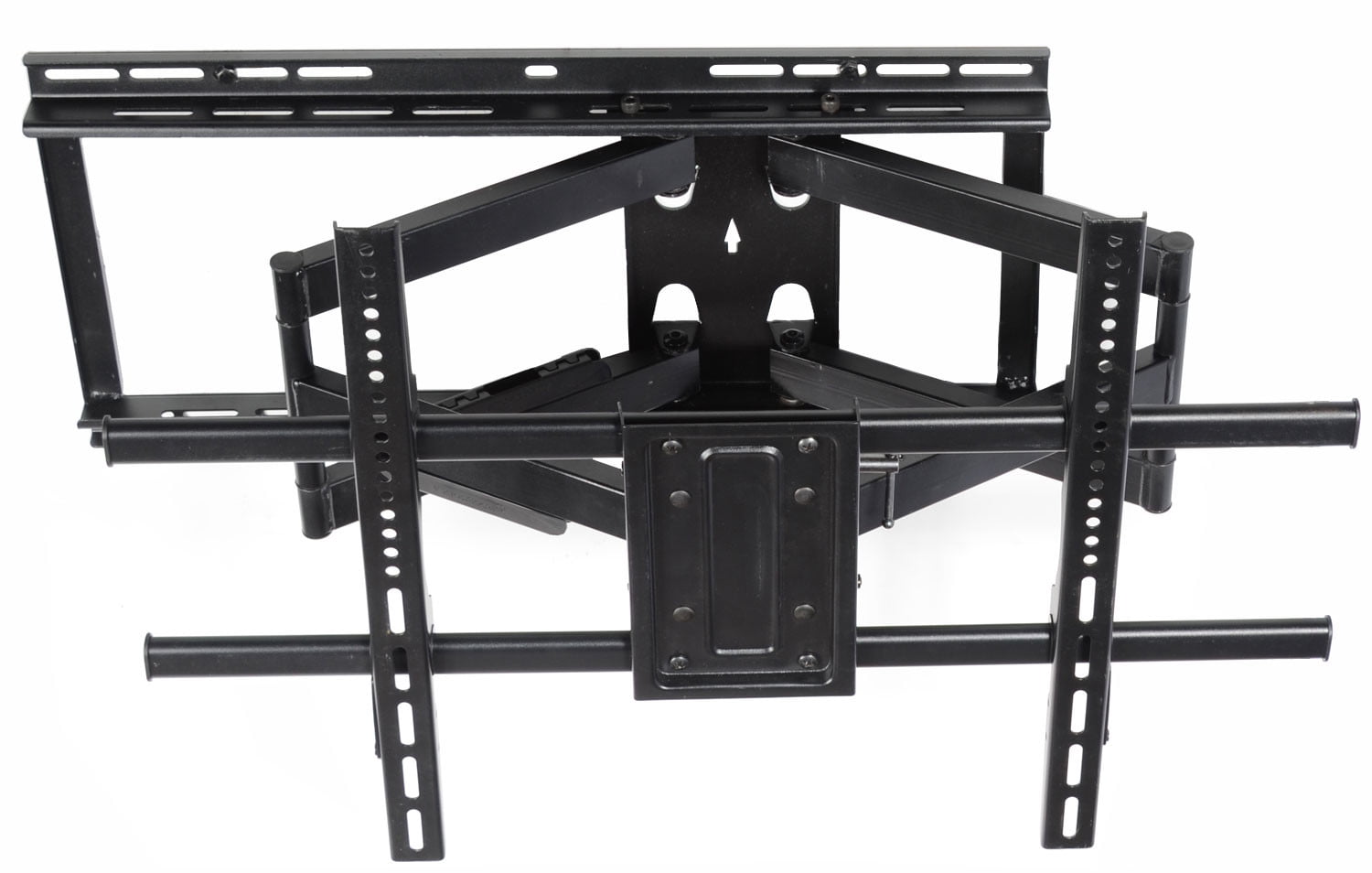

VideoSecu Heavy Duty Full Motion TV Wall Mount Articulating Bracket for VIZIO 50 55 60 65 70 75 80 Inch LED LCD Plasma HDTV D65-E0 E65-E0 E65-E1 M65-E0 P65-E1 E70-E3 M70-E3 M75-E1 P75-E1 E80-E3 BN5

Description

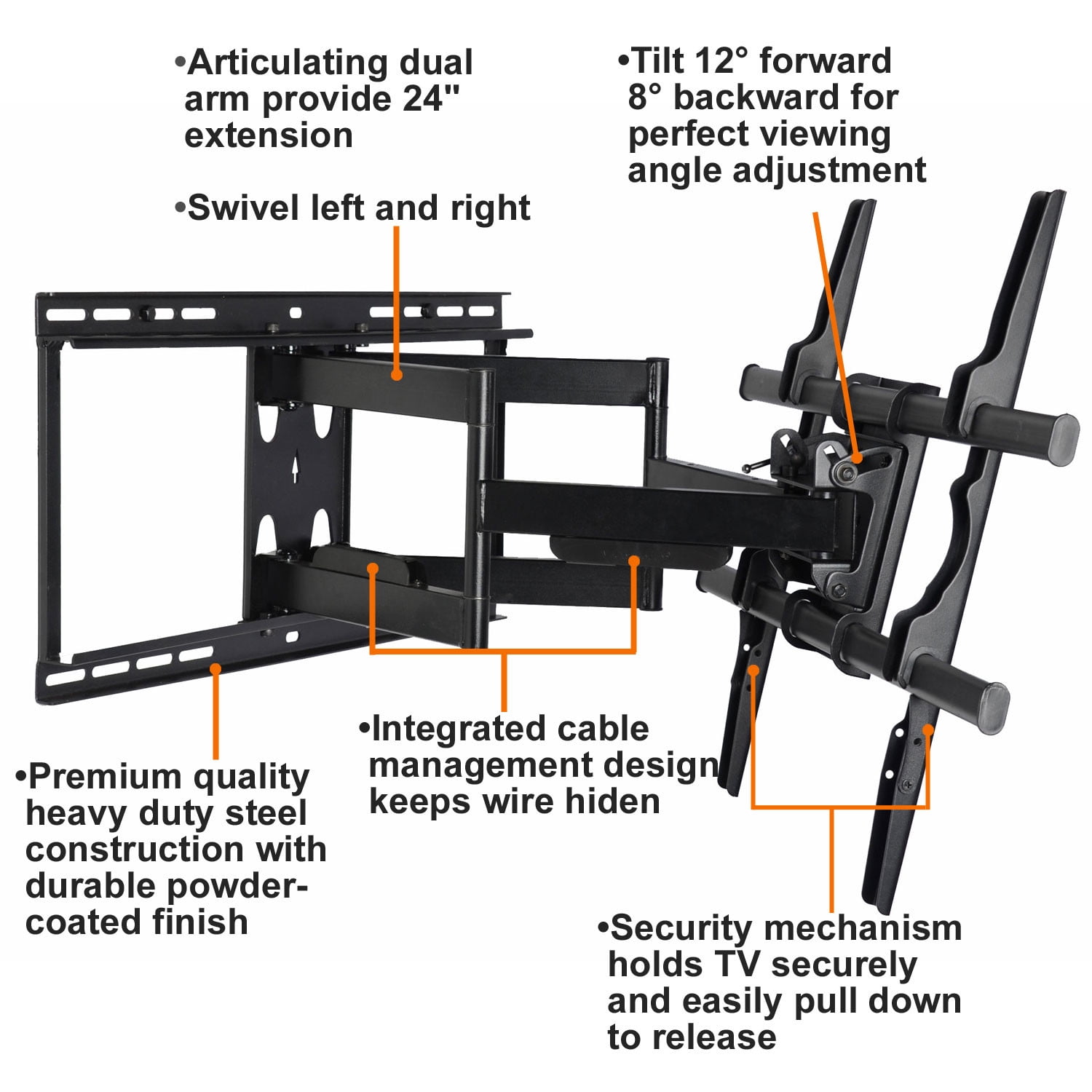

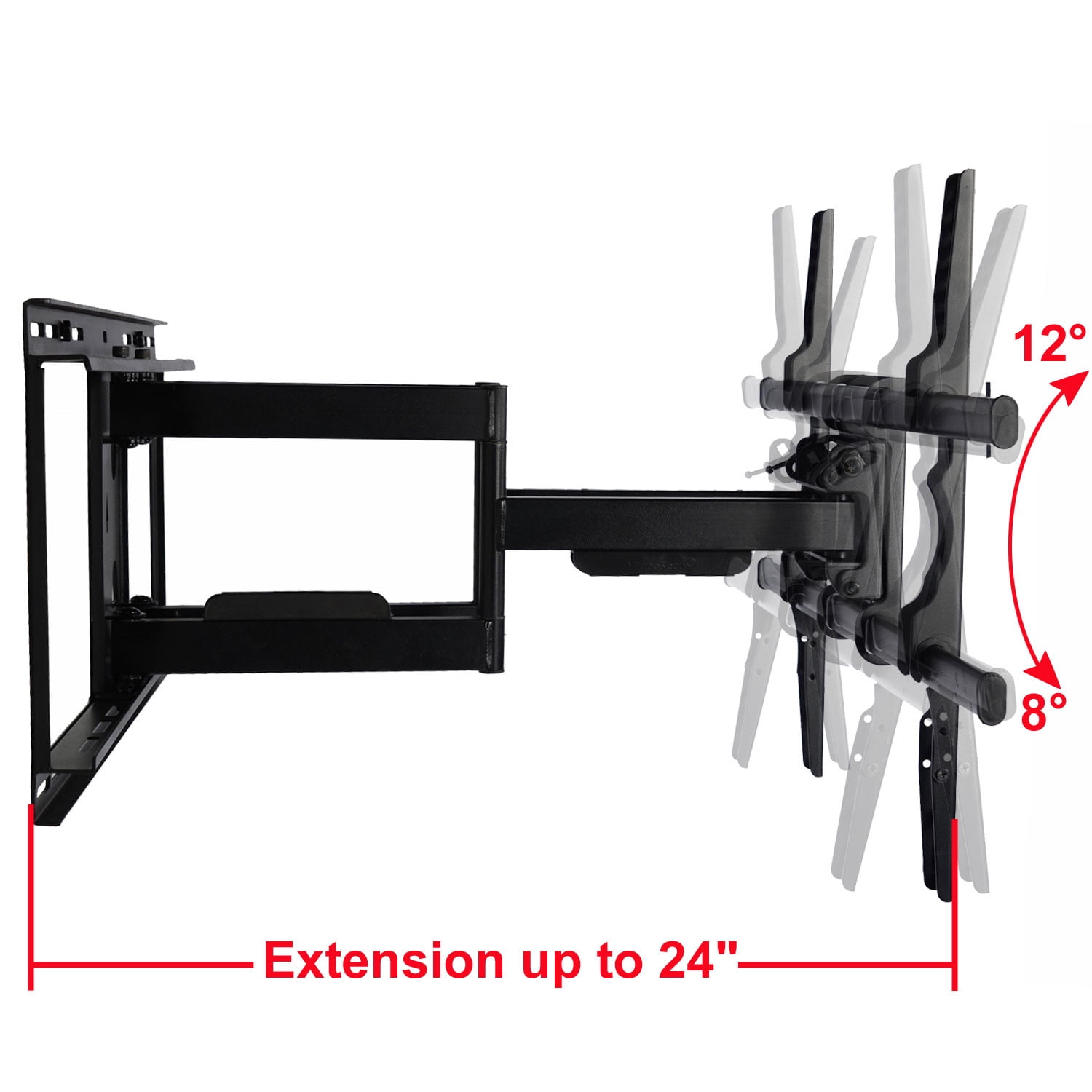

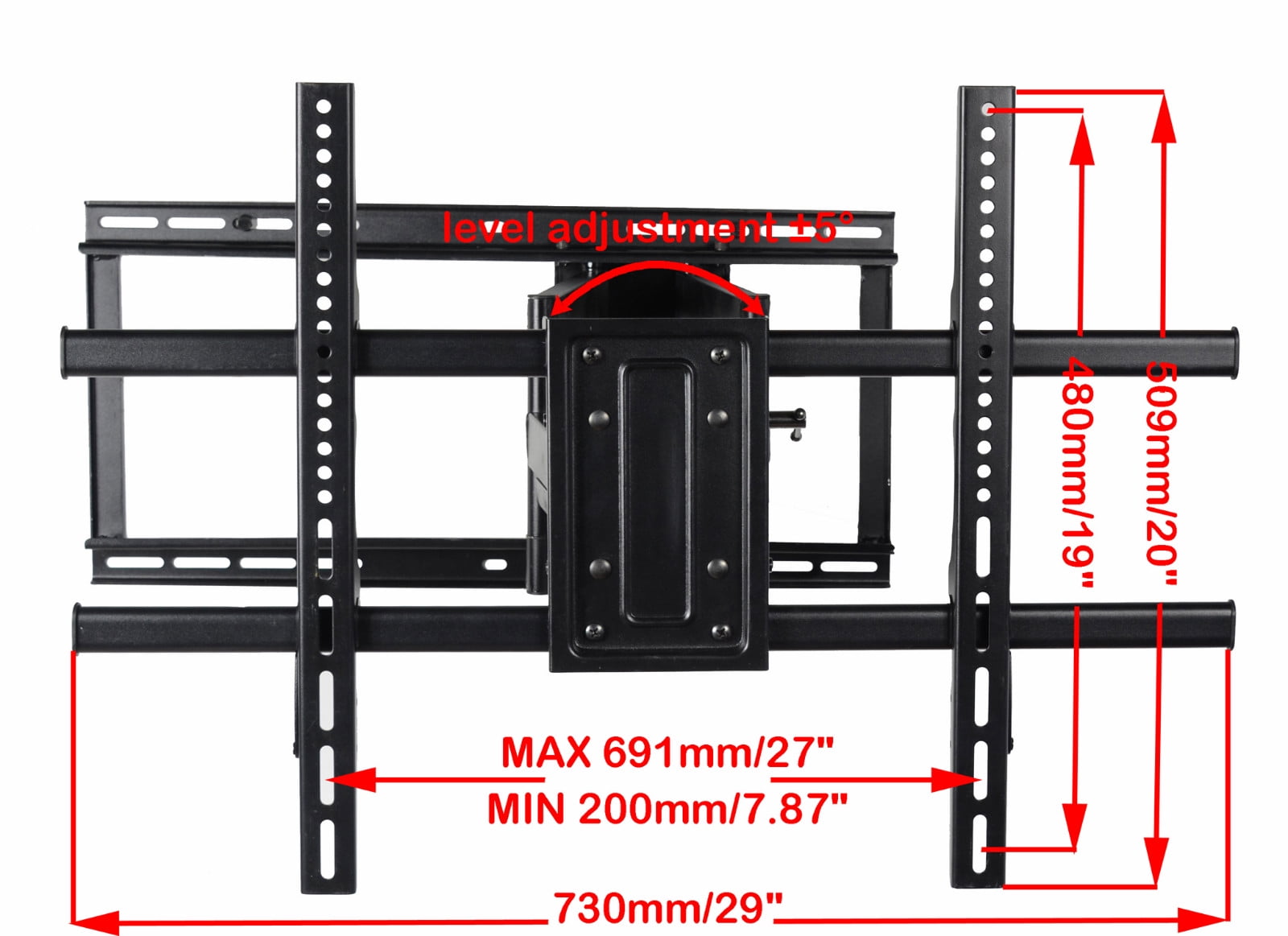

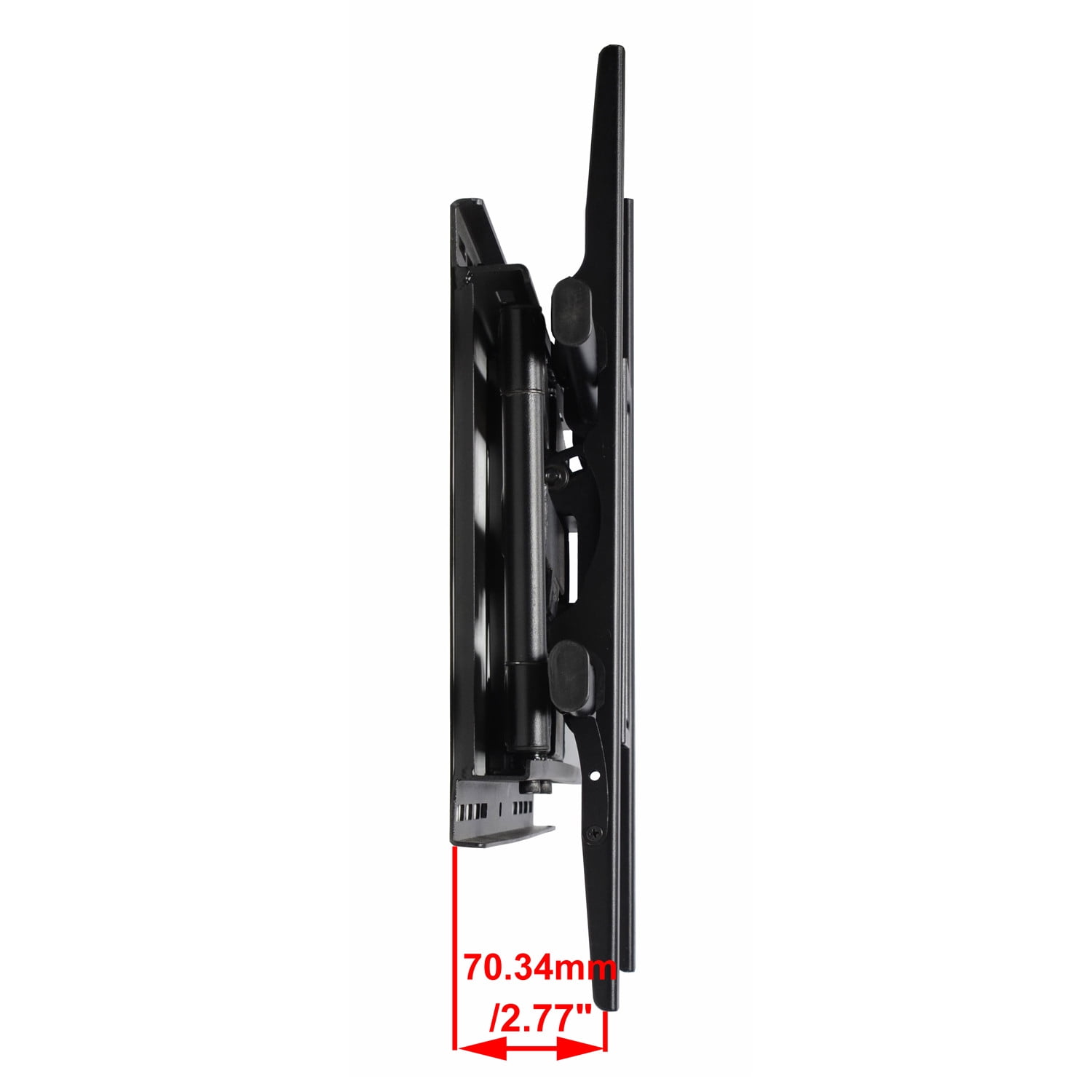

Features: Premium quality – heavy-duty steel construction with durable powder-coated in black finish Multi-directional adjustment tilt, swivel, and extend for perfect viewing angle Post-installation level adjustment allows the TV to perfectly level The center of the TV can lateral shift on the wall plate to the middle, left, or right The rectangle cable management covers on the arm keep the wire concealed and prevent pinching The nesting arm design allows the display to be folded parallel to the wall to save place Specification: Fits most 40 – 75 inch TV displays, some LED up to 88 inches (Please check VESA and weight) Fits VESA mounting hole patterns 690×480/ 684×400/ 684×300/ 600×400/ 500×300/ 400×400/ 400×300/ 300×300/ 300×200/ 200×200/ 200x100mm or any hole patterns within 200-690mm wide and 100-480mm high Loading capacity up to 135lbs/61.2kg Adjustable tilt 12 degrees forward or 8 degrees backward for perfect viewing angle Roll +/-5 degrees for level adjustment Swivel left and right for comfortable view angle in different positions Extension & Depth: the mount pulls out up to 24 inches from the wall or to be folded parallel to the wall by less than 2.77 inches to save space Fits 25-inch apart wood studs Wall plate dimension: 670x312mm (26.4″x12.3″) Package contents: TV wall mount, HDMI cable, standard mounting hardware, and user manual
